Please kindly contact us for full data sheet of the display.
DESCRIPTION

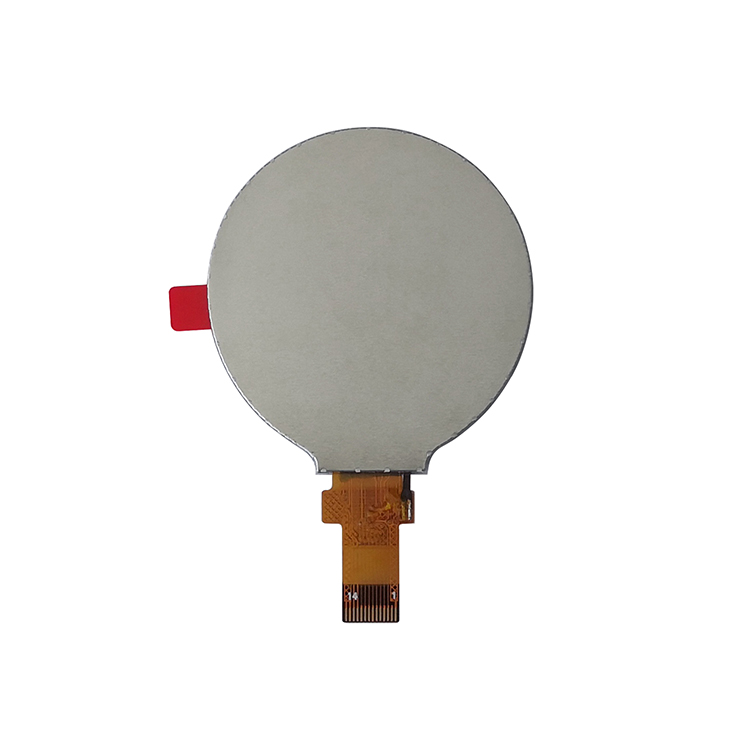

HICENDA HT1.6IPSTFT1 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 400X400 pixels and can display up to 262K colors. This product accords with RoHS environmentalcriterion.
GENERAL SPECIFICATION
| Display Type: |
Normally Black Transmissive LCD
|
| Display Mode: | COLOR TFT |
| Model Number: |
HT1.6IPSTFT1
|
| Diagonal Screen size: | 1.6 inch |
| Interface: |
Quad-SPI interface
|
| Drive Duty: |
1/64 Duty |
| Number of Pixels: |
400(RGB) x400
|
| Panel Size |
42.94 x45.89x1.65(mm)
|
| Driver IC: |
ST77903
|
| Active Area: |
39.84 x39.84(mm)
|
|
Viewing direction:
|
IPS(Full View)
|
|
Colors:
|
262K
|
|
Backlight Type:
|
3 LED Parrallel
|
|
Input voltage:
|
2.8~3.2V
|

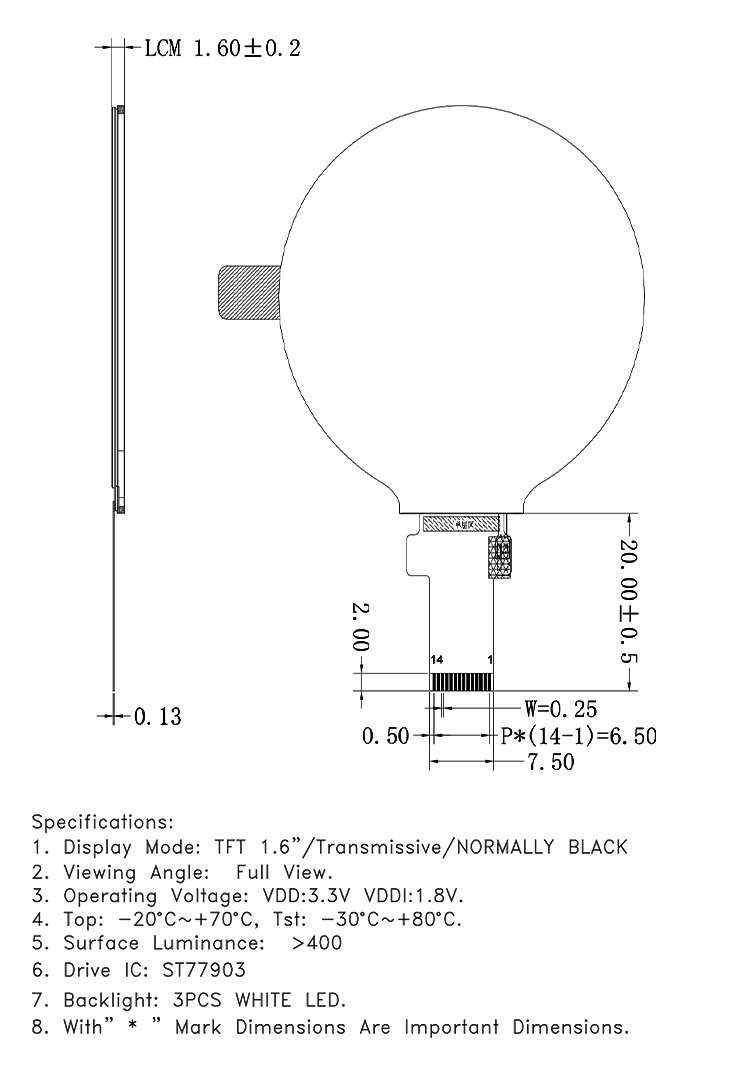

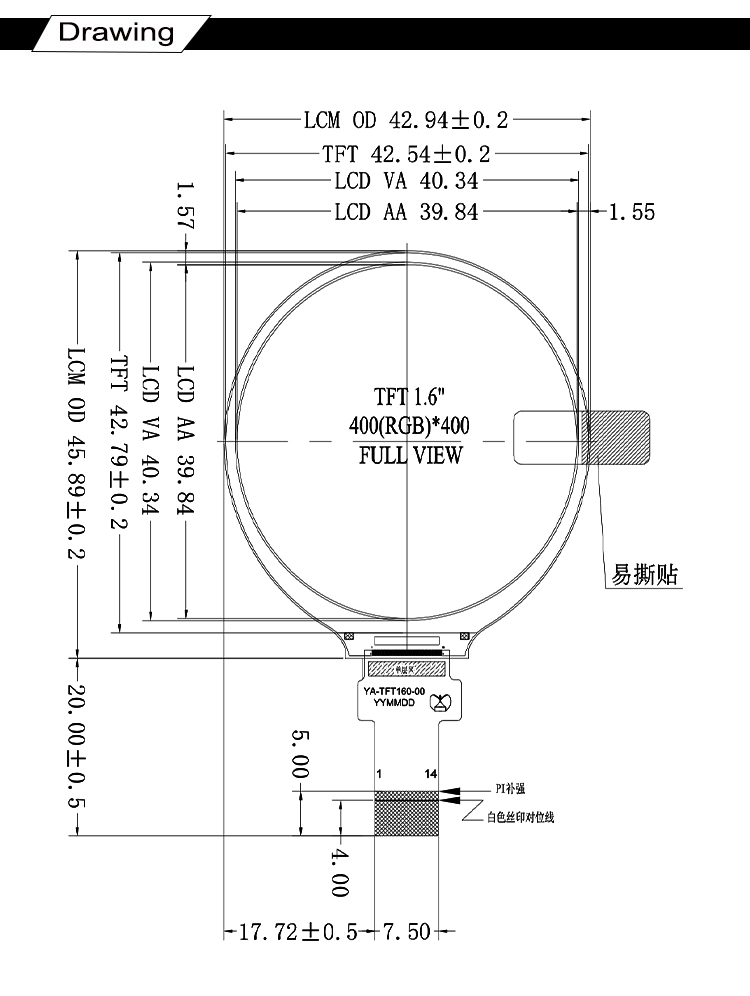

DRAWING

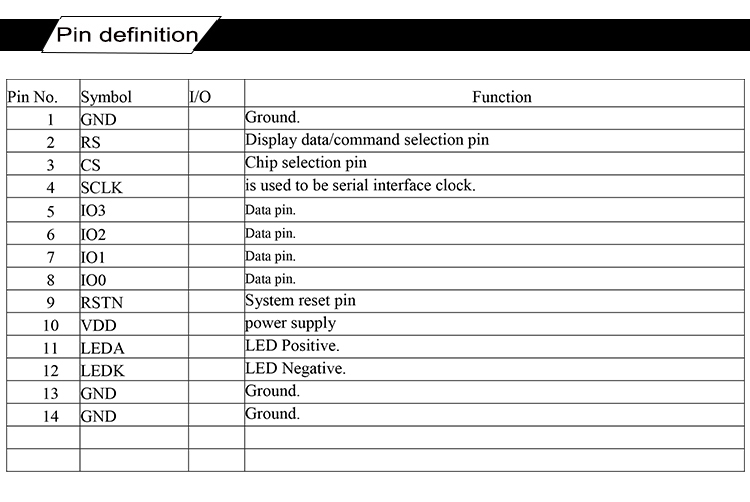

INTERFACE PIN FUNCTION
