Please kindly contact us for full data sheet of the display.

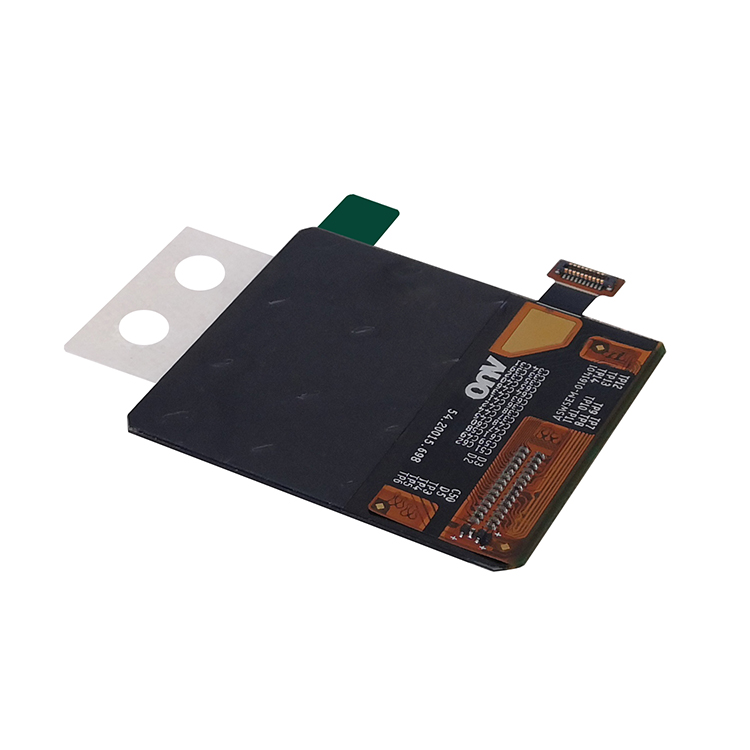

DESCRIPTION

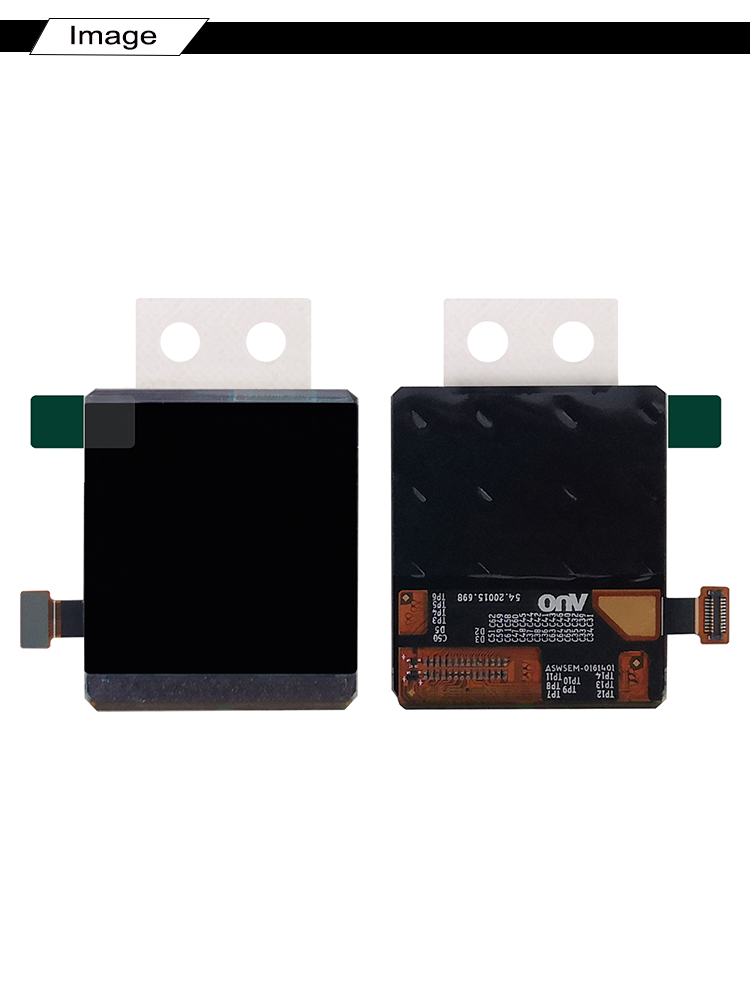

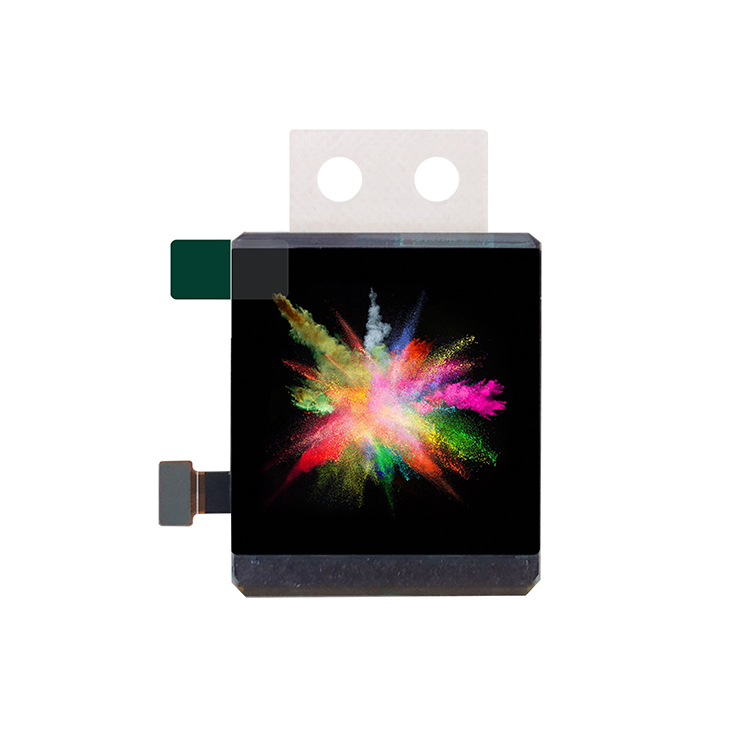

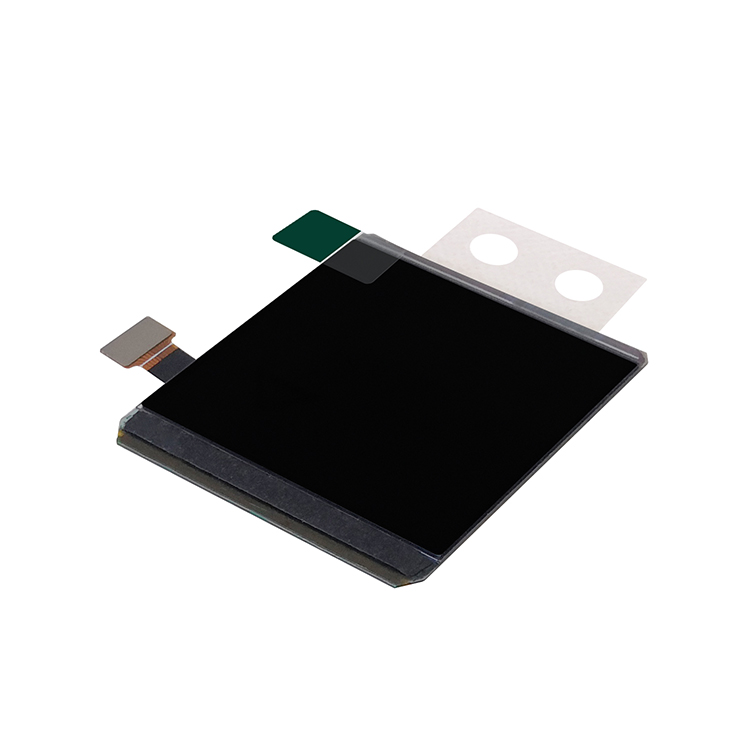

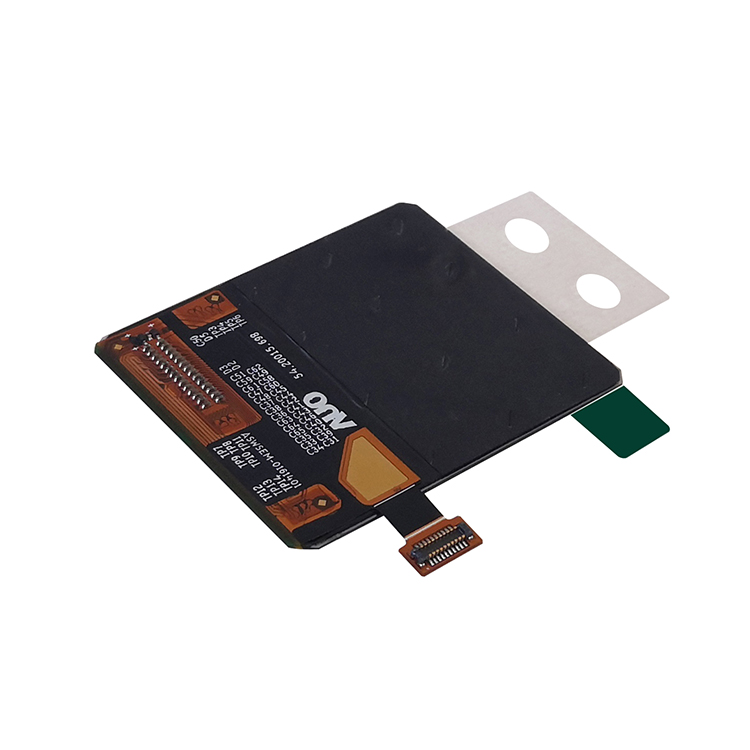

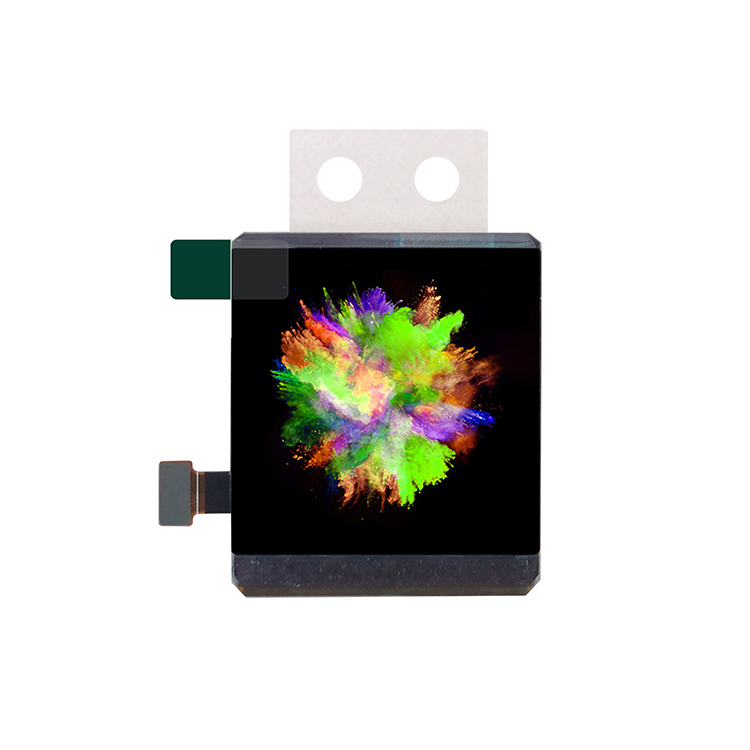

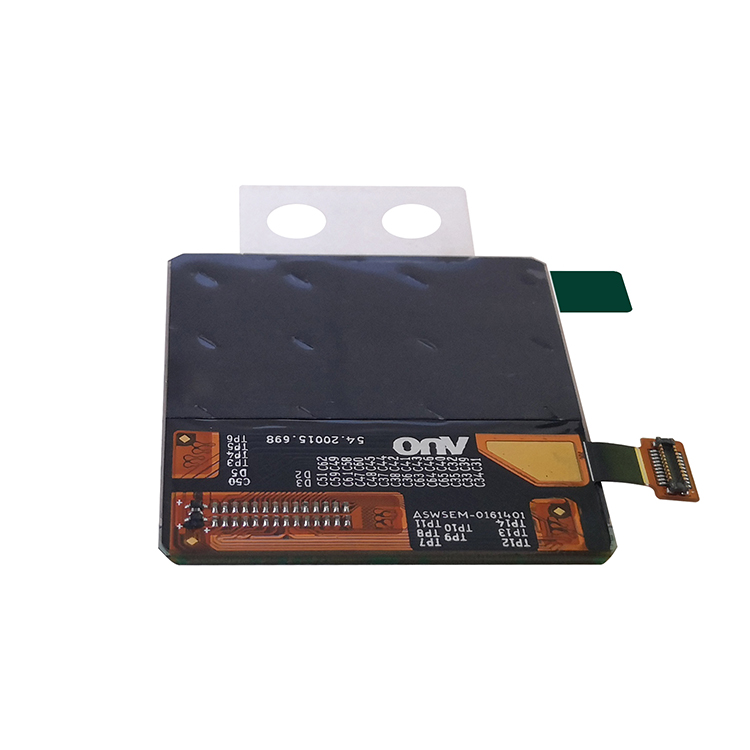

HICENDA OLED 1.63 is is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s 0141MAMBCA0 is AMOLED (Active Matrix/Organic Light Emitting Diode)
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | COLOR AMOLED |
| Model Number: |
HG-X163QLN01 |
| Diagonal Screen size: | 1.63 inch |
| Interface: |
MIPI DSI |
| Drive Duty: |
1/64 Duty |
| Number of Pixels: | 320x320 |
| Panel Size |
32.08 (H) × 36.48(V) × 0.7(T)(mm)
|
| Driver IC: |
TBD
|
| Active Area: |
29.28 (H)×29.28(V)
|
|
Display Color (M):
|
16.7
|
|
Brightness (nits)
|
300
|
|
Pixel Configuration:
|
TBD |
|
Operating Temperature: |
-40~85° |

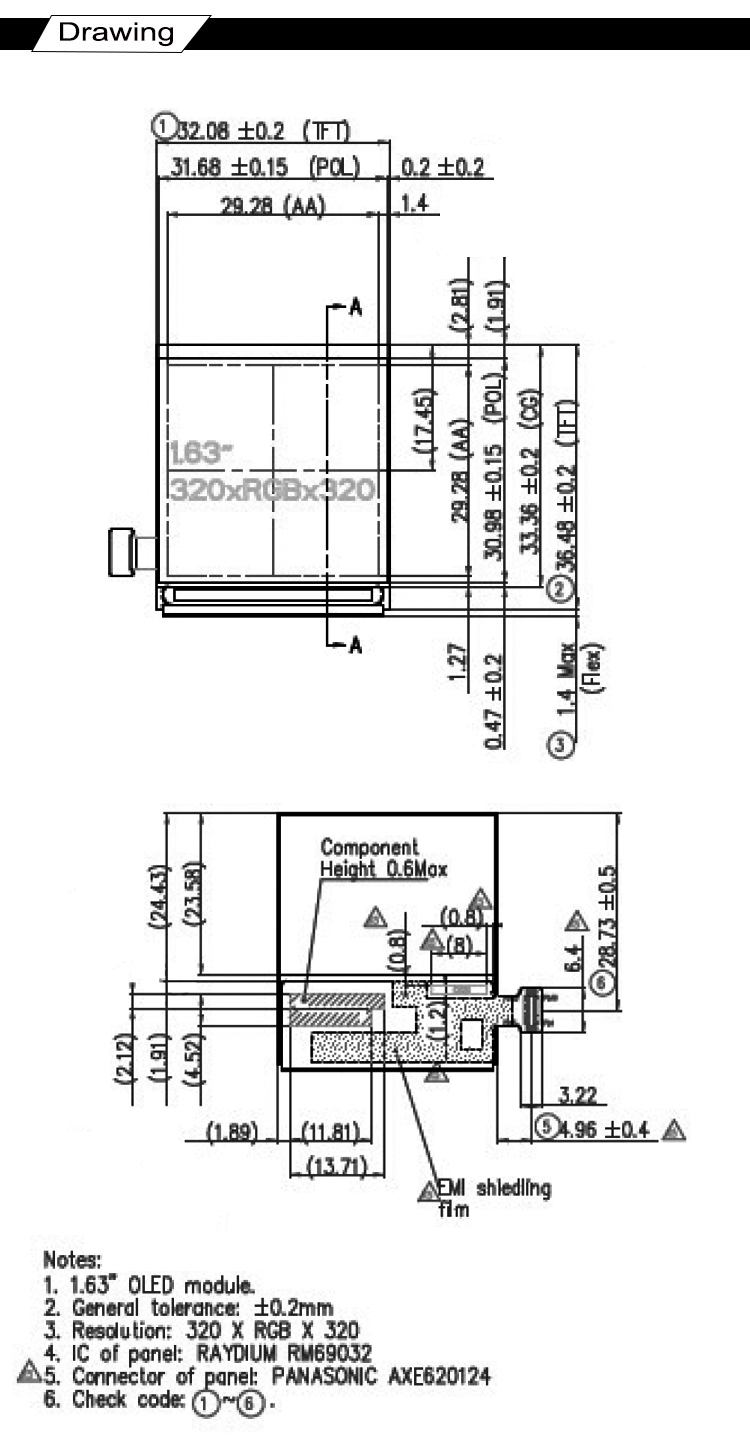

DRAWING
INTERFACE PIN FUNCTION
