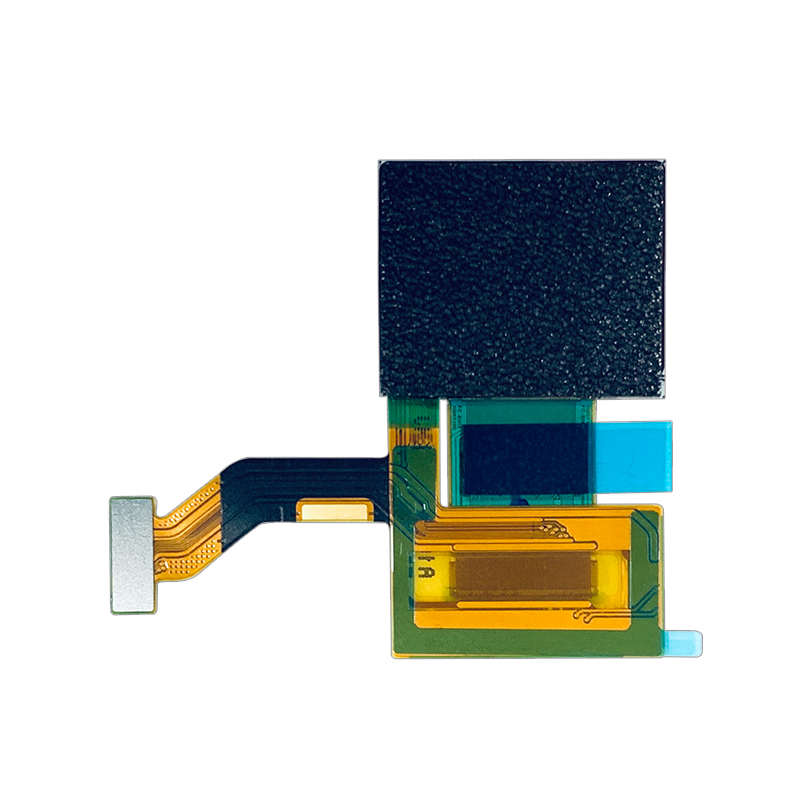

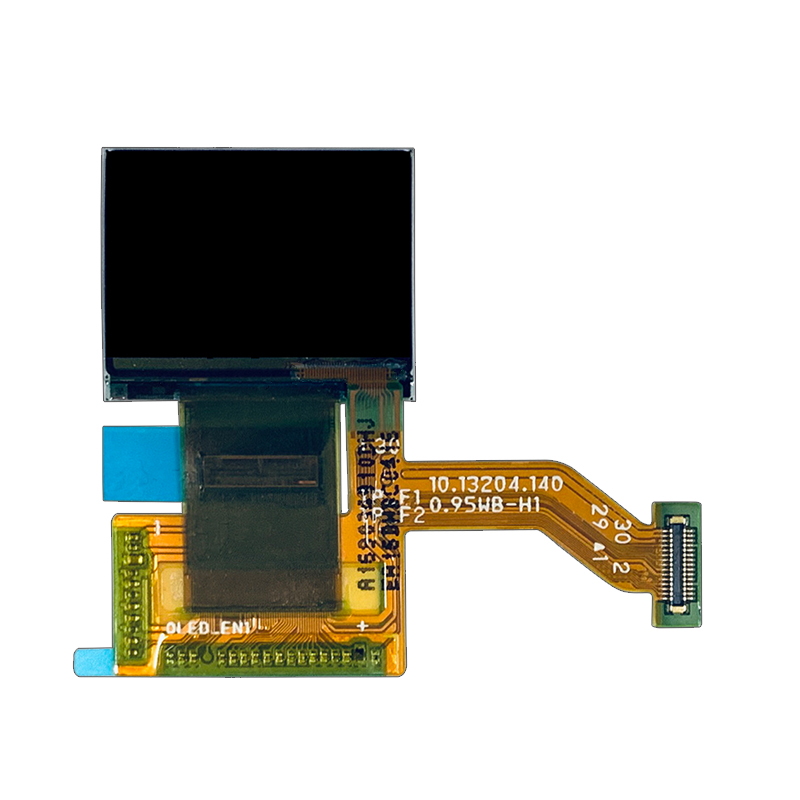

0.95 amoled square screen oled 0.95'' RM67160 Driver ic screen display smart wearable home automation screen

0.95 amoled square screen oled 0.95'' RM67160 Driver ic screen display smart wearable home automation screen

0.95 amoled square screen oled 0.95'' RM67160 Driver ic screen display smart wearable home automation screen

Display Mode :Amoled
Size: 0.95
Resolution: 180*120
Interface:SPI
Product description: Hicenda Technology Co.,ltd can supply high quality 0.95 inch small amoled display, smartwatch amoled mintor display,0.95 inch amoled Display multicolour 180*120 dots
INQUIRY

1. Display Specifications

LCD Size: 0.95 inches
Dot Matrix Size: 180*120
Display mode:Amoled
Hardware Interface: SPI
Driver IC: RM67160
Operating Temperature: -20℃ - +70℃
Working Power Supply: 3.0V
PIN NO: 30Pin

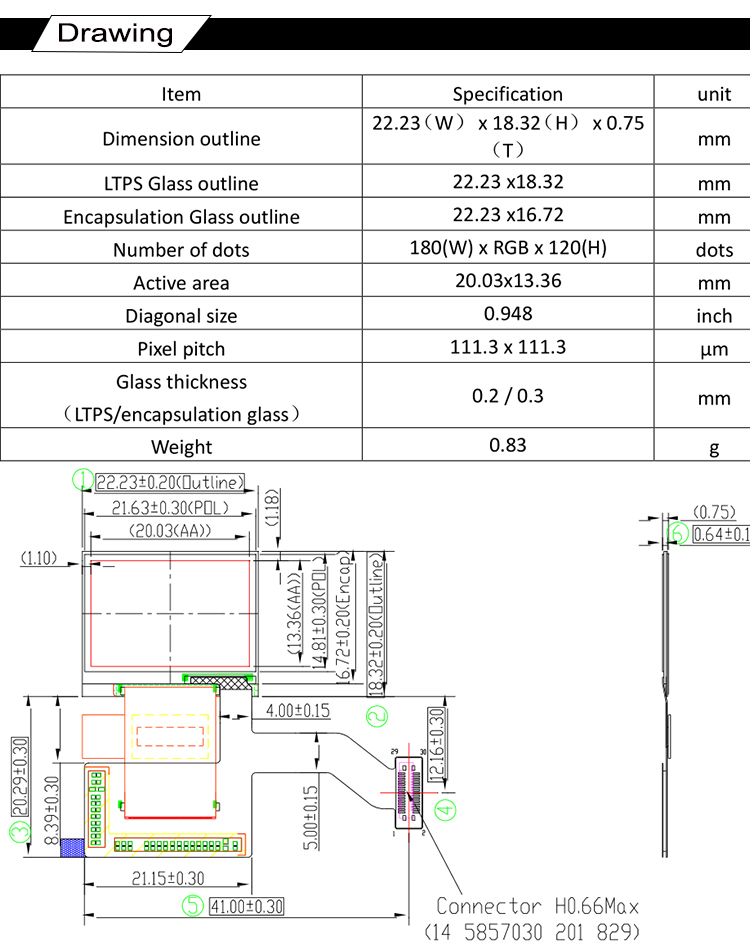

Active Area:20.03x13.36 mm
Dimension Outline : 22.23(W) x 18.32(H) x 0.75 (T)
Display color: 16.7M (RGB x 8bits)

PINo Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
