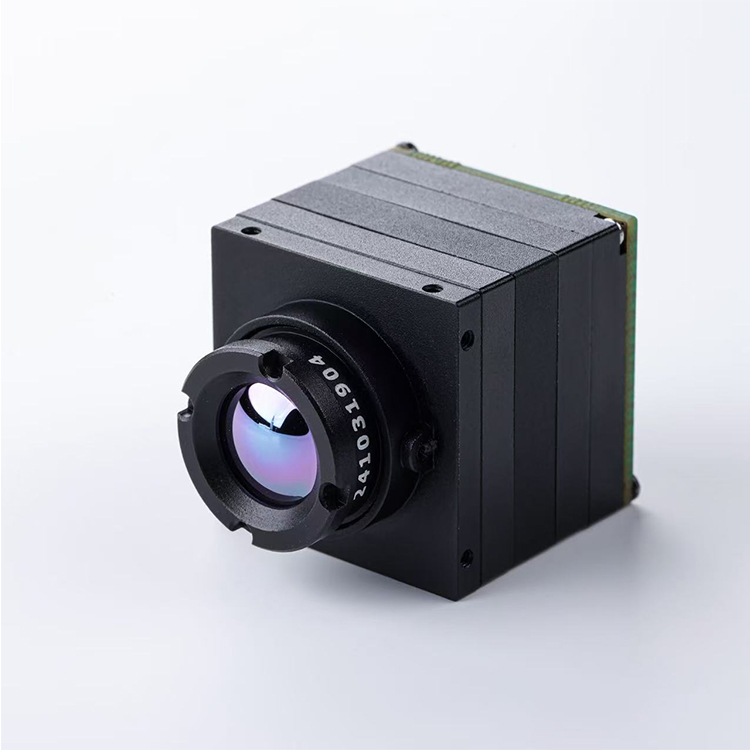

Uncooled Camera Core supporting 640x512 with CVBS Interface for Drone


Description

The uncooled camera core is equipped with 640x512 resolution infrared detector, high-performance signal processing circuits and professional image processing algorithms, offering high image quality
with sharp edges, sense of depth, fast frame rate and high temperature measurement. This core has the advantages of small size,low power consumption, cost-effective, customisable. It is suitable for
the development and integration of infrared thermal imaging equipment or systems in various fields, as well as all kinds of imaging whole machine and optoelectronic system. It can be applied to industrial process/quality control system, security monitoring, vehicle night vision,IoT, drones, industry 4.0 etc.




Key Features and Specifications

Parameter                                      Specification Details
Detector Type VOx microbolometer
Resolution 640 × 512
Pixel Pitch 12 μm
Spectral Range 8–14 μm (LWIR)
NETD ≤40 mK
Lens 9.1 mm
Frame Rate ≤50 Hz
Image Modes Brightness/Contrast (auto/manual), Polarity, Palettes
Image Processing NUC, noise reduction, detail enhancement, E-zoom, mirror
Video Output CVBS
Communication RS232
Power Input DC 5–12 V
Power Consumption ≤1 W
Protections Overcurrent, overvoltage, reverse input
Operating Temperature –20 °C ~ +60 °C
Storage Temperature –45 °C ~ +85 °C
Humidity 5–95% (non-condensing)
Vibration 6.06 g, all axes, random vibration
Shock 40 g, 4 ms, 6-axis
Dimensions 26 × 26 × 21.1 mm (excluding lens/connectors)
Weight ≤23 g (excluding lens/connectors)


Infrared Detector Characteristics

Detector Type and Spectral Response

The core utilizes a vanadium oxide (VOx) microbolometer detector with a spectral response from 8 to 14 μm, suitable for long-wave infrared (LWIR) imaging. This range is particularly effective for detecting thermal signatures in diverse atmospheric conditions, such as fog, haze, or low light.

Resolution and Sensitivity

Resolution: 640 × 512 pixels with a 12 μm pixel pitch enables detailed scene reproduction.

Thermal Sensitivity (NETD): ≤40 mK ensures subtle temperature differences are discernible, crucial for surveillance, search-and-rescue, and navigation applications.



Image Adjustment and Processing

Display Optimization

The system provides flexible image tuning:

Brightness/Contrast: Auto or manual adjustment to adapt to scene conditions.

Polarity: White Hot or Black Hot modes to suit operator preference.

Color Palettes: Iron, Iron Invert, Rainbow, and Feather for enhanced interpretation of thermal data.


Image Processing Features

Advanced algorithms ensure superior image clarity:

Non-Uniformity Correction (NUC) for detector calibration.

Digital Filter Noise Reduction to suppress random interference.

Detail Enhancement to sharpen edges and improve readability.

Electronic Zoom (x1, x2, x4) and image mirroring (vertical/horizontal) for flexible field-of-view adjustment.

High stable sensitivity,clear and imaging

High frame rate, smooth video stream

Highly integrated and convenient for secondary development

Smaller lighter and lower power consumption


Power and Protection Features

The camera core is designed for power efficiency and safety

Input Voltage: DC 5–12 V.

Consumption: ≤1 W, supporting extended drone flight times.

Protections: Overcurrent, overvoltage, and reverse input safeguards ensure stable operation even in power fluctuation scenarios


Environmental and Mechanical Reliability

Operational Resilience

Operating Temperature: –20 °C to +60 °C.

Storage Temperature: –45 °C to +85 °C.

Humidity: 5–95%, non-condensing.

Mechanical Endurance

Vibration: 6.06 g across all axes for random vibration tests.

Shock: 40 g with 4 ms peak sawtooth pulses across 6 directions.

Weight & Size: 26 × 26 × 21.1 mm dimensions and ≤23 g weight (excluding lens/connectors) enable seamless drone integration.



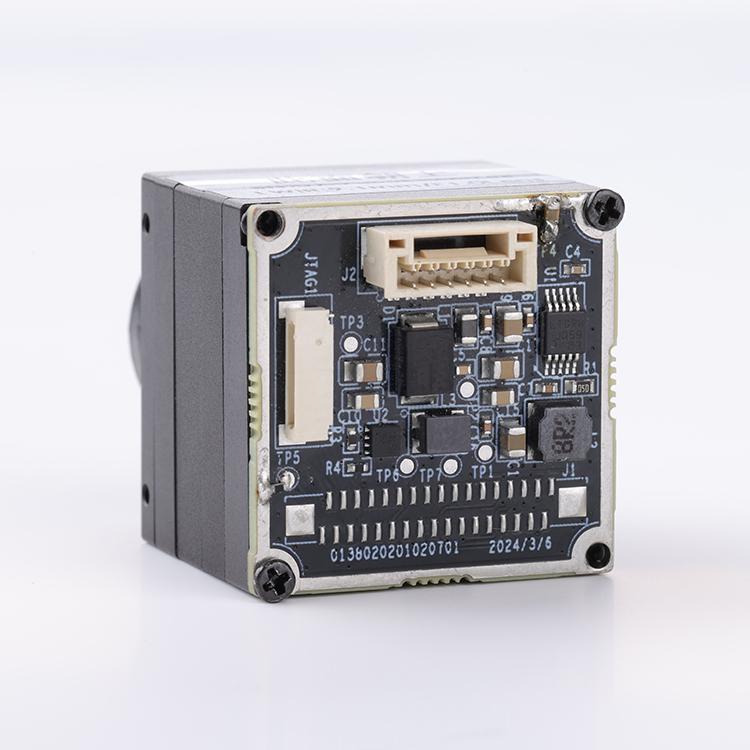

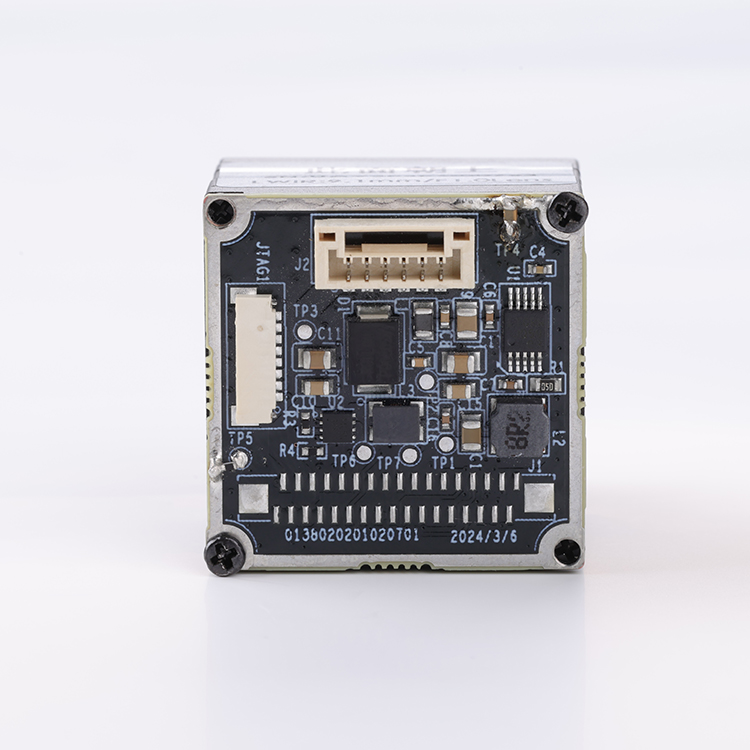

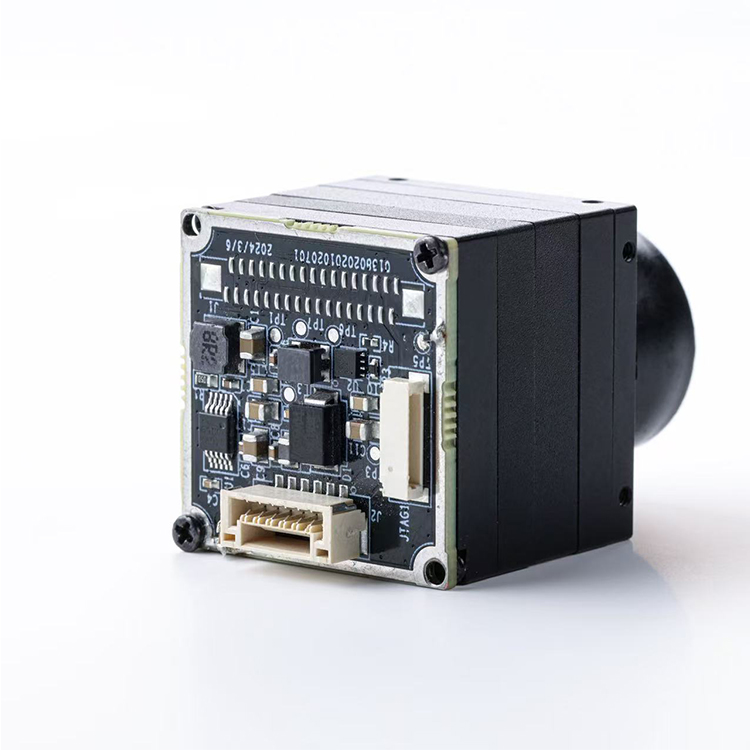

System Interfaces

The uncooled core integrates standard interfaces for versatile deployment:

Video Output: CVBS (analog) ensures compatibility with existing transmission systems.

Communication Port: RS232 for configuration and control.

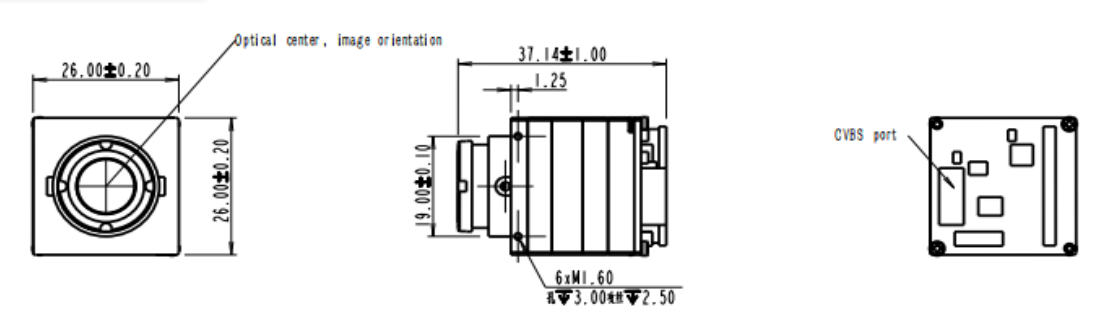

DRAWING


SPECIFICATIONS

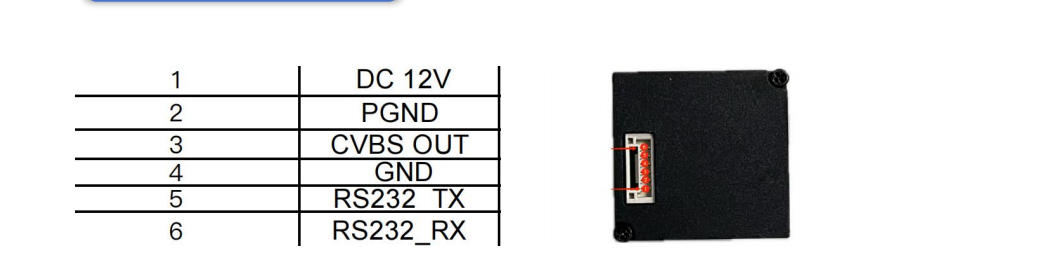

Interface Pin Function
