  • Cover Glass for TFT OLED Displays in Automotive and Industrial Applications

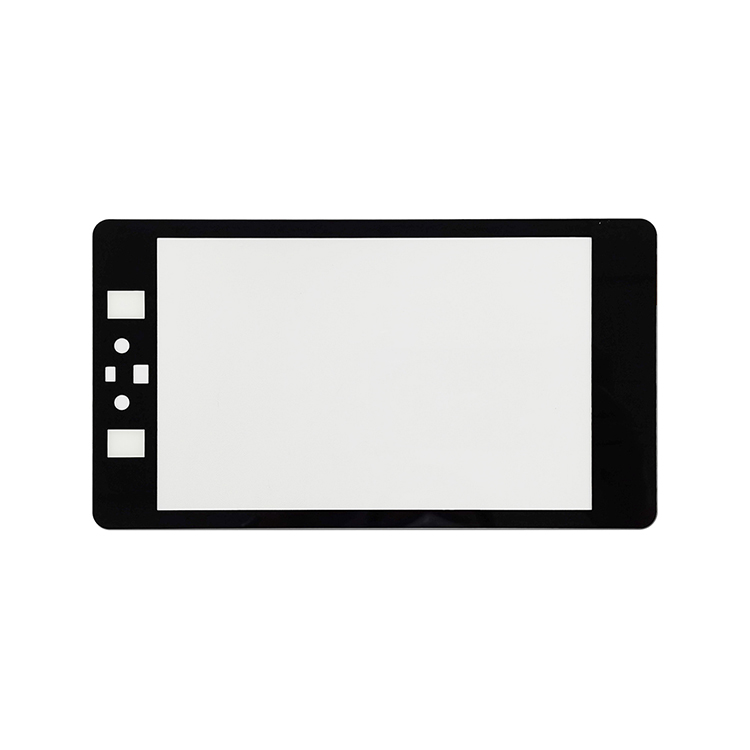

Cover Glass for TFT OLED Displays in Automotive and Industrial Applications

Cover Glass for TFT OLED Displays in Automotive and Industrial Applications

  • Material:Gorilla® Glass
  • Glass thickness: 1.8-15mm
  • Surface treatment: AG/AF/AR
  • Customization: Avaialble
  • Product description: Cover Glass for TFT OLED Displays in Automotive and Industrial Applications
  • INQUIRY

Cover Glass for TFT OLED Displays in Automotive and Industrial Applications


The integration of high-performance cover glass into TFT OLED displays has become indispensable for automotive and industrial devices. In car navigator applications, the cover glass typically employs Gorilla® Glass, with alternatives such as AGC Dragontrail, Panda Glass, aluminosilicate glass, soda lime glass, acrylic (PMMA), or polycarbonate (PC). Thickness ranges between 1.8 mm and 15 mm, ensuring compatibility with diverse structural needs. Advanced surface treatments such as anti-glare (AG), anti-reflective (AR), and anti-fingerprint (AF) coatings significantly enhance usability under challenging lighting conditions. With impact resistance up to IK6–IK10, optical transmittance around 90%, one-color black silkscreen printing, and chemical tempering, the material provides both durability and clarity. Optical Clear Adhesive (OCA) bonding ensures high-quality lamination, while antibacterial and UV-resistant treatments extend service life. These properties make customized solutions viable for in-vehicle smart devices, center consoles, navigation units, EV charging stations, and industrial control equipment.



Material Characteristics and Selection

Glass and Polymer Options

Choosing the right substrate is critical for balancing durability, optical performance, and cost. Gorilla® Glass remains a premium choice for automotive-grade applications due to its superior hardness and impact resistance. Meanwhile, AGC Dragontrail and Panda Glass provide competitive alternatives with similar mechanical robustness. Aluminosilicate glass is preferred for its thermal stability, while soda lime glass offers cost efficiency in less demanding environments. For lightweight or impact-prone designs, polymer substrates such as PMMA and PC serve as reliable options.



Thickness and Mechanical Strength

The glass thickness range of 1.8–15 mm allows engineers to tailor solutions to different end-use scenarios. Thicker panels contribute to enhanced IK ratings (IK6–IK10), improving resistance to mechanical shock and vibration, which are common in both automotive and industrial applications.



Surface Treatment and Functional Enhancements

Anti-Glare (AG), Anti-Reflective (AR), and Anti-Fingerprint (AF)

Surface functionalization is essential for visibility and cleanliness.

AG Coating diffuses incident light to minimize glare in sunlight.

AR Coating reduces reflectance, improving contrast and readability.

AF Coating prevents fingerprint accumulation and eases cleaning.




Optical Clear Adhesive (OCA) Processing

OCA bonding technology enhances optical clarity by eliminating air gaps, reducing internal reflection, and improving touch sensitivity. It also contributes to structural stability, especially under high-temperature cycling common in automotive environments.



Durability and Environmental Resistance

Tempering and UV Resistance

Chemical tempering strengthens the glass surface against scratches and mechanical stress. Long-lasting UV resistance prevents discoloration and peeling in outdoor or high-exposure environments.



Antibacterial Treatment

An extended antibacterial coating further increases reliability for shared industrial and automotive interfaces, safeguarding hygiene in public-use scenarios.




Applications Across Automotive and Industrial Fields

Cover glass with these specifications is widely adopted in:

In-vehicle smart systems: Navigation, infotainment, and HUDs.

Center consoles: Interactive control panels requiring robust glass.

EV charging stations: Outdoor terminals demanding high UV resistance.

Industrial control equipment: Human-machine interfaces with strong durability requirements.




Technical Specification Overview


Parameter Specification Range / Options
Material Options Gorilla® Glass, Dragontrail, Panda Glass, Aluminosilicate, Soda Lime, PMMA, PC
Glass Thickness 1.8–15 mm
Surface Treatments AG / AR / AF
IK Level IK6 – IK10
Optical Transmittance ≈90%
Printing One-color black silkscreen
Tempering Chemical tempering
Bonding OCA lamination
Special Features UV resistance, antibacterial coating
Applications Car navigator, EV charger, industrial HMI, center console




Customization and Future Development

With the growing demand for high-reliability display modules, customization of cover glass extends beyond dimensions and printing. Engineers increasingly request tailored coatings, selective optical tuning, and hybrid material integration. Future trends will emphasize lightweight glass-polymer composites, nanostructured AR coatings, and enhanced bonding processes, ensuring superior performance under evolving automotive and industrial requirements.
