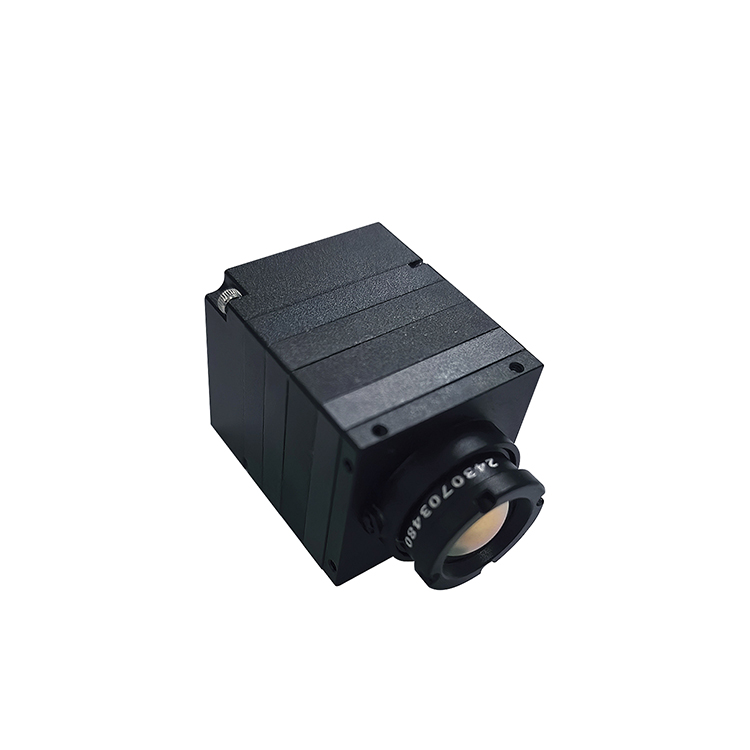

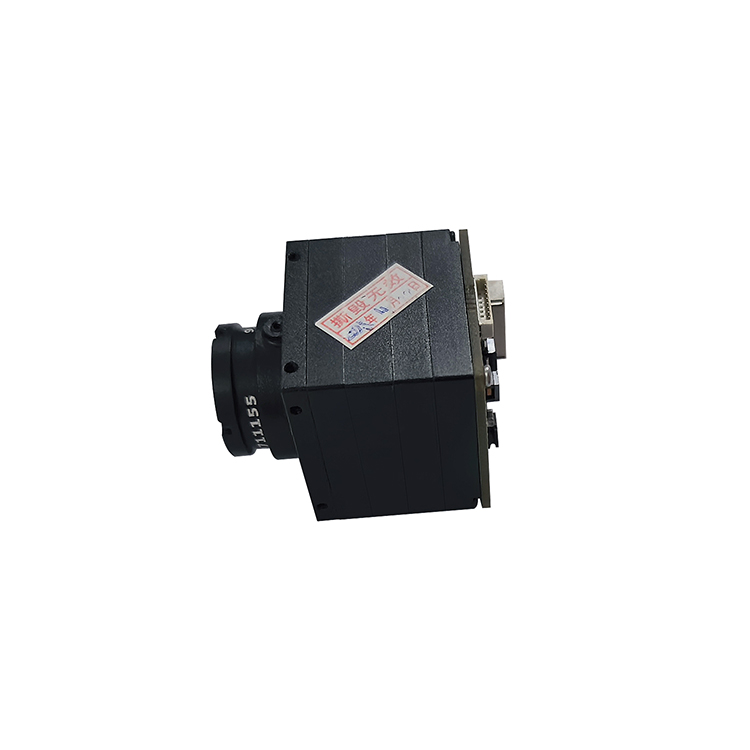

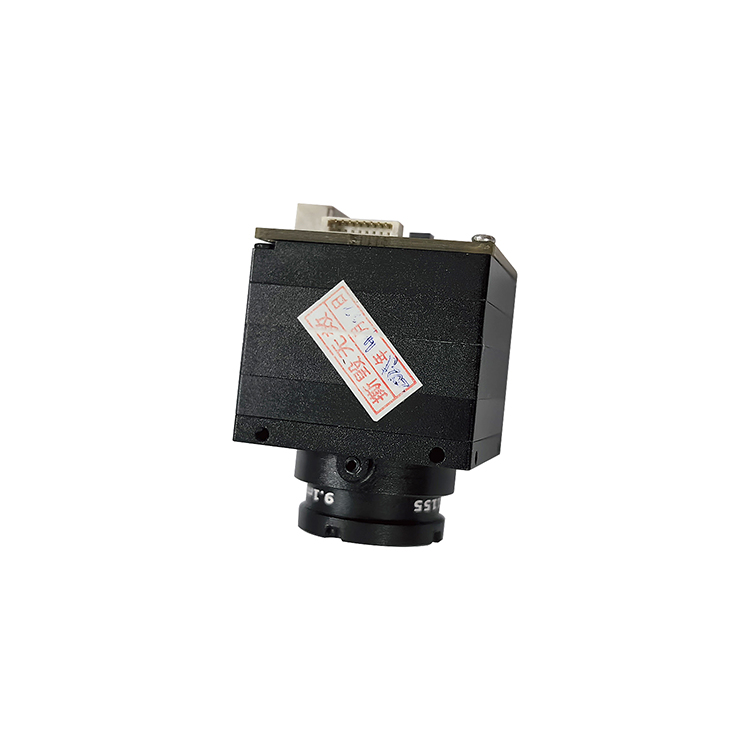

UCW Thermal Imaging Core 640×512 High-Resolution Infrared Detector for Drone Thermal

UCW Thermal Imaging Core 640×512 High-Resolution Infrared Detector for Drone Thermal

Response wavelength：8-14μm
IR resolution:640×512
FOV:96.0° × 80.1° (with 4.6 mm lens);69.0°x57.5°（6.6mm）;45.8°x37.3°(9.1mm);32.9°x26.6°（13mm); 28.7°x23.1°（15mm); 22.4°x18.4°（19mm);17.5°x14.0°（25mm);12.5°x10.0°（35mm）
video output :USB
Product description: UCW Thermal Imaging Core 640×512 High-Resolution Infrared Detector for Drone Thermal
INQUIRY

Infrared Thermal Imaging Network Camera 640×512 resolution for drone/Night Vision application

Description

The UCW series thermal imaging core adopts a self-developed 640x512 resolution infrared detector, paired with high-performance signal processing circuits and scene-specific image processing algorithms, delivering high imaging quality with sharp edges, rich gradation, fast frame rate, and high temperature
measurement accuracy.Featuring compact size, lightweight, and low power consumption, it can fully meet the integration requirements of compact integrated systems and is widely applicable in numerous scenarios such as drones, portable handheld devices, security surveillance, vehicle-mounted night vision, the Internet of Things, industrial process quality control, and Industry 4.0.

Key Features and Specifications

Parameter Specification

Type of Probe VOx (Vanadium Oxide) Microbolometer

Resolution 640×512 pixels

Pixel Spacing 12 μm

NETD (Typical) ≤40 mK

Frame Rate ≤50 Hz

Spectral Response 8–14 μm

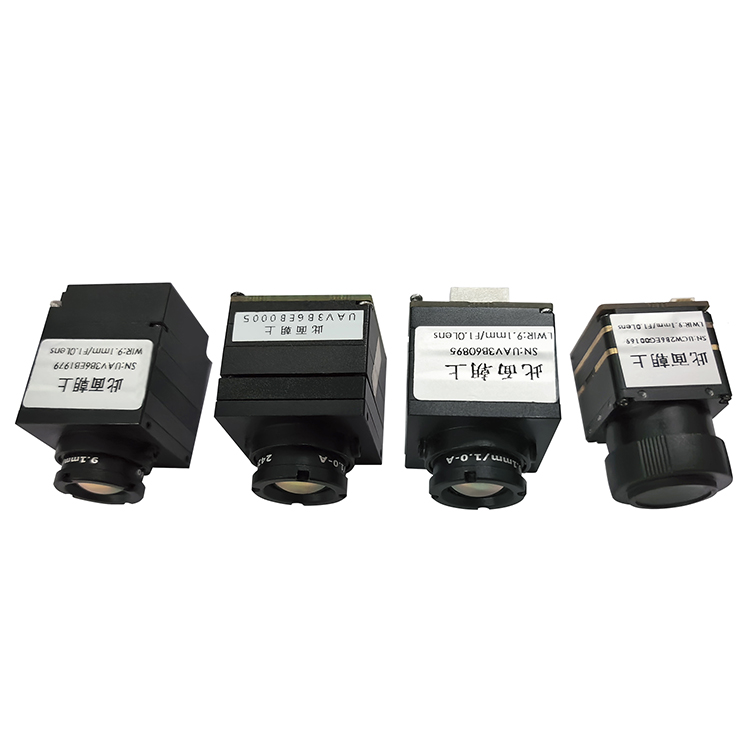

Lens Focal Length 4.6 mm/6.6/9.1/13/15/19/25/35mm

Field of View (FOV) 96.0° × 80.1° (with 4.6 mm lens);69.0°x57.5°（6.6mm）;45.8°x37.3°(9.1mm);32.9°x26.6°（13mm); 28.7°x23.1°（15mm); 22.4°x18.4°（19mm);17.5°x14.0°（25mm);12.5°x10.0°（35mm）

Temperature

Accuracy
±2°C or ±2% of reading

Measurement Modes Point, region, full-screen maximum/minimum

Brightness/Contrast Automatic or manual adjustment

Polarity Options White-hot, black-hot

Digital Processing NUC, 2D/3D noise reduction, image enhancement

False Color Palettes Iron red, anti-iron red, rainbow, etc.

Electronic Zoom 1.0×–4.0× continuous zoom

Video Output Interface USB

Communication Interface UART TTL / USB

Power Input DC 5V

Power Consumption ≤0.85 W

Power Protection Overcurrent, overvoltage, reverse input, surge suppression

Operating Temperature -20°C to +60°C

Storage Temperature -45°C to +85°C

Humidity Resistance 5%–95% RH, non-condensing

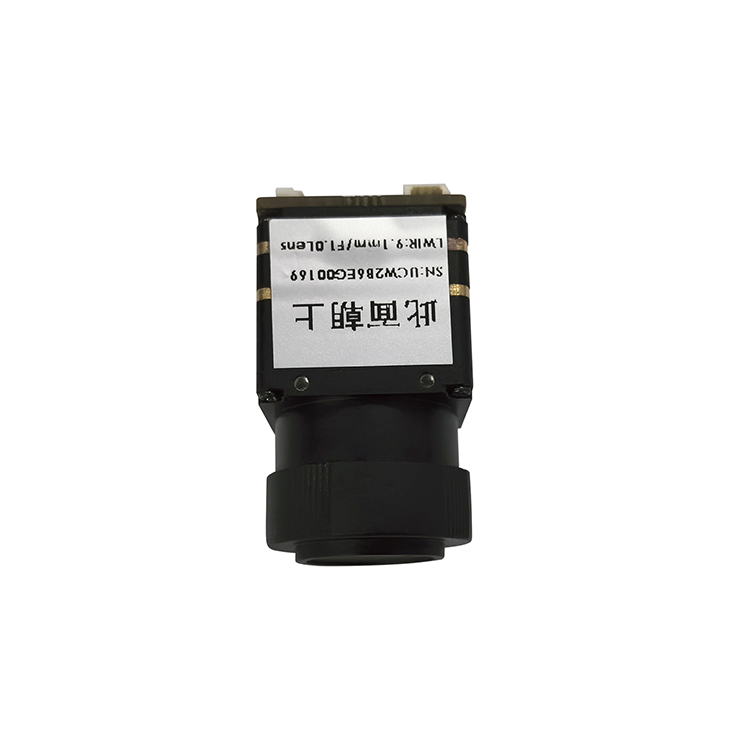

Weight 24.5 g (with 9.1 mm lens)

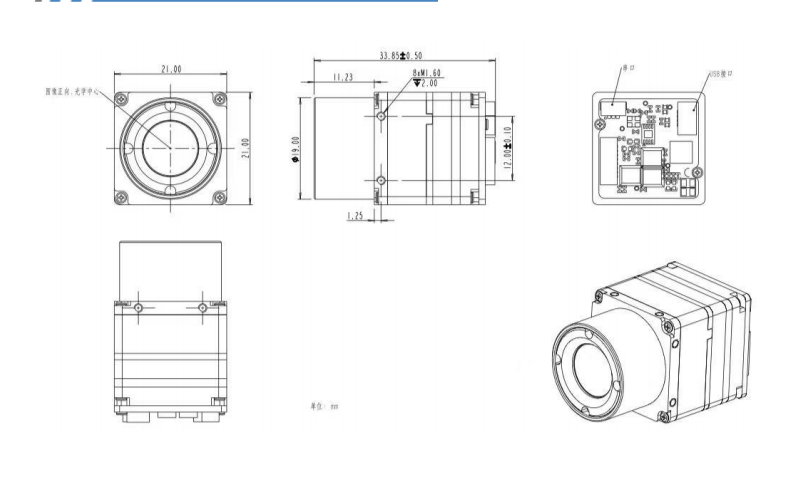

Dimensions 21 × 21 × 33.9 mm (with 9.1 mm lens)

Features

Compact size, lightweight, and low power consumption,meeting the requirements for ultra-compact integration.
With the support of the new generation image algorithm, the imaging is clear and detailed.
High sensitivity, clear imaging quality
Customizable lenses and user interface
High frame rate, smooth detection of high-speed
Fully domestically produced
