5.0

TFT LCD Display 5.0 inch,720(RGB)x1280

TFT LCD Display 5.0 inch,720(RGB)x1280

TFT LCD Display 5.0 inch,720(RGB)x1280

TFT LCD Display 5.0 inch,720(RGB)x1280

TFT LCD Display 5.0 inch,720(RGB)x1280

TFT LCD Display 5.0 inch,720(RGB)x1280

TFT LCD Display 5.0 inch,720(RGB)x1280

Size: 5.0 TFT
Controller IC: HX8394F
Resolution:720(RGB)x1280
Interface: MIPI
Product description: TFT LCD Display 5.0 inch,720(RGB)x1280
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT HT050T073A is a TFT-LCD module. It is composed of a TFT-LCD panel, driver

IC, FPC, a back light unit. The 5.0 inch display area contains 800x 480 pixels and can

display up to 16.7M colors. This product accords with RoHS

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT050T073A
Diagonal Screen size:	5.0 inch
Interface:	HT0
Backlight:	(white)
Number of Pixels:	720(RGB)x1280
Panel Size:	64.7 (W) x118.7(H) x2.0(D)(mm)
Driver IC:	TBD
Active Area:	62.1 (W)×110.4(H) (mm)
Display Mode:	Normally white/Transmissive
Pixel pitch:	0.08625(H)×0.08625(V) MM
Weight:	TBD
Operating Temperature:	-20~70°

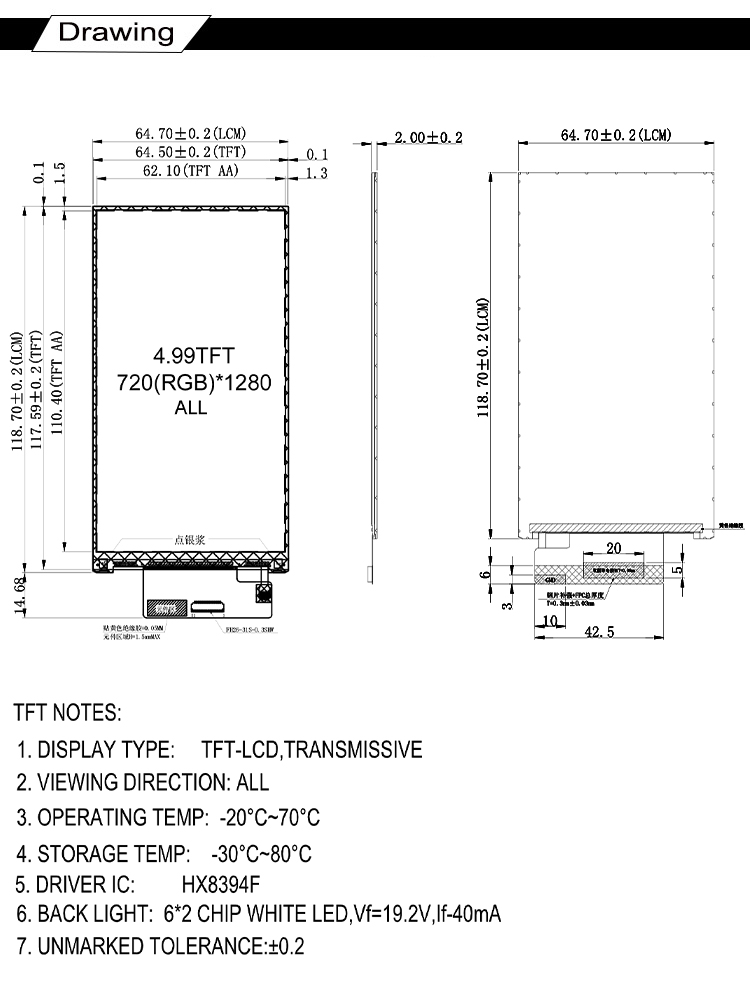

DRAWING

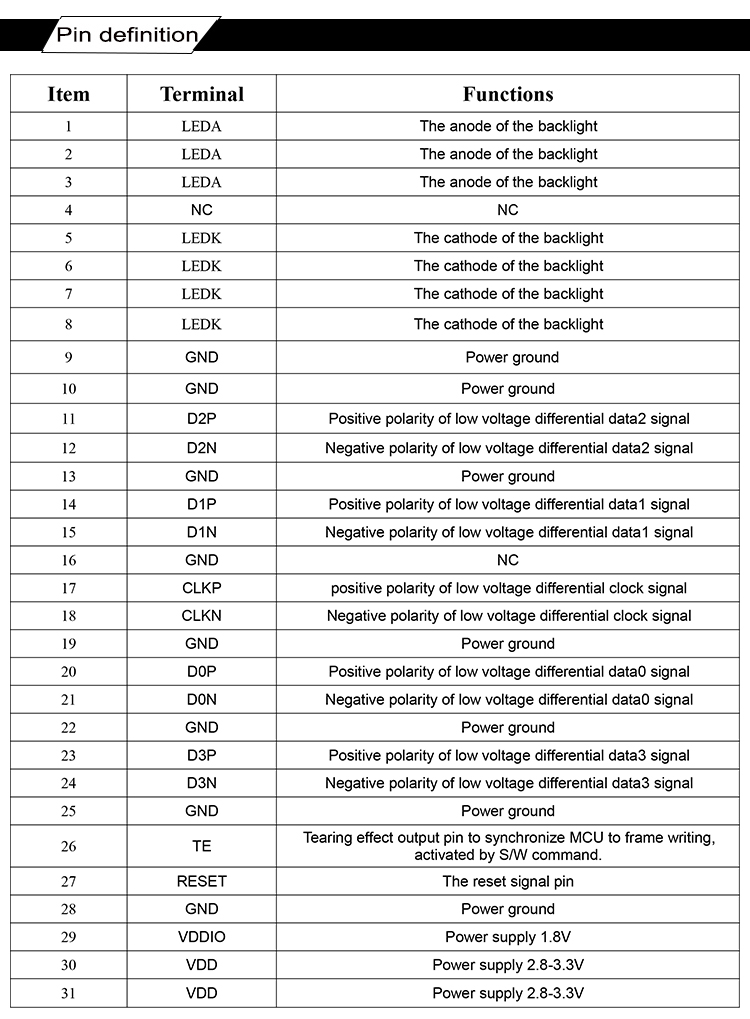

INTERFACE PIN FUNCTION
