Size: 5.0 TFT
Controller IC: HX8394F
Resolution:800(RGB)x480
Interface:RGB
Product description: TFT LCD Display 5.0 inch,800(RGB)x480
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

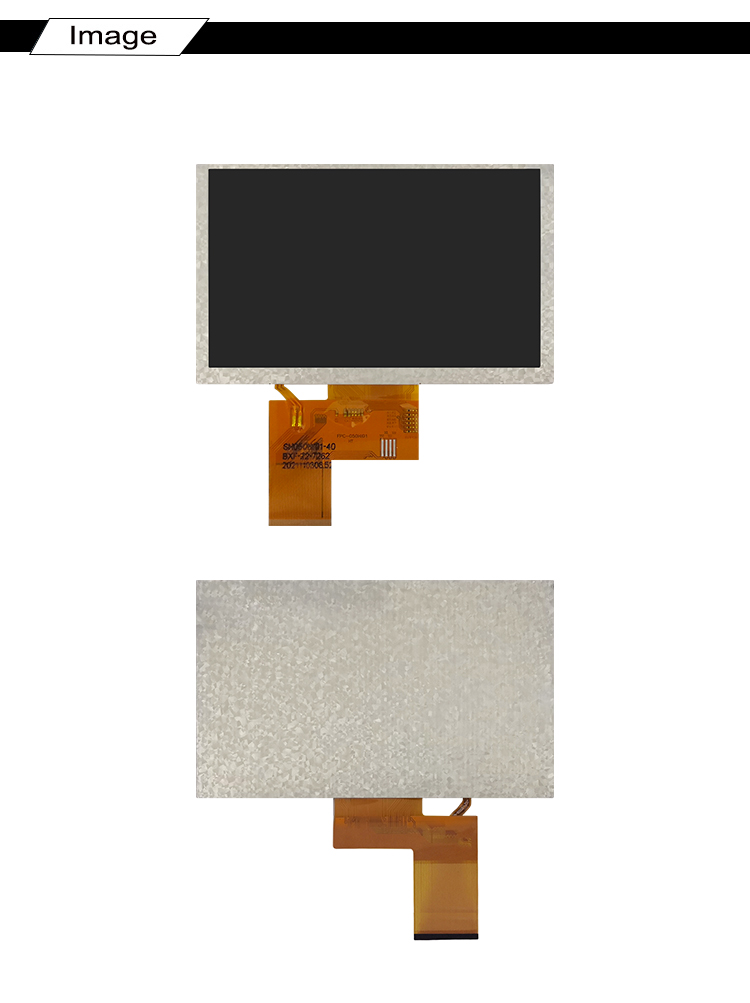

HICENDA TFT HT050JGI1K-05287Y is a TFT-LCD module. It is composed of a TFT-LCD panel,

driver IC, FPC, a back light unit. The 5.0 display area contains 800 x 480 pixels

and can display up to 16.7M colors. This product accords with RoHS

environmental criterion.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT050JGI1K-05287Y
Diagonal Screen size:	5.0 inch
Interface:	RGB
Backlight:	18-LEDs (white)
Number of Pixels:	800(RGB)x480
Panel Size:	120.70(W)×75.90(H)×3.05(T) (D)(mm)
Driver IC:	TBD
Active Area:	108.00(W)×61.80(H) (mm)
Display Mode:	Normally white/Transmissive
Display color:	16.7M
Weight:	TBD
Operating Temperature:	-30~+80℃

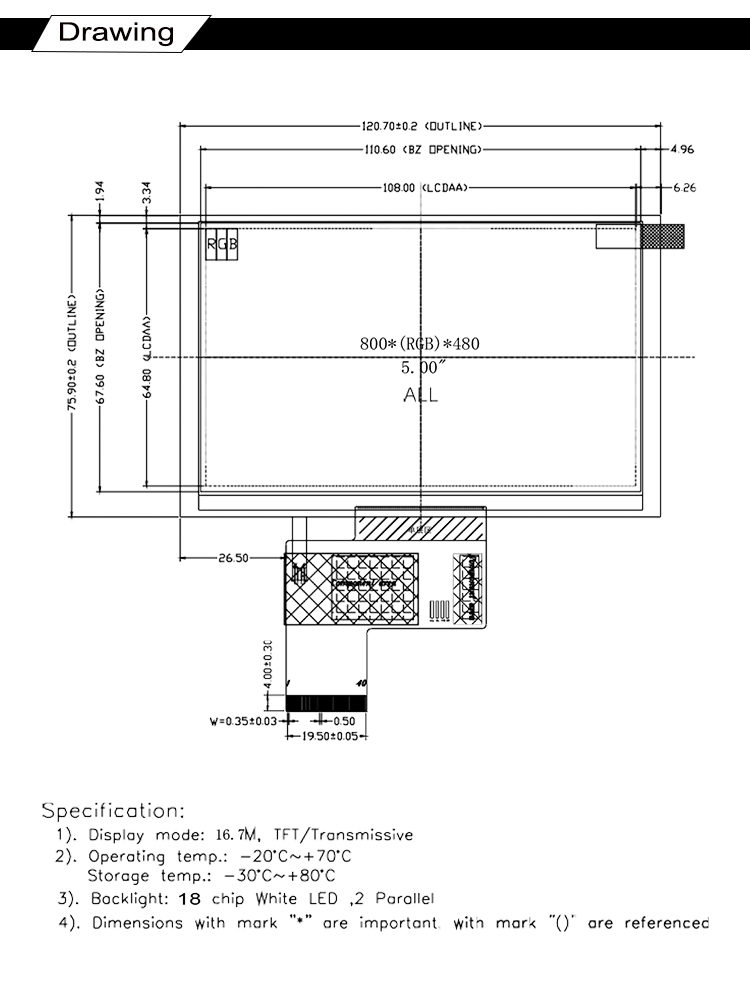

DRAWING

INTERFACE PIN FUNCTION
