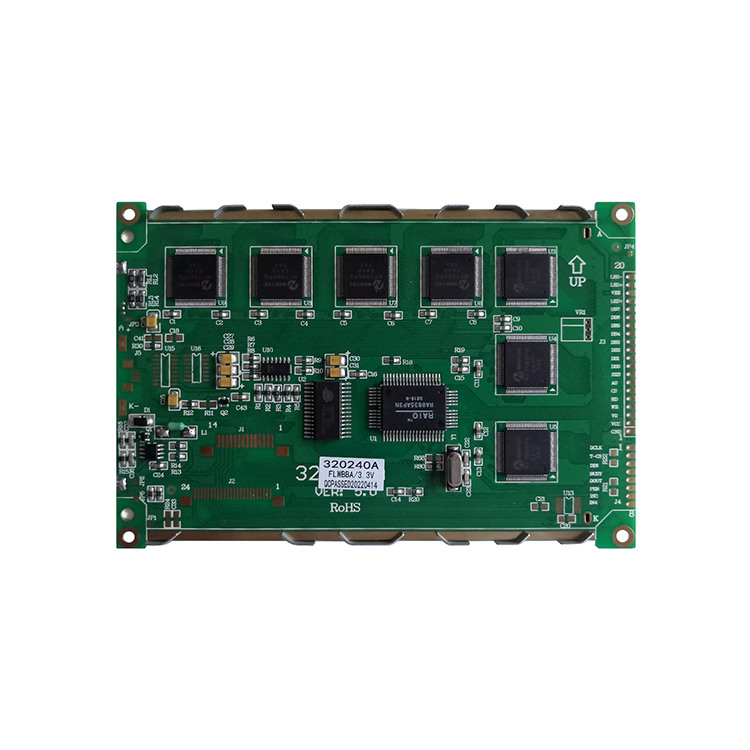

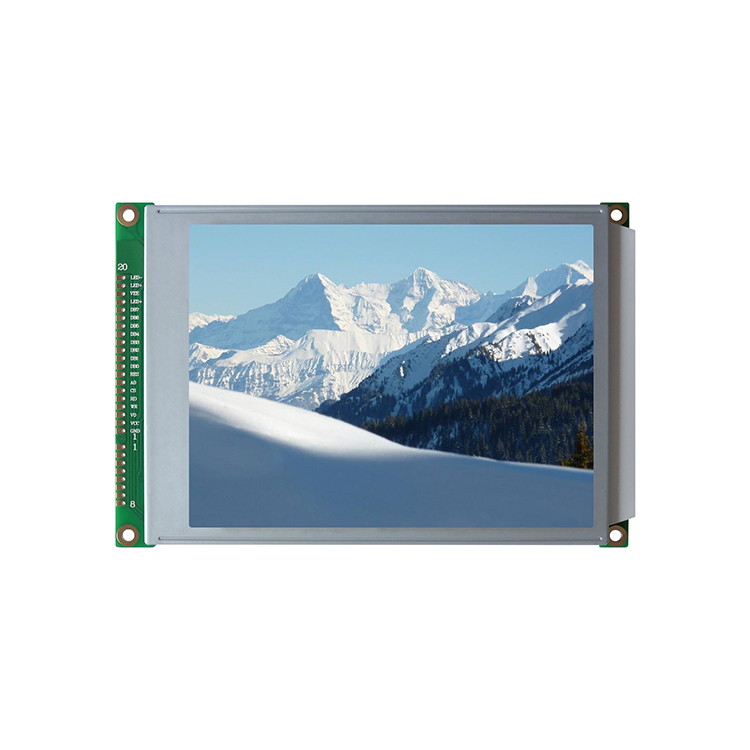

Outline dimension: 160.0L×109.0W×11.0（max）H
Resolution:320X240
Interface:6800 or 8080 serial 8-Bit MPU
Controller IC:RA8835 or Equivalent
Product description: STN 320X240 Graphic LCD Module Display
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

Features

— Dot Matrix: 320×240 Dots

— LCD Mode: STN

— Controller IC: RA8835 or Equivalent

一 Driving Method: 1/240 Duty; 1/17 Bias

一 Viewing Angie: 6 O’clock direction

— 6800 or 8080 serial 8-Bit MPU Interface

— Backlight: LED

— Operating Temperature Range: -20 to 70℃;

— Storage Temperature Range : -30 to 80℃;

Note: Color tone is slightly changed by temperature and driving voltage.

GENERAL SPECIFICATION

Display Type:	STN LCD display
Display Mode:	Passive Matrix
Model Number:	HB320240A
Diagonal Screen size:	5.7 inch
Interface:	8080 serial 8-Bit MPU
Backlight:	LED
Number of Pixels:	320*240 DOTS
Panel Size:	160.0L×109.0W×11.0（max）H (mm)
Driver IC:	T6963C or Equivalent
Active Area:	122.0×92.0(mm)
Storage Temperature:	-30 to 80℃
Pixel pitch:	0.36×0.36
Weight:	TBD
Operating Temperature:	-20~70°

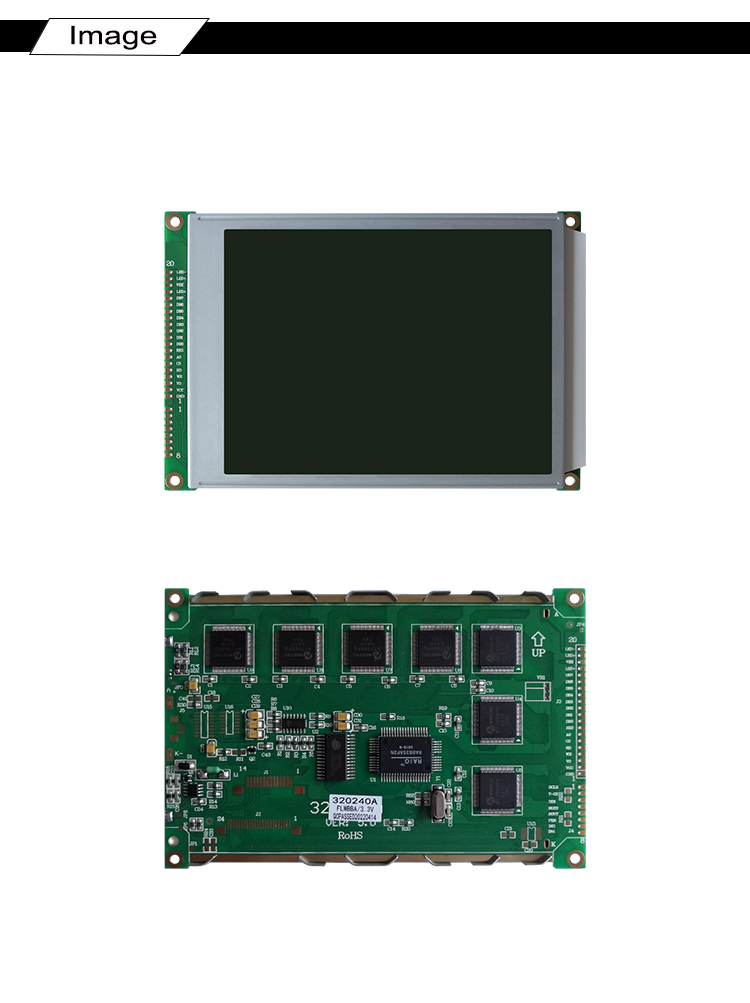

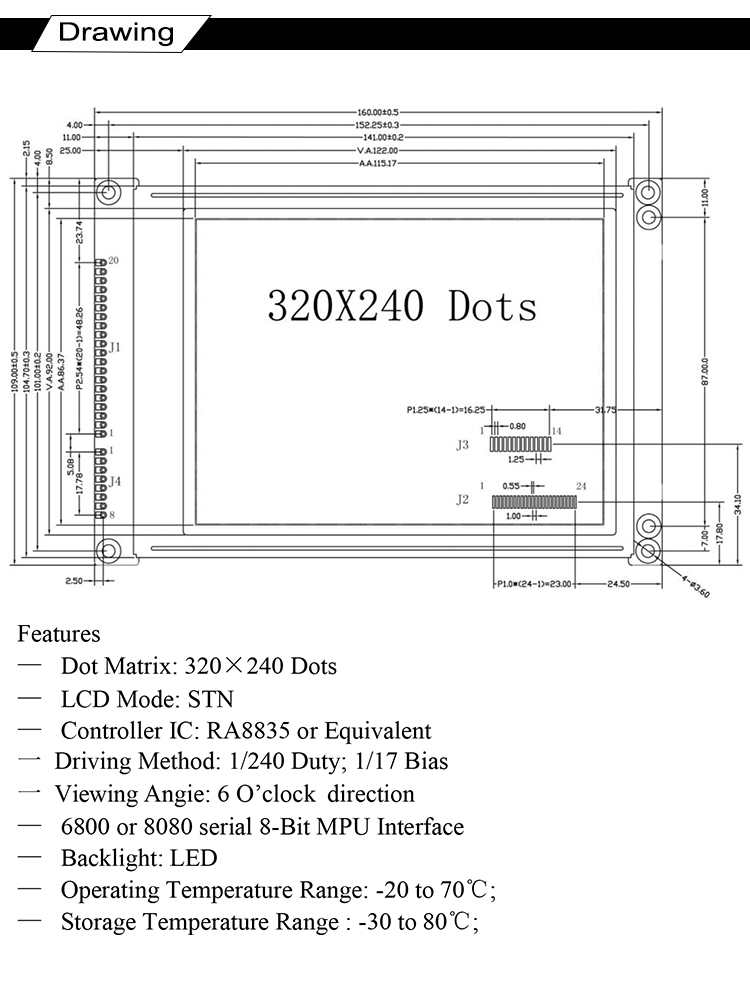

DRAWING

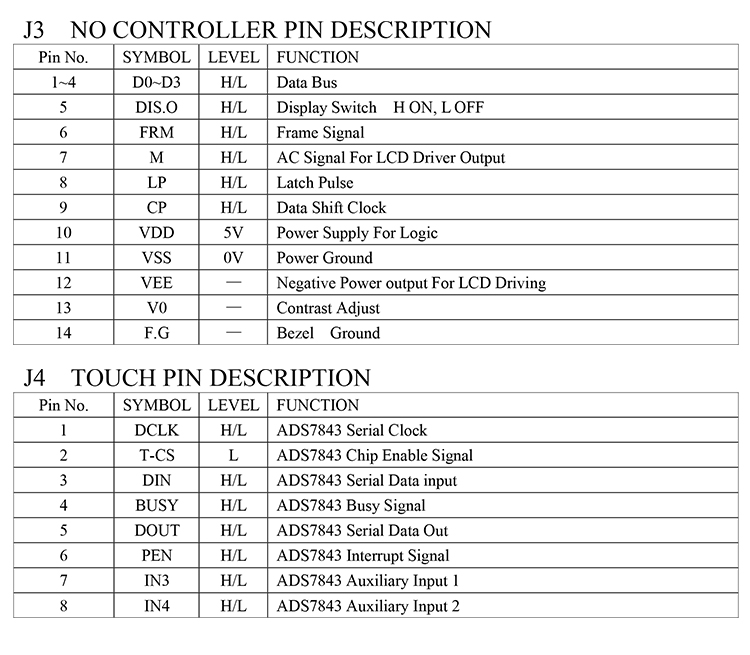

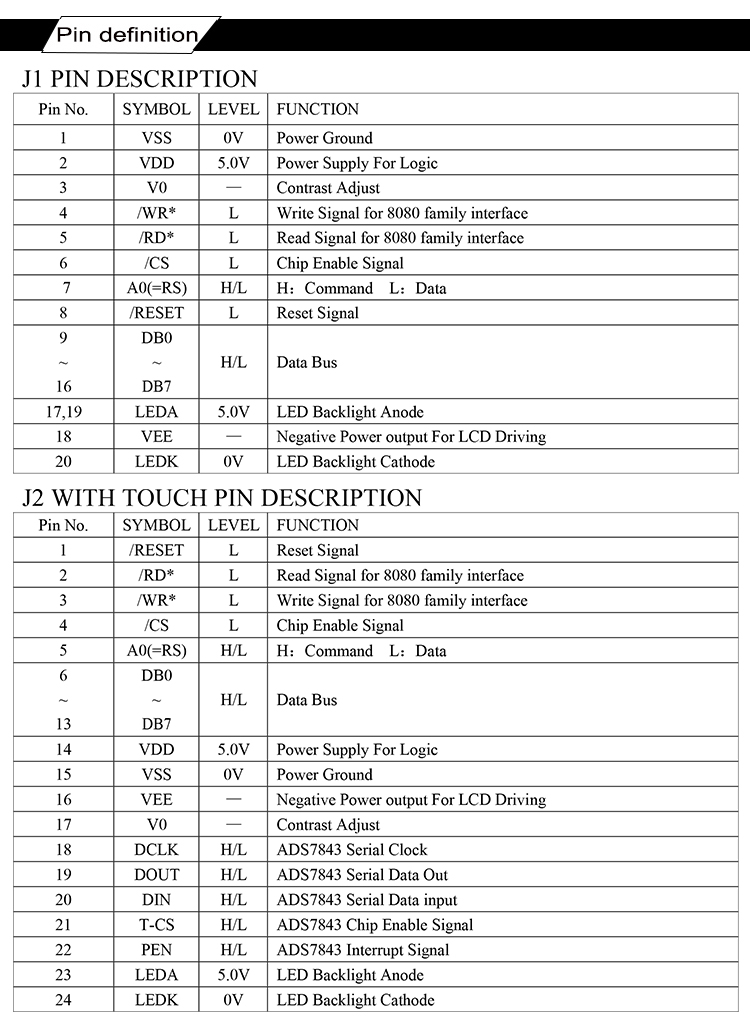

INTERFACE PIN FUNCTION
