DESCRIPTION

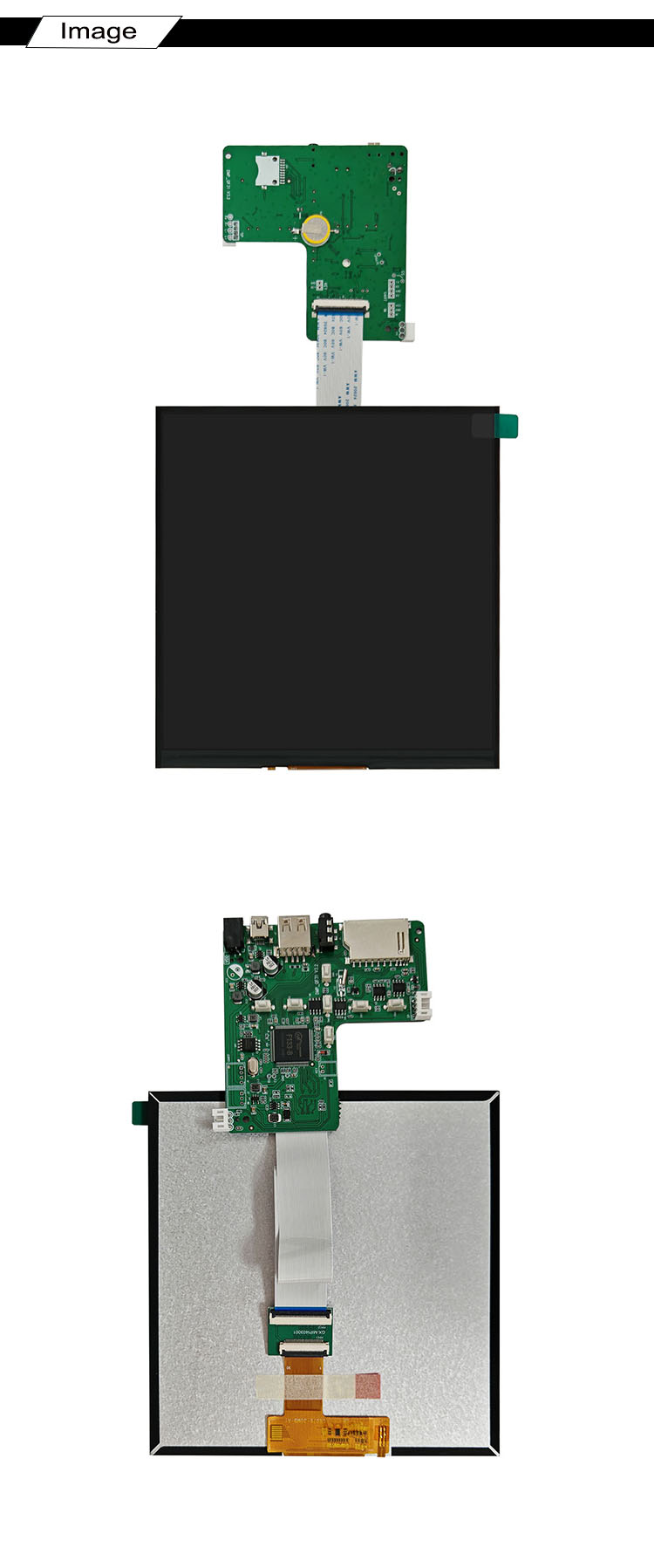

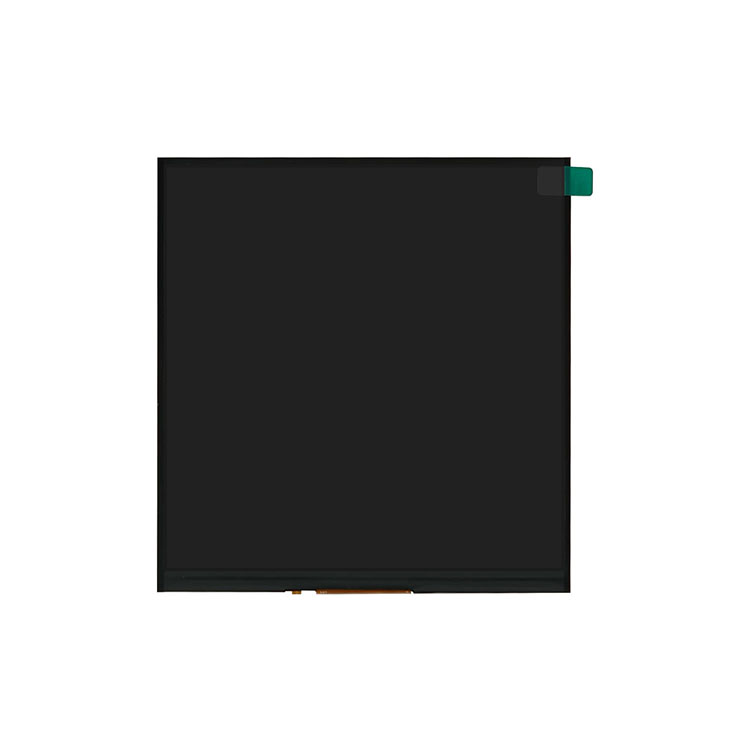

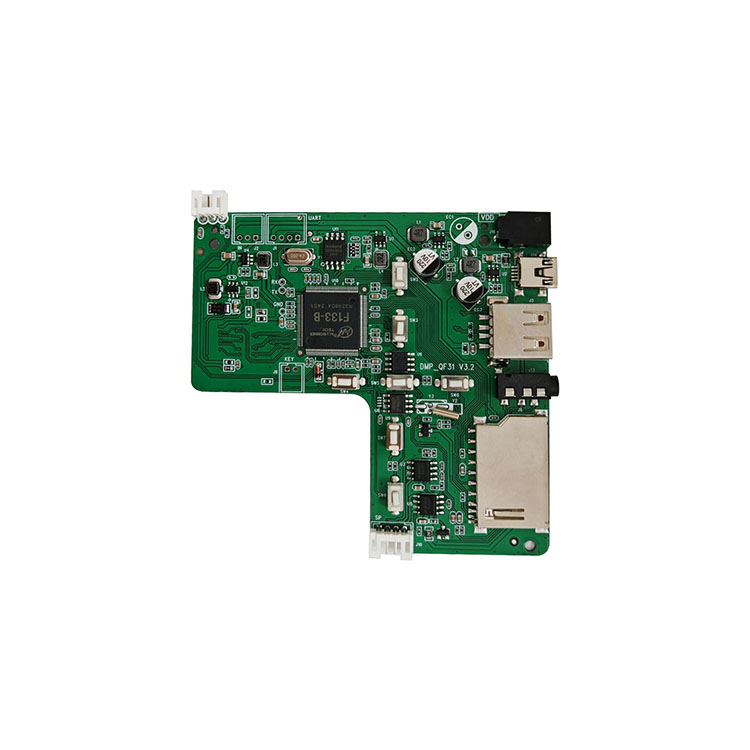

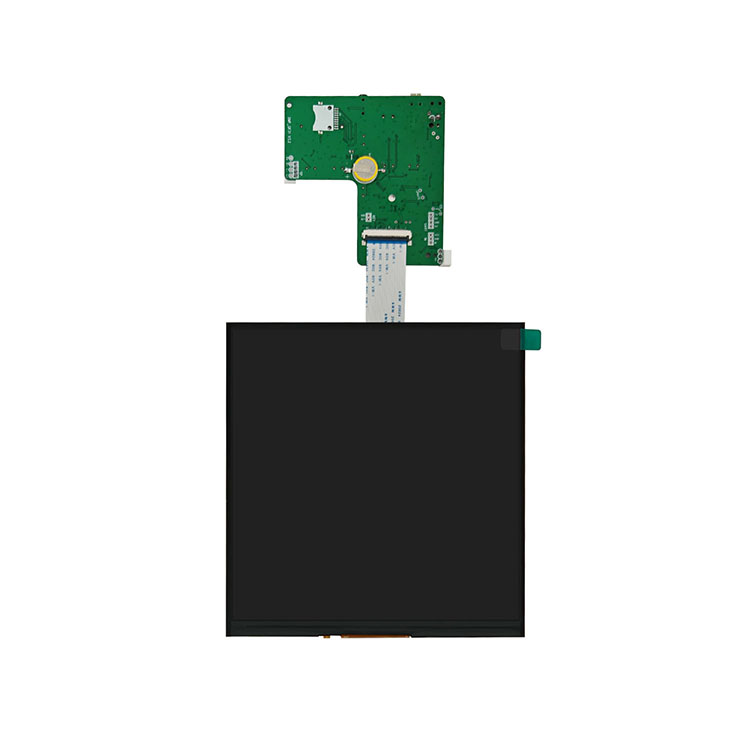

HICENDA The HT076-30MB-A1 is a highly versatile 7.6-inch TFT LCD display module, offering a resolution of 800x800 pixels. It employs a MIPI interface, allowing for efficient data transmission while maintaining high visual clarity. Designed with transmissive TFT technology and IPS (In-Plane Switching) viewing direction, this module provides vibrant, full-color displays with a color depth of 16.7 million colors. With an outline dimension of 142.56 mm (H) x 148.24 mm (V) x 5.1 mm (D), it is compact yet delivers exceptional performance. Suitable for a wide range of applications, this display is designed for environments with operating temperatures from -20°C to +70°C and storage temperatures from -25°C to +75°C, ensuring reliability under extreme conditions.

In this article, we will explore the technical specifications and key features of the HT076-30MB-A1, discussing its capabilities, design, and potential applications in various industries.

GENERAL SPECIFICATION

Key Features and Specifications

The HT076-30MB-A1 is engineered for high-performance display applications, combining advanced technologies for crisp and vibrant output. Below is a detailed summary of its specifications:

Display Technology: Transmissive TFT with IPS

The HT076-30MB-A1 leverages transmissive TFT technology, which utilizes a backlight to illuminate pixels, allowing for clear and bright images even in well-lit environments. Coupled with In-Plane Switching (IPS), this configuration ensures that the display offers excellent color reproduction and consistent brightness across all viewing angles. IPS technology is particularly advantageous for applications requiring reliable visual performance from multiple perspectives.

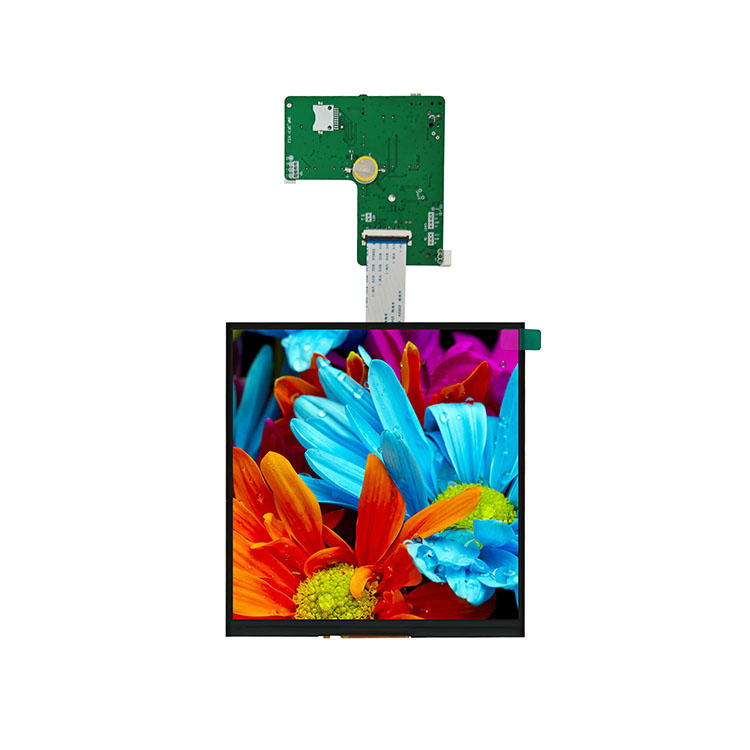

High-Resolution and Color Depth

At 800x800 pixels, the display provides a high-resolution output, resulting in sharp and detailed imagery. The pixel configuration, consisting of R.G.B. vertical stripes, delivers accurate color transitions and deep saturation. With 16.7 million colors, the display can render vibrant visuals suitable for diverse industrial, automotive, and consumer electronics applications, ensuring that color accuracy remains top-notch even in demanding environments.

Pixel Pitch and Active Area

The pixel pitch of 36.5 mm (H) x 109.5 mm (V) ensures that pixels are finely spaced for excellent image clarity. The active area of the display is 135.36 mm (H) x 135.36 mm (V), providing a spacious display area for content and maximizing the efficiency of the available screen real estate. This makes the HT076-30MB-A1 ideal for detailed graphics, text, and multimedia content.

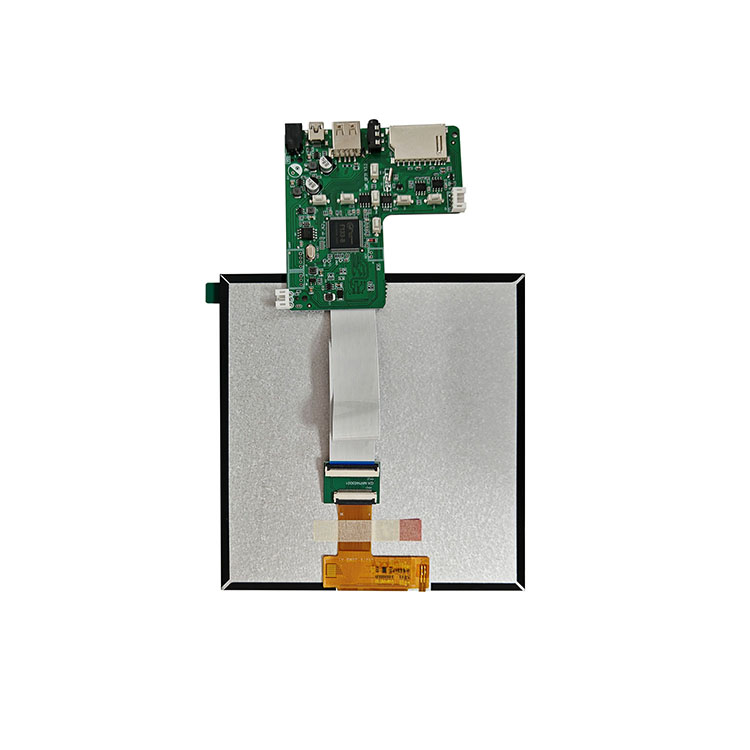

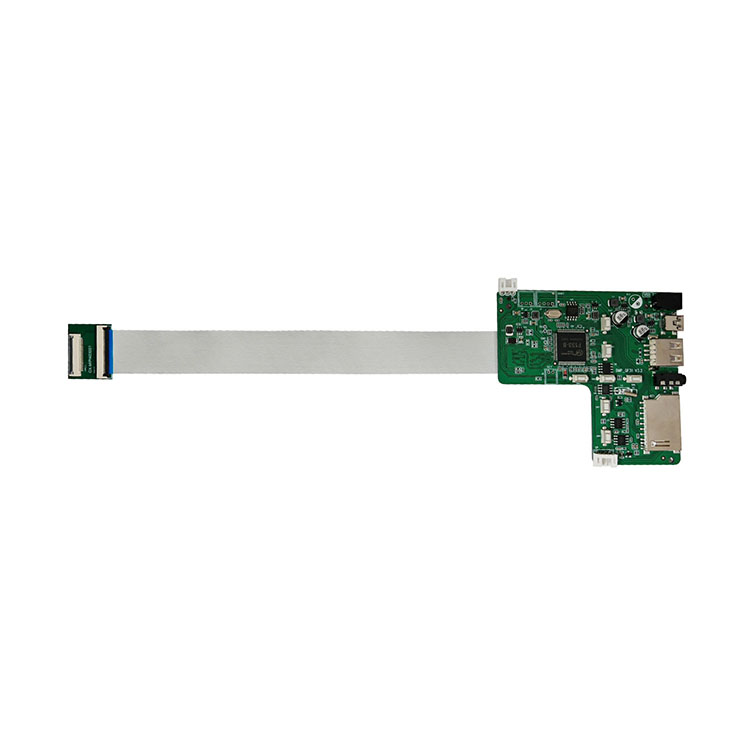

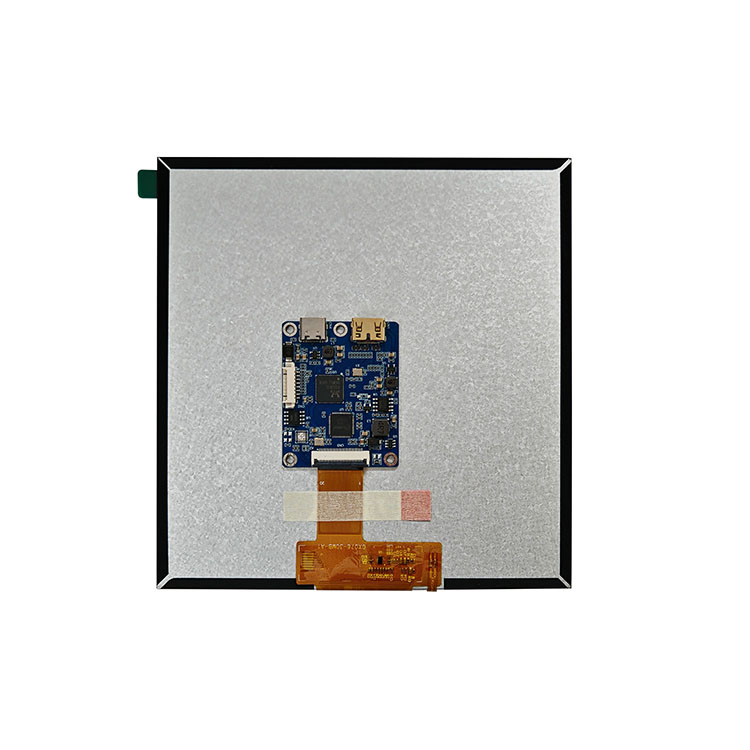

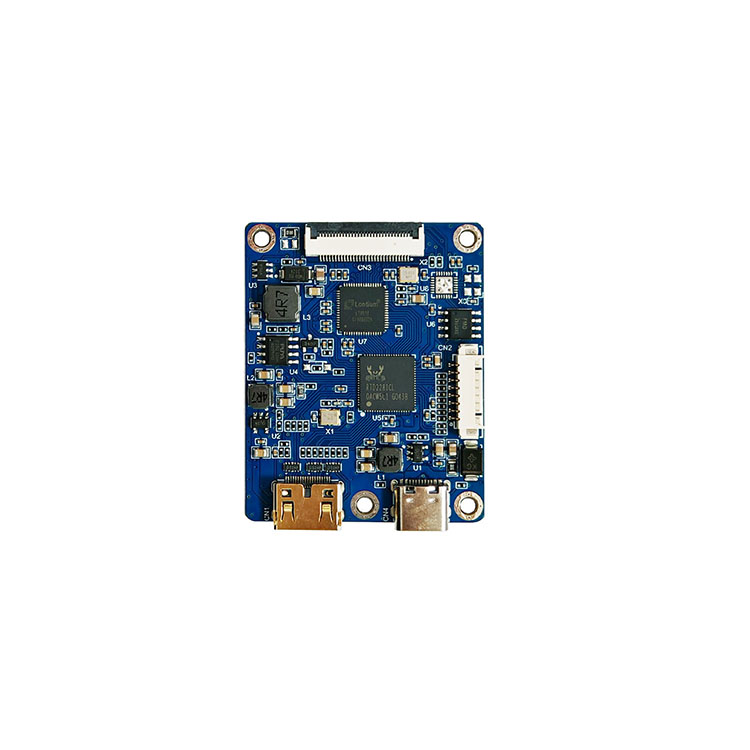

Interface and Integration with MIPI

The HT076-30MB-A1 features a MIPI (Mobile Industry Processor Interface), which facilitates high-speed data transmission between the display and the processing unit. This interface minimizes power consumption while ensuring that data transfer is quick and efficient, allowing for seamless operation in applications that require real-time display updates.

The module uses a 30-pin connector, ensuring compatibility with a wide range of devices. The MIPI interface not only supports high-speed communication but also integrates well with various graphical processors, making it a versatile choice for embedded systems and custom-built displays.

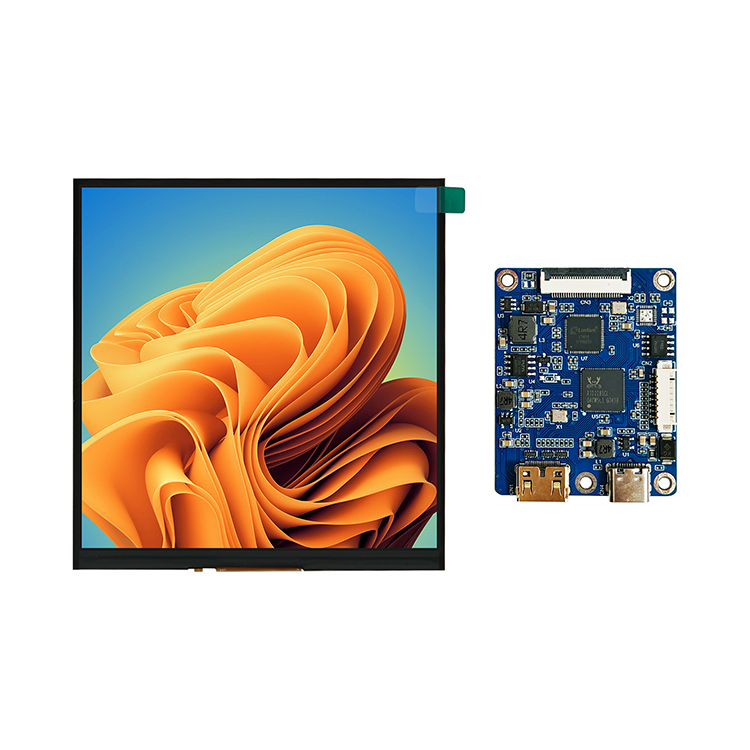

Full-Color Display with LED Backlighting

With 16.7 million colors and a full-color display, the HT076-30MB-A1 excels in rendering high-quality images. Additionally, the 10-LED backlight ensures that the display remains bright and visible even in challenging lighting conditions. The Normally Black display mode enhances the contrast, offering deep blacks and bright whites for clear, sharp visuals. This combination of backlighting and advanced pixel configuration guarantees that the display delivers excellent clarity, regardless of ambient lighting.

Durability and Environmental Adaptability

The HT076-30MB-A1 is designed to operate reliably in both extreme temperature ranges and challenging environments. It is engineered to function effectively within a temperature range of -20°C to +70°C, ensuring consistent performance in outdoor, industrial, or automotive settings. Additionally, the storage temperature range of -25°C to +75°C ensures that the display module can be safely stored under varied environmental conditions.

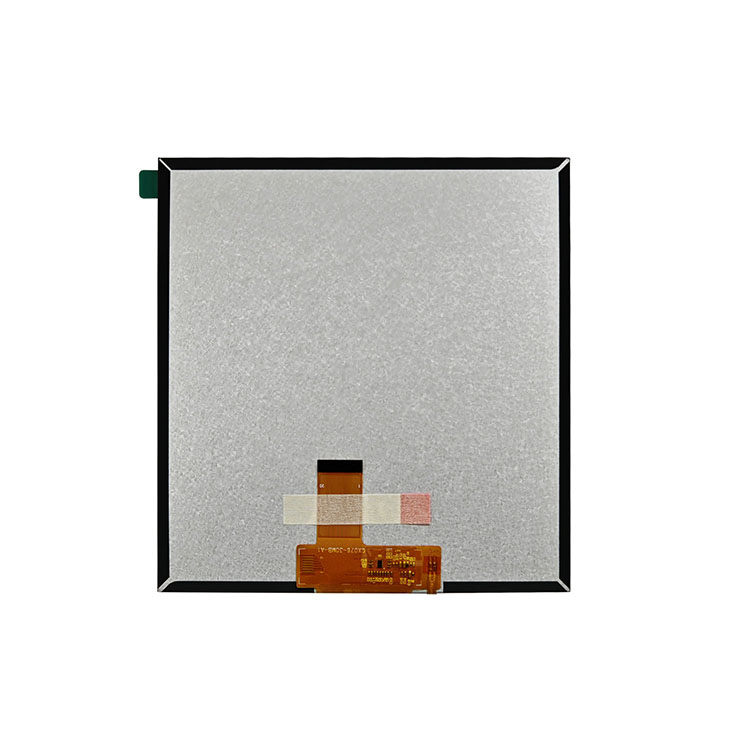

Compact Design and Form Factor

Despite its robust capabilities, the HT076-30MB-A1 maintains a compact design with outline dimensions of 142.56 mm (H) x 148.24 mm (V) x 5.1 mm (D), allowing it to fit into small or space-constrained applications. The display's active area of 135.36 mm (H) x 135.36 mm (V) ensures that the display area is maximized while maintaining an efficient, compact footprint.

DRAWING

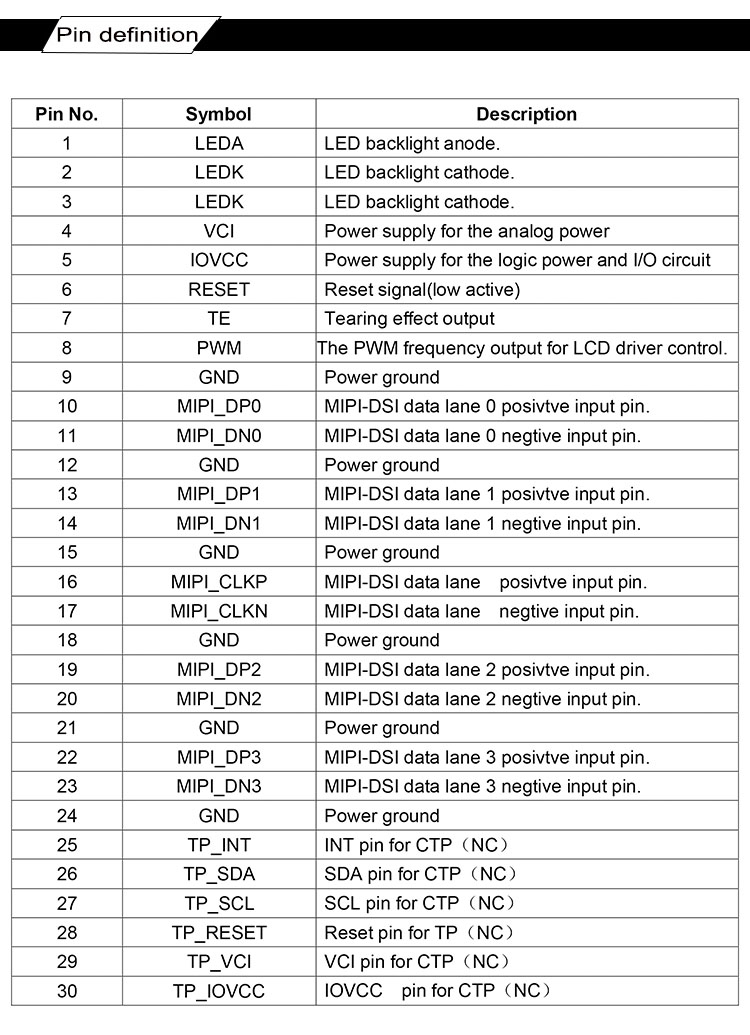

INTERFACE PIN FUNCTION

Potential Applications and Use Cases

The HT076-30MB-A1 display module is ideal for a variety of applications where performance, durability, and visual clarity are paramount. Here are some of the primary use cases:

Industrial Applications

The high resolution and wide operating temperature range make this display suitable for industrial control systems, HMI (Human-Machine Interface) panels, and automation systems. The MIPI interface ensures smooth integration into modern industrial equipment.

Automotive Displays

With its ability to produce vibrant and clear visuals, this display is well-suited for automotive dashboards, infotainment systems, and navigation displays. The IPS technology ensures that images remain visible and accurate from different viewing angles, crucial for automotive applications.

Consumer Electronics

The HT076-30MB-A1 can be employed in consumer electronics, including smart devices, wearables, and handheld gadgets. Its high-resolution and full-color capabilities make it an excellent choice for devices requiring high-quality display performance.

Medical Equipment

In the field of medical devices, where accurate and clear visual representation of data is crucial, the HT076-30MB-A1’s high color depth and resolution provide optimal clarity for diagnostics and user interfaces in medical equipment.

Conclusion

The HT076-30MB-A1 7.6-inch TFT LCD display module, with its impressive 800x800 pixel resolution, MIPI interface, and superior IPS display technology, stands as a prime solution for a broad array of applications. Its combination of high-quality color reproduction, robust environmental adaptability, and efficient data transmission via the MIPI interface makes it a versatile component for industrial, automotive, consumer electronics, and medical devices. Whether used in embedded systems or as a part of larger integrated solutions, the HT076-30MB-A1 is engineered to deliver outstanding performance in diverse environments.
