1.14"

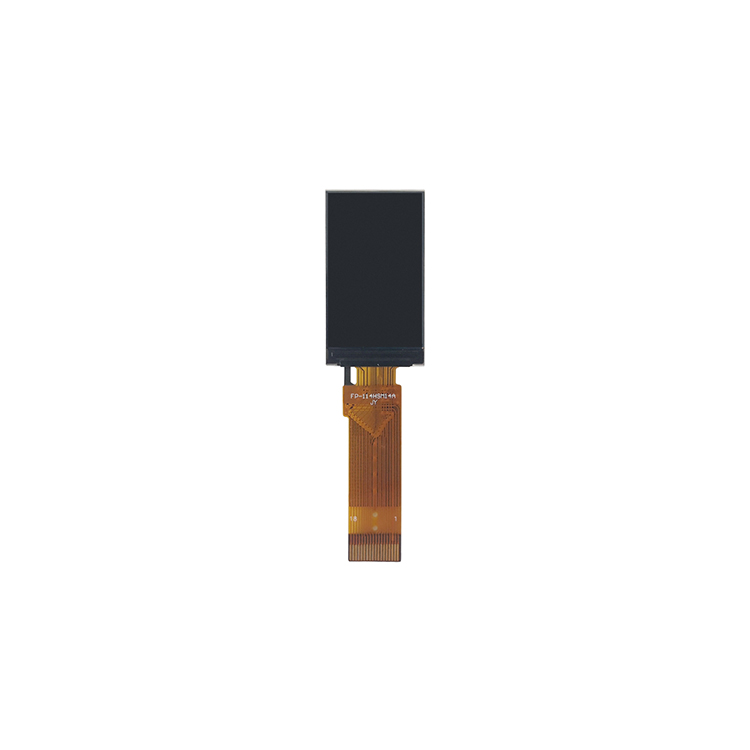

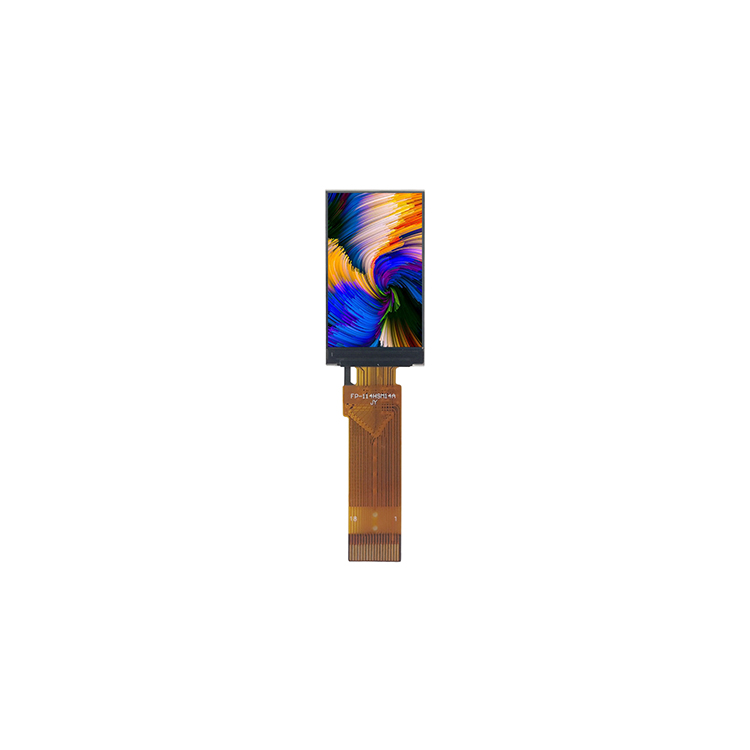

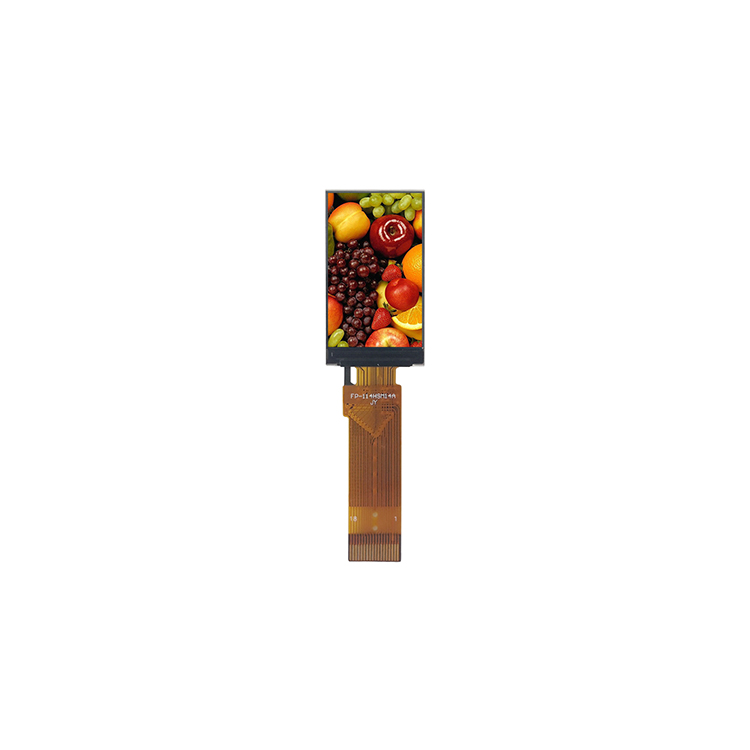

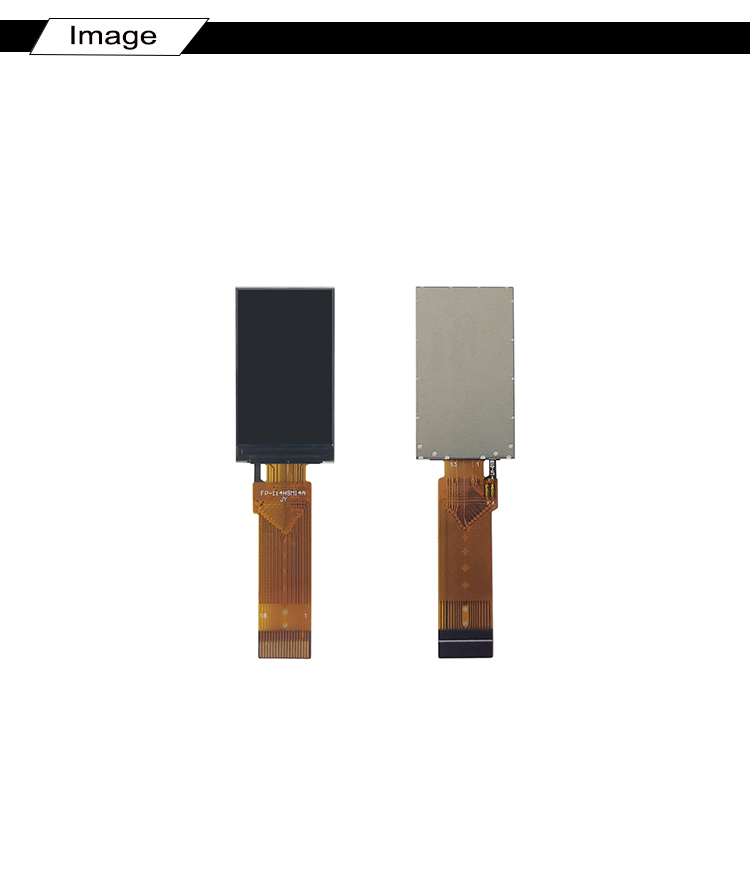

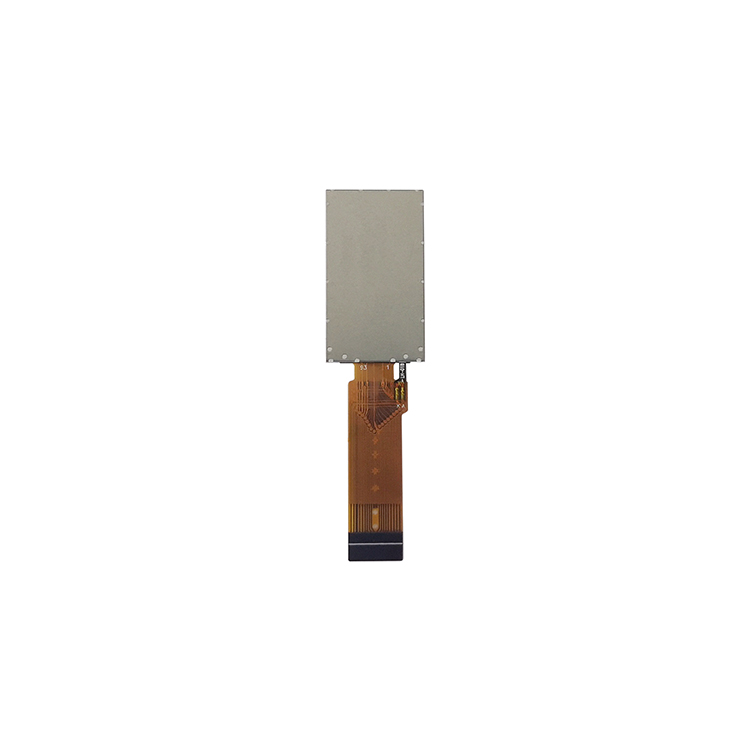

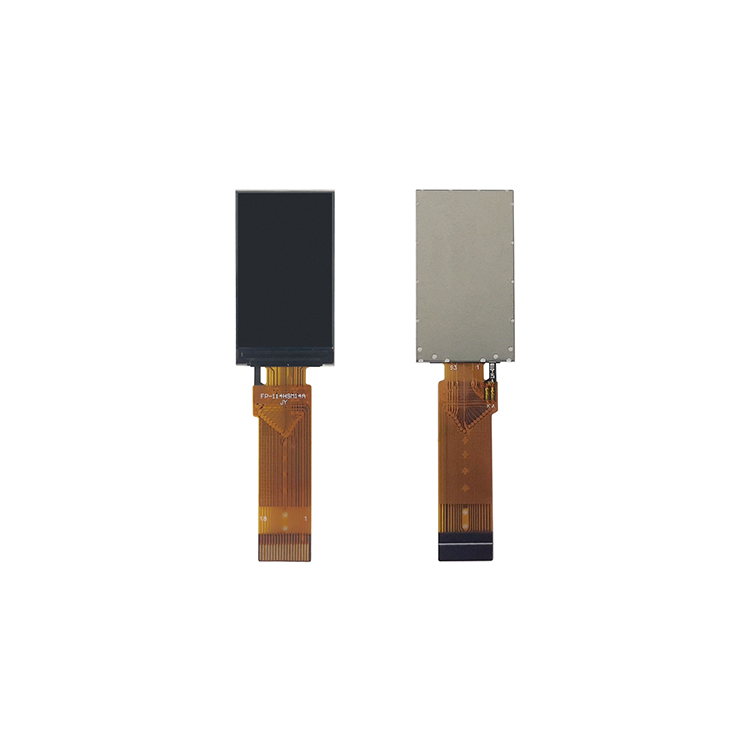

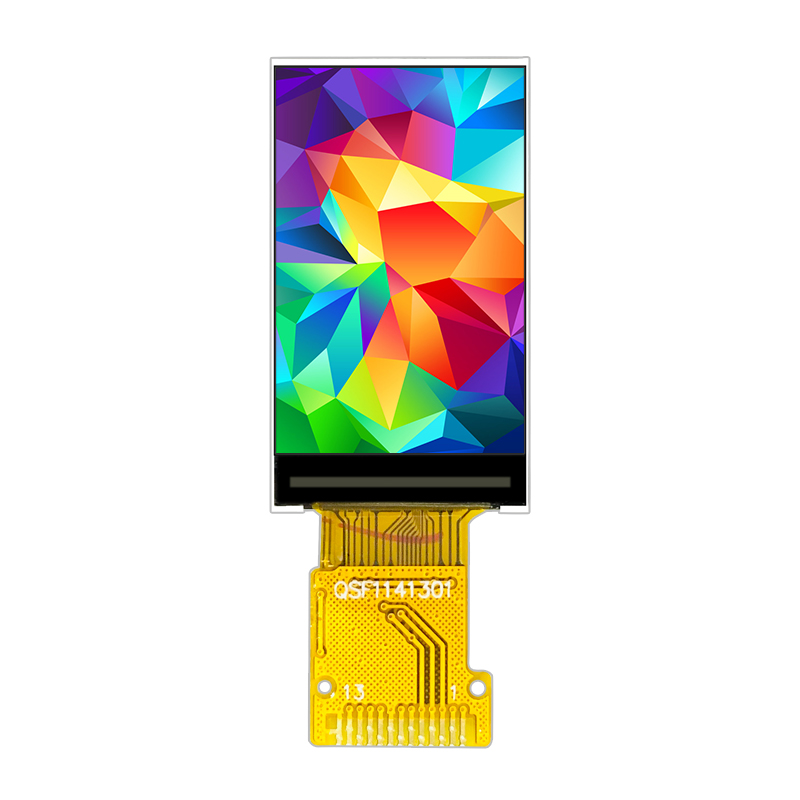

Small 1.14 inch tft lcd module 135x240

Small 1.14 inch tft lcd module 135x240

Small 1.14 inch tft lcd module 135x240

Small 1.14 inch tft lcd module 135x240

Small 1.14 inch tft lcd module 135x240

Small 1.14 inch tft lcd module 135x240

Size: 1.14 inch TFT
Controller IC: ST7789V2
Resolution:135(RGB)x240
Interface: MCU
Product description: Small 1.14 inch tft lcd module 135x240
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT 1.14 is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 1.14 inch diagonally measured active display area with (135 by 240 pixel) resolution

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT114T-IF14
Diagonal Screen size:	1.14 inch
Interface:	MCU
Backlight:	White LED
Number of Pixels:	135(RGB)x240
Panel Size:	17.6(H) x 31.0(V) x1.6 (D) (mm)
Driver IC:	ST7789V2
Active Area:	14.864(H) x 24.912(V) (mm)
Pixel Pitch:	0.1101(H) x 0.1038(V) (mm)
Display Colors:	262K
Weight:	1.8
Operating Temperature:	-20~70°

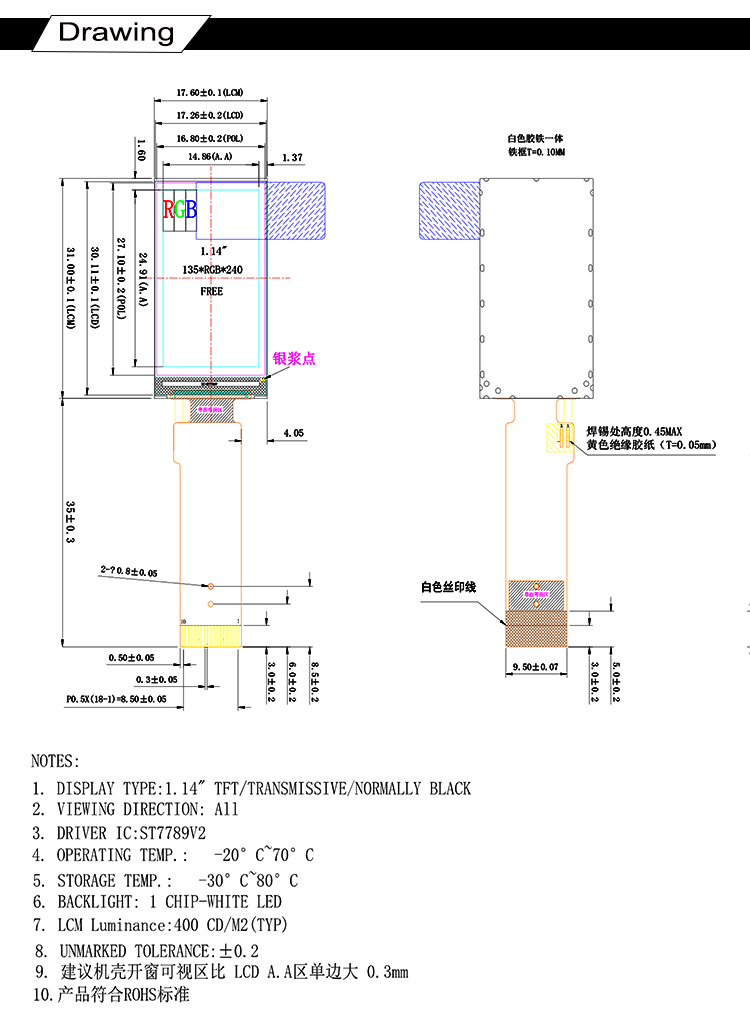

DRAWING

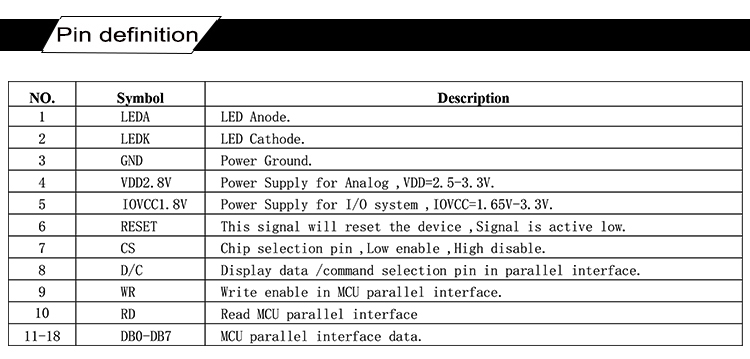

INTERFACE PIN FUNCTION

PREVIOUS：Small round 2.1 inch tft lcd display 480x480 NEXT：square 4 inch tft lcd display 480x480 with HDMI Driver Board

RELATED PRODUCTS

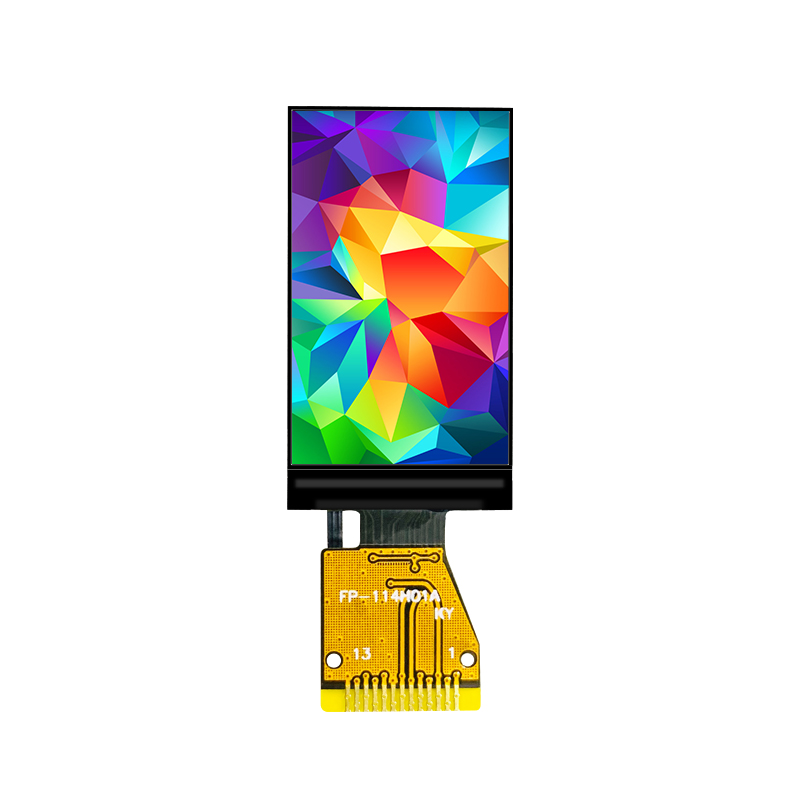

1.14 inch 135*240 IPS Small Strip TFT LCD Display with Capacitive Driver Chip ST7789
