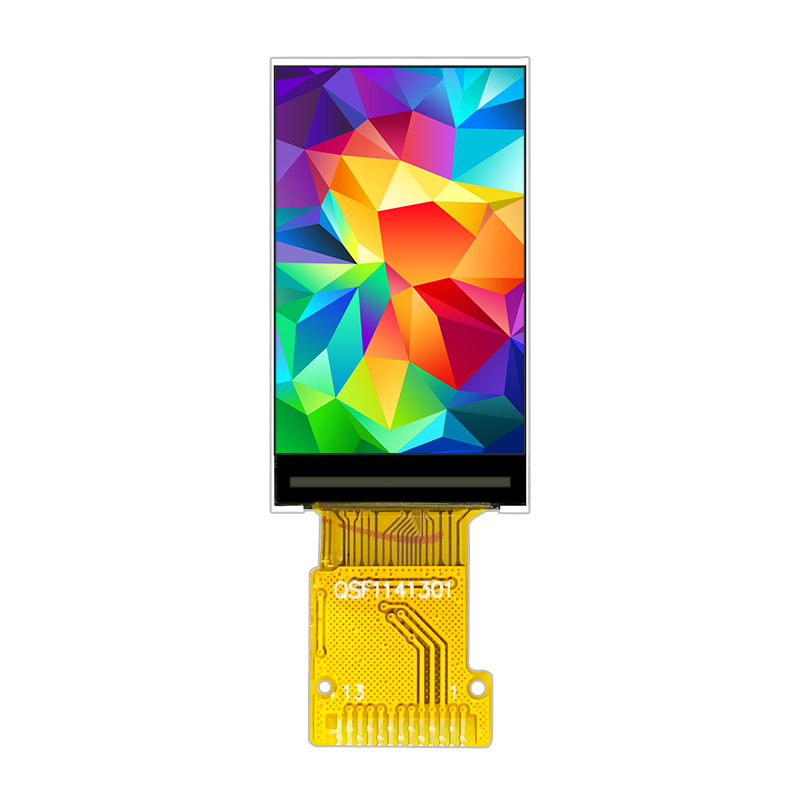

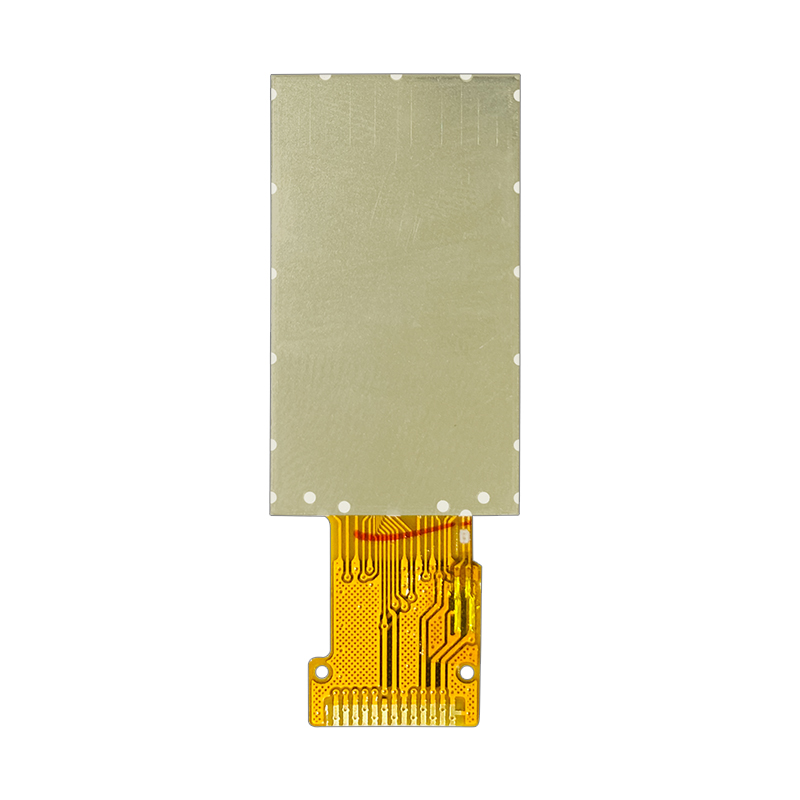

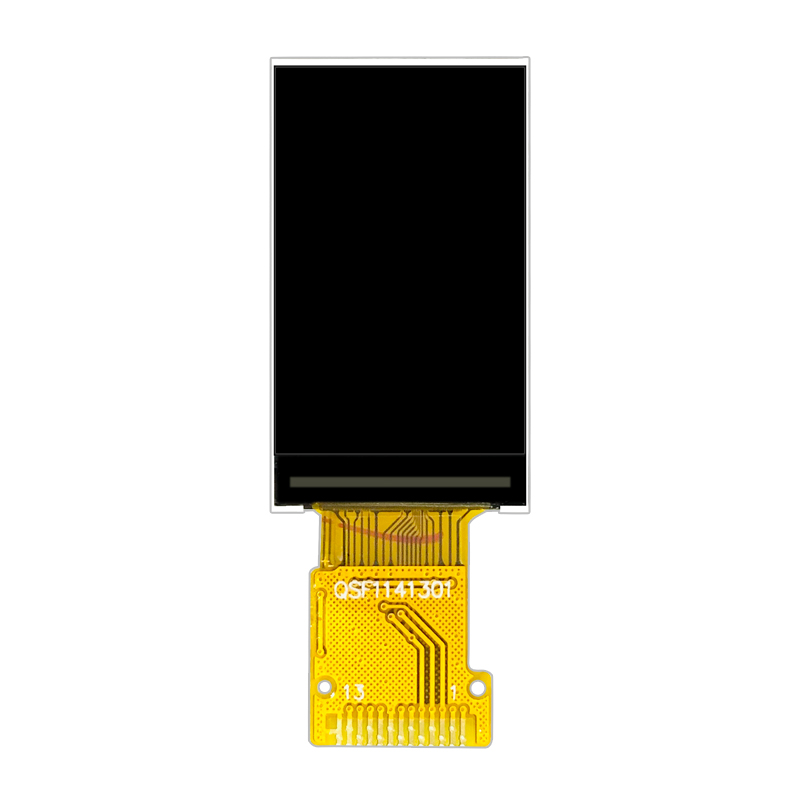

1.14 inch IPS HD TFT LCD display with 135x240 dots 13 Pins SPI interface ST7789 driver IC

1.14 inch IPS HD TFT LCD display with 135x240 dots 13 Pins SPI interface ST7789 driver IC

1.14 inch IPS HD TFT LCD display with 135x240 dots 13 Pins SPI interface ST7789 driver IC

1.14 inch IPS HD TFT LCD display with 135x240 dots 13 Pins SPI interface ST7789 driver IC

Price: $1.89-$2.59
Size: 1.14
Resolution: 135*240
Interface: SPI
Product description: Hicenda Technology Co.,ltd supply high quality 1.14 inch small tft display module for medical or industrial device
INQUIRY

1. Display Specifications

LCD Size: 1.14 inches
Dot Matrix Size: 135*240
LCD Color: 262K Full Color
Hardware Interface: SPI interface
Driver IC: ST7789
Operating Temperature: -20 - 70
Working Power Supply: 3.3V
PIN NO: welding 13Pin
Display Area: 14.86*24.91mm
Size: 17.56*31.07*1.6mm
Viewing Direction: Full viewing angle (IPS)

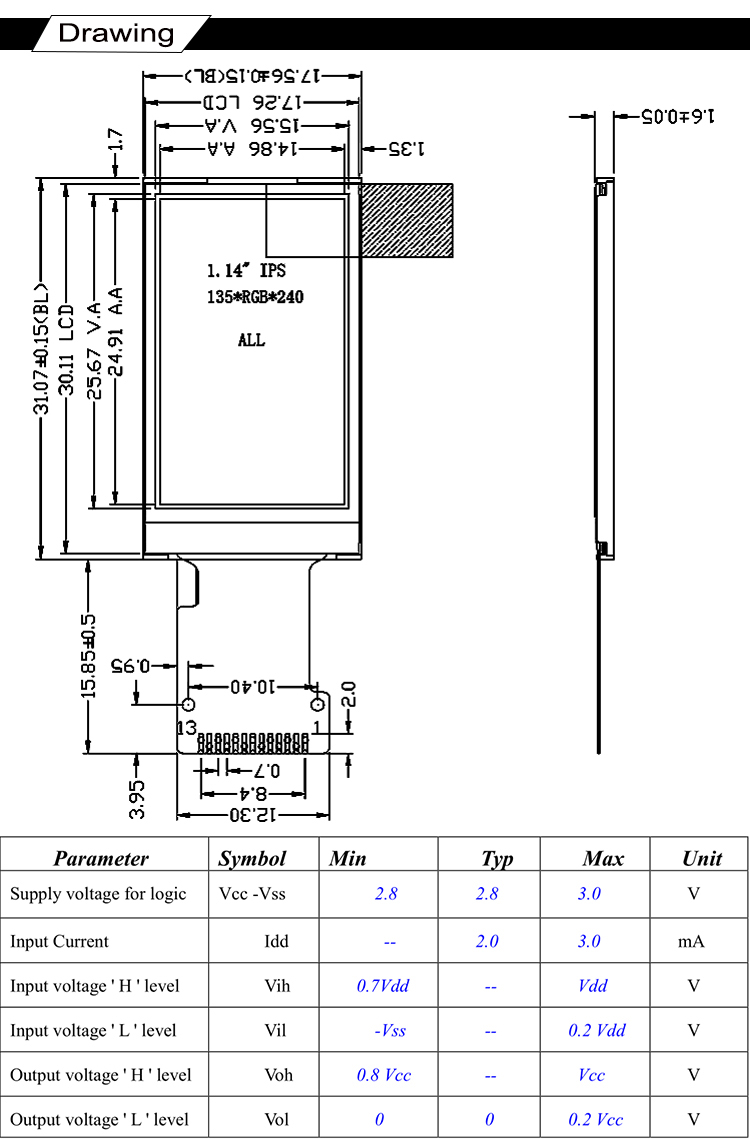

2. Mechanical Specifications

PIN No Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
