DESCRIPTION

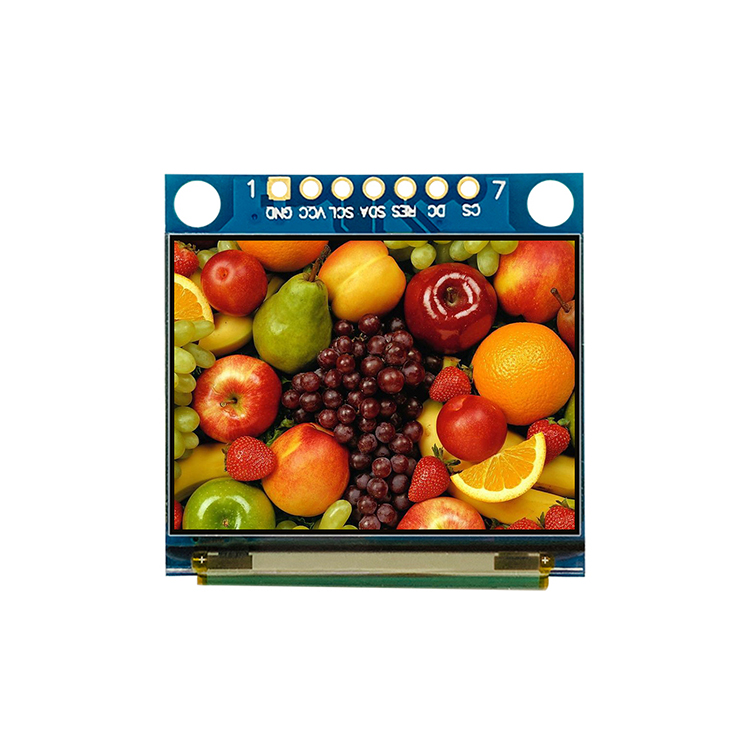

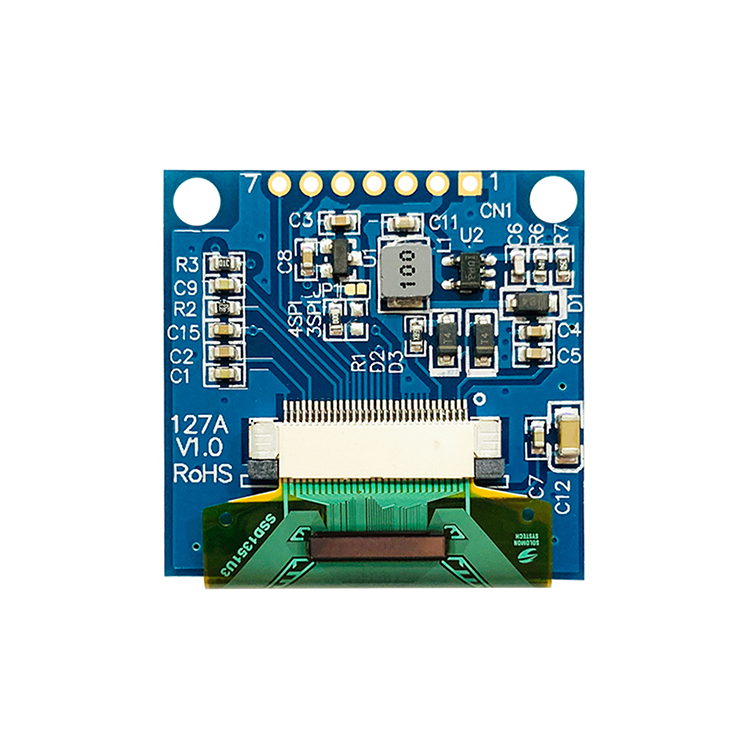

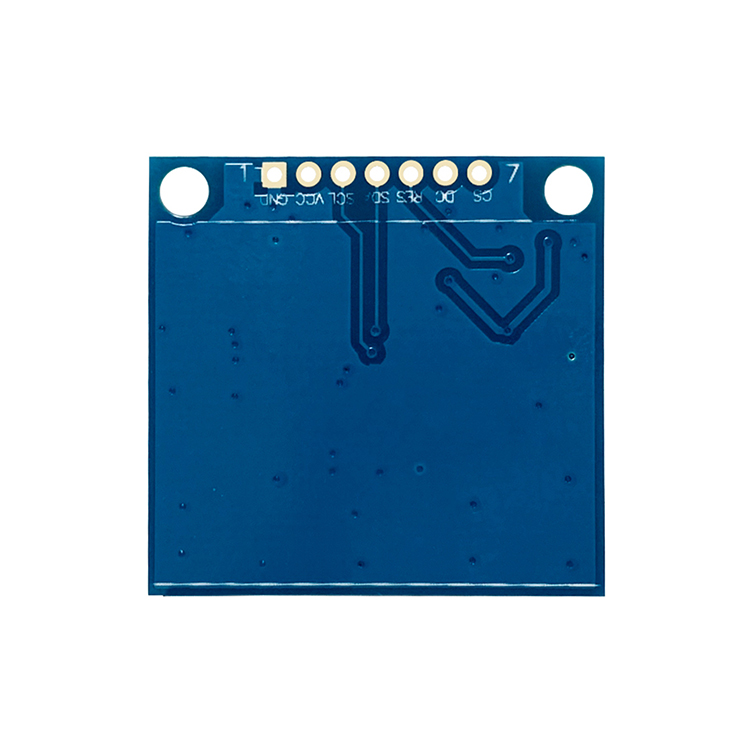

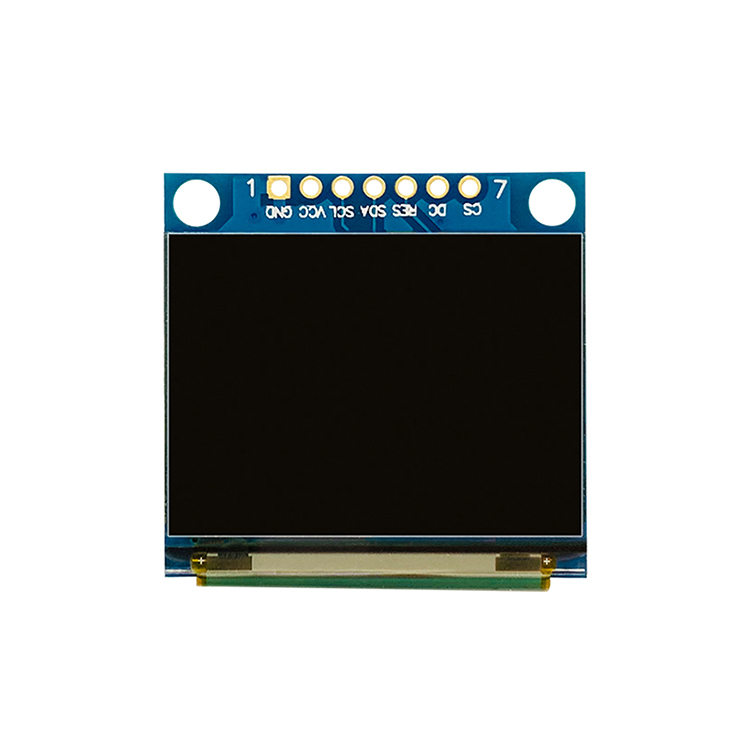

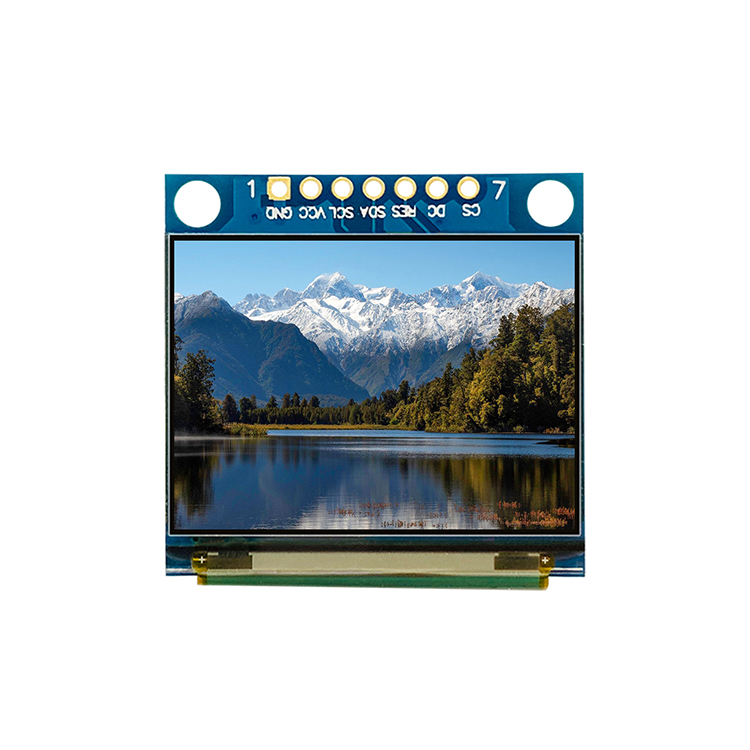

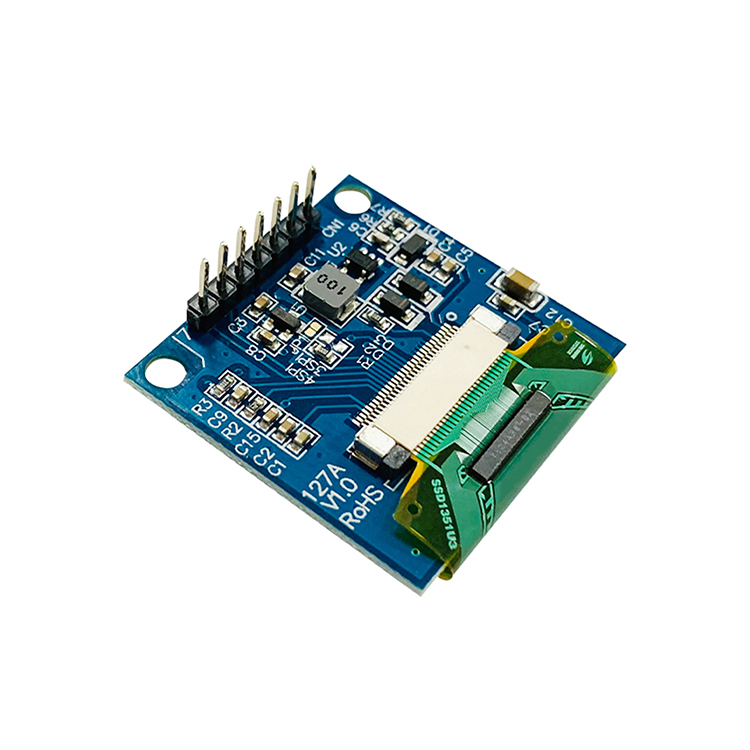

HICENDA The 1.27 inch color OLED display module, model HT127ACC30PG01S7V10, is a compact yet powerful display solution engineered for applications requiring sharp visuals and stable performance. Featuring a 128(H) × 96(V) pixel resolution in full color, this display employs the SSD1351 driver IC with a 4-SPI interface for efficient data transfer. With its passive matrix OLED (PM OLED) technology, wide operating temperature range, and precise pixel architecture, the module provides both high visual quality and robust reliability.
.

GENERAL SPECIFICATION

Key Parameters Table

Advantages of OLED Technology

High Contrast and Vivid Colors

Unlike traditional TFT modules, PM OLED panels emit light directly from organic layers, achieving infinite contrast ratios and vibrant color reproduction. This enhances image clarity even in low-light or high-glare environments.

Wide Viewing Angles

Thanks to its IPS-like viewing capability, the module ensures stable color performance and consistent brightness over a broad range of viewing angles, a crucial factor in handheld and wearable device integration.

Power Efficiency

The passive matrix OLED structure allows selective pixel illumination, reducing power consumption in scenarios with high black content. This makes the display well-suited for portable electronics and low-power applications.

Structural and Interface Considerations

Compact Dimensions

With an active area of 25.7 × 19.28 mm and a slim outline of 34.0 × 32.7 × 4.0 mm, this OLED module strikes a balance between compactness and visibility, making it ideal for embedded system interfaces.

SSD1351 Driver and 4-SPI Interface

The integrated SSD1351 driver IC manages complex image rendering and color handling. The 4-SPI interface ensures efficient data communication with microcontrollers, reducing latency while simplifying design integration.



Application Scenarios

Consumer Electronics

Devices such as MP3 players, smart appliances, and handheld controllers benefit from the module’s sharp graphics and color depth.

Industrial Equipment

The module’s -20℃ to +70℃ operating temperature range enables deployment in rugged industrial controls, meters, and diagnostic tools.

Wearable and Portable Devices

Its lightweight and thin design makes it a practical choice for wearable devices requiring both compactness and premium visual performance.

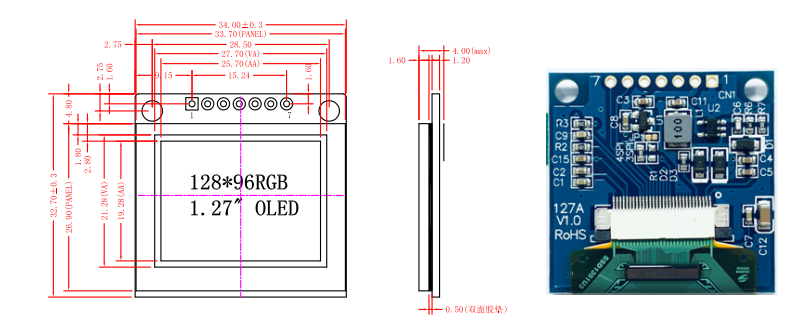

DRAWING

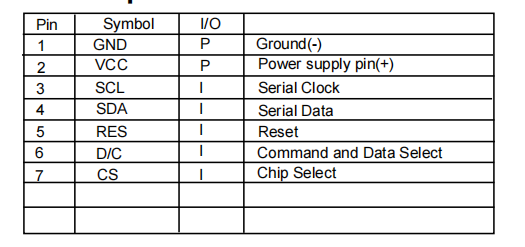

INTERFACE PIN FUNCTION

Conclusion

The 1.27 inch 128×96 full-color OLED display module with SSD1351 driver IC and 4-SPI interface is a technologically advanced solution that combines clarity, efficiency, and durability. Its passive matrix OLED technology ensures brilliant visuals with low power consumption, while its structural and thermal reliability allow seamless integration across consumer, industrial, and portable device applications.
