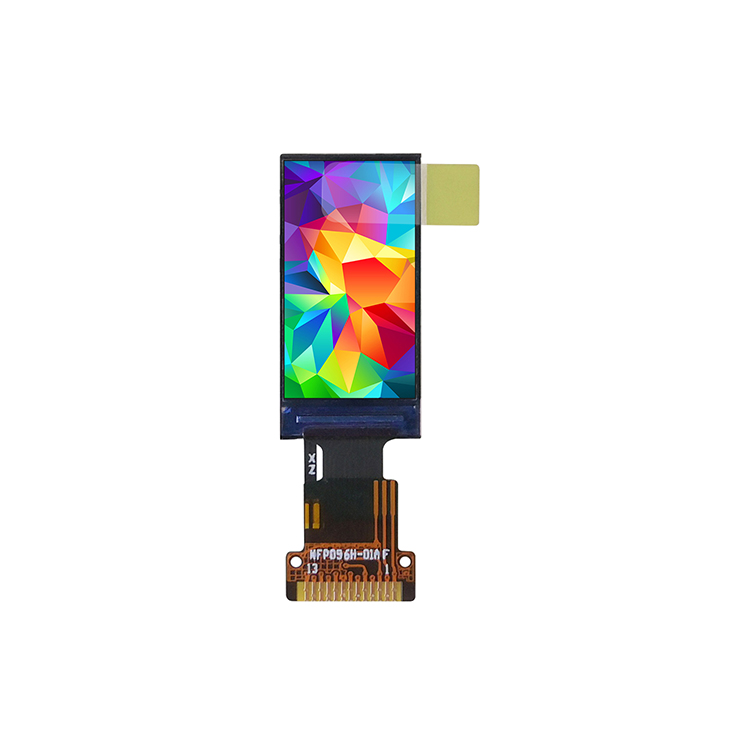

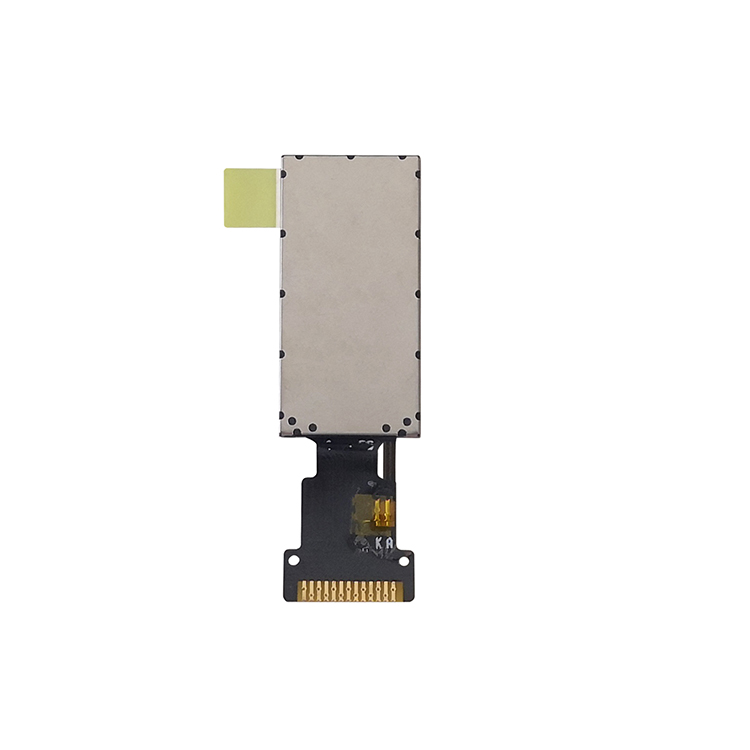

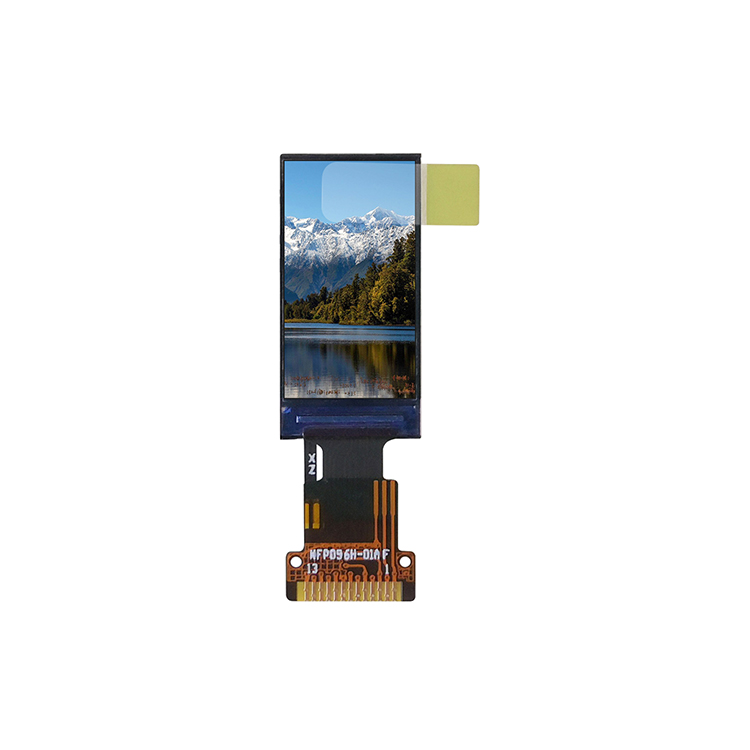

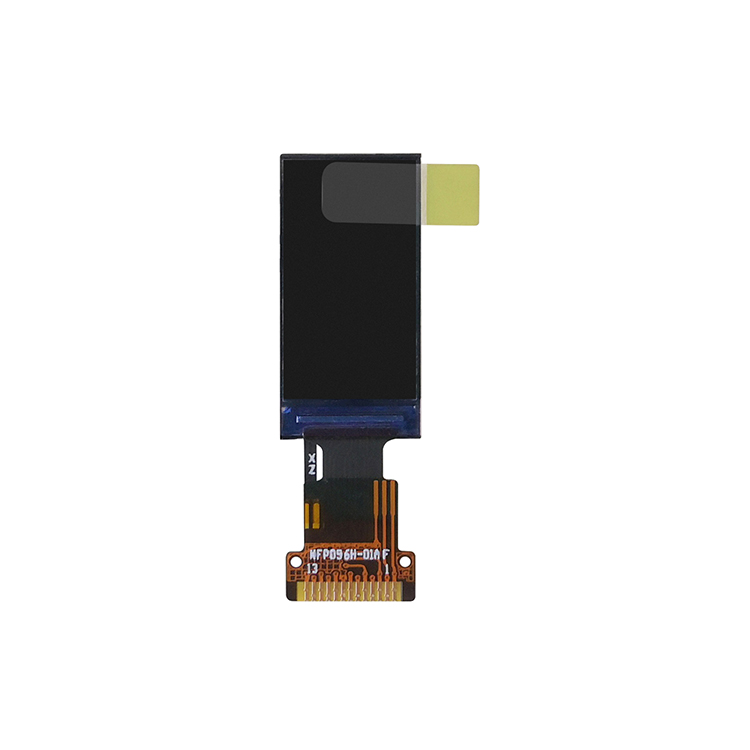

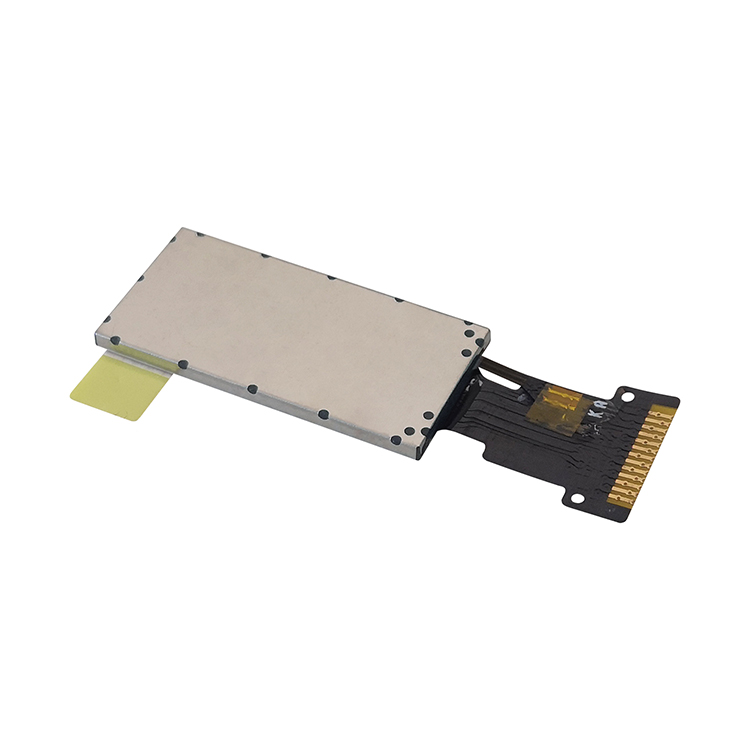

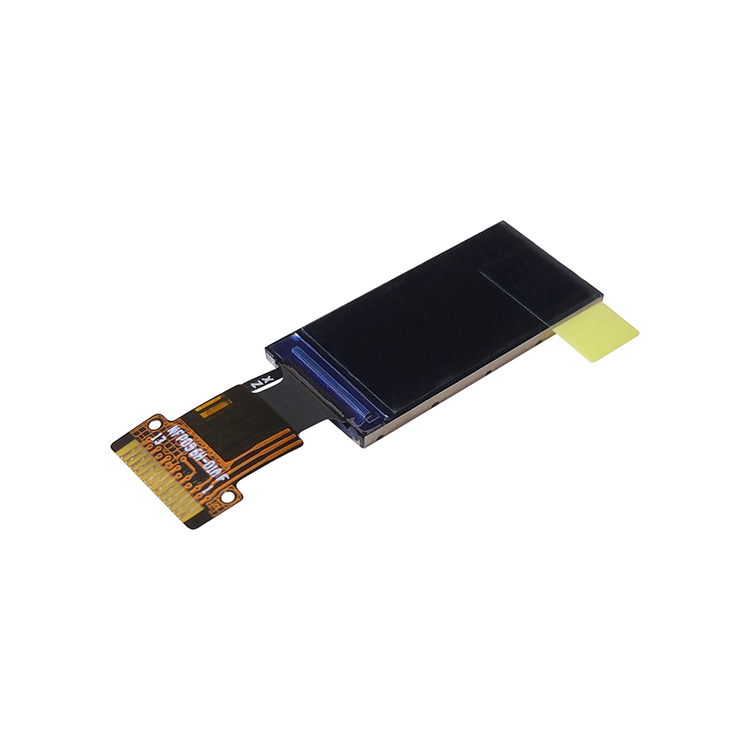

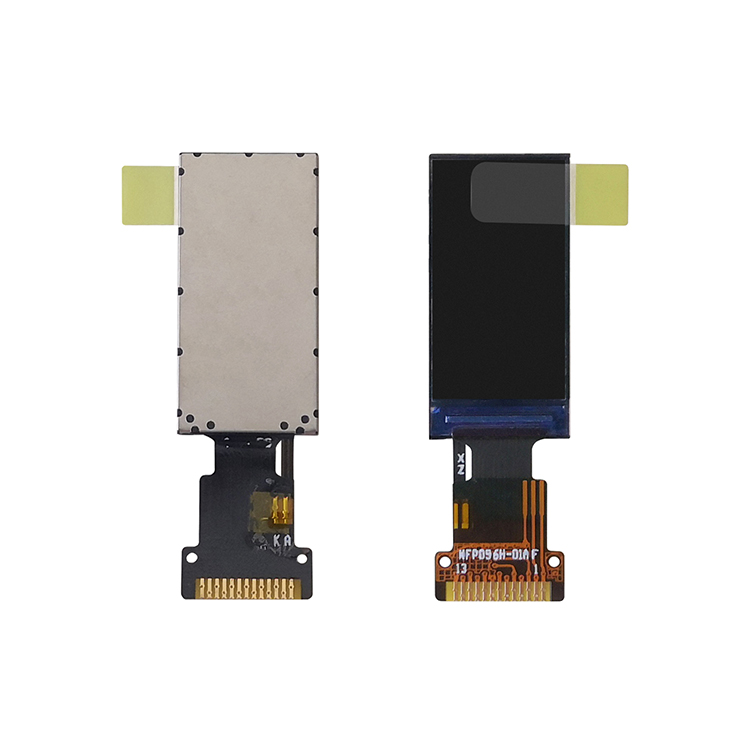

Description of the 0.96-Inch TFT SPI Display Module

The 0.96-inch SPI full-color TFT LCD display module (Model No: HT096TG-IG11G) is a compact, high-resolution visual interface ideal for a wide range of embedded applications. Featuring an 80x160 RGB pixel resolution within a slim, lightweight profile, this module offers vibrant 16.7M color reproduction and efficient data handling via a 4-wire SPI interface. With a normally black display mode and GC9107 driver IC, it ensures sharp contrast and smooth operation across an extended temperature range. The module's miniature form factor—measuring just 13.5 x 27.95 x 1.5 mm—makes it particularly suited for portable and space-constrained designs.

Advanced Features of the HT096TG-IG11G TFT Module

Designed for precision, performance, and practicality, the HT096TG-IG11G combines cutting-edge technology with a user-centric interface. Below is an exploration of its notable features and their implications for system design.

Compact Yet Capable

Despite its modest 0.96-inch size, the module accommodates an 80 x 160 pixel matrix, delivering remarkable clarity at high pixel density. Its active area of 10.8 x 21.7 mm ensures that even the smallest screens retain full readability and vibrancy, essential for applications like wearable devices, handheld meters, and compact control panels.

Rich Color Reproduction

Utilizing 24-bit color depth, the display outputs 16.7 million colors, enhancing the visual quality of icons, graphs, and interactive elements. The "normally black" display mode ensures that colors remain vivid even in varying lighting conditions, reducing power draw when in standby.

Seamless Integration via SPI Interface

The 4-wire SPI interface enables streamlined communication between the display and host controller, supporting efficient data transfer with reduced pin count. This simplicity aids in reducing circuit complexity and accelerates integration into both new and existing designs.

Performance and Environmental Tolerance

Wide Operating Temperature Range

Reliability is a key focus of the HT096TG-IG11G, with an operating range from -20°C to +70°C. This allows the module to function effectively in both indoor and semi-outdoor conditions, making it versatile for industrial and consumer-grade applications alike.

Robust Storage Capabilities

The module's ability to withstand storage temperatures ranging from -30°C to +80°C ensures safe transport and long-term durability, a crucial consideration during device shipping and warehousing.

Technical Specifications Table

Application Scope and Integration Advantages

Versatile Use Cases

From smart wearables to industrial monitoring tools, the HT096TG-IG11G is tailored for compact, power-sensitive projects requiring high visual fidelity. Its robust feature set empowers designers to prioritize form factor without sacrificing performance.

Design Considerations

When incorporating this module into a product, attention should be paid to SPI communication timing, backlight power management, and mechanical mounting. The thin profile offers mounting flexibility for curved surfaces and slim enclosures.

Conclusion

The HT096TG-IG11G 0.96-inch TFT display module exemplifies the synergy between miniaturization and performance. With its full-color output, robust operational range, and efficient interface, it stands out as an optimal choice for modern embedded systems. Whether enhancing user interaction in consumer gadgets or streamlining feedback in industrial tools, this module delivers clarity, reliability, and adaptability in a compact package.

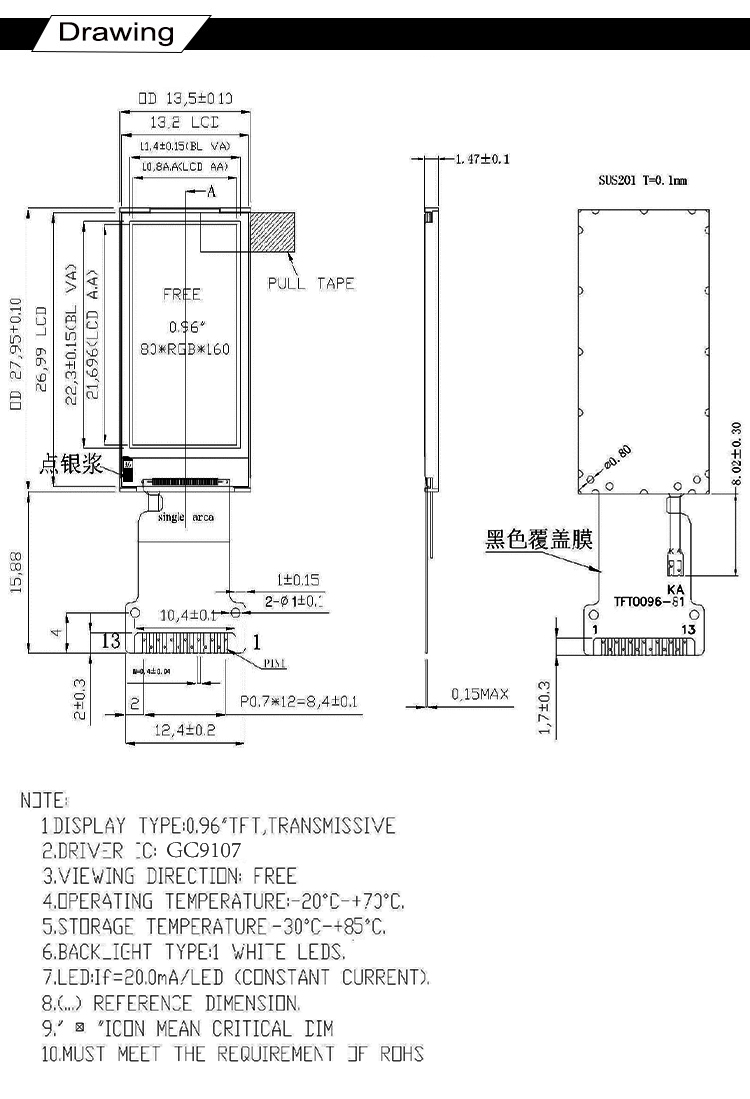

Drawing

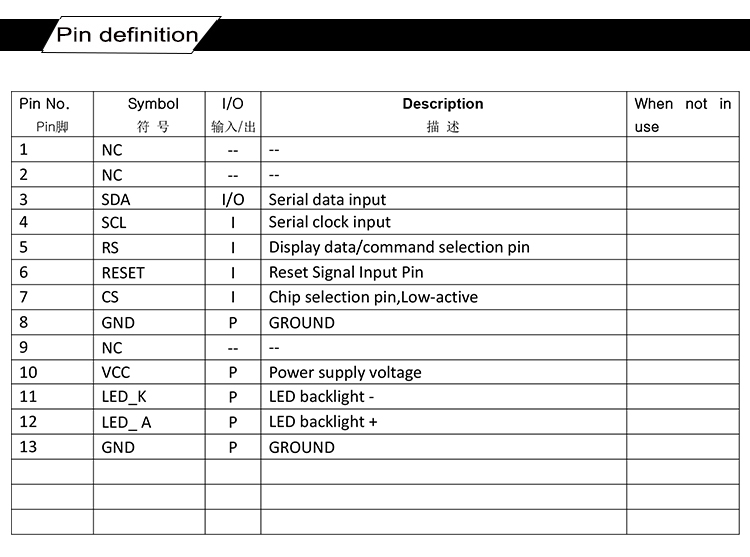

Pin Definition
