0.96 inch TFT Display Module 8Pin SPI Interface 65K full color TFT LCD module ST7735 driver IC 80 * 160 resolution

0.96 inch TFT Display Module 8Pin SPI Interface 65K full color TFT LCD module ST7735 driver IC 80 * 160 resolution

0.96 inch TFT Display Module 8Pin SPI Interface 65K full color TFT LCD module ST7735 driver IC 80 * 160 resolution

0.96 inch TFT Display Module 8Pin SPI Interface 65K full color TFT LCD module ST7735 driver IC 80 * 160 resolution

Price: $1.89-$2.89
Size: 0.96
Resolution: 128*64
Interface: SPI
Product description: Hicenda Technology Co., Ltd can supply high quality 0.96 inch small tft display module for medical or industrial device
INQUIRY

1. Display Specifications

LCD Size: 0.96 inches
Dot Matrix Size: 128*64
LCD Color: 65K Full Color
Hardware Interface: SPI interface
Driver IC: ST7735
Operating Temperature: -20 - 70
Working Power Supply: 3.3V
PIN NO: 8Pin
Display Area: 21.7*10.86mm
Size: 27.3*27.8*3.5mm

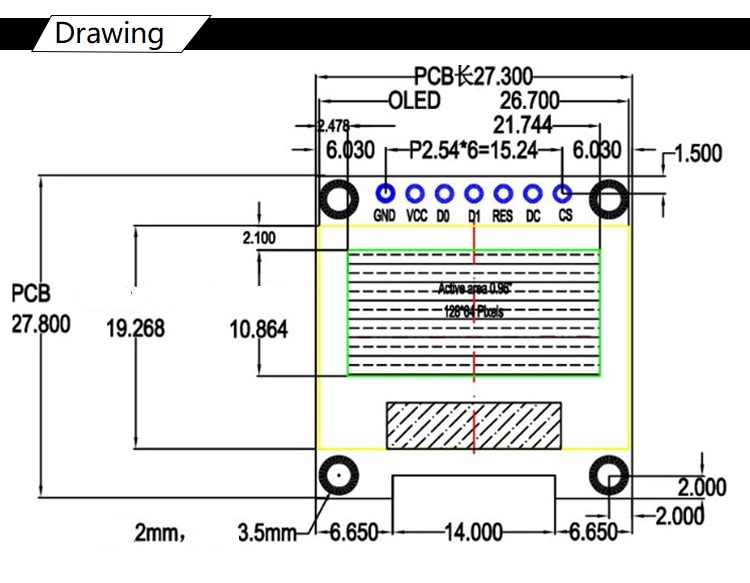

2. Mechanical Specifications

Product Name	0.96 Inch TFT Mini LCD Screen Color LCD Module
Active Area (WxH)	10.8(H) x 12.7(V)
Display Outline Size	19.2(H) x 26.7(V) x 1.5(D)
Resolution	128RGBx64DOTS
Polarizer Mode	RGB Stripe
Backlight	2 White LEDs In Parallels
Interface Type	SPI
Technology Type	a-Si TFT active matrix
Controller / Driver	ST7735S
