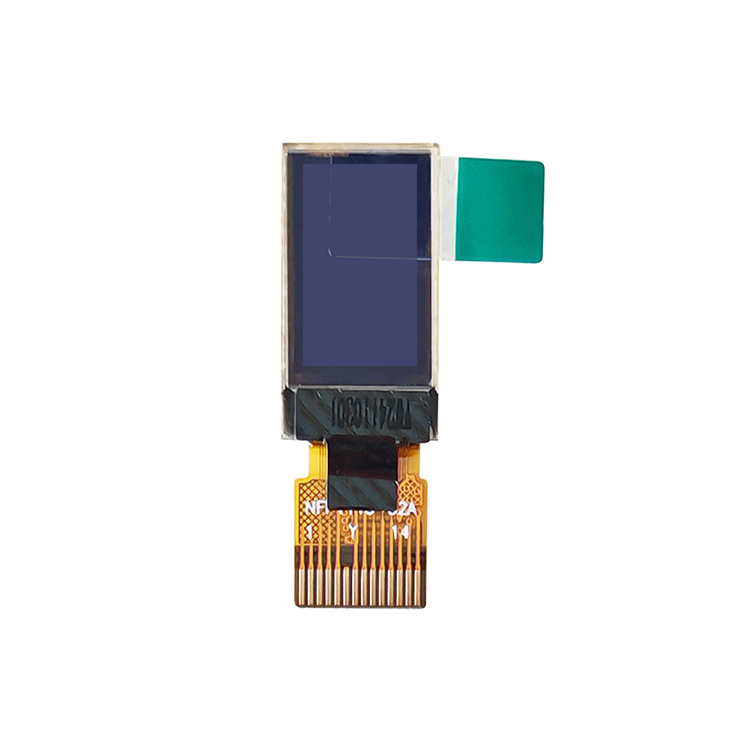

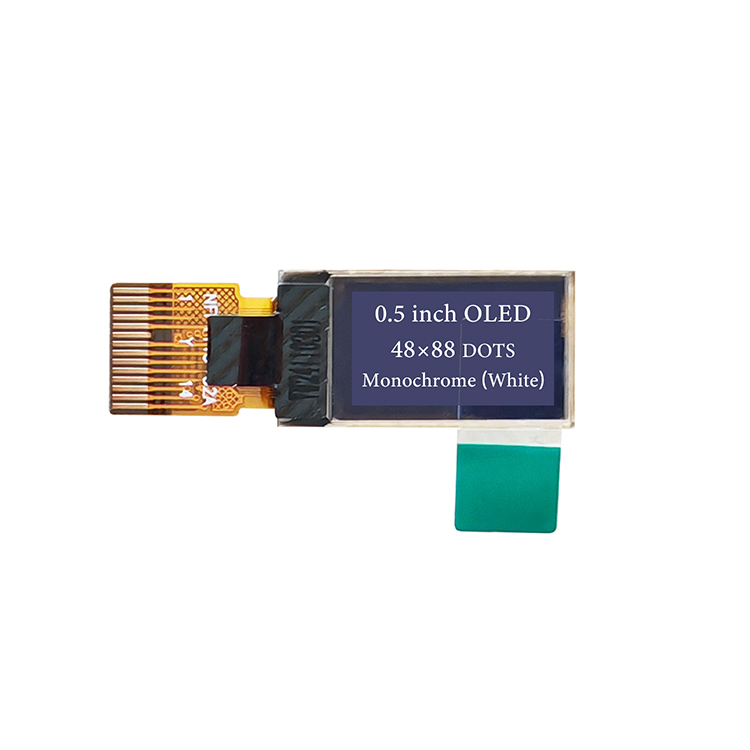

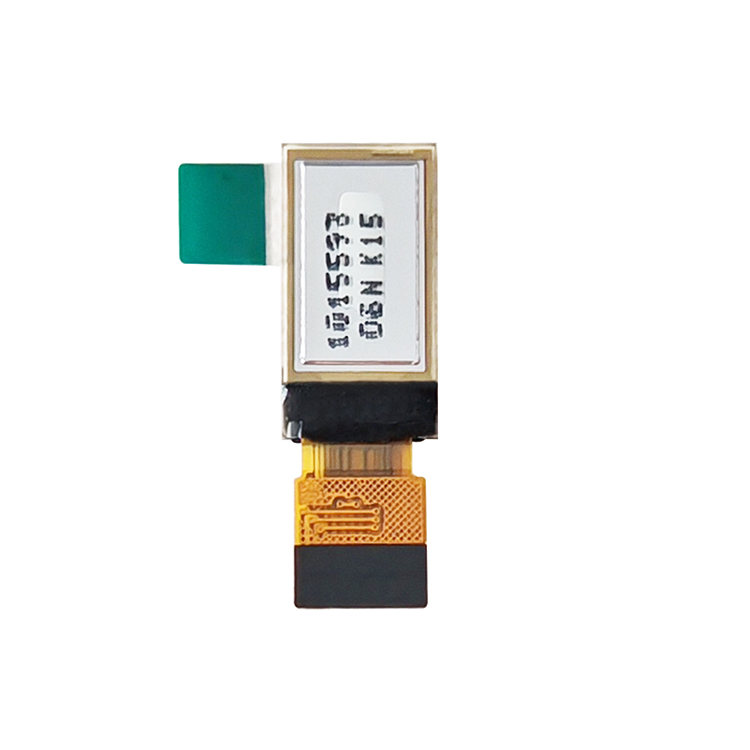

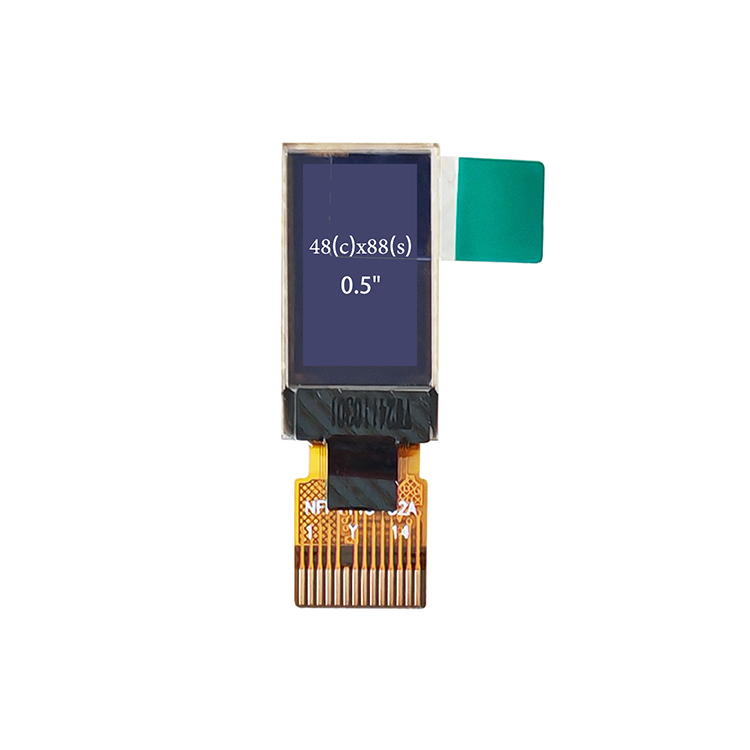

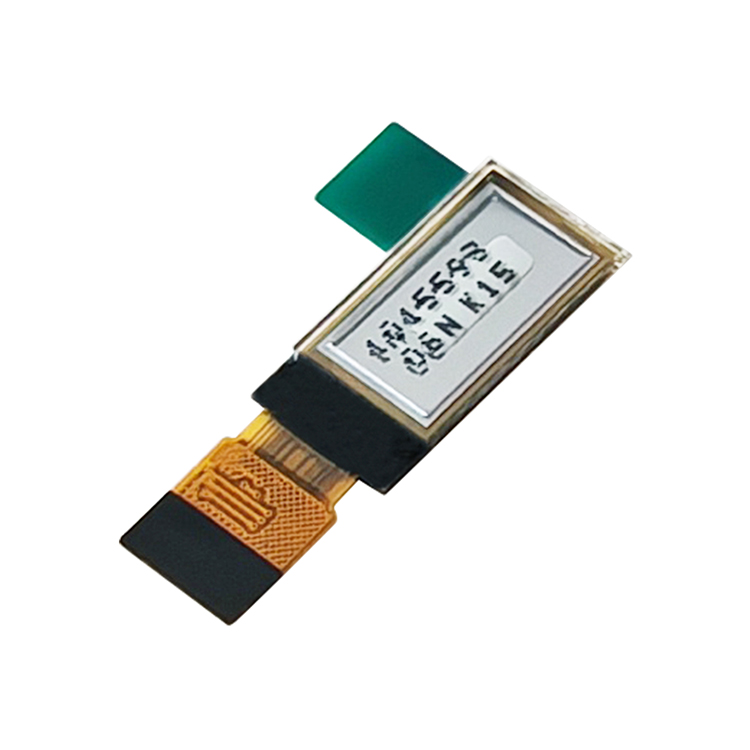

  • Size: 0.50 OLED
  • Controller IC: CH1115
  • Resolution: 48*88
  • Interface: I2C
  • Product description: MINI OLED Display 0.5 inch OLED Display 88X48 DOTS
  • INQUIRY

Please kindly contact us for full data sheet of the display.

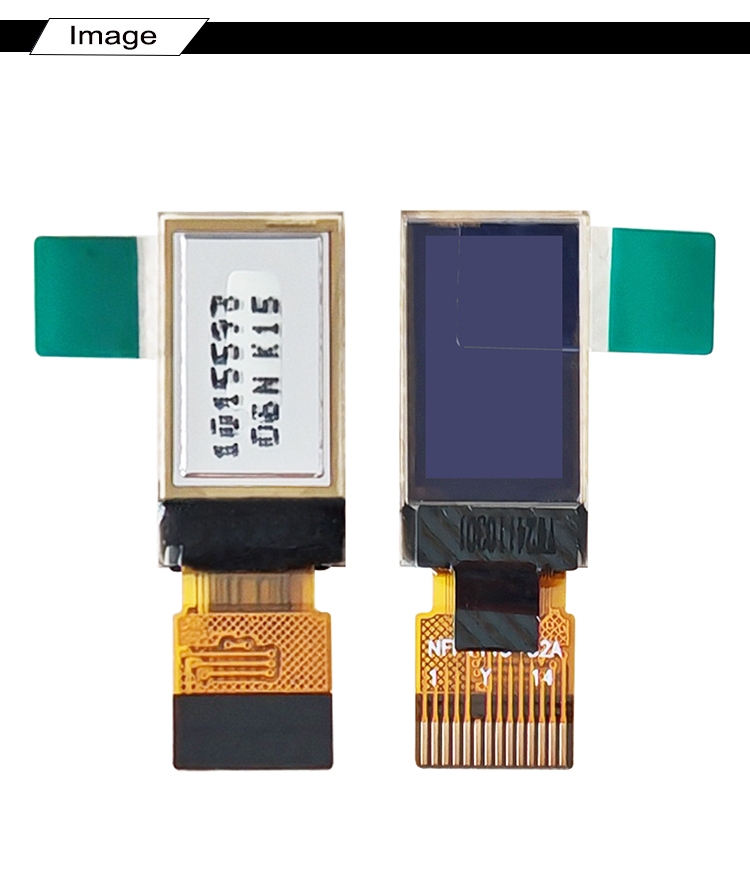

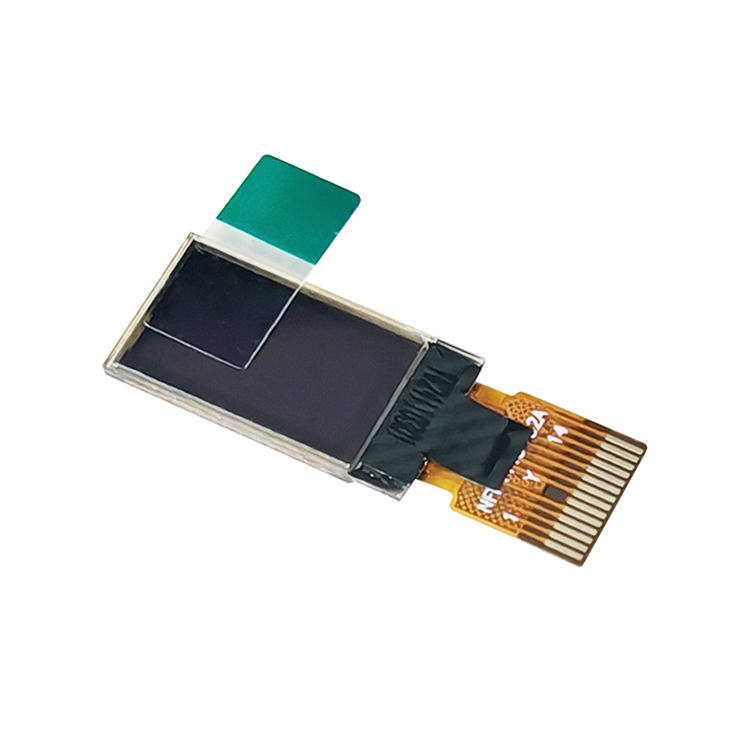

The Small OLED Display 0.5 inch monochrome OLED Display Module with 48X88 Resolution, designated as Model No: HG-8848TSWYG09-C14, delivers precise visual performance within a miniature footprint. With a resolution of 48RGB×88DOTS, a compact outline dimension of 8.928×17.1×1.227 mm, and an active display area of 6.124×11.244 mm, this dot-matrix OLED panel achieves outstanding clarity at a pixel pitch of 0.128×0.128 mm. Designed to render 16.7 million colors (24-bit), the module adopts an I²C interface and integrates the CH1115 driver IC. It operates reliably across a wide temperature range from -40°C to 85°C and endures storage conditions from -55°C to 125°C.

Technical Architecture and Functional Highlights

Display Performance and Visual Fidelity

Despite its diminutive size, this OLED module excels in pixel accuracy and chromatic rendering. The use of full 24-bit color depth enables it to represent over 16.7 million colors, ensuring that even fine gradations and details are preserved. The Dot Matrix OLED mode ensures consistent brightness and contrast across the display, which is essential for wearable technology, medical instruments, and compact industrial applications.

Electrical and Thermal Resilience

The integration of the CH1115 driver IC allows seamless control over the matrix display via the I²C interface, making it particularly advantageous for embedded systems with limited pin availability. Furthermore, the module's robust thermal tolerance—ranging from -40°C during operation to -55°C in storage—positions it as a reliable choice for harsh environments or mission-critical devices.



Structural and Interface Specifications

Specification Value
Model Number                                                                       HG-8848TSWYG09-C14
Display Size 0.5 inch
Resolution 48RGB × 88 DOTS
Outline Dimension 8.928 × 17.1 × 1.227 mm
Active Area 6.124 × 11.244 mm
Pixel Pitch 0.128 × 0.128 mm
Display Colors 16.7M (24-bit)
Pixel Arrangement Dot Matrix OLED
Interface Type I²C
Driver IC CH1115
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 125°C




Application Scope and Integration Potential

H3: Ideal for Miniaturized and Portable Systems

Due to its compact footprint and low-power operation, this OLED display module is ideally suited for integration into smart wearable devices, compact sensors, handheld terminals, and other miniaturized consumer electronics where space efficiency and high visual clarity are essential.

H3: Compatibility and Design Flexibility

With I²C as its primary communication protocol, this module simplifies integration into existing hardware ecosystems. Its physical and electrical design is optimized to reduce PCB layout complexity while maintaining signal integrity, which facilitates rapid product development cycles.


Conclusion: A Robust Solution for High-Precision Display Needs

The 0.5-inch 48x88 OLED Display Module represents a thoughtful balance between miniaturization and performance. Backed by wide operating conditions, vibrant color fidelity, and efficient driver integration, it offers a reliable solution for developers seeking compact displays without sacrificing quality. Whether used in wearable technology, instrumentation, or IoT devices, this display module meets the demands of next-generation embedded applications with technical elegance and functional reliability.

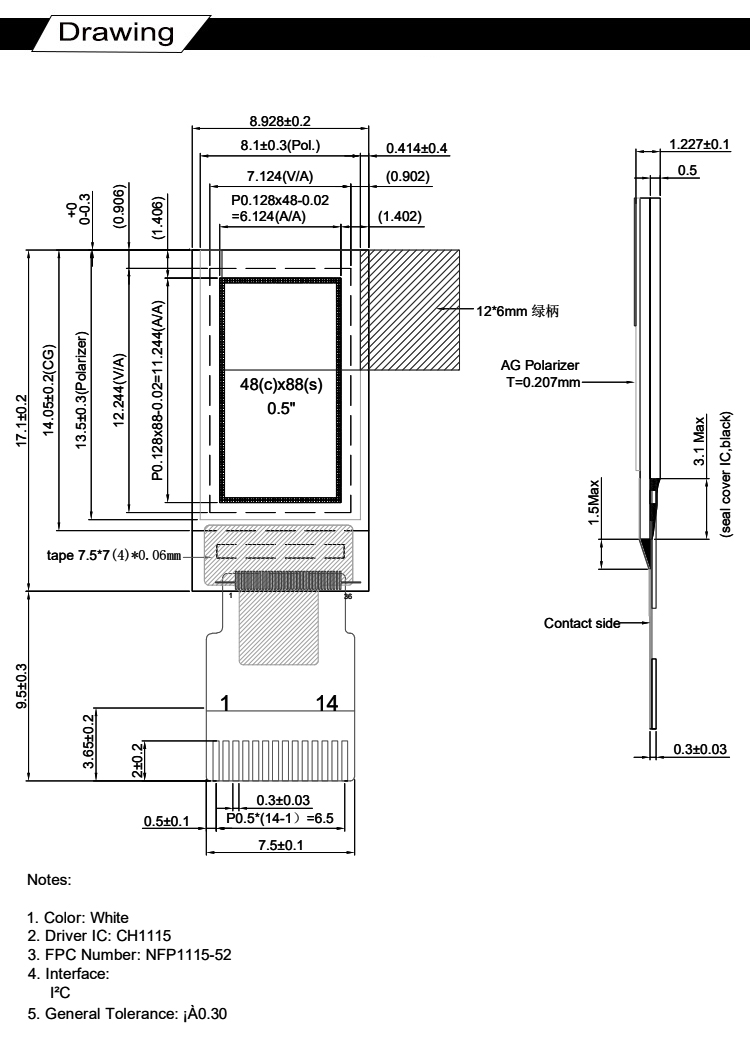

DRAWING

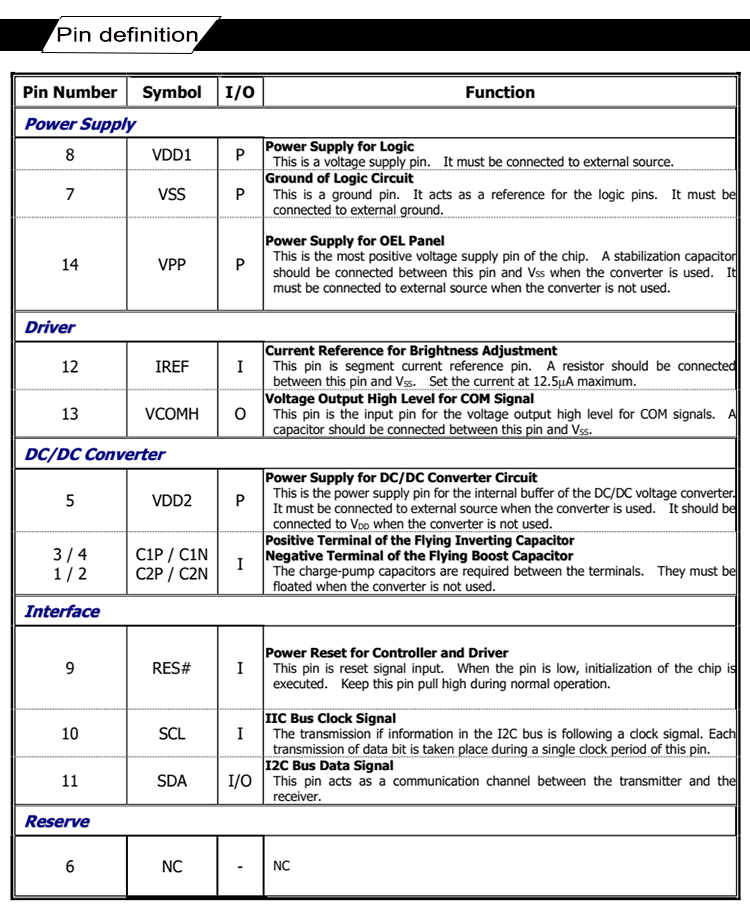

INTERFACE PIN FUNCTION
