0.39 inch micro oled display 1024x768 resolution Integrated kit for AR

DESCRIPTION

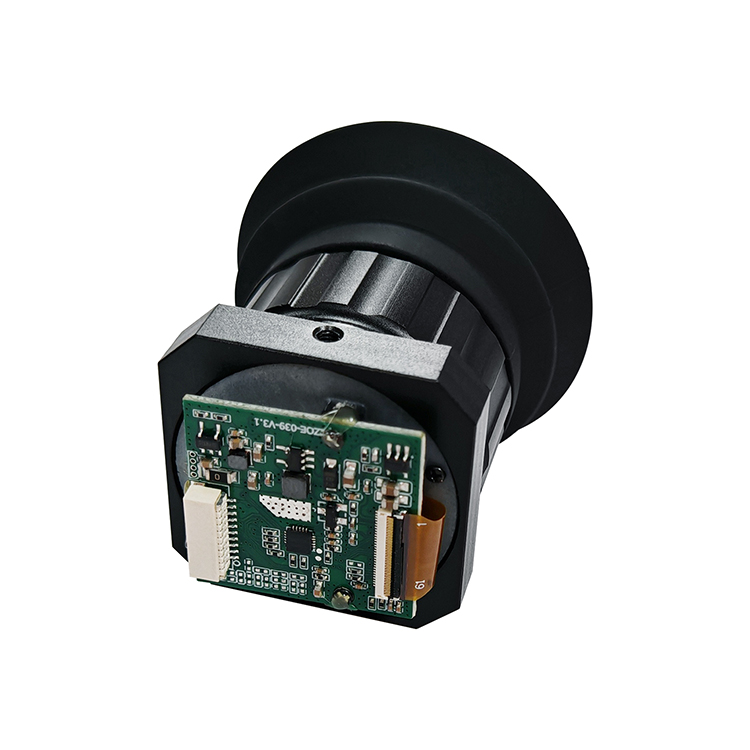

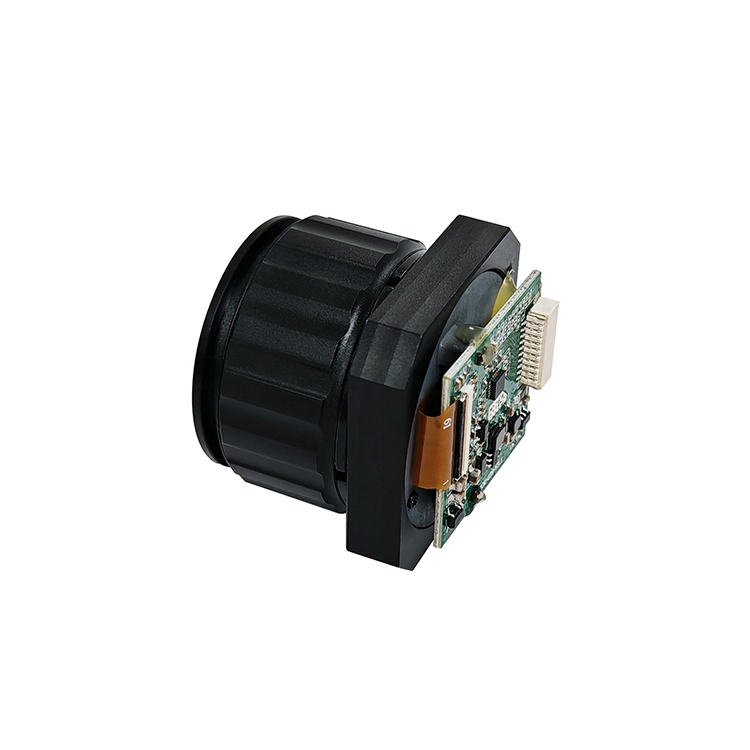

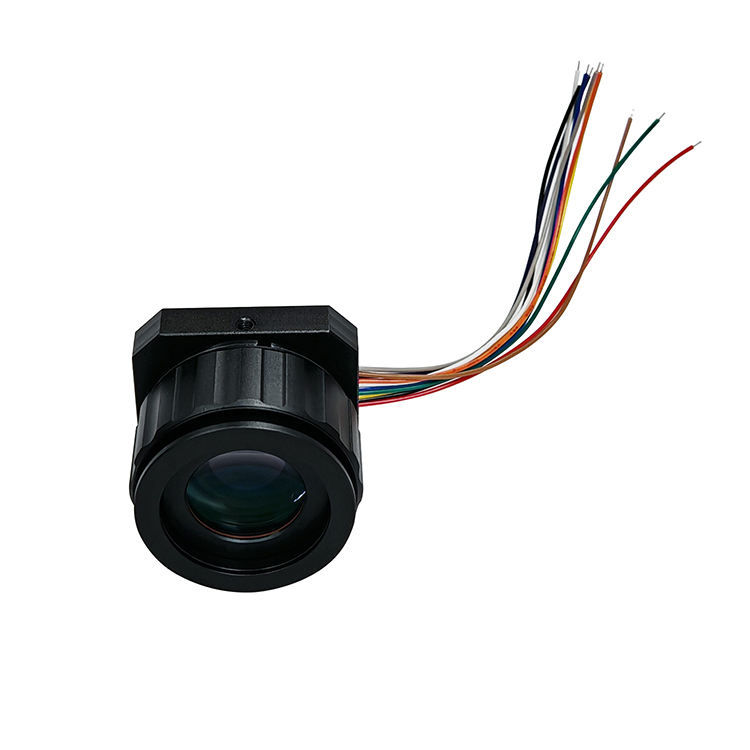

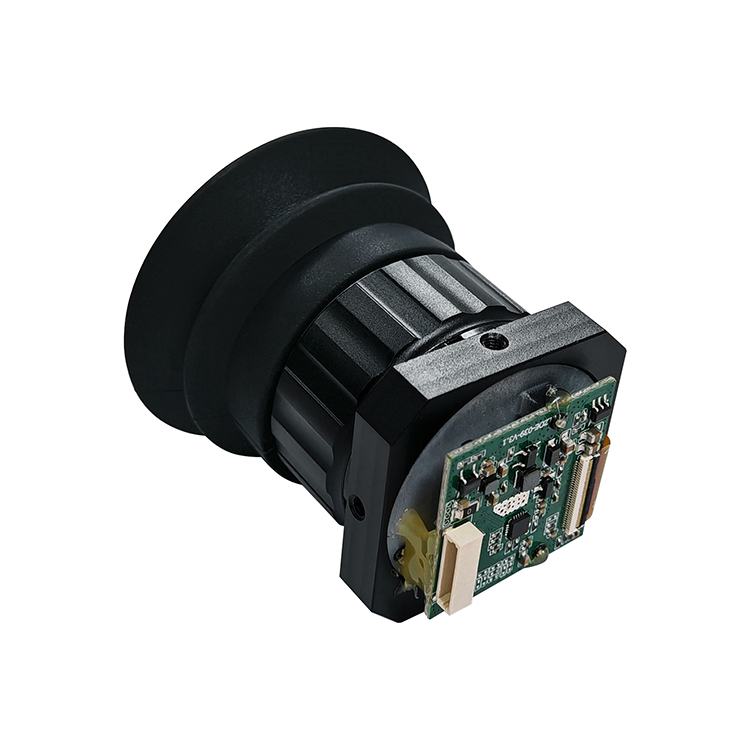

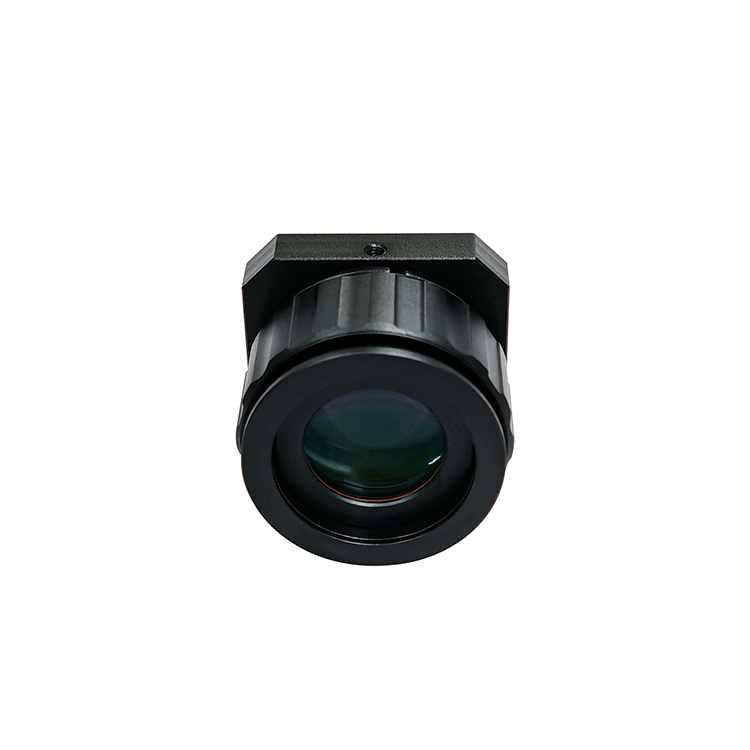

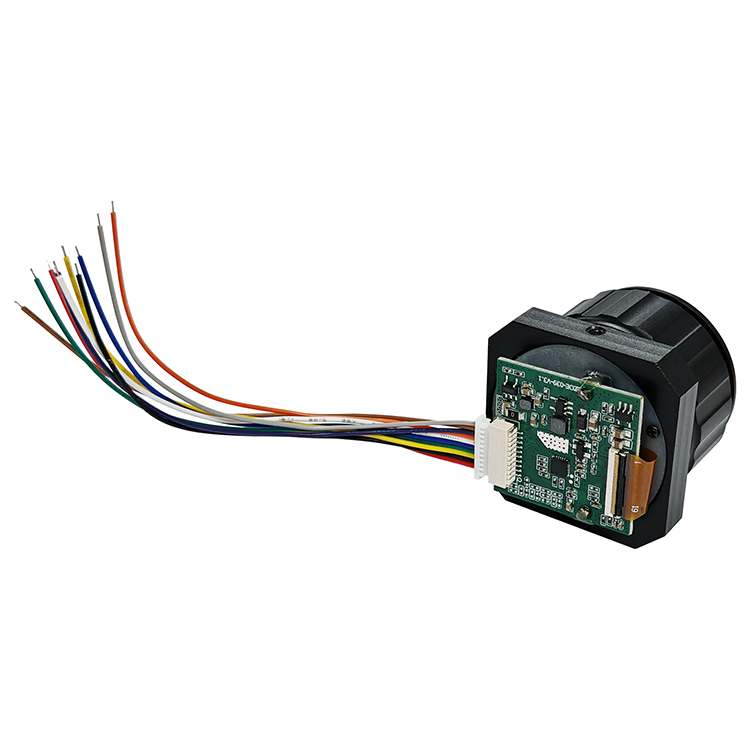

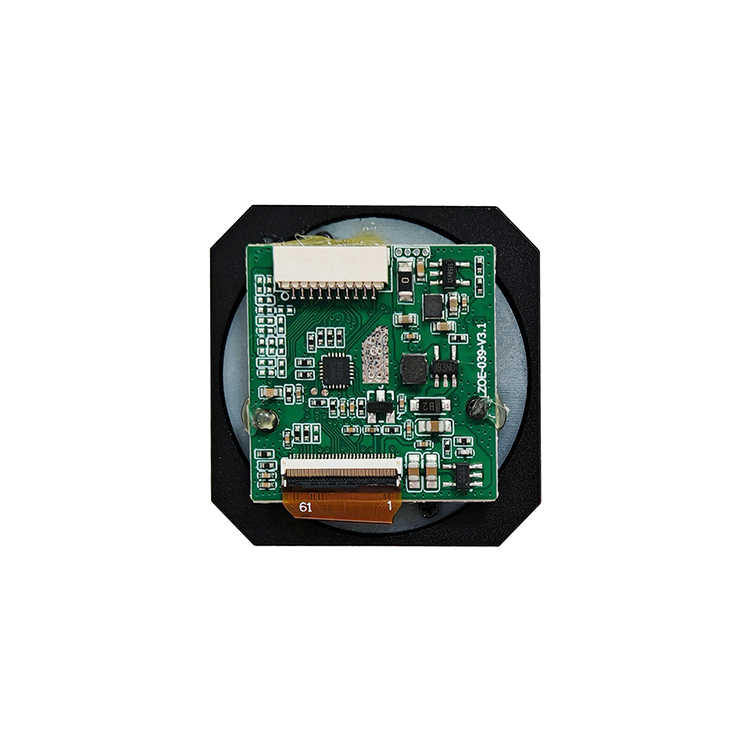

This micro oled display Integrated kit consists of 0.39 inch micro oled display 1024X768 RESOLUTION,15X magnifiering optical priam, and CVBS display driver board, all components well assembled and can be directly used into devices such as in AR,VR applications;

this micro oled display module Integrated is with a low power consumption and high resolution 1024x768 abd high brightness of 500nits ; based on a single-crystal silicon backplane. The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.

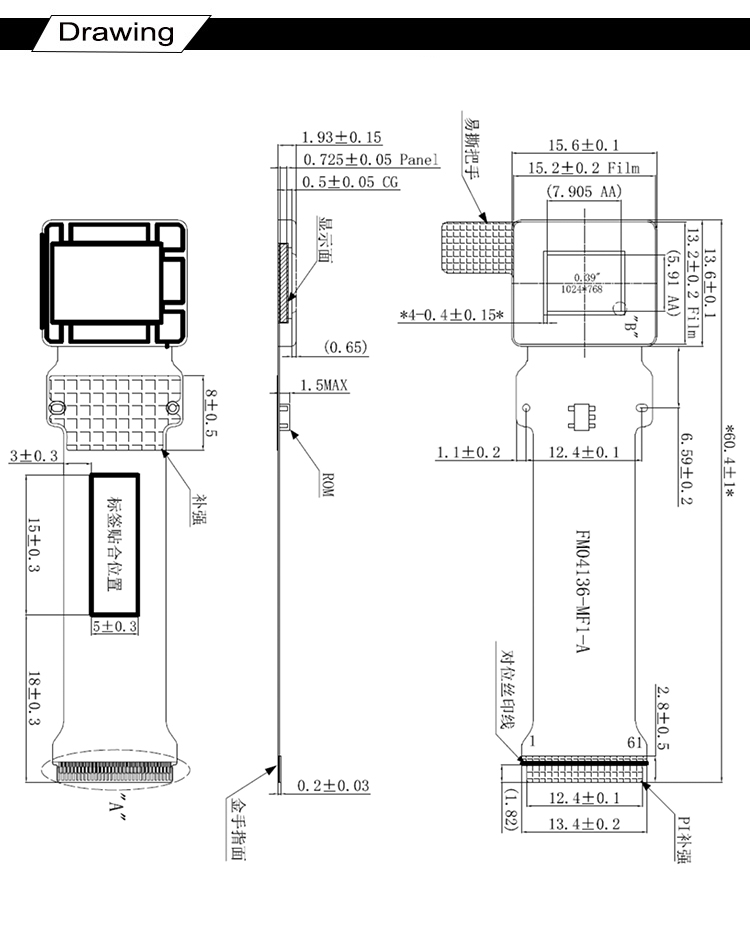

DRAWING

SPECIFICATIONS

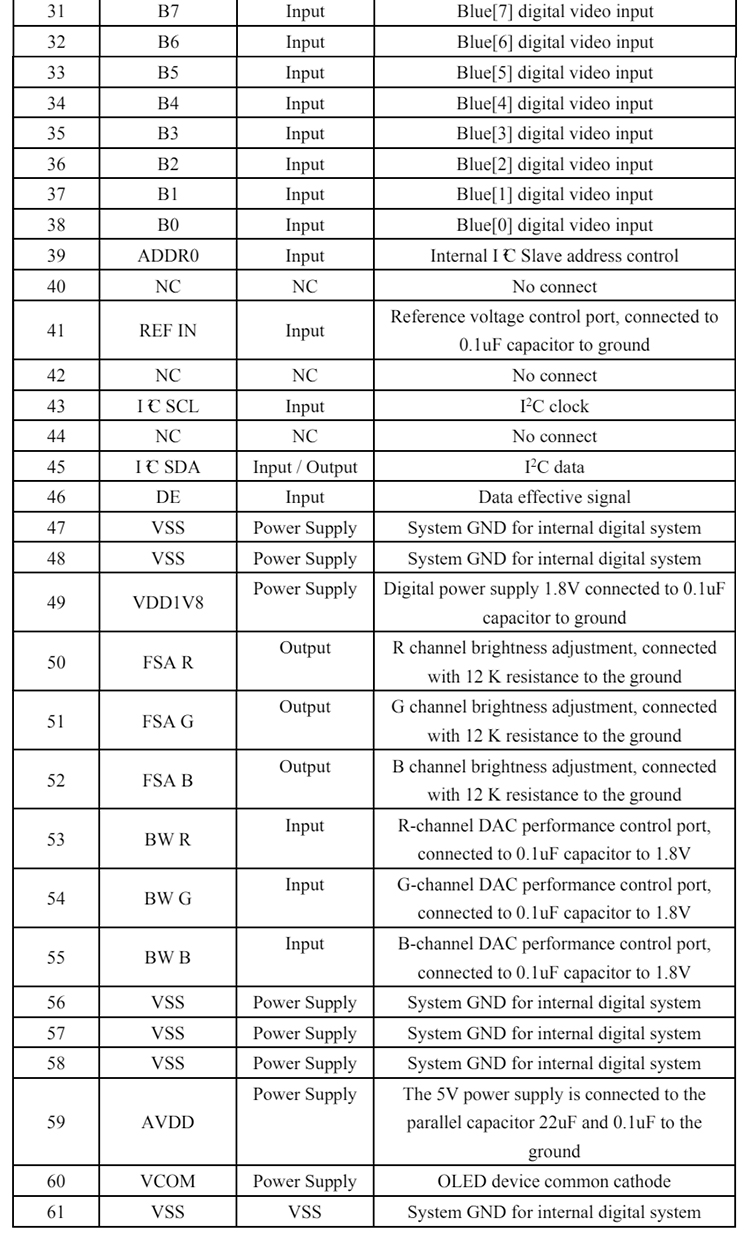

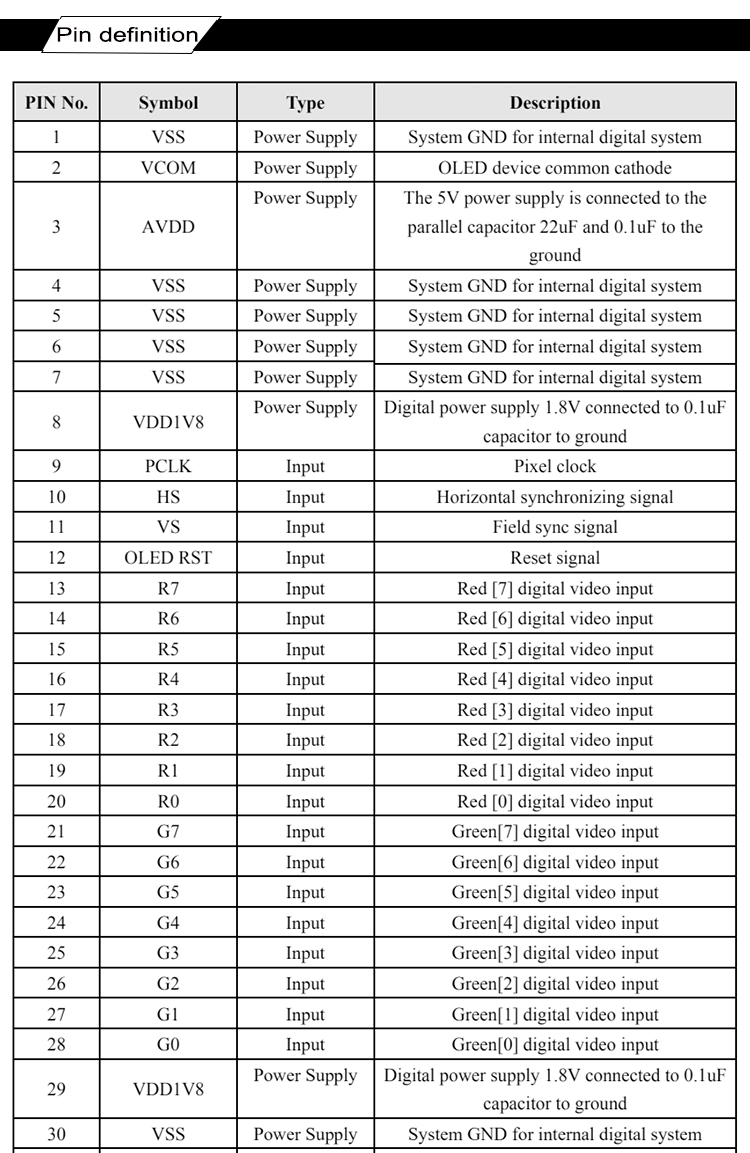

Interface Pin Function

General Specification
