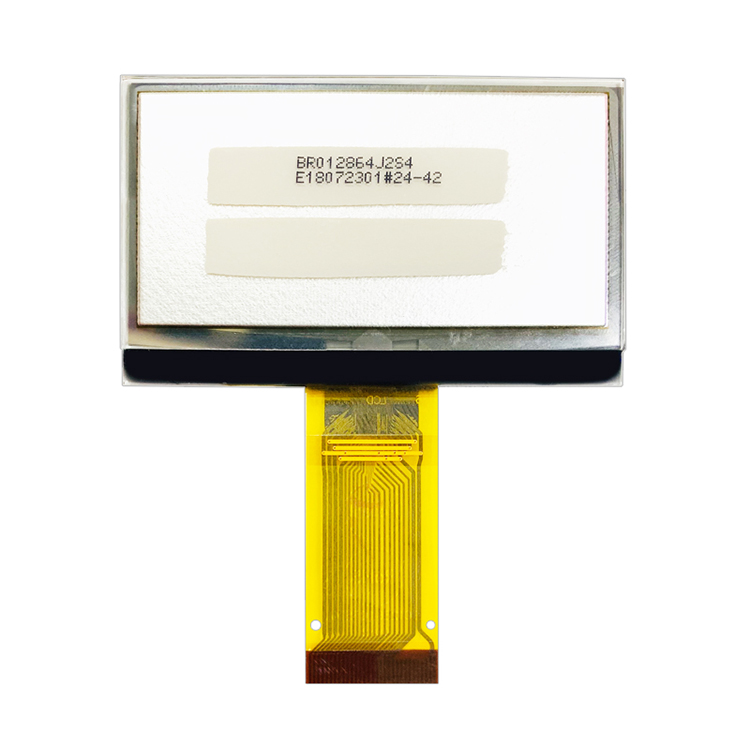

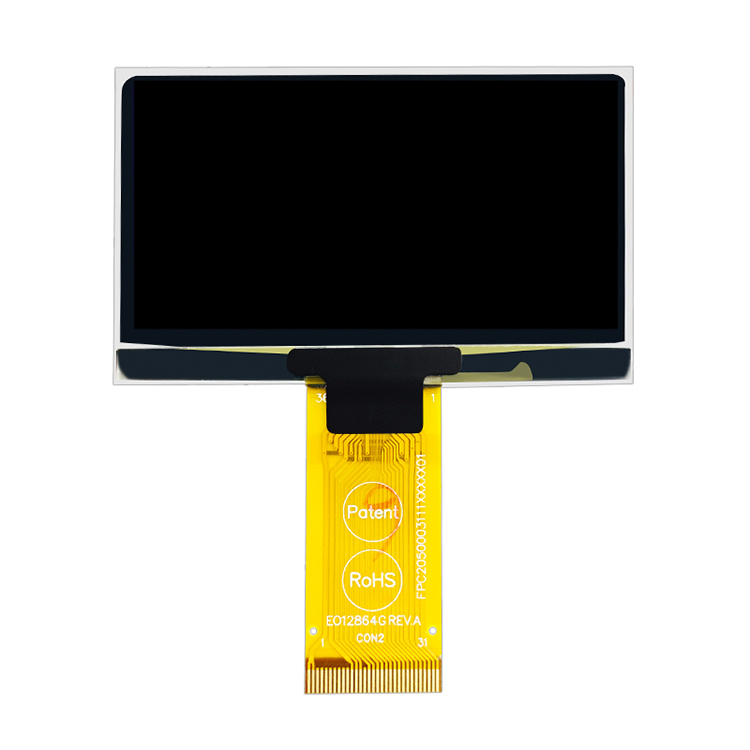

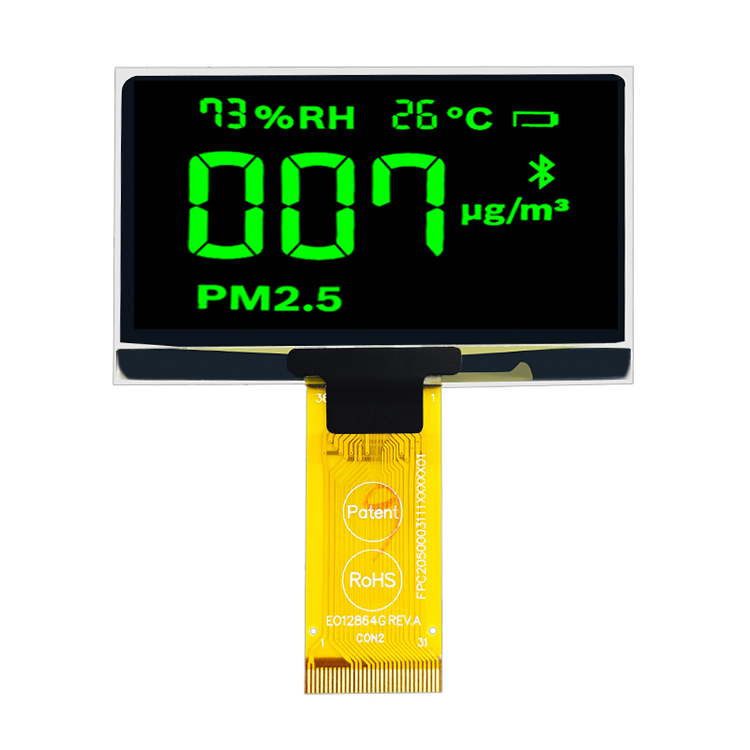

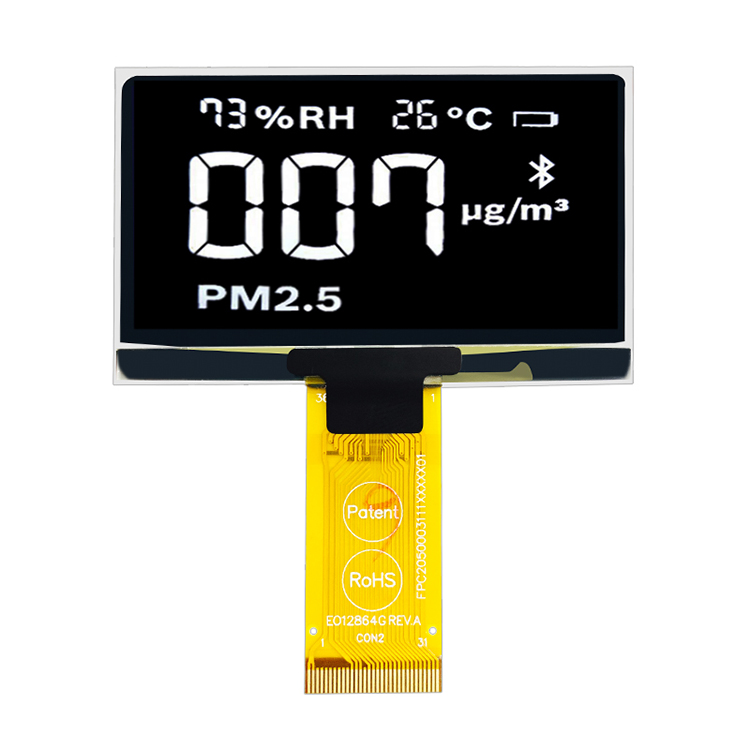

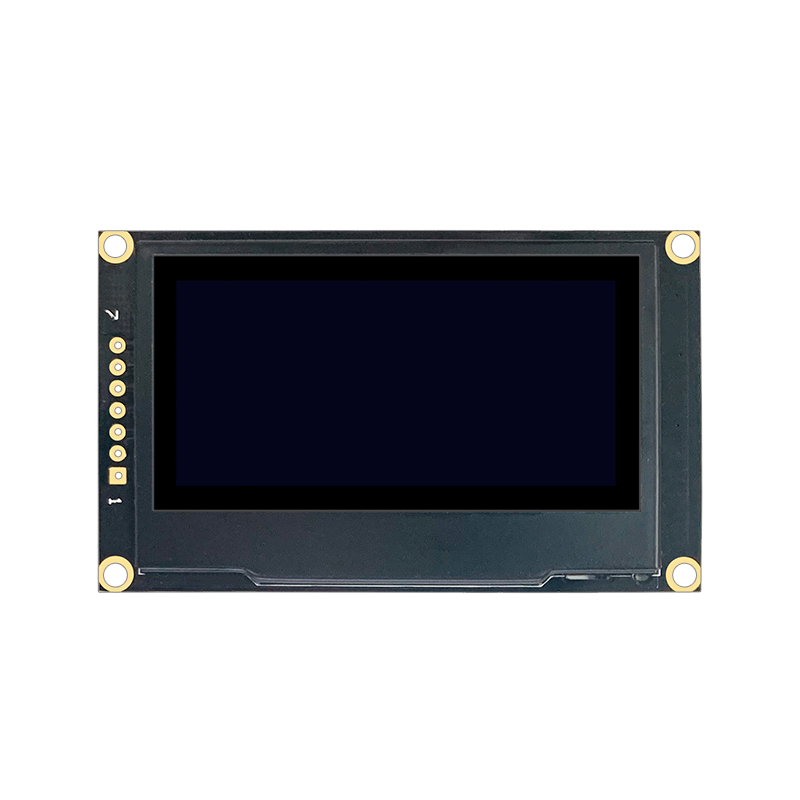

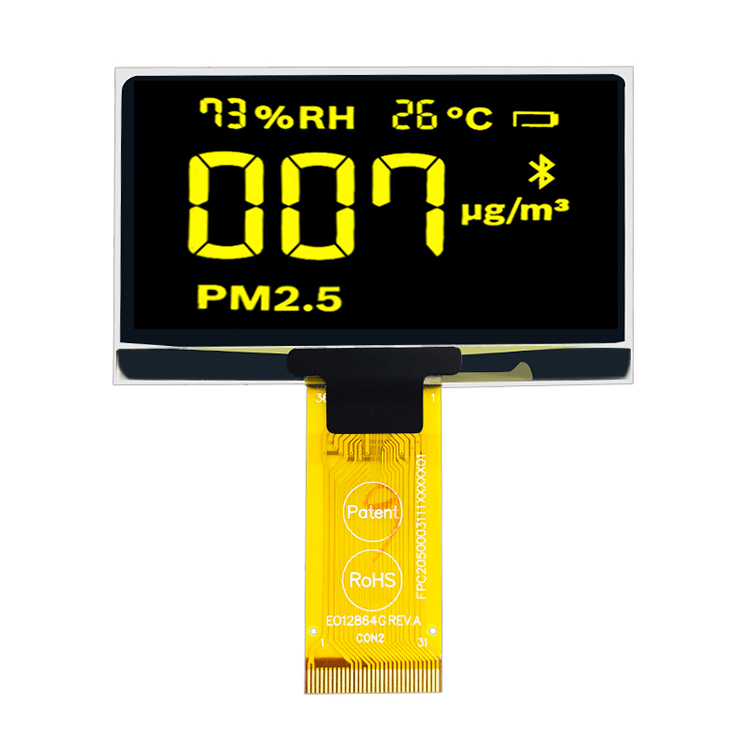

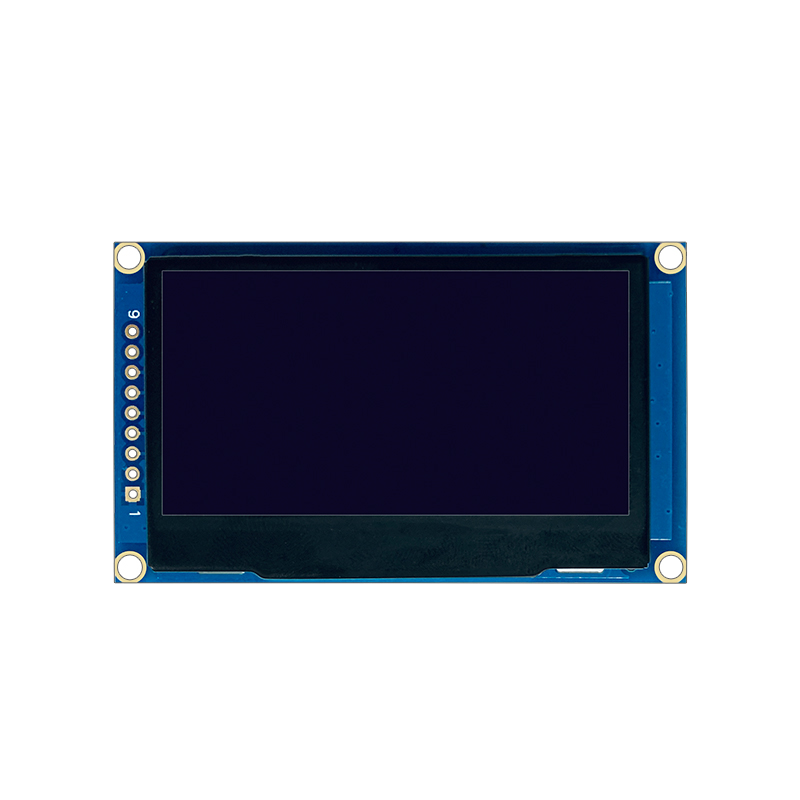

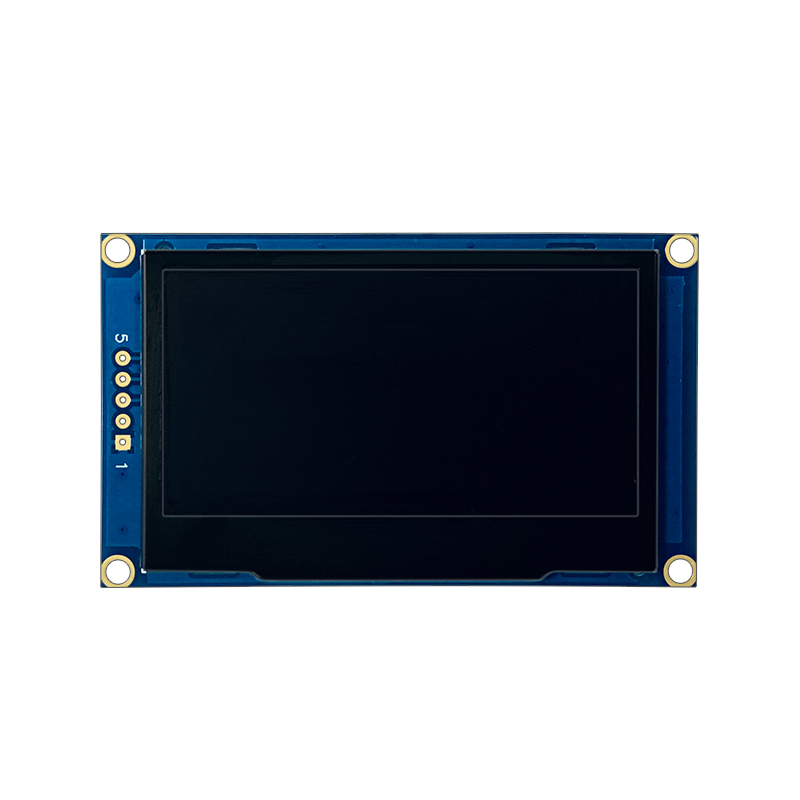

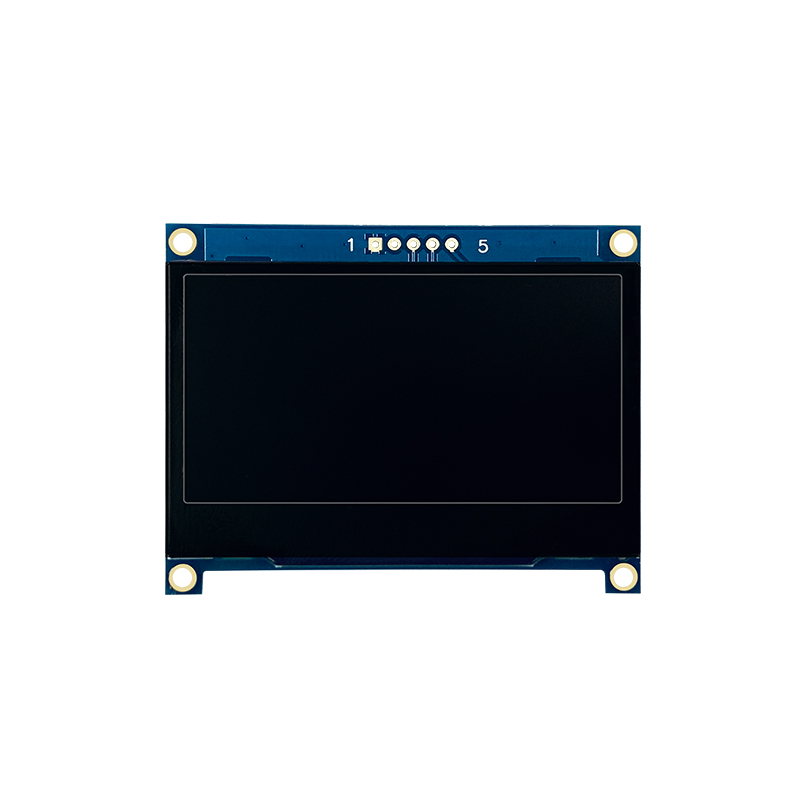

OLED Graphic Display 2.42" 128X64

Size: 2.42 OLED
Controller IC:SSD1309
Resolution: 128*64
Interface: 6800/8080/SPI/I2C 31P
Product description: OLED Graphic Display 2.42" 128X64
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA OLED 2.42 is a passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 60.50 × 37.00 × 2.00mm and Active Area size

55.01 × 27.49mm. This OLED micro display is built in with SSD1309 IC, it supports 6800/8080/SPI/I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 2.42 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

Display Type:	oled display (White/Yellow/Blue/Green)
Display Mode:	Passive Matrix
Model Number:	HG-2864ASWPG01
Diagonal Screen size:	2.42 inch
Interface:	6800/8080/SPI/I2C 31P (Soldering)
Drive Duty:	1/64 Duty
Number of Pixels:	128x64
Panel Size	60.50 × 37.00 × 2.00(mm)
Driver IC:	SSD1309
Active Area:	55.01 × 27.49(mm)
Pixel Pitch:	0.43 x0.43(mm)
Pixel Size:	0.40 × 0.40(mm)
Weight:	8.60(g)
Operating Temperature:	-40~85°

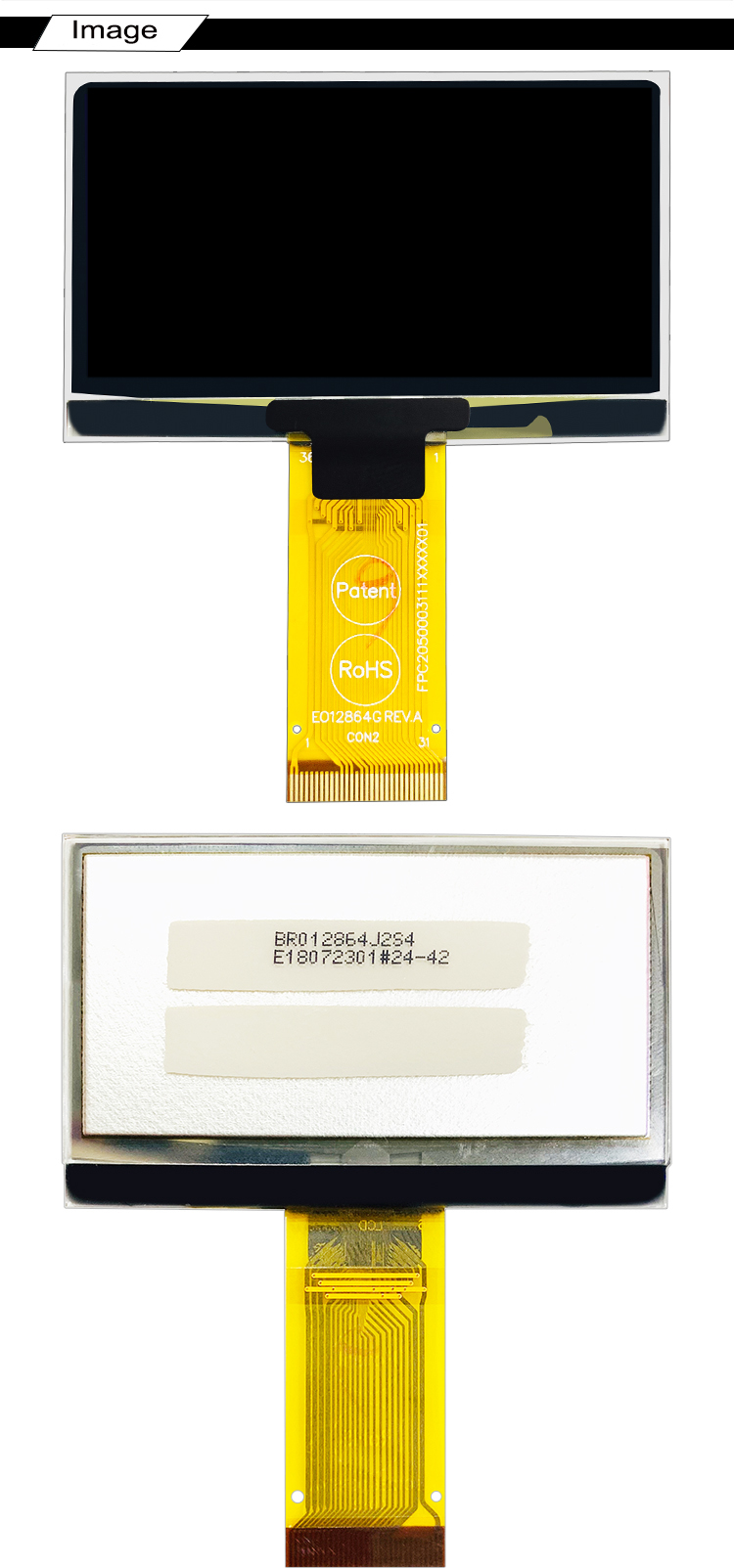

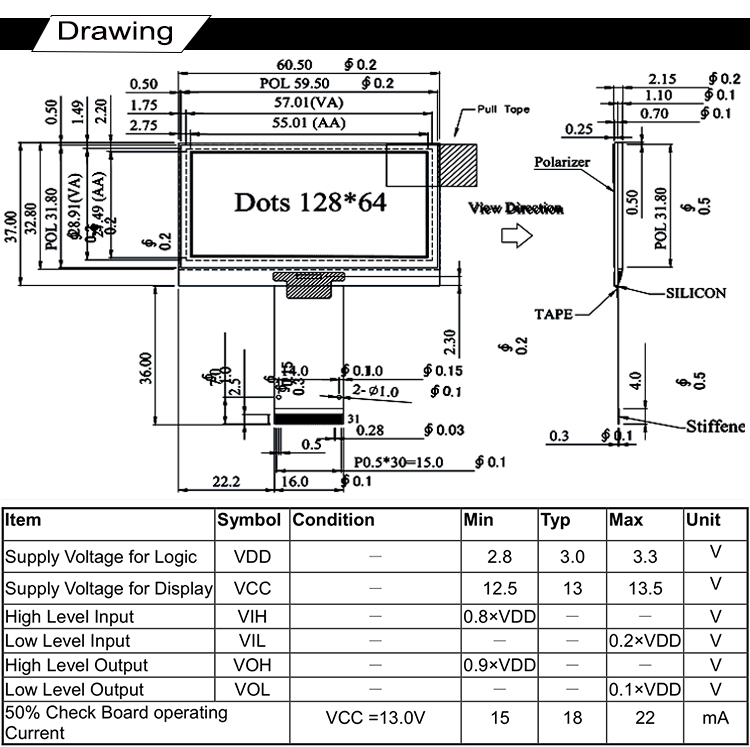

DRAWING

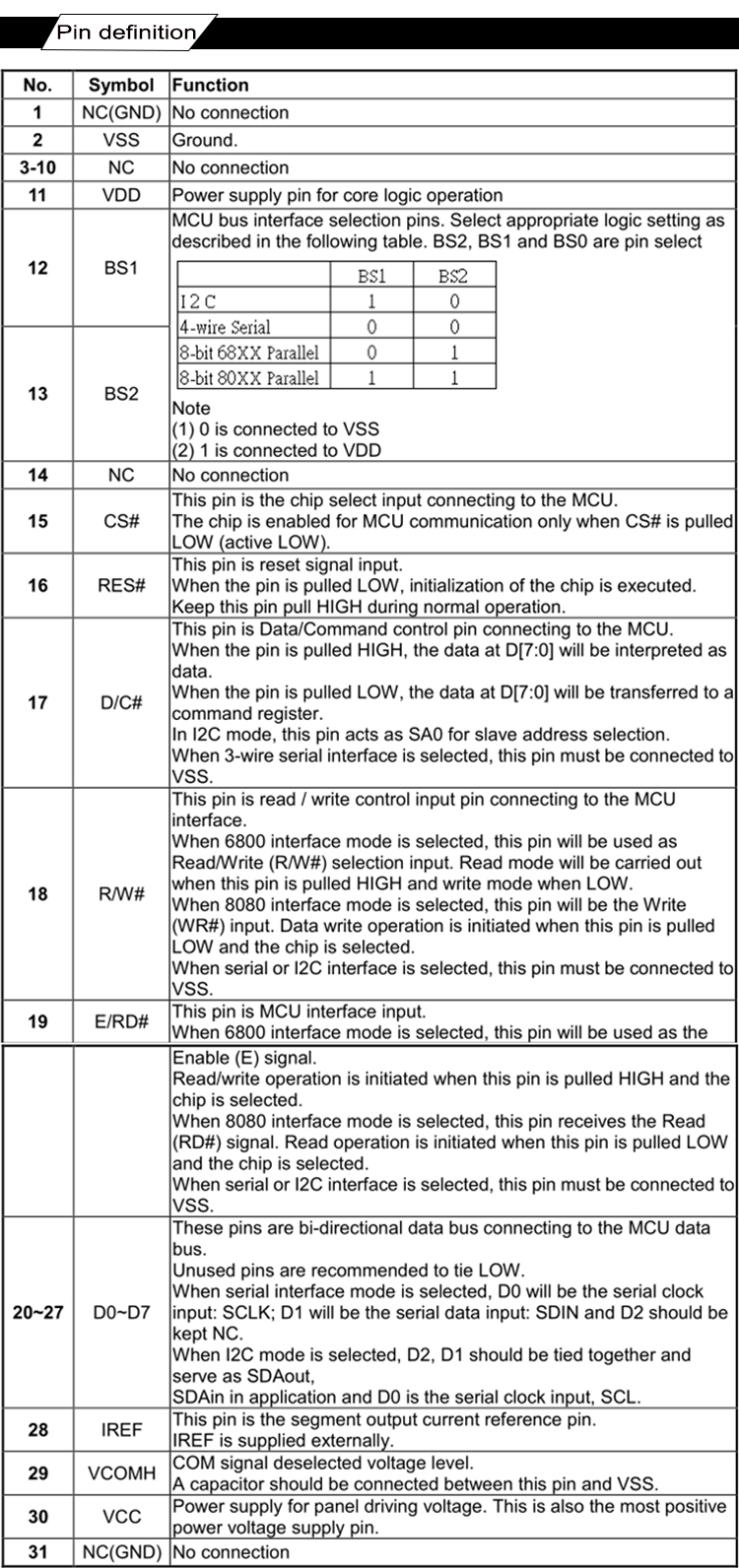

INTERFACE PIN FUNCTION
