  • Size: 2.42 OLED
  • Controller IC:SSD1309
  • Resolution: 128*64
  • Interface: 6800/8080/SPI/I2C 24P

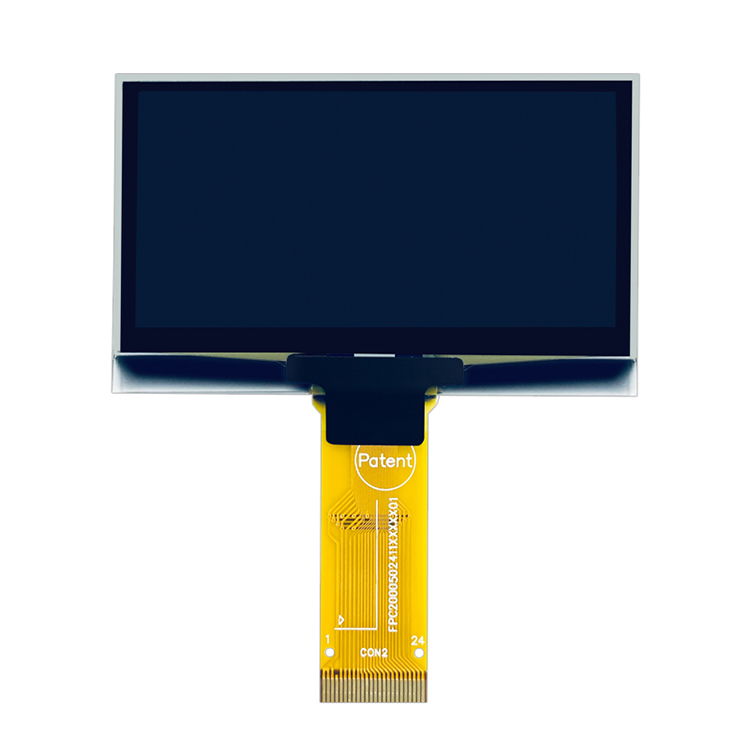

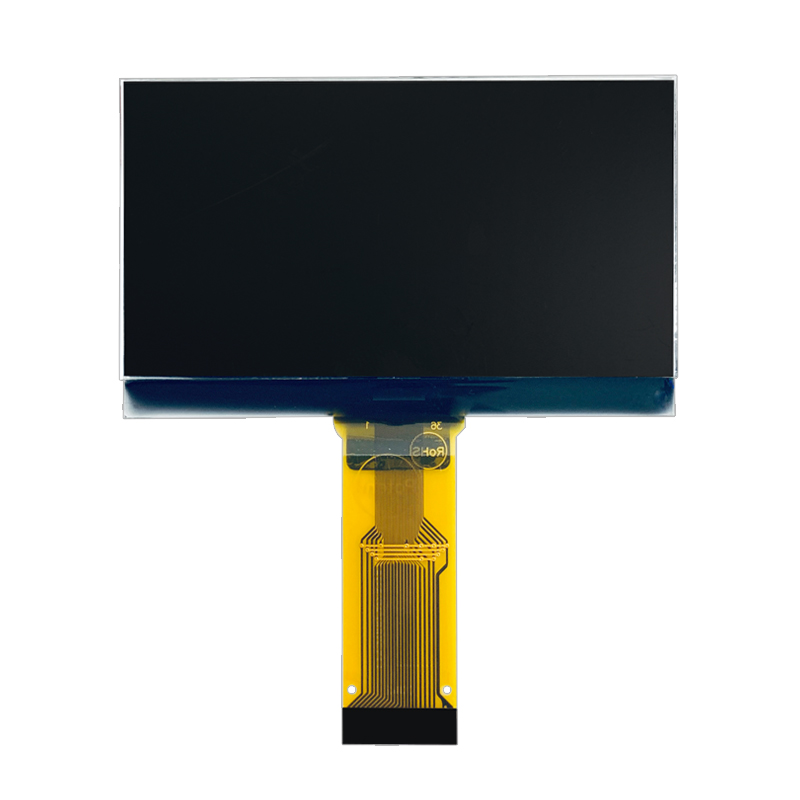

  • Product description: OLED Graphic Display 2.42" 128X64
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 2.42 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 60.50 × 37.00 × 2.00 mm and Active Area size 55.01 × 27.49mm. This OLED micro display is built in with SSD1309 IC, it supports  6800/8080/SPI/I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 2.4 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION

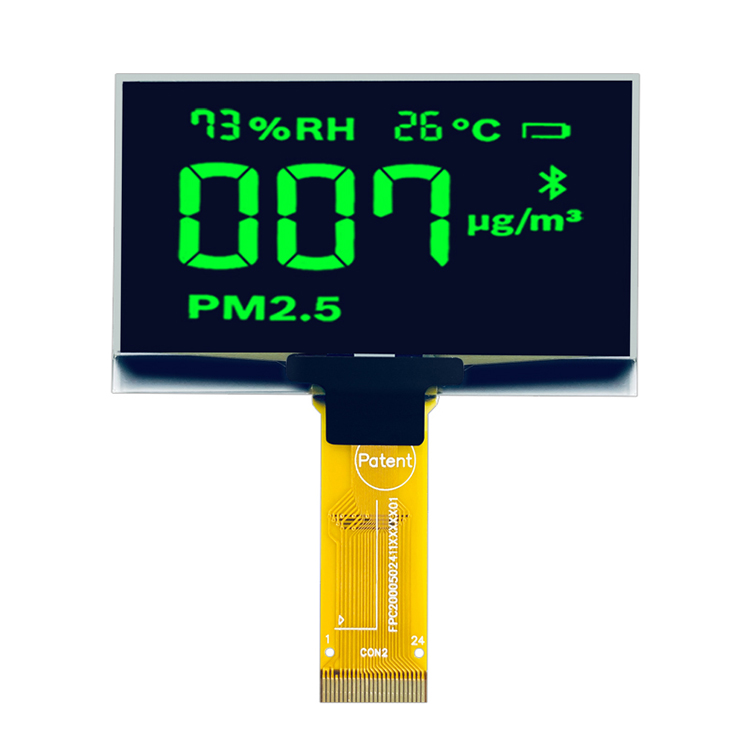

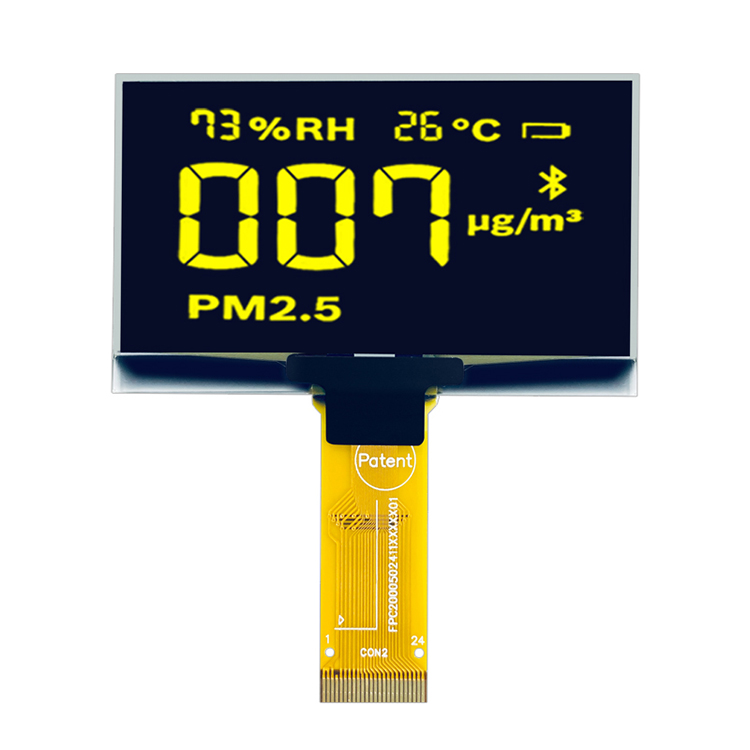

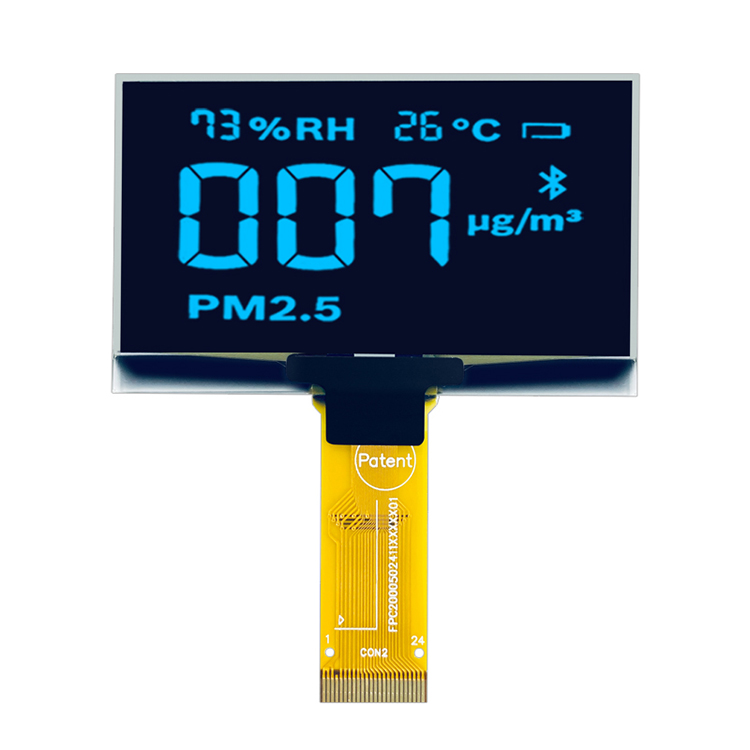

Display Type:                                oled display  (White/Yellow/GREEN/BLUE)
Display Mode: Passive Matrix
Model Number:

HG-2864ASWPG01


Diagonal Screen size: 2.42 inch
Interface:

6800/8080/SPI/I2C 23P (Connector)

Drive Duty:

1/64 Duty

Number of Pixels:

128x64

Panel Size

60.50 × 37.00 × 2.00 (mm)


Driver IC:

SSD1309

Active Area:

55.01 × 27.49 (mm)


Pixel Pitch:

0.43 x0.43(mm)

Pixel Size:

0.40 × 0.40 (mm)


Weight:

8.60 (g)


Operating Temperature:

-40~85°

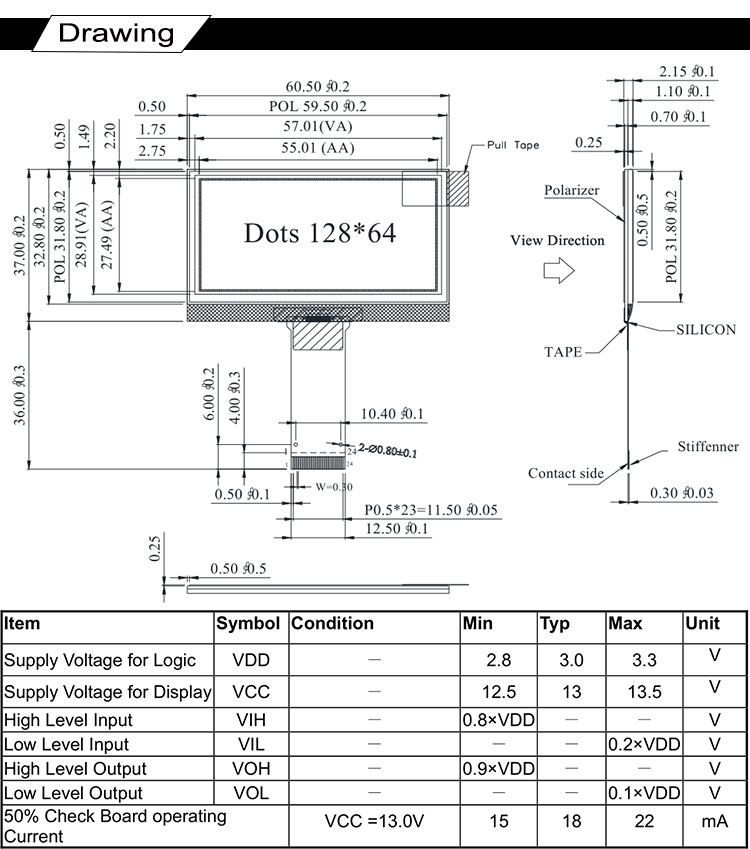

DRAWING

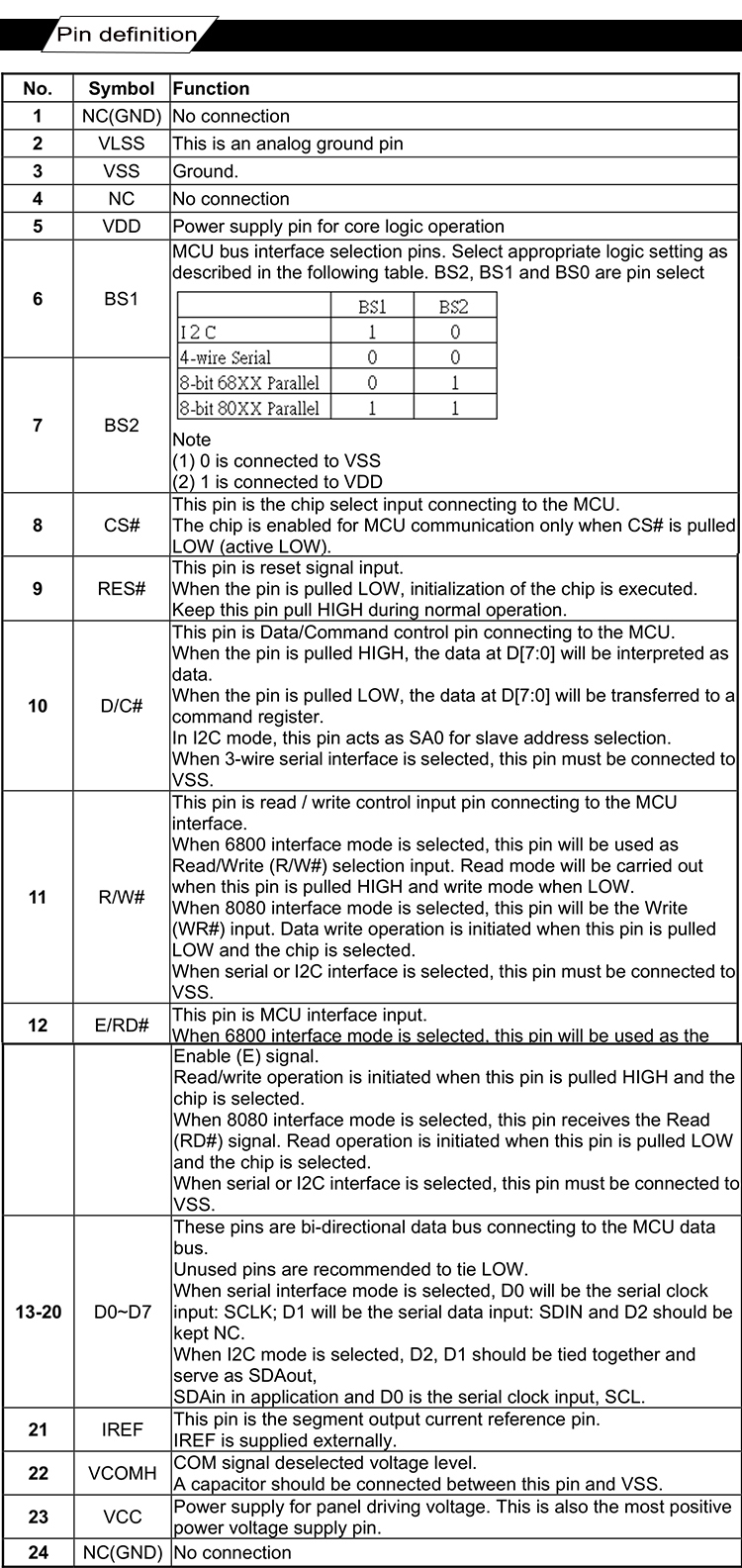

INTERFACE PIN FUNCTION
