2.42 inch 128*64 OLED Display Module with font library 9 pin I2C interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module with font library 9 pin I2C interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module with font library 9 pin I2C interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module with font library 9 pin I2C interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module with font library 9 pin I2C interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module with font library 9 pin I2C interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module with font library 9 pin I2C interface SSD1309 Driver Chip

Price: $18.59-$28.59
Size:2.42
Resolution: 128*64
Interface: I2C /SPI
Product description: Hicenda Technology Co., Ltd can supply 2.42 inch oled display module font library 9 pin white or blue or yellow or green color with I2C /SPI interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 2.42 inches
Dot Matrix Size: 128*64

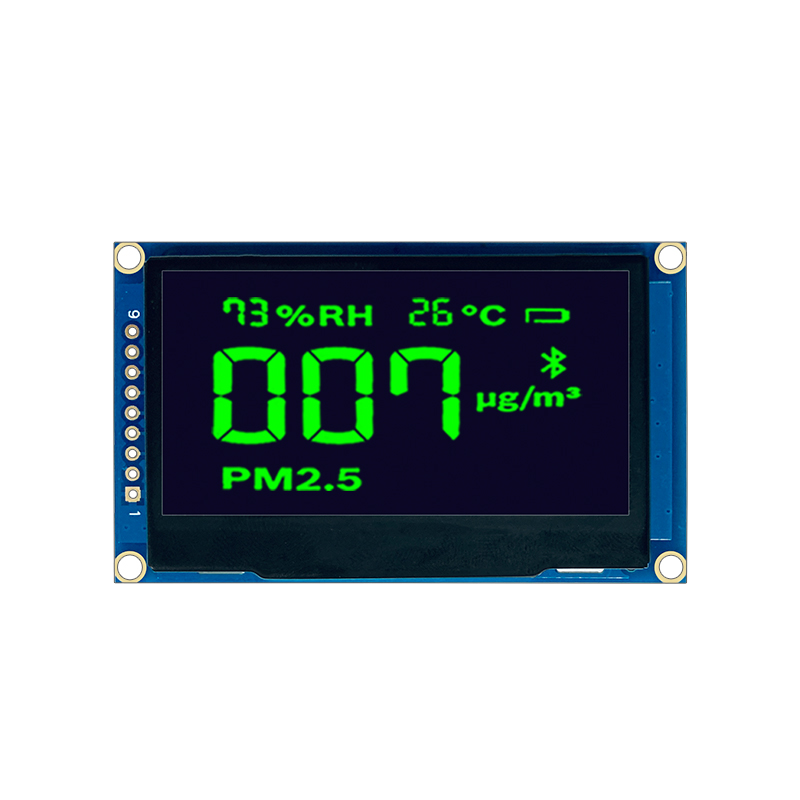

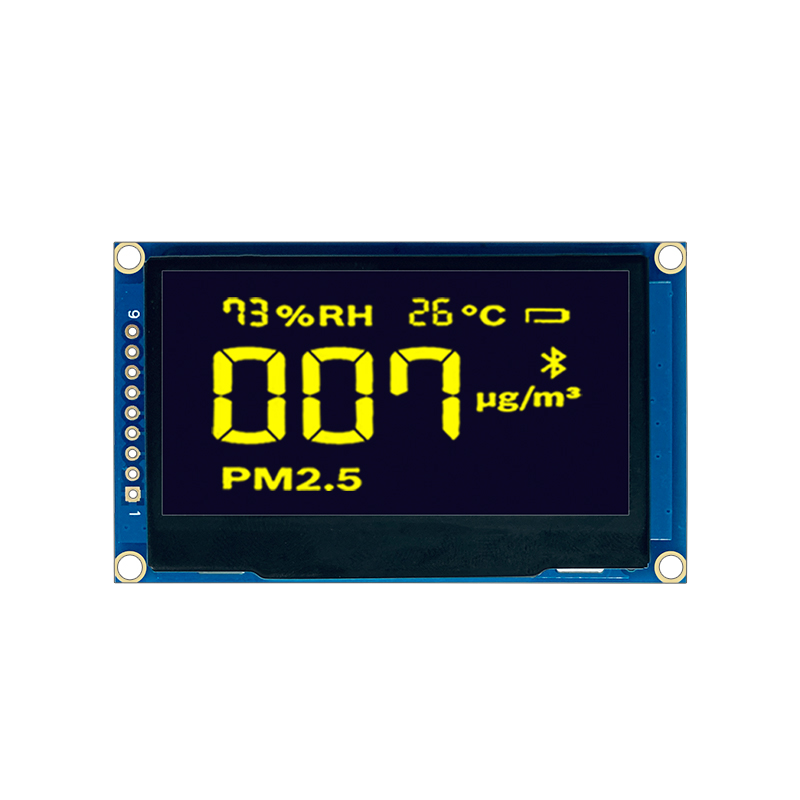

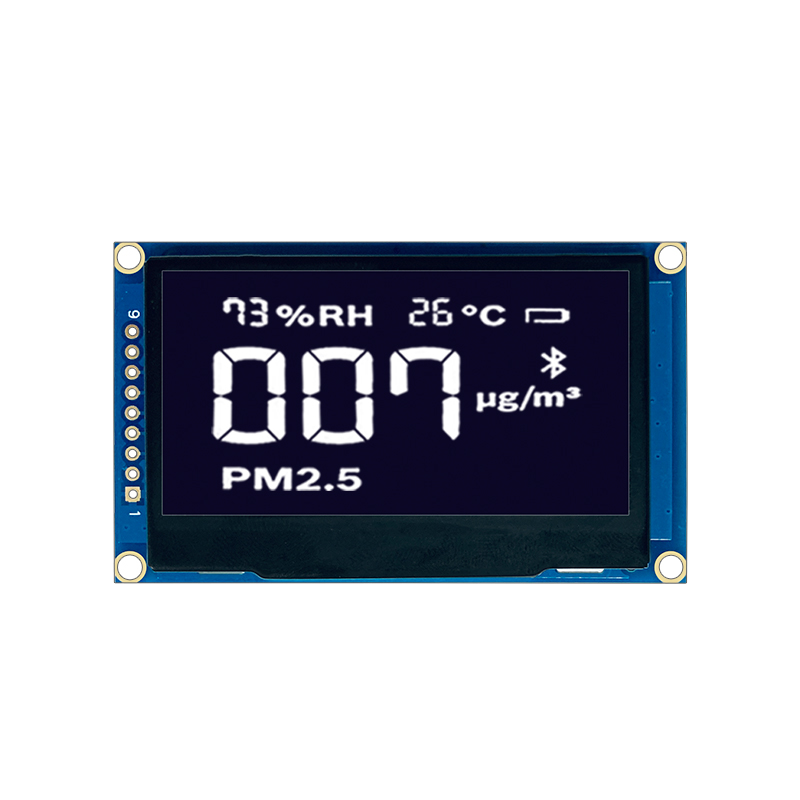

LCD Color: White/Blue/Yellow/Green
Hardware Interface: I2C interface
Driver IC: SSD1309
Operating Temperature: -40 - 85
Working Power Supply: 3.3V
PIN : 5 Pin
Viewing Direction: Full viewing angle

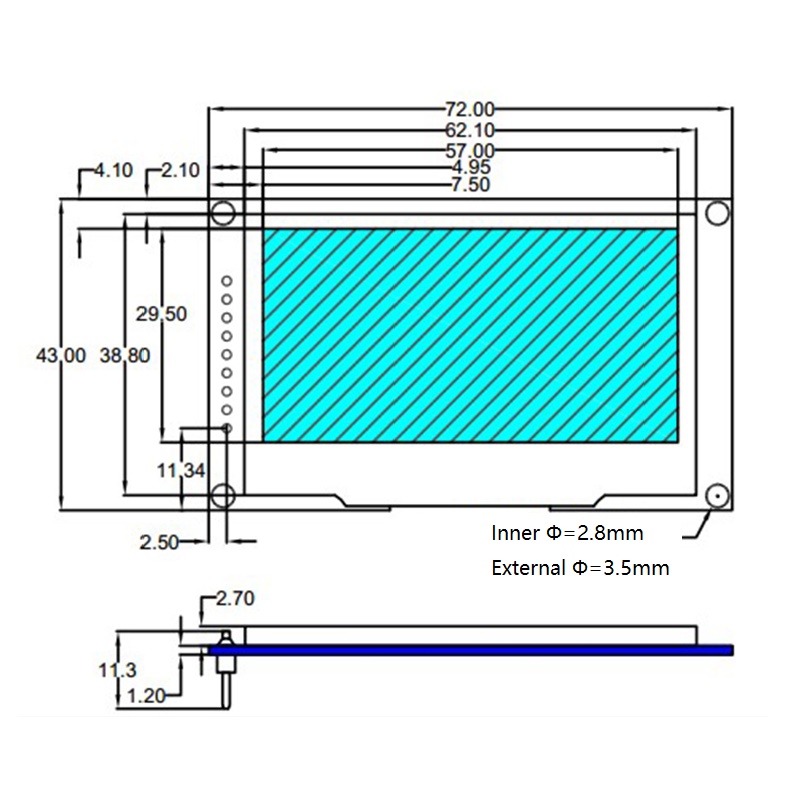

2. Mechanical Specifications

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HG-0242-12864M01
Diagonal Screen size:	2.42 inch
Interface:	Parallel, 20-wire SPI, I2C
Drive Duty:	1/32 Duty
Number of Pixels:	128 x 64
Panel Size:	72L× 43WX5.9 (max) mm
Driver IC:	SSD1309
Active Area:	57.0×29. 5mm
Pixel Pitch:	0.39(W)x0.39(H)
Pixel Size:	0.43(W)x0.43(H)
Weight:	TBD
Operating Temperature:	-40~85°
