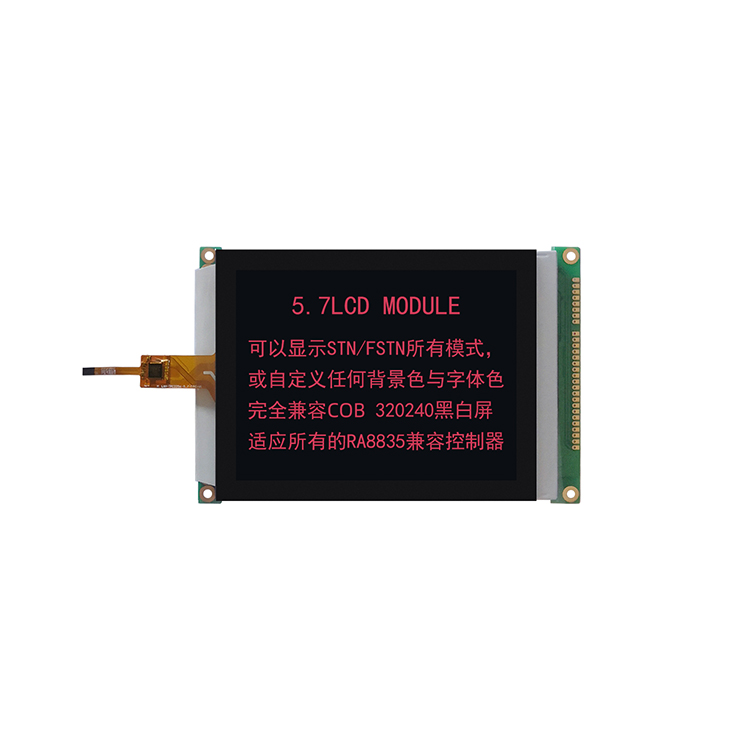

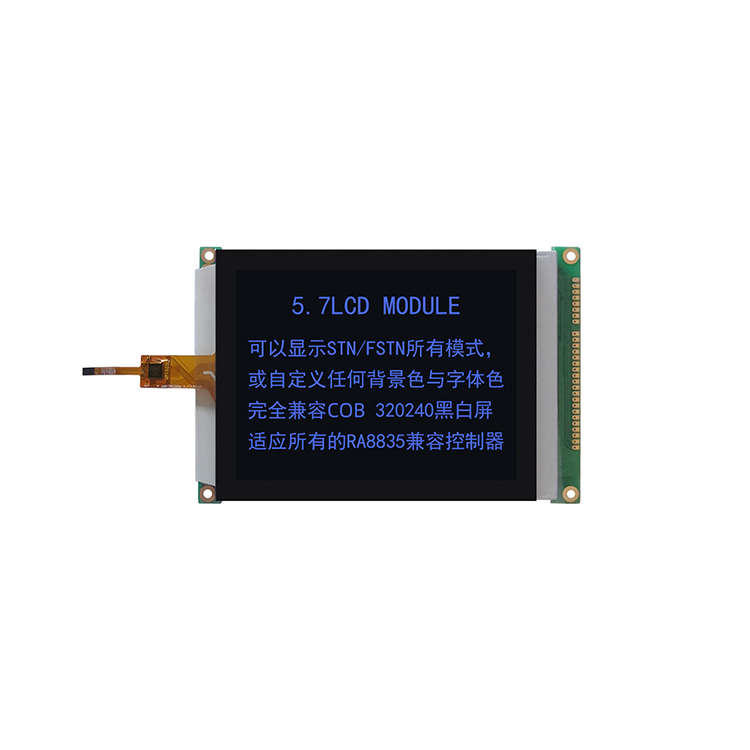

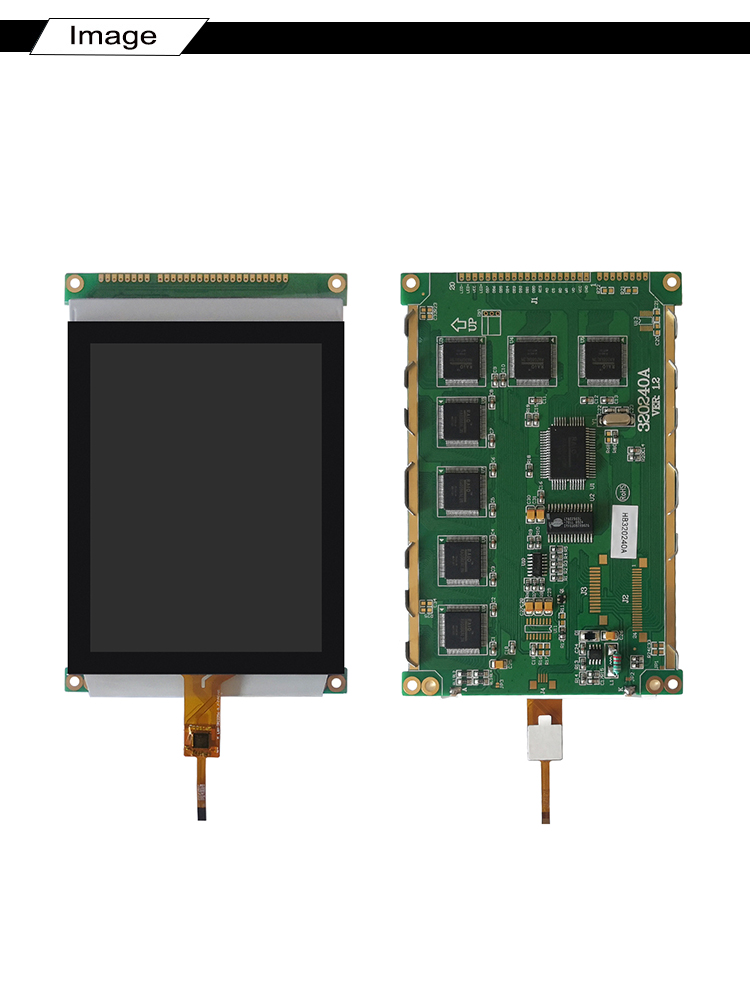

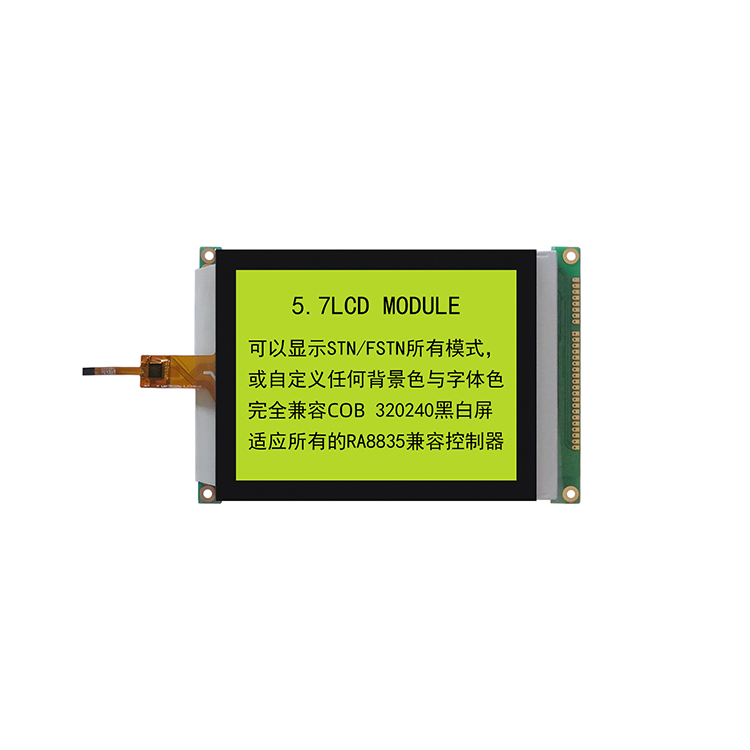

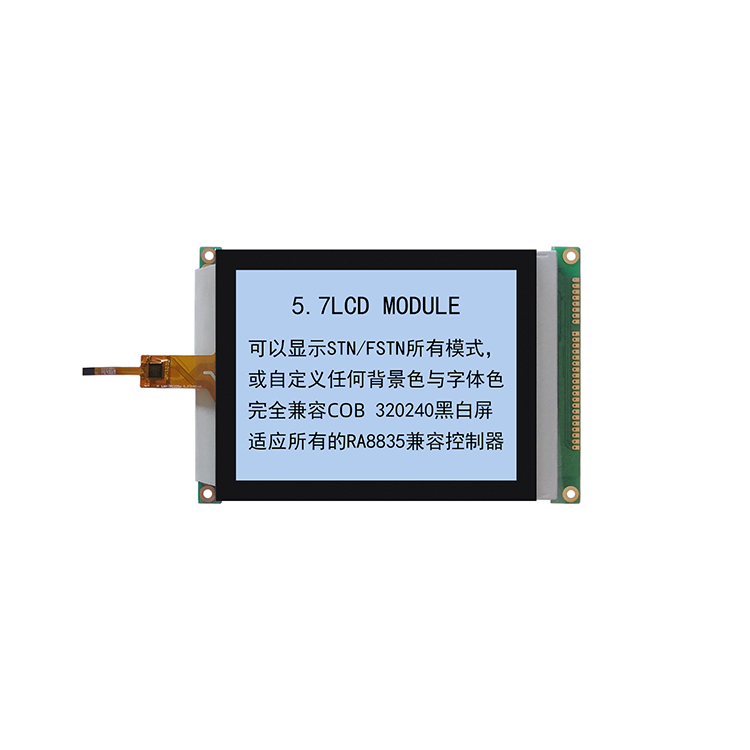

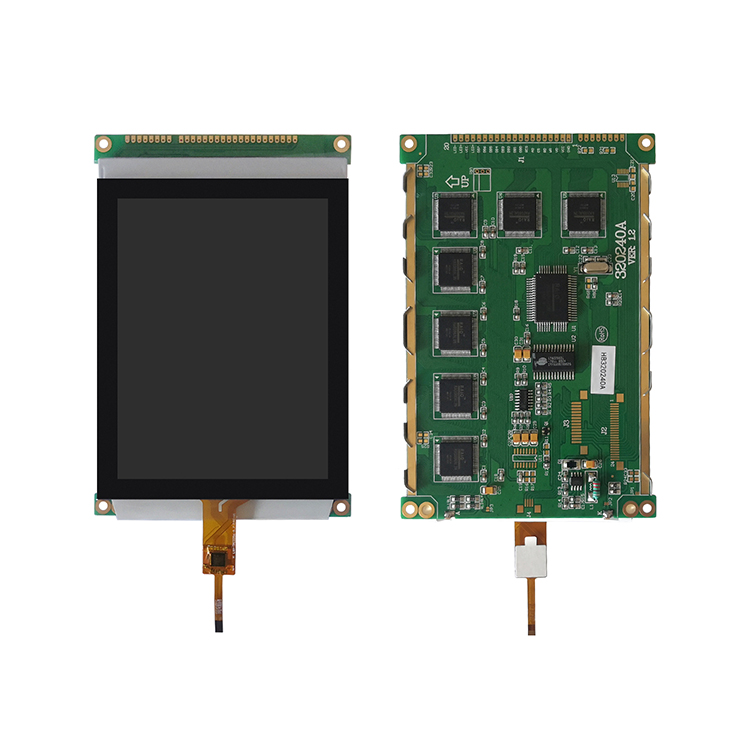

320X240 character LCD Module Display 5.7 inch with CTP

320X240 character LCD Module Display 5.7 inch with CTP

320X240 character LCD Module Display 5.7 inch with CTP

320X240 character LCD Module Display 5.7 inch with CTP

320X240 character LCD Module Display 5.7 inch with CTP

320X240 character LCD Module Display 5.7 inch with CTP

320X240 character LCD Module Display 5.7 inch with CTP

Outline dimension: 160.0L×109.0W×11.0（max）H
Resolution:320X240
Interface:6800 or 8080 serial 8-Bit MPU
Controller IC:RA8835 or Equivalent
Product description: STN 320X240 character LCD Module Display
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

Features

— Dot Matrix: 320×240 Dots

— LCD Mode: STN

— Controller IC: RA8835 or Equivalent

一 Driving Method: 1/240 Duty; 1/17 Bias

一 Viewing Angie: 6 O’clock direction

— 6800 or 8080 serial 8-Bit MPU Interface

— Backlight: LED

— Operating Temperature Range: -20 to 70℃;

— Storage Temperature Range : -30 to 80℃;

Note: Color tone is slightly changed by temperature and driving voltage.

GENERAL SPECIFICATION

Display Type:	STN LCD display
Display Mode:	Passive Matrix
Model Number:	HB320240A
Diagonal Screen size:	5.7 inch
Interface:	8080 serial 8-Bit MPU
Backlight:	LED
Number of Pixels:	320*240 DOTS
Panel Size:	160.0L×109.0W×11.0（max）H (mm)
Driver IC:	T6963C or Equivalent
Active Area:	122.0×92.0(mm)
Storage Temperature:	-30 to 80℃
Pixel pitch:	0.36×0.36
Weight:	TBD
Operating Temperature:	-20~70°

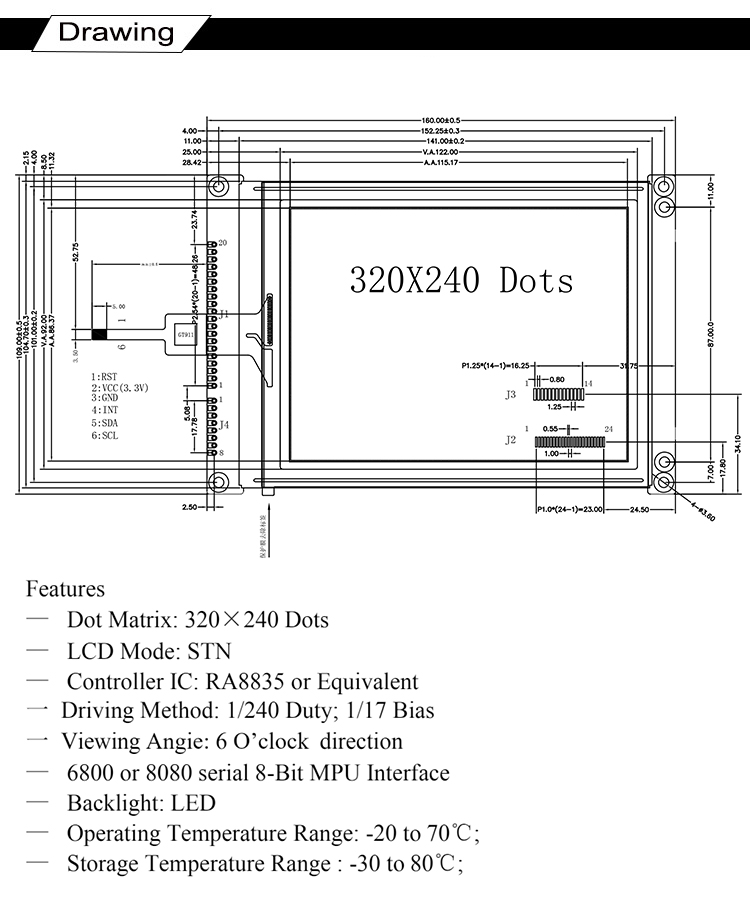

DRAWING

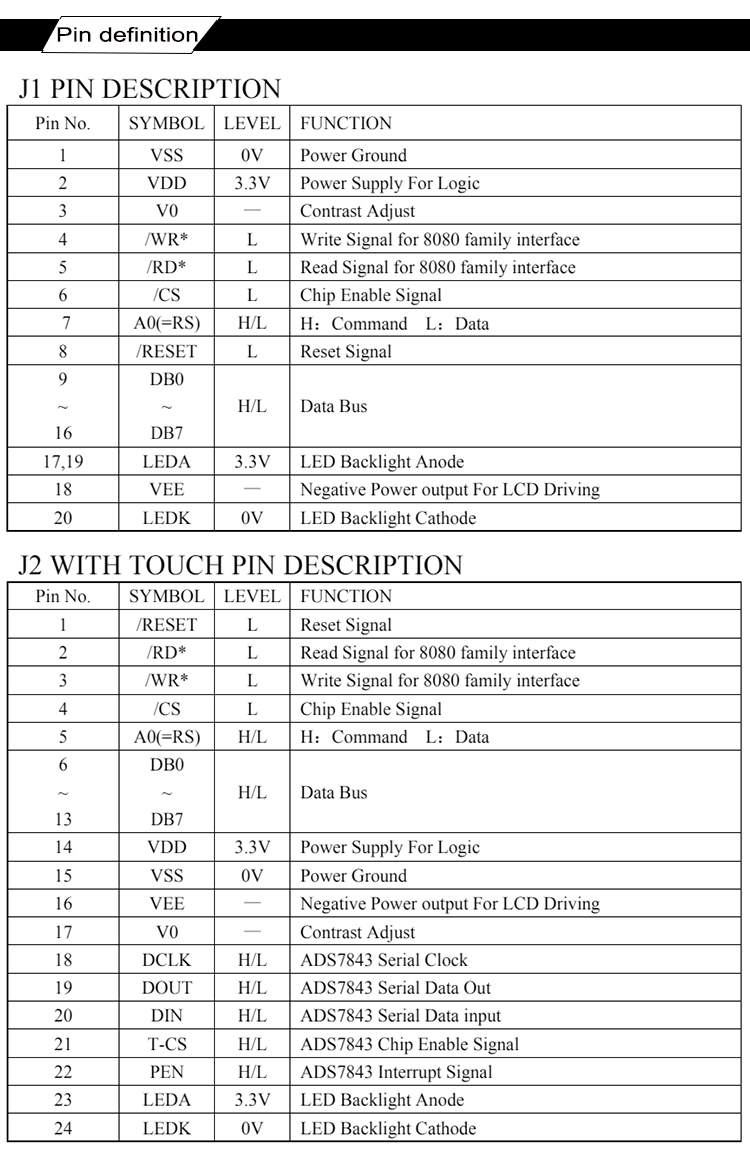

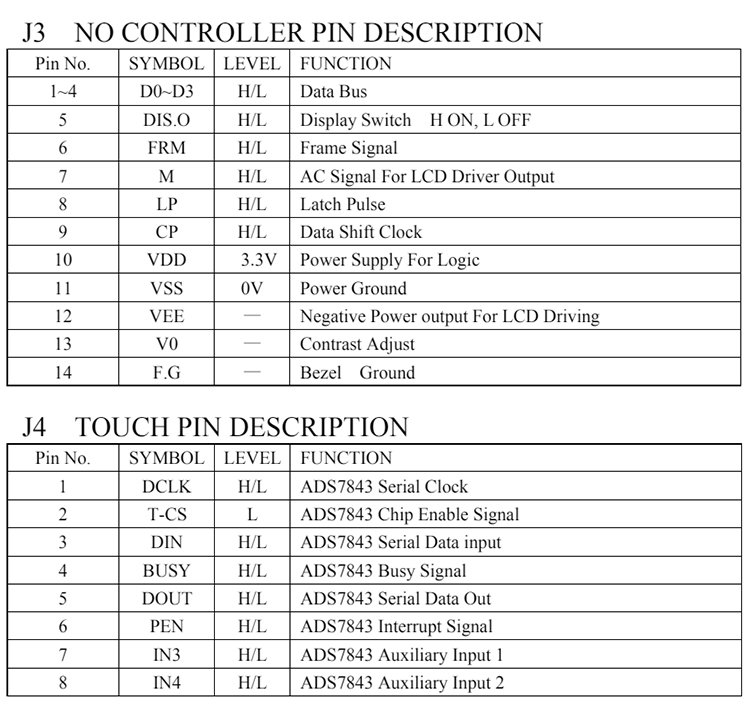

INTERFACE PIN FUNCTION
