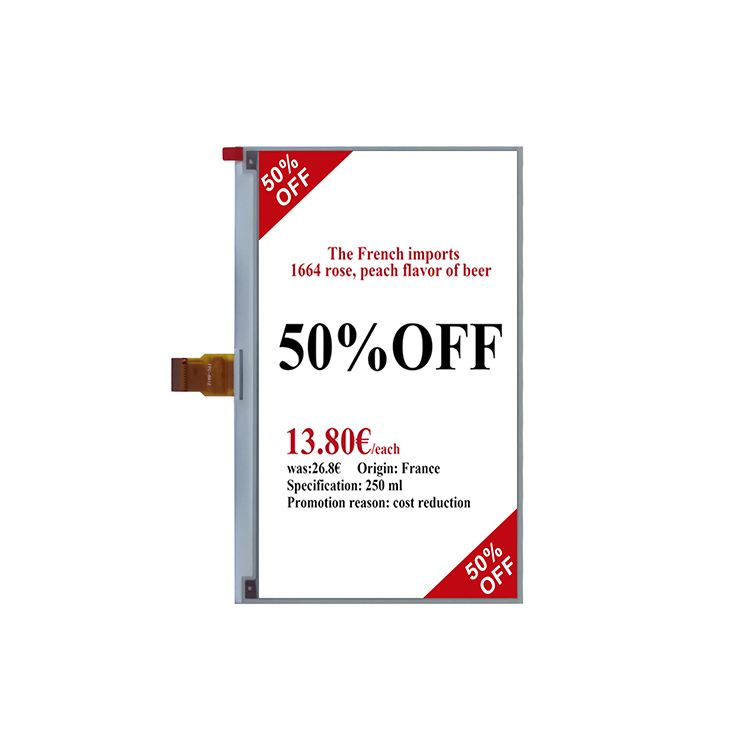

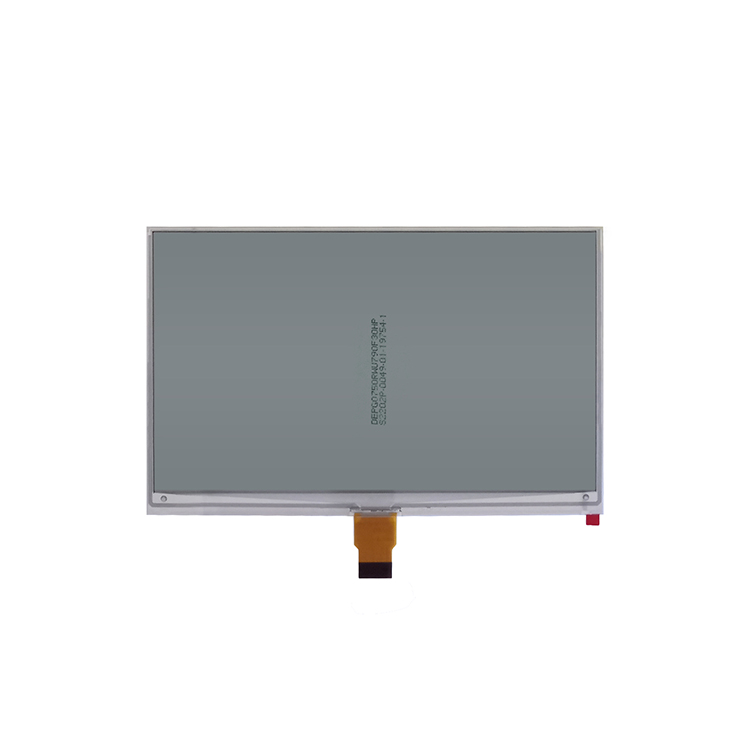

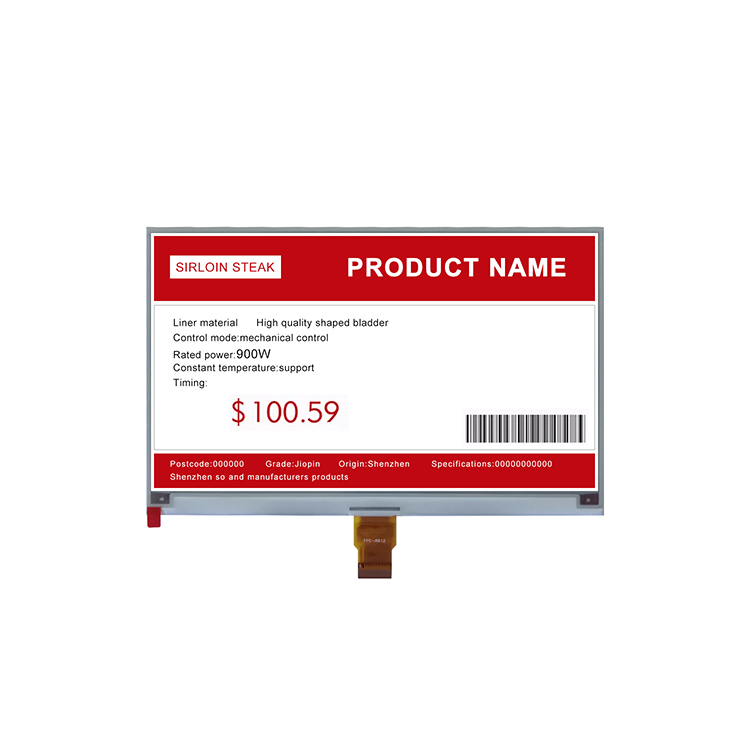

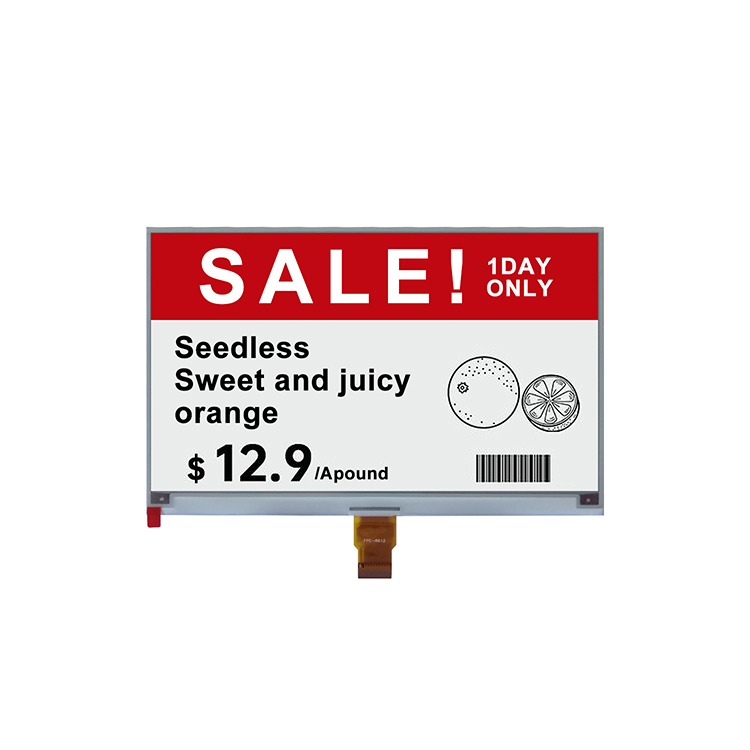

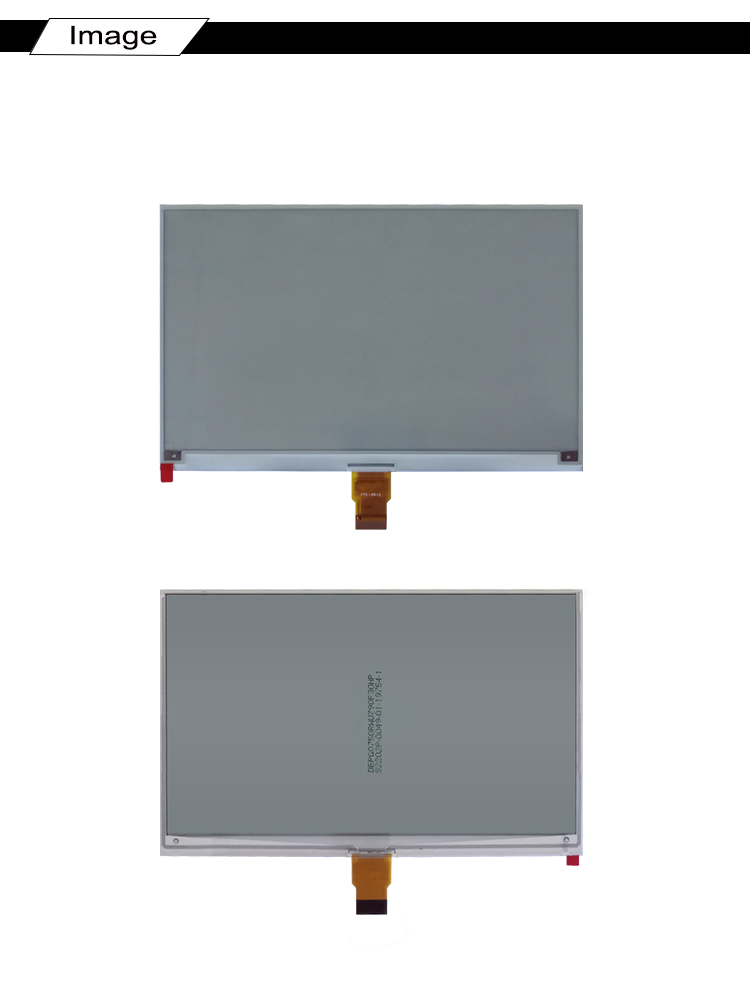

DESCRIPTION

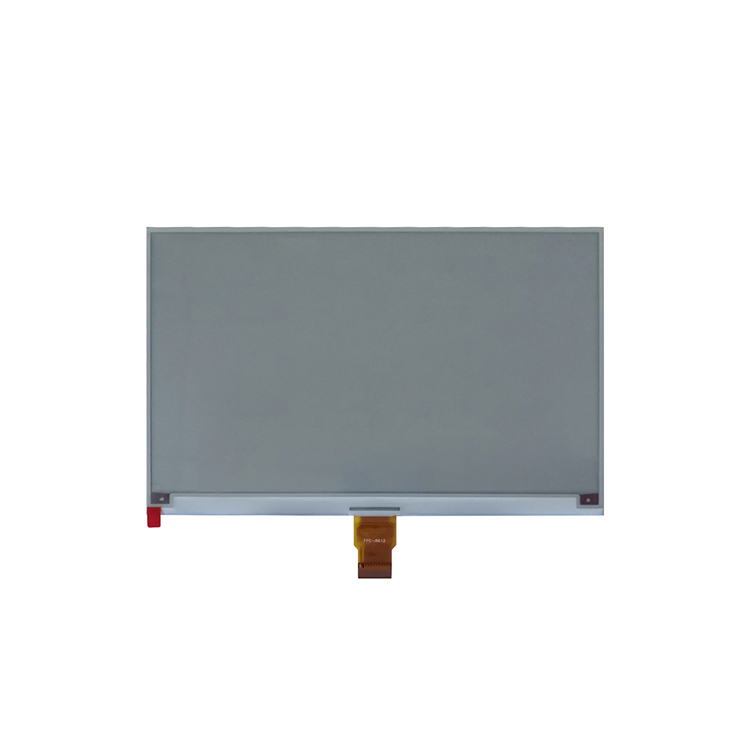

HICENDA HXDC075R1 is an Active Matrix Electrophoreses Display(AM EPD), with interface and a reference system design. The 7.5” active area contains 800*480 pixels, and has 1-bit white/black and l-bit red full display capabilities.. The module is a TFT-array driving electrophoretic display, with integrated circuits including gate buffer, source buffer, MCU interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL)System.

GENERAL SPECIFICATION

Display Type:	E-INK display
Display Mode:	AM EPD
Model Number:	HXDC075R1
Diagonal Screen size:	7.5 inch
Interface:	MCU
Backlight:	(white)
Number of Pixels:	800x480
Panel Size:	170.2(H)×111.2 (V) ×1.27(D)(mm)
Driver IC:	SSD1680Z8
Active Area:	163.2×97.92(mm)
Display Mode:	EPD Display
Pixel pitch:	0.204×0.204 MM
Weight:	43
Operating Temperature:	-20~70°

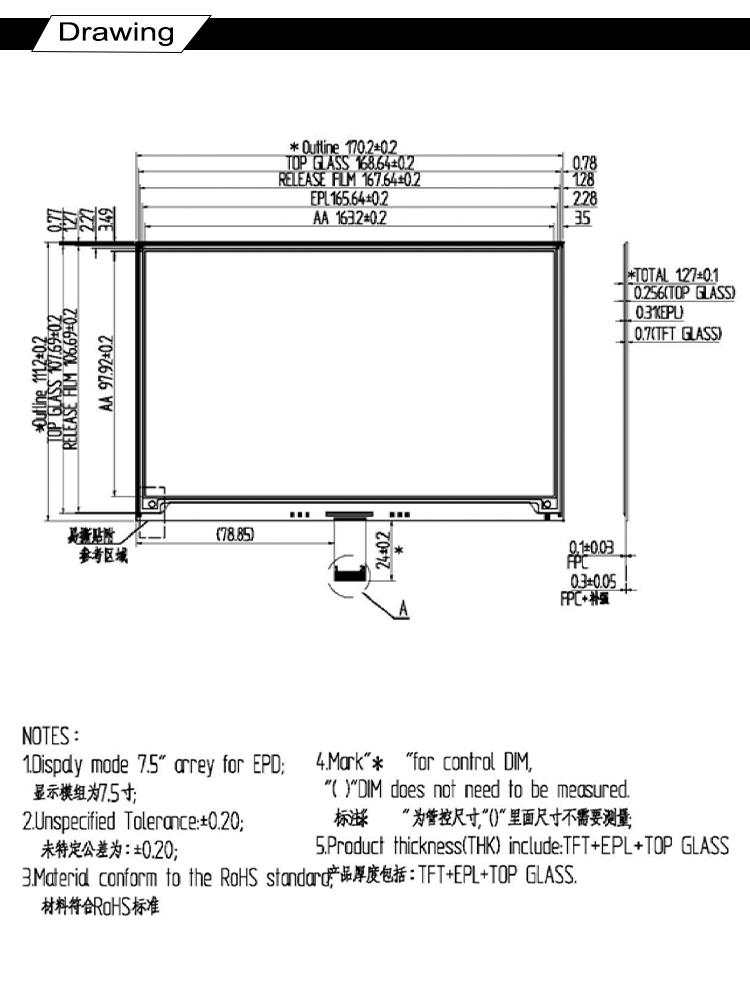

DRAWING

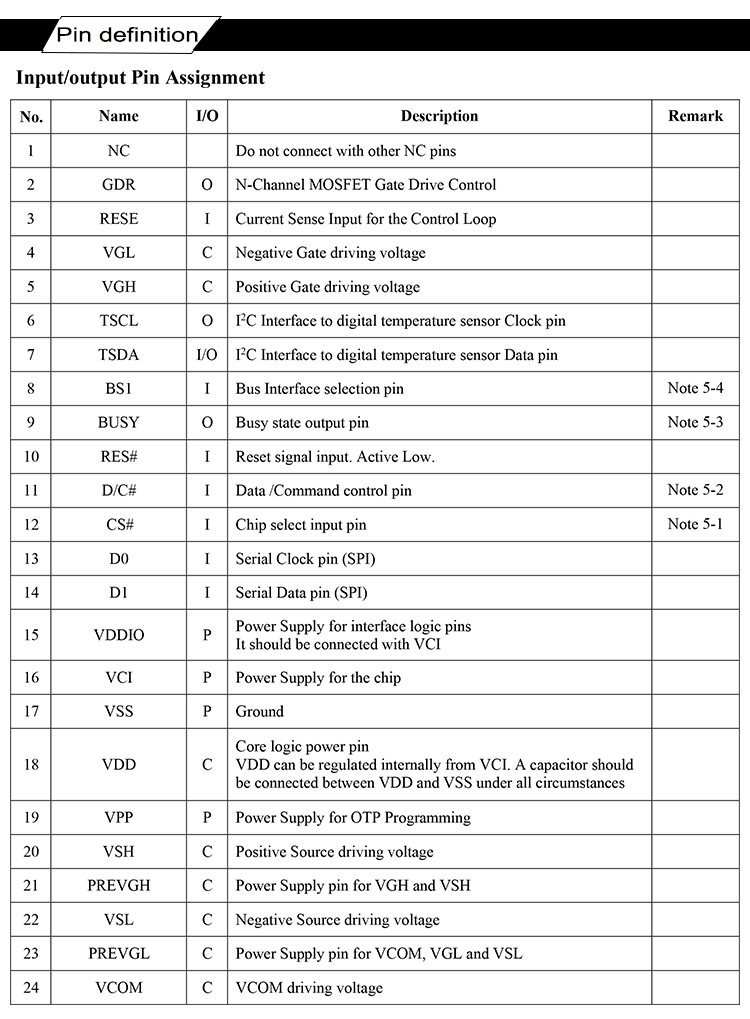

INTERFACE PIN FUNCTION
