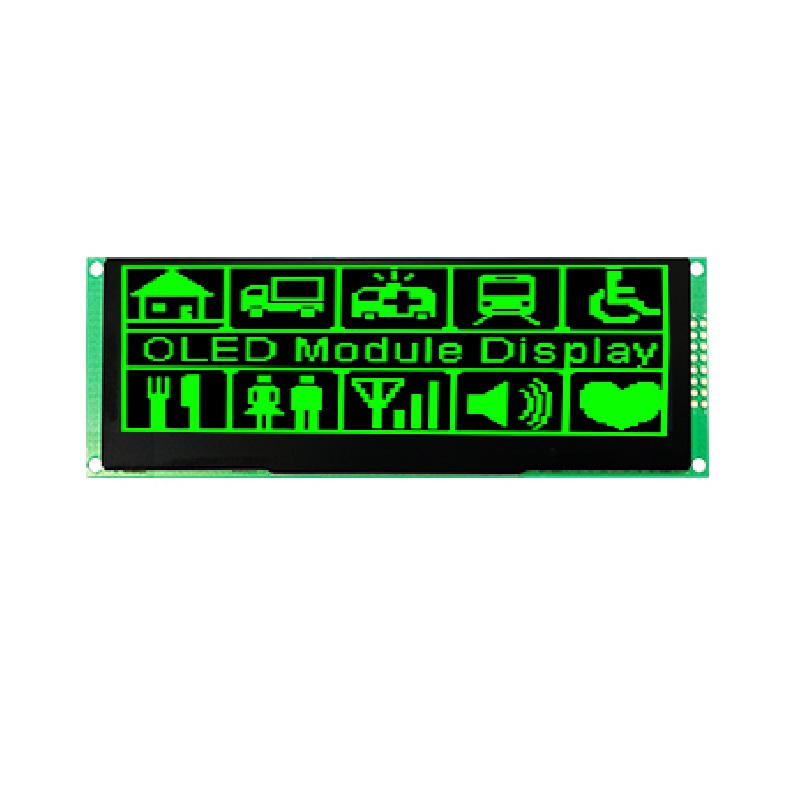

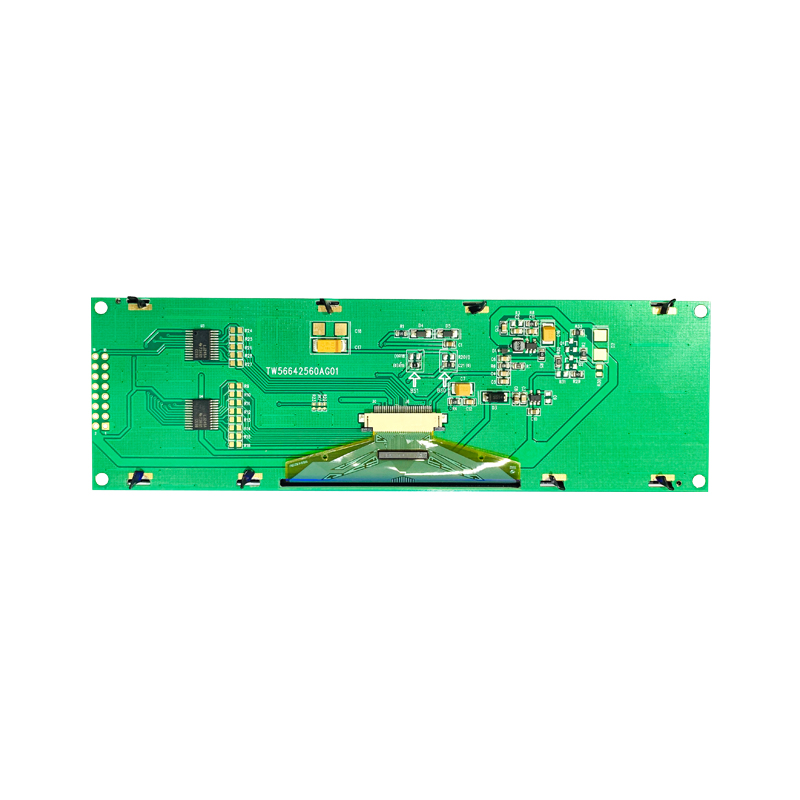

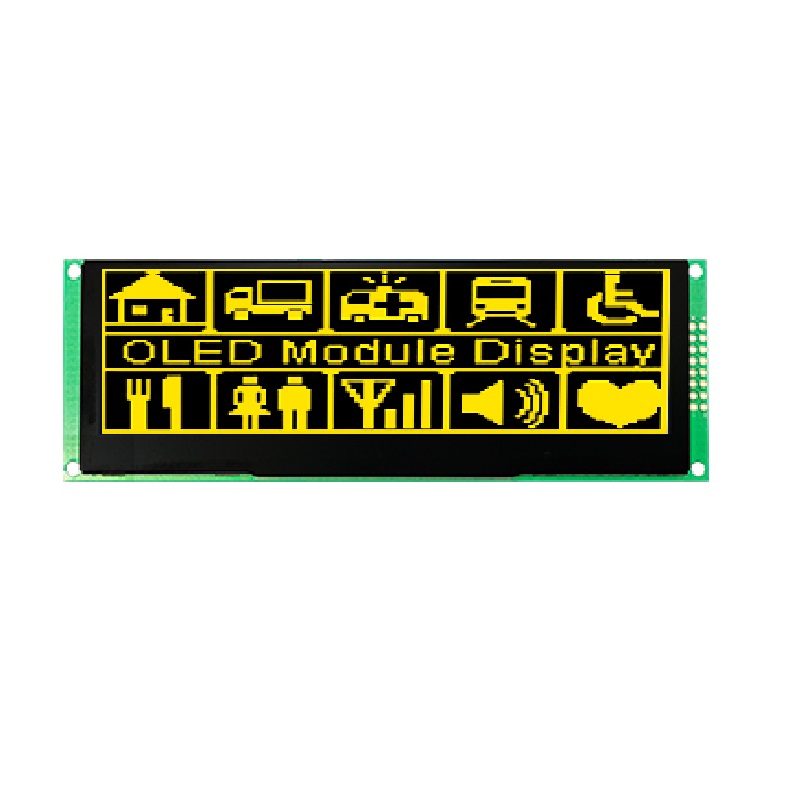

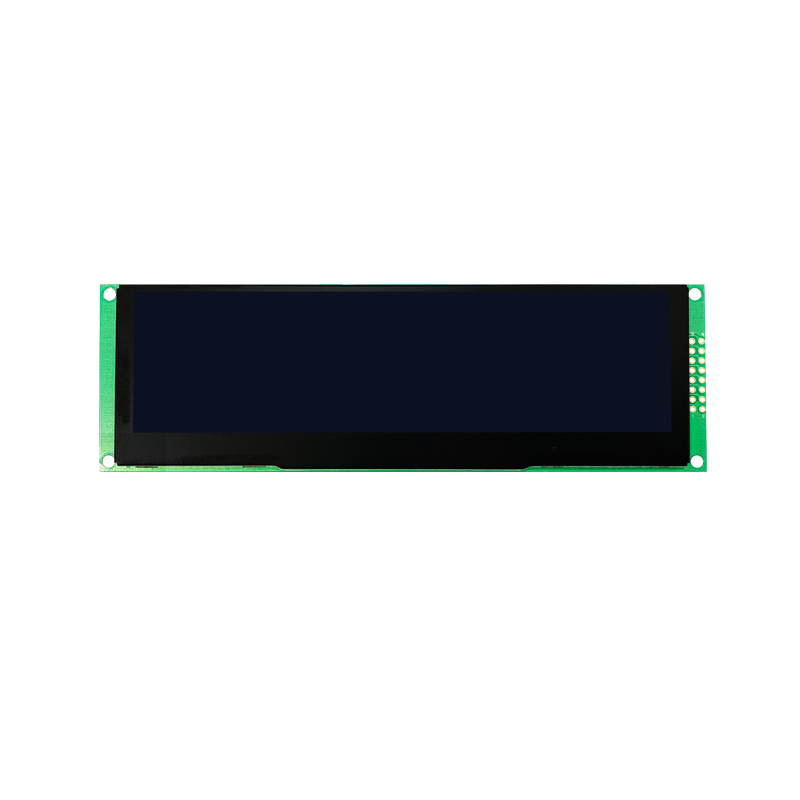

5.5 inch 256*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

5.5 inch 256*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

5.5 inch 256*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

5.5 inch 256*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

5.5 inch 256*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

Price: $38.59-$48.59
Size:5.5
Resolution: 256*64
Interface: 6800/8080/ SPI
Product description: Hicenda Technology Co., Ltd can supply 5.5 inch oled display module white or blue or yellow color with 16 pin 6800/8080 SPI interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 5.5 inches
Dot Matrix Size: 256*64
LCD Color: White/Blue/Yellow
Hardware Interface: 6800/8080/SPI interface
Driver IC: SSD1322
Operating Temperature: -30 - 80
Working Power Supply: 3.3V
PIN : 16 Pin
Viewing Direction: Full viewing angle

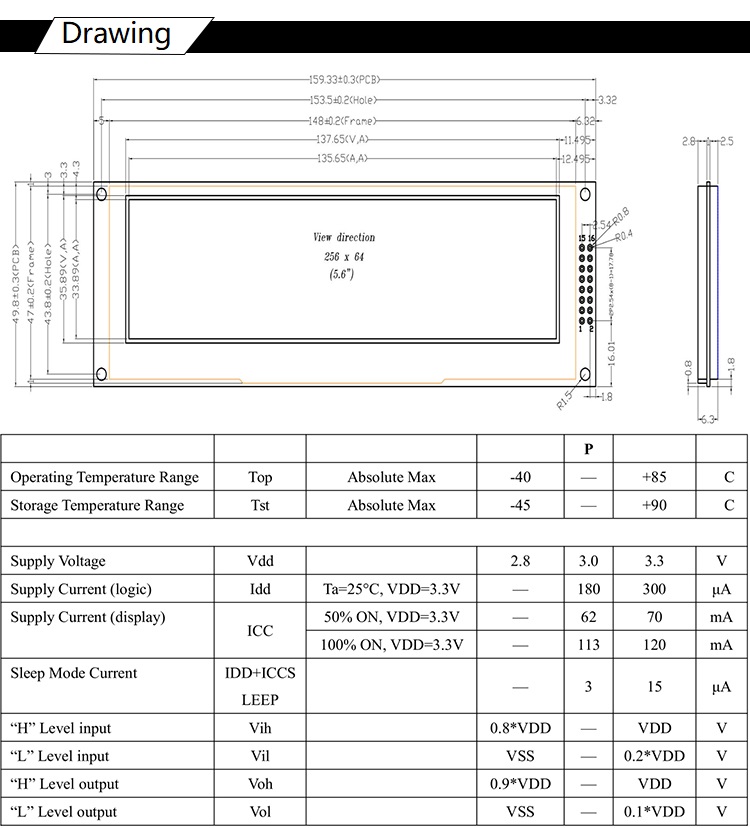

2. Mechanical Specifications

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HG-550-25664M01
Diagonal Screen size:	5.5 inch
Interface:	Parallel, 16-wire SPI
Drive Duty:	1/32 Duty
Number of Pixels:	256 x 64
Panel Size:	159.33(W)x49.38(H)x6.3Max(T) mm
Driver IC:	SSD1322
Active Area:	135.65×33. 89mm
Pixel Pitch:	0.27(W)x0.27(H)
Pixel Size:	0.254(W)x0.254(H)
Weight:	TBD
Operating Temperature:	-40~85°
