  • Price: $1.89-$2.59
  • Size: 1.0
  • Resolution: 128*96
  • Interface: SPI
  • Product description: Hicenda Technology Co., Ltd can supply IPS 1.0 Inch TFT LCD Screen Display 128*96 IPS Full Color with 14Pin SPI Interface ST7735 IC Driver for electronic devices
  • INQUIRY


1. Display Specifications

  • LCD Size: 1.0 inches
  • Dot Matrix Size: 128*96
  • LCD Color: 262K Full Color
  • Hardware Interface: SPI interface
  • Driver IC: ST7735
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.3V

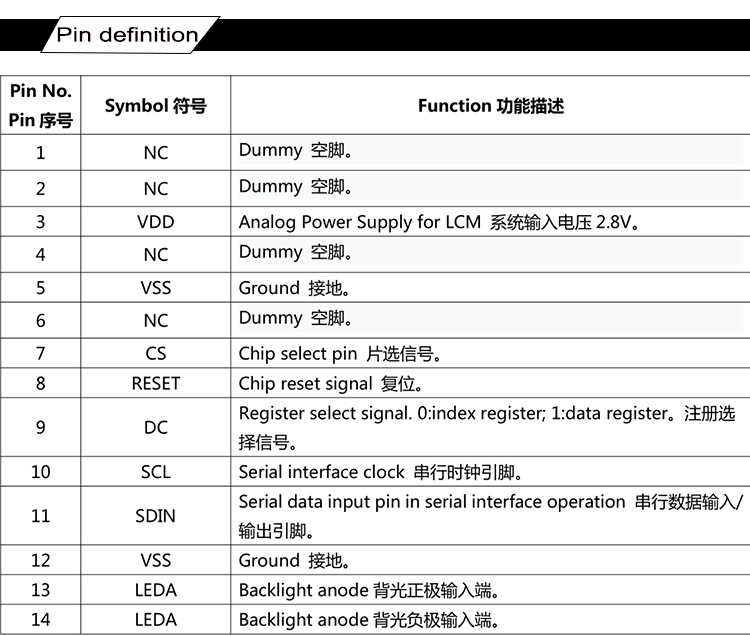

  • PIN NO: 14Pin
  • Display Area: 20.35*15.26mm
  • Size: 23.75*22.06*1.75mm

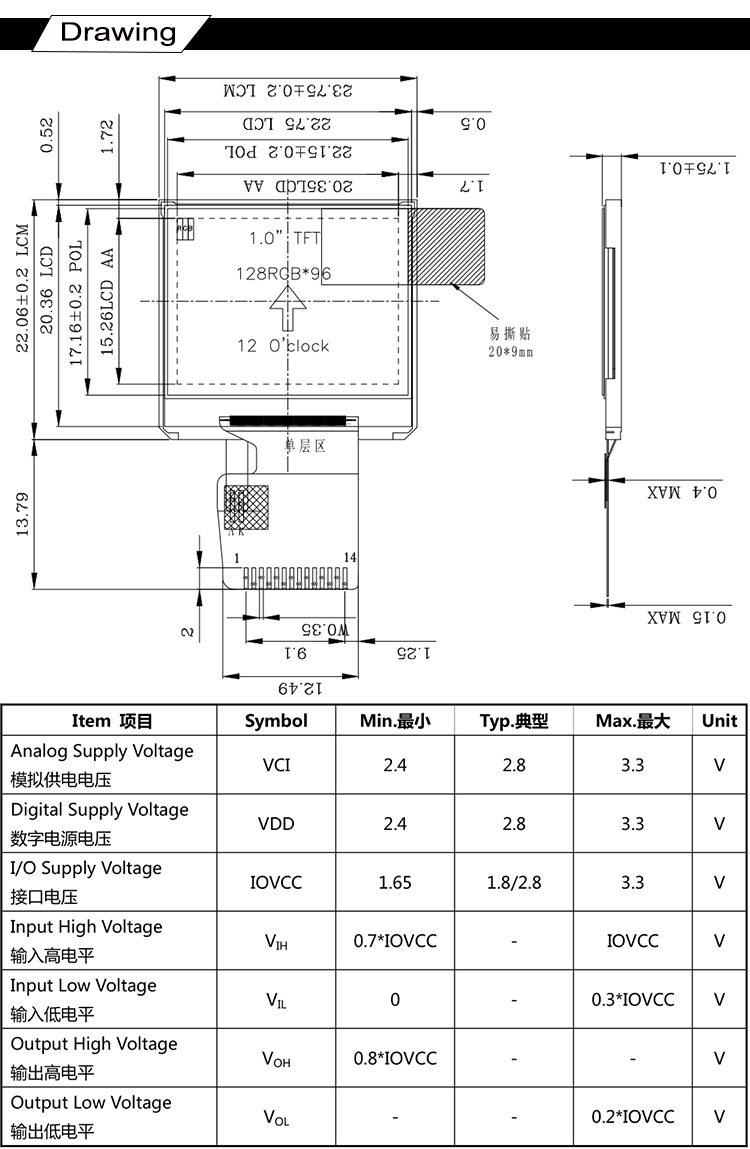

2. Mechanical Specifications

Product Name 1.0 Inch TFT
Active Area (WxH) 20.35(H) x 15.26(V)
Display Outline Size 23.75(H) x 22.06(V) x 1.75(D)
Resolution 128RGBx96DOTS
Polarizer Mode RGB Stripe
Backlight 1 White LEDs In Parallels
Interface Type SPI
Technology Type a-Si TFT active matrix
Controller / Driver ST7735
