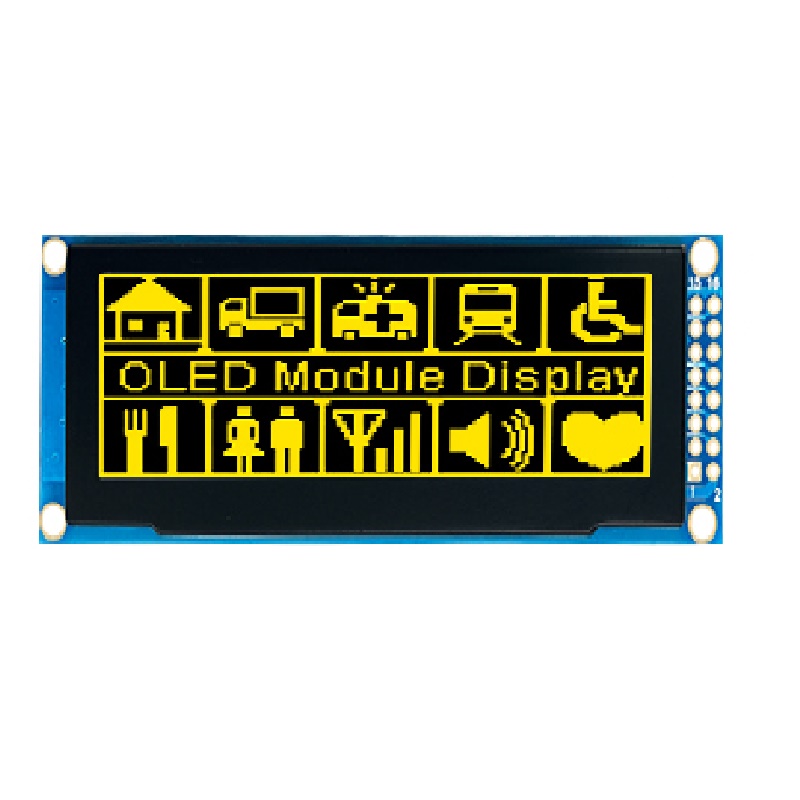

3.12 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

  • Price: $25.59-$35.59
  • Size:3.12
  • Resolution: 256*64
  • Interface: 6800/8080/ SPI
  • Product description: Hicenda Technology Co., Ltd can supply 3.12 inch oled display module white or blue or yellow color with 16 pin 6800/8080 SPI interface for medical or industrial device.
  • INQUIRY

1. Display Specifications

  • LCD Size: 3.12 inches
  • Dot Matrix Size: 256*64

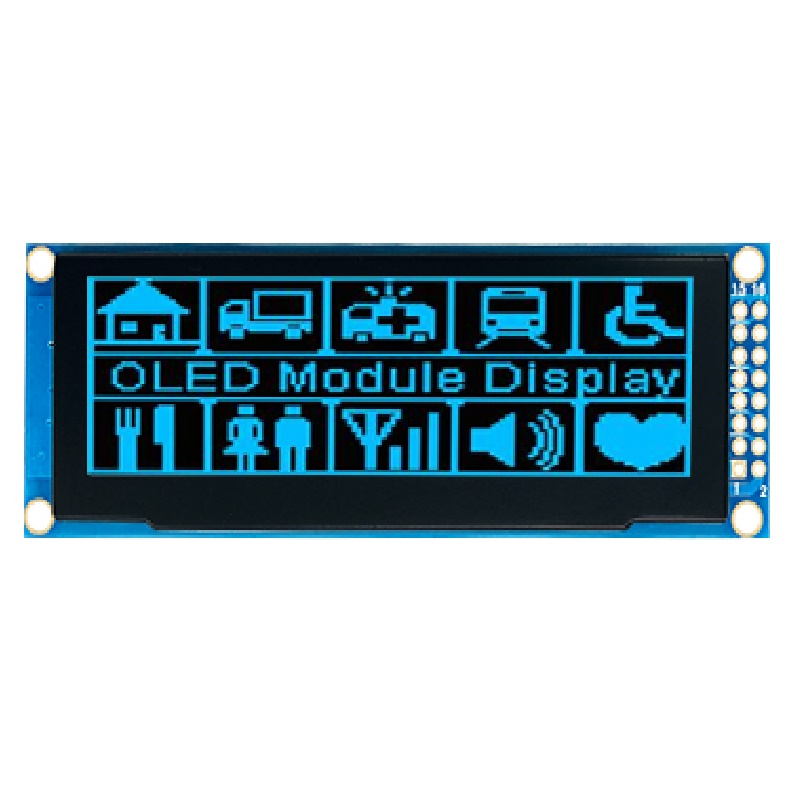

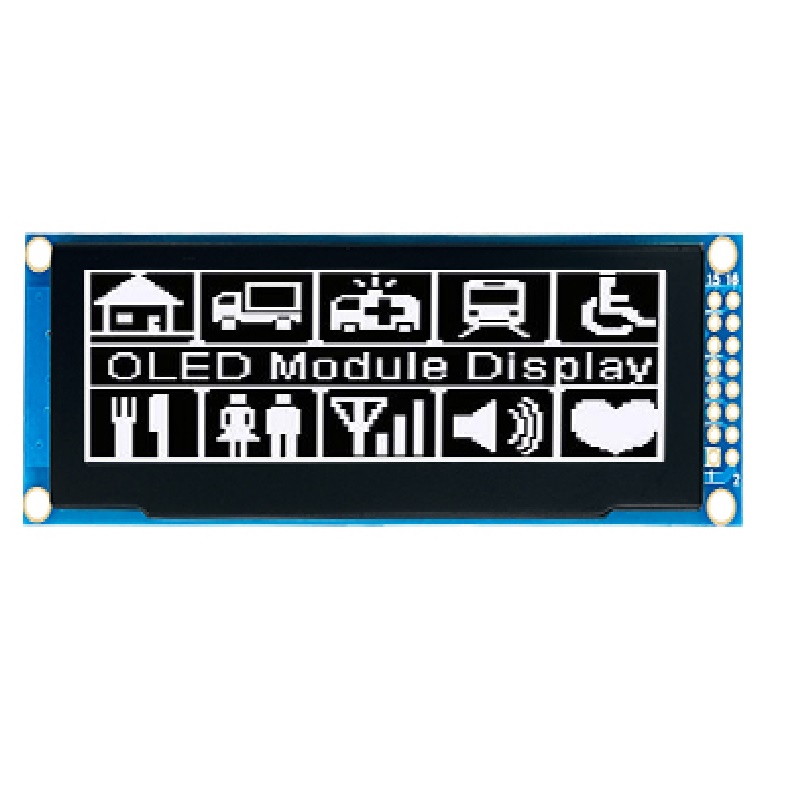

  • LCD Color: White/Blue/Yellow
  • Hardware Interface: 6800/8080/SPI interface
  • Driver IC: SSD1322
  • Operating Temperature: -30 - 80
  • Working Power Supply: 3.3V
  • PIN  : 16 Pin
  • Viewing Direction: Full viewing angle

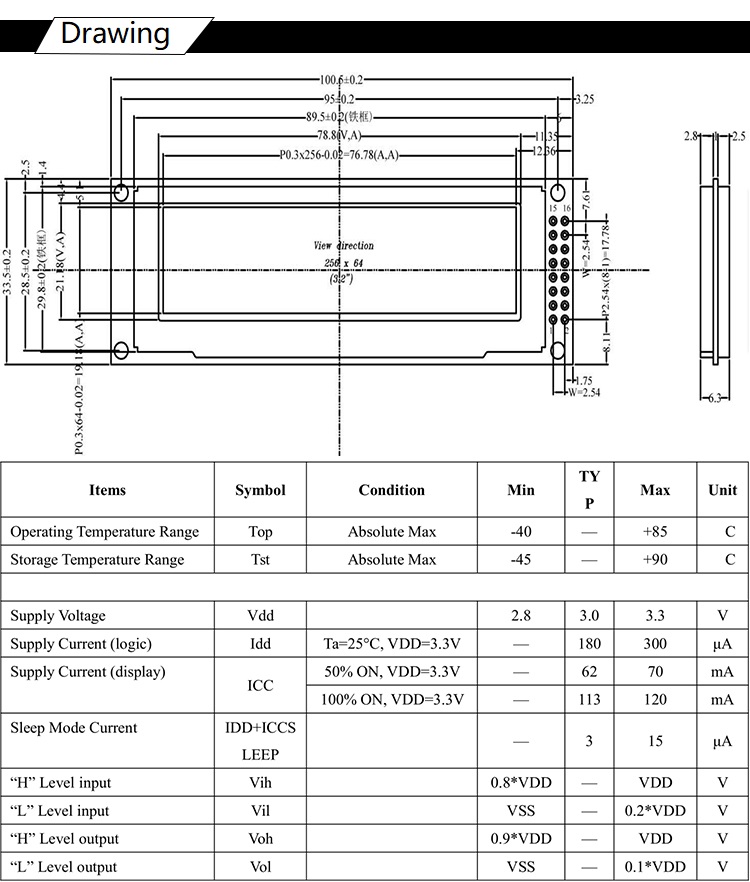

2. Mechanical Specifications

Display Type: oled display
Display Mode: Passive Matrix
Model Number:

HG-312-25664M01

Diagonal Screen size: 3.12 inch
Interface:

Parallel, 16-wire SPI

Drive Duty:

1/32 Duty

Number of Pixels:

256 x 64

Panel Size:

100.5(W)x33.5(H)x6.3Max(T) mm

Driver IC:

SSD1322

Active Area:

69.104×17. 264mm

Pixel Pitch:

0.27(W)x0.27(H)

Pixel Size:

0.254(W)x0.254(H)

Weight:

TBD

Operating Temperature:

-40~85°
