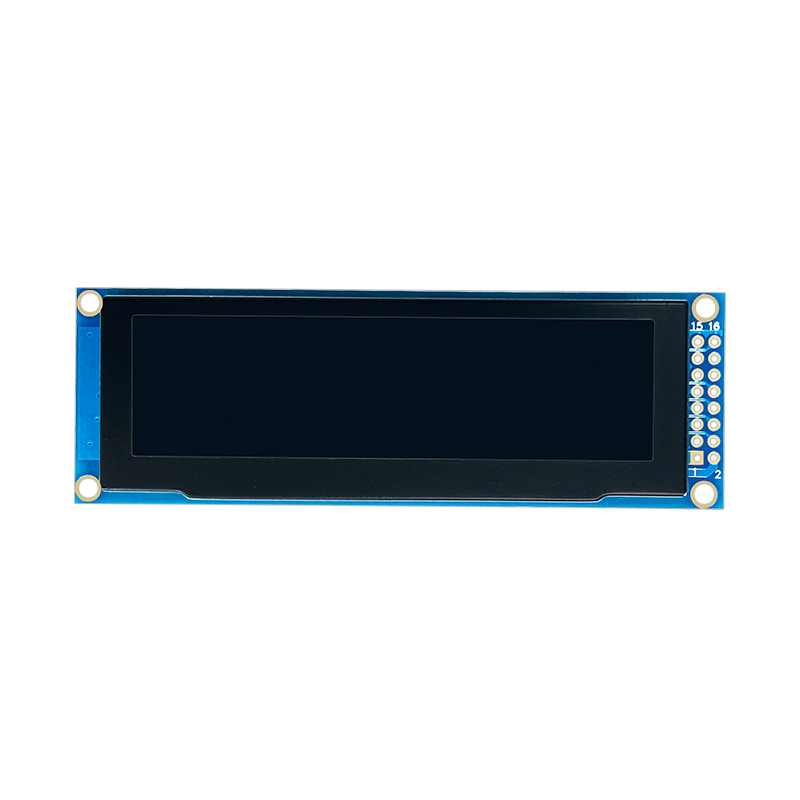

2.81 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

2.81 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

2.81 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

2.81 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

2.81 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

2.81 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

2.81 inch 128*64 OLED Display Module 16 pin SPI interface SSD1322 Driver Chip

Price: $23.59-$35.59
Size:2.81
Resolution: 256*64
Interface: 6800/8080/ SPI

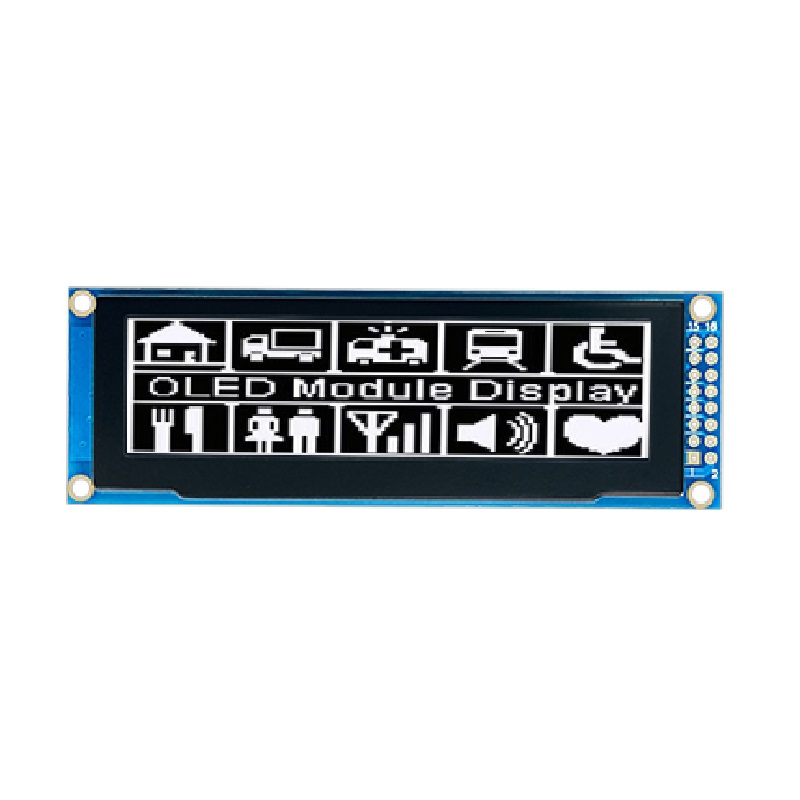

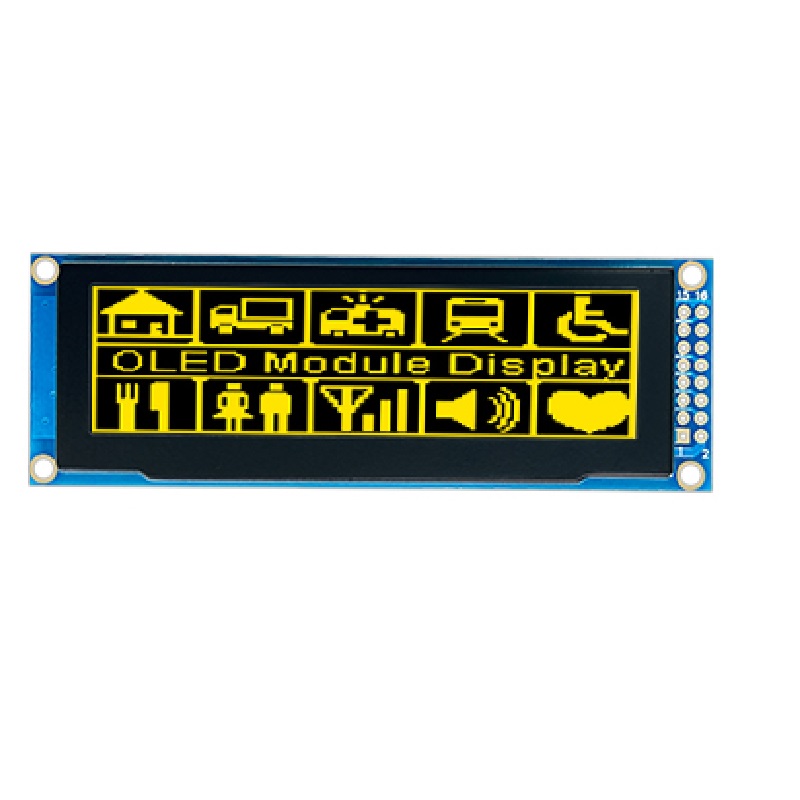

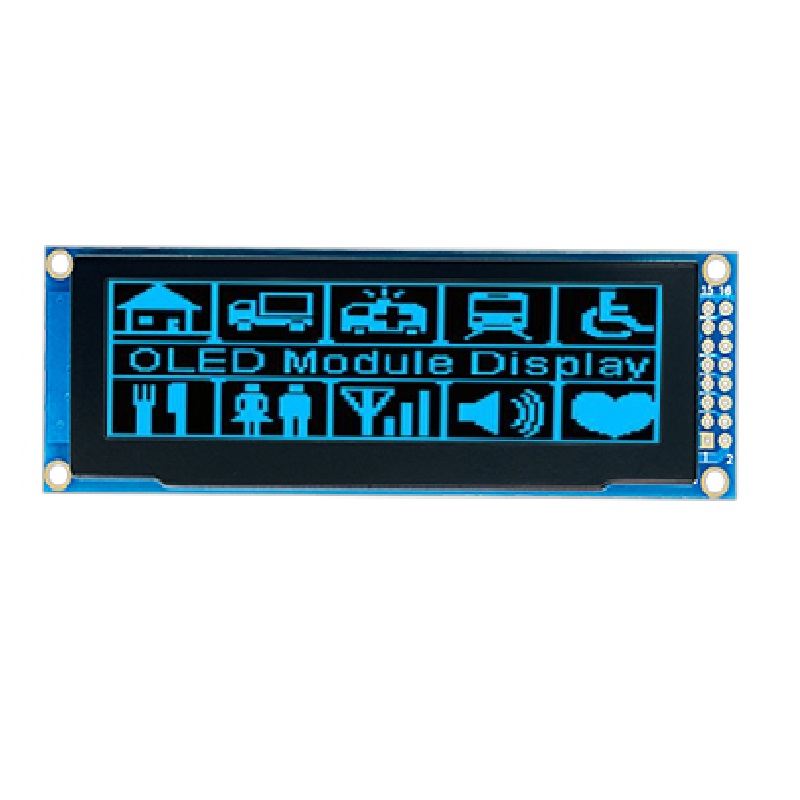

Product description: 2.81 inch oled display module white or blue or yellow color with 16 pin 6800/8080 SPI interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 2.81 inches
Dot Matrix Size: 256*64
LCD Color: White/Blue/Yellow
Hardware Interface: 6800/8080/SPI interface
Driver IC: SSD1322
Operating Temperature: -30 - 80
Working Power Supply: 3.3V
PIN : 16 Pin
Viewing Direction: Full viewing angle

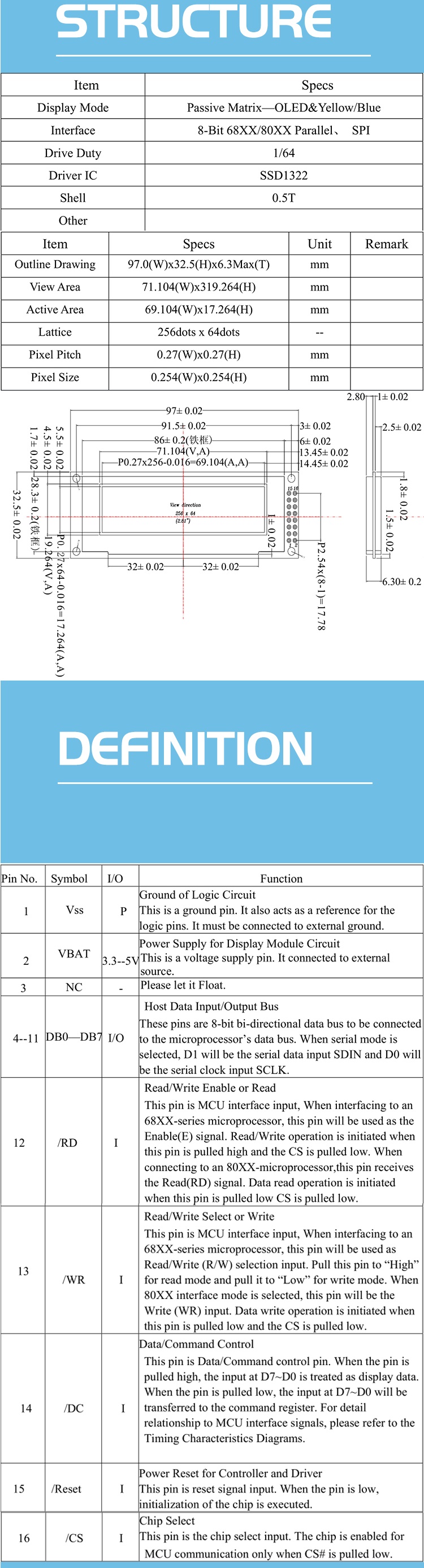

2. Mechanical Specifications

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HG-0281-25664M01
Diagonal Screen size:	2.81 inch
Interface:	Parallel, 16-wire SPI
Drive Duty:	1/32 Duty
Number of Pixels:	128 x 64
Panel Size:	97.0(W)x32.5(H)x6.3Max(T) mm
Driver IC:	SSD1322
Active Area:	69.104×17. 264mm
Pixel Pitch:	0.27(W)x0.27(H)
Pixel Size:	0.254(W)x0.254(H)
Weight:	TBD
Operating Temperature:	-40~85°
