2.42 inch 128*64 OLED Display Module 20 pin I2C/SPI interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module 20 pin I2C/SPI interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module 20 pin I2C/SPI interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module 20 pin I2C/SPI interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module 20 pin I2C/SPI interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module 20 pin I2C/SPI interface SSD1309 Driver Chip

2.42 inch 128*64 OLED Display Module 20 pin I2C/SPI interface SSD1309 Driver Chip

Price: $16.59-$25.59
Size:2.42
Resolution: 128*64
Interface: I2C
Product description: Hicenda Technology Co., Ltd can supply 2.42 inch oled display module 20 pin white or blue or yellow or green color with I2C interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 2.42 inches
Dot Matrix Size: 128*64

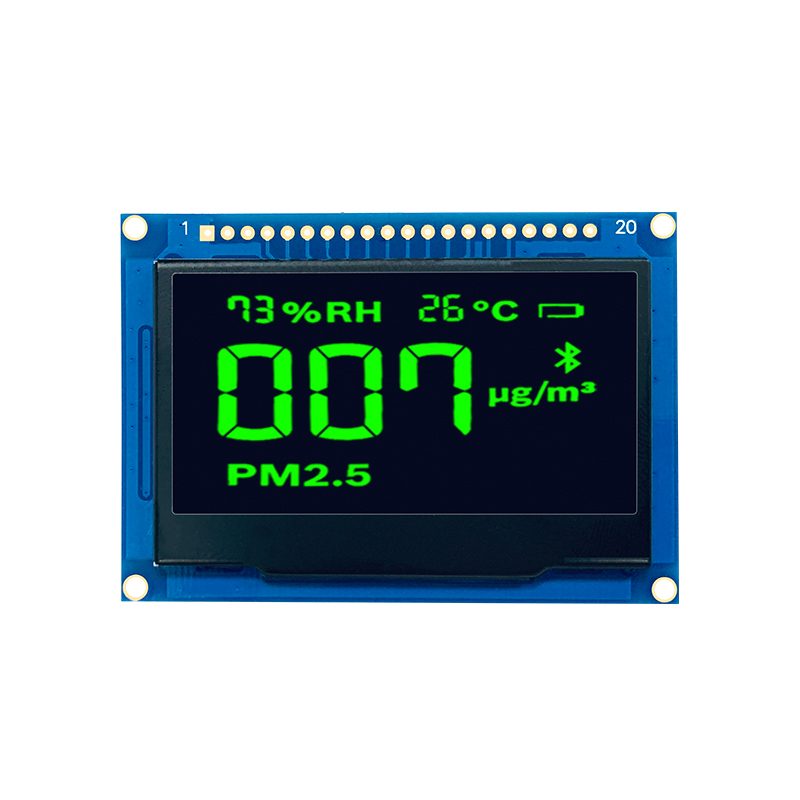

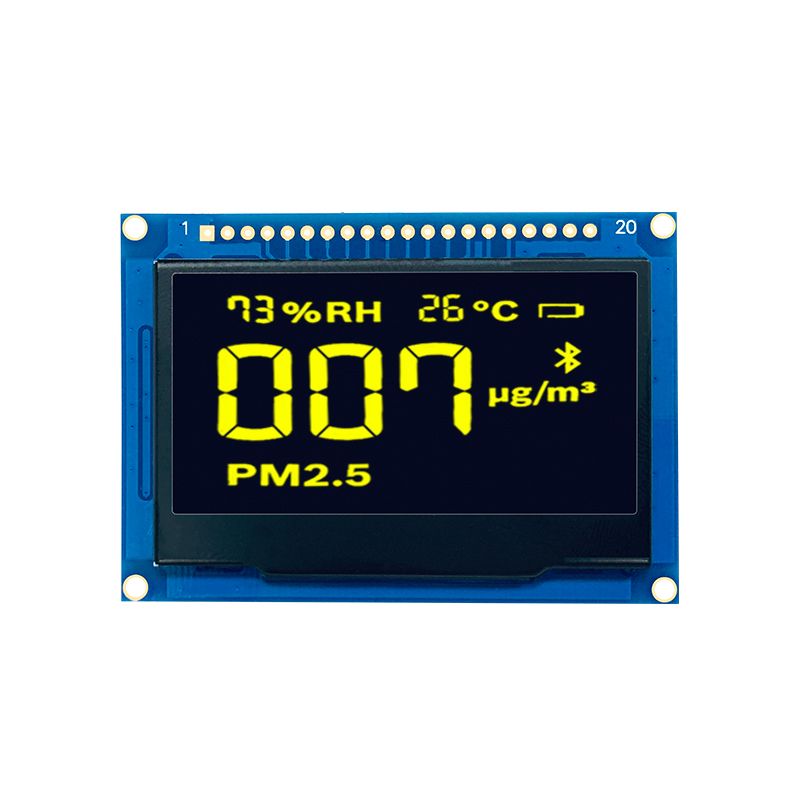

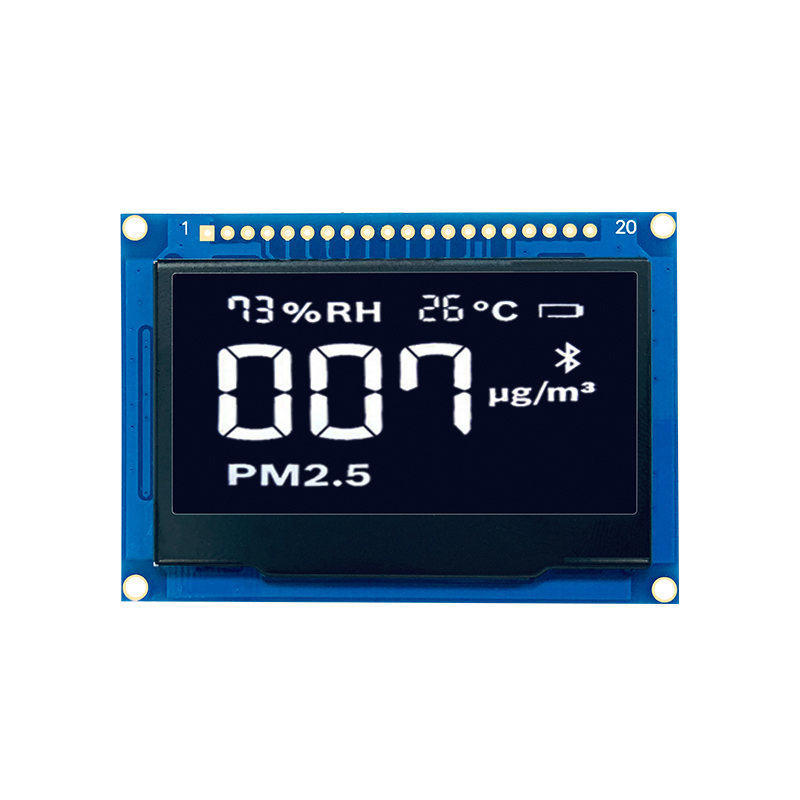

LCD Color: White/Blue/Yellow/Green
Hardware Interface: I2C interface
Driver IC: SSD1309
Operating Temperature: -40 - 85
Working Power Supply: 3.3V
PIN : 5 Pin
Viewing Direction: Full viewing angle

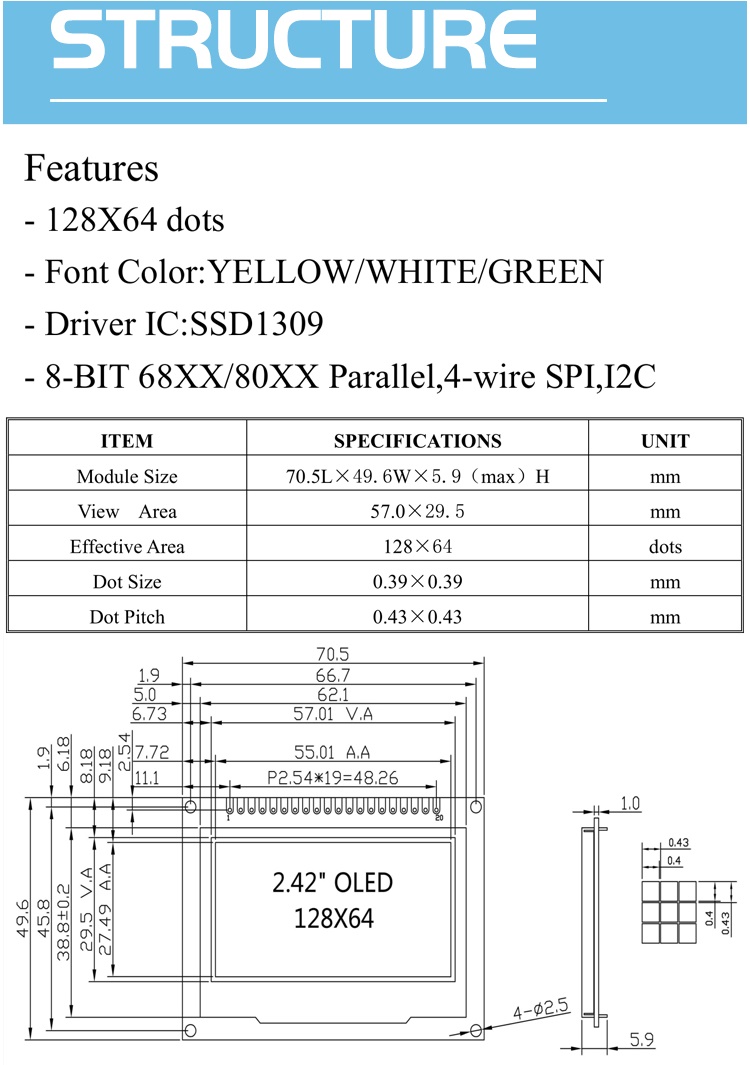

2. Mechanical Specifications

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HG-0242-12864M01
Diagonal Screen size:	2.42 inch
Interface:	Parallel, 20-wire SPI, I2C
Drive Duty:	1/32 Duty
Number of Pixels:	128 x 64
Panel Size:	70.5L× 49. 6WX5.9 (max) mm
Driver IC:	SSD1309
Active Area:	57.0×29. 5mm
Pixel Pitch:	0.39(W)x0.39(H)
Pixel Size:	0.43(W)x0.43(H)
Weight:	TBD
Operating Temperature:	-40~85°
