Description

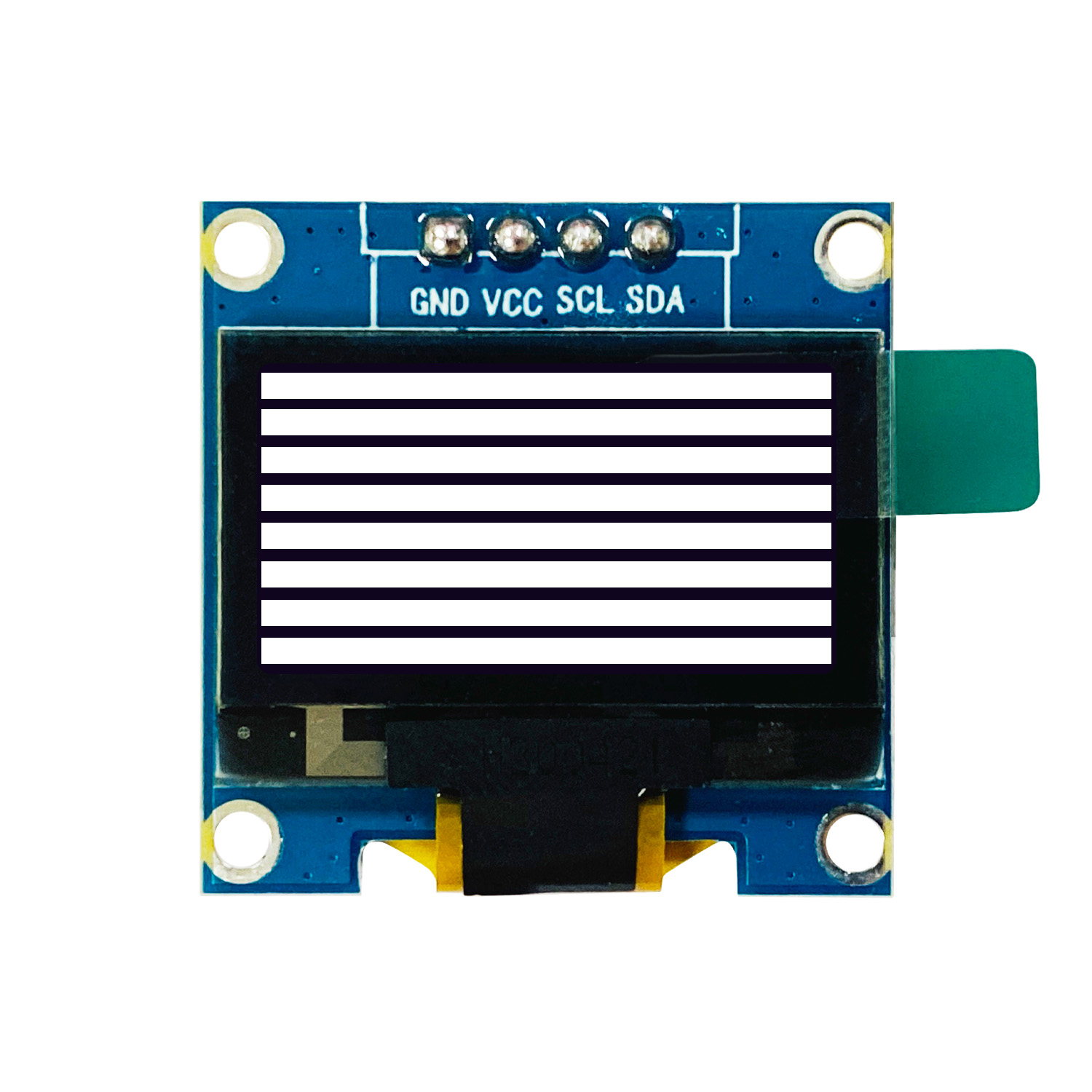

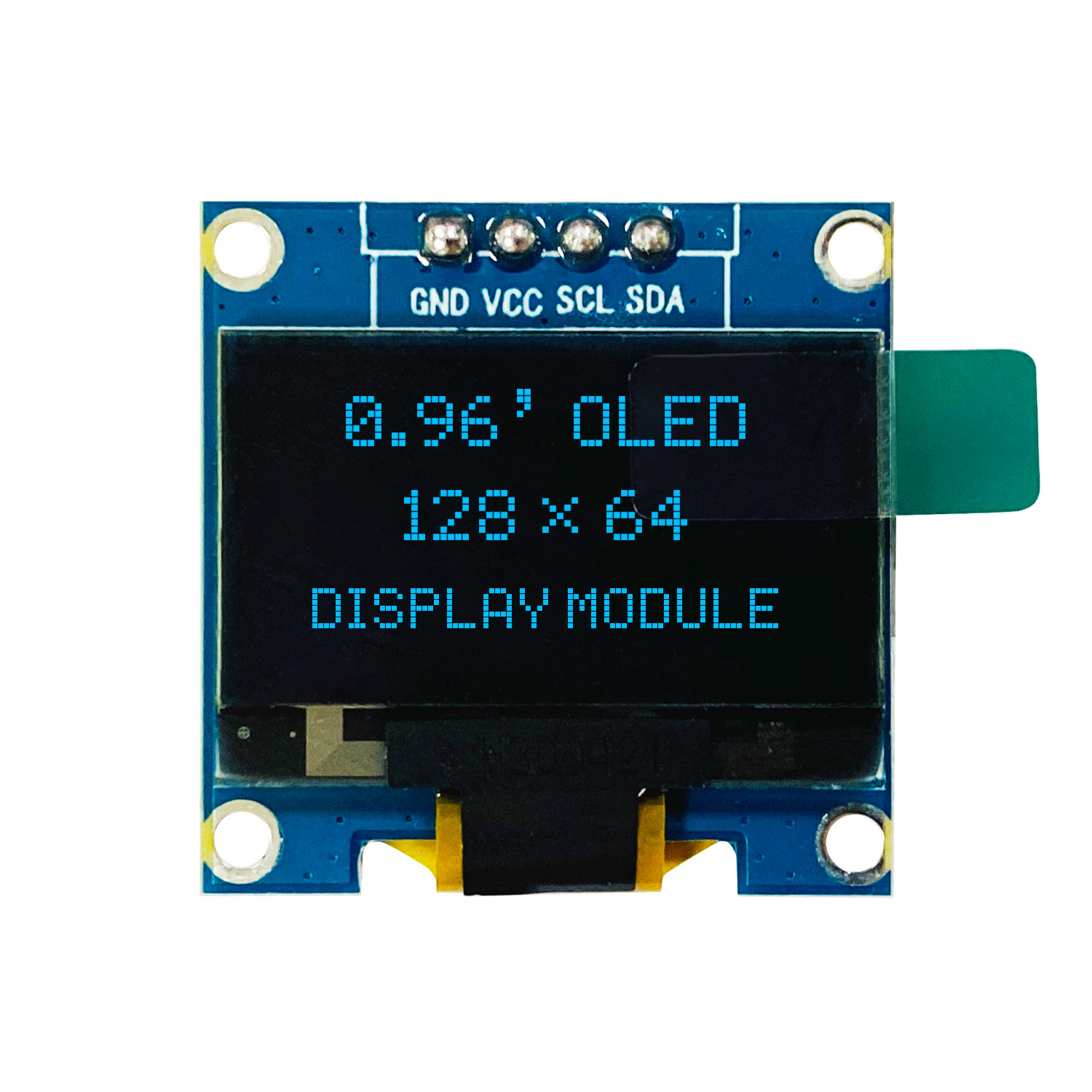

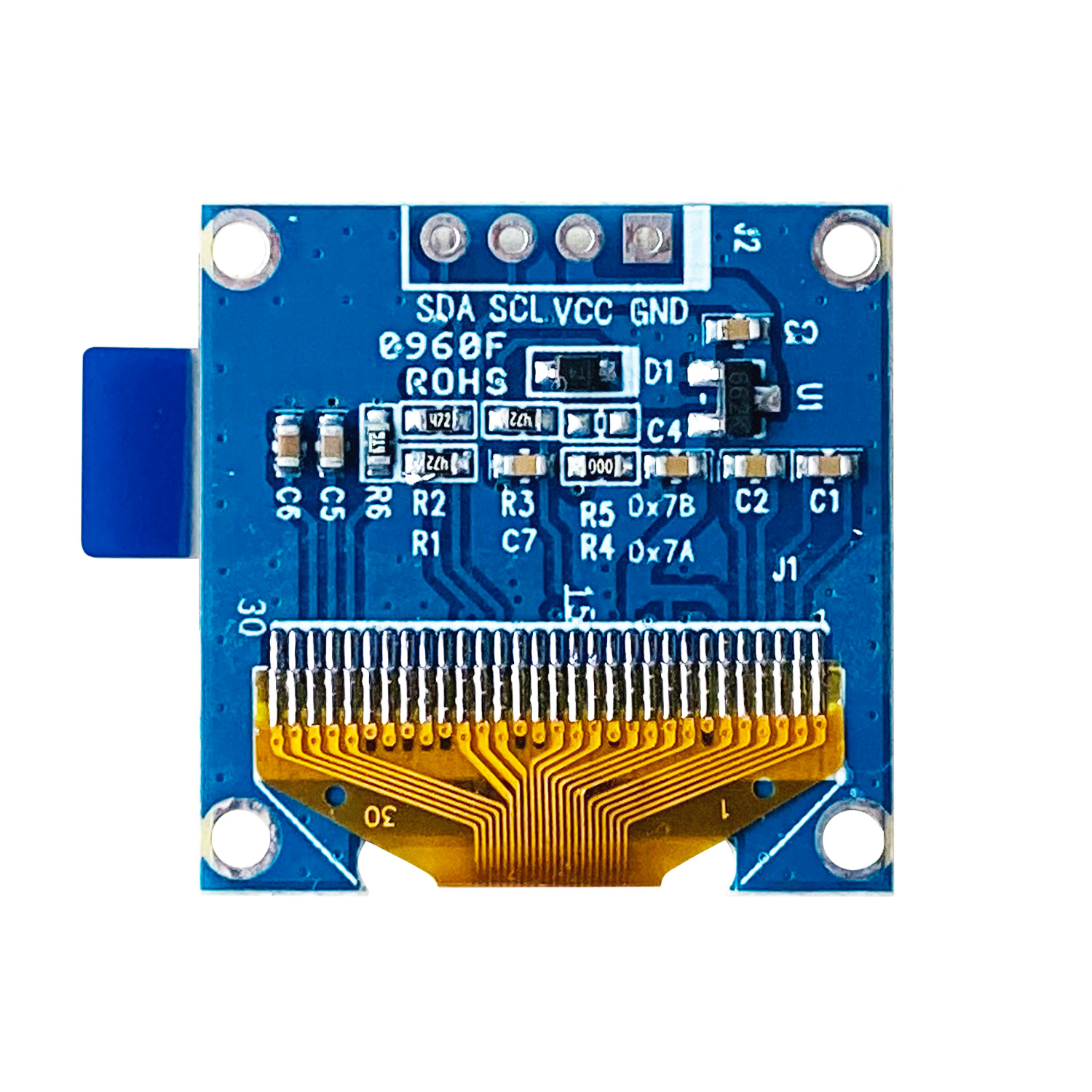

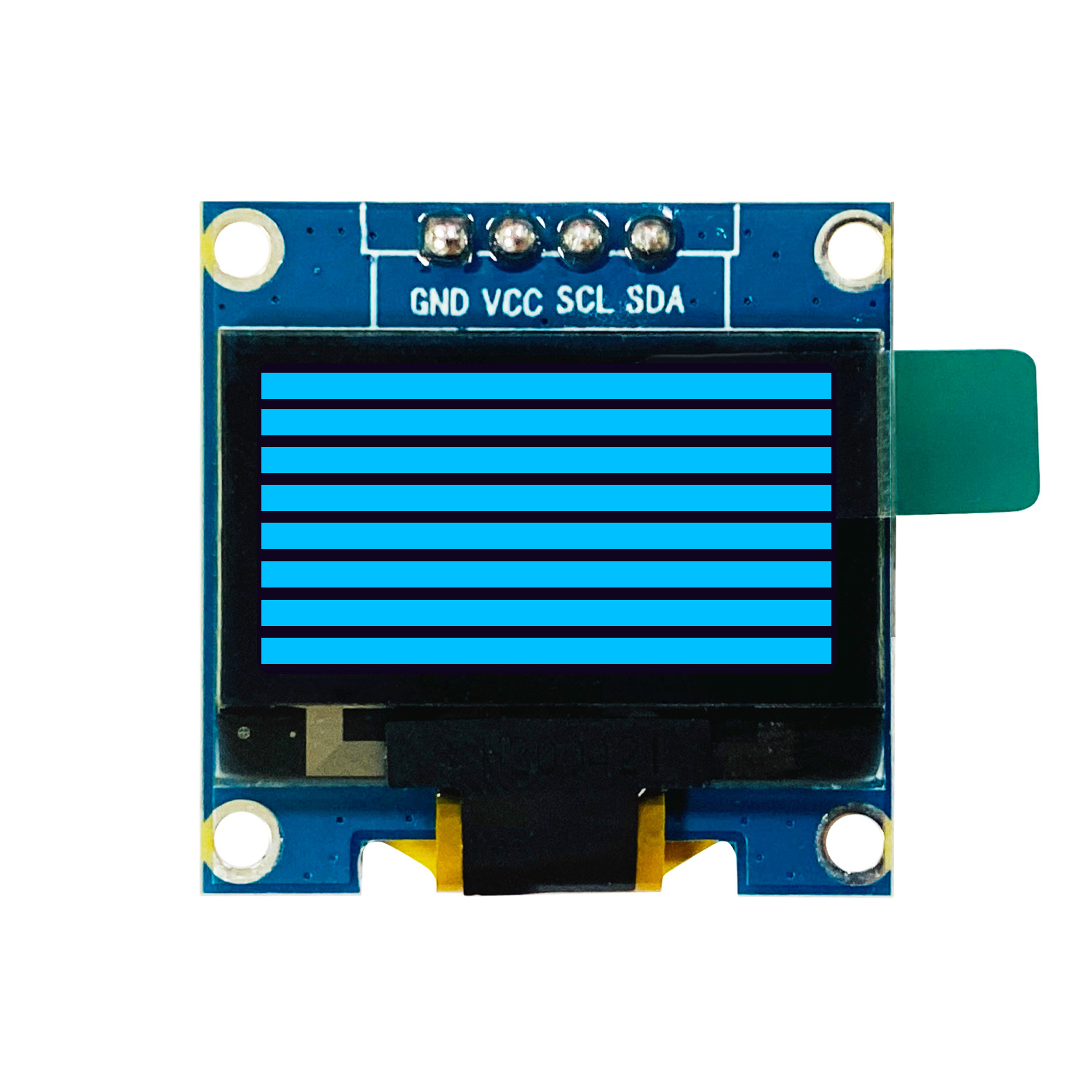

IPS OLED Module 0.96 inch OLED display module 128×64 dots SSD1315 driver IC IIC Interface
Model No: HT096AWH30PG01I4V10
This 0.96-inch OLED display module features a 128×64 pixel resolution and operates on a passive matrix technology. It utilizes the SSD1315 driver IC and communicates via the IIC interface. Designed with a viewing-friendly IPS layout, the module presents crisp monochrome visuals (white or blue). Engineered for high reliability, the module supports extreme temperature conditions, making it suitable for industrial, consumer, and embedded applications.

Technical Specifications Table

Technological Highlights of the OLED Module

The HT096AWH30PG01I4V10 is a compact yet powerful OLED module that exemplifies efficiency, durability, and clarity. With its passive matrix architecture, it ensures uniform brightness and stable performance across its entire 0.96-inch screen area. The inclusion of the SSD1315 driver IC significantly enhances the display's refresh rate and power efficiency, offering developers a versatile component for a wide range of embedded systems.

Display Quality and Structure

The module delivers high-contrast monochrome output with a fine pixel pitch of 0.17×0.17mm, ensuring text and graphics are rendered with exceptional precision. Its active area of 21.74×10.86mm ensures efficient usage of space in microelectronics, wearables, and compact data terminals.

Mechanical and Electrical Parameters

Structural Specifications

The display is housed within an outline measuring 26.0mm by 26.0mm, with a maximum thickness of 3.5mm, making it ideal for constrained environments. The four-pin interface enables straightforward integration with common microcontroller platforms via the IIC communication protocol.

Environmental Adaptability

Designed for robust environments, the module supports a broad operating temperature range from -40℃ to +80℃ and a storage tolerance up to +85℃. These attributes make it highly dependable for outdoor and industrial use where temperature variability is a critical factor.

Applications and Integration Potential

Ideal Use Cases

Thanks to its compact size, wide temperature range, and power-efficient performance, the HT096AWH30PG01I4V10 is widely applicable in:

Smart wearables

Medical diagnostics equipment

Industrial control terminals

Consumer electronics

Compact data logger

Developer-Friendly

Features

With native IIC support and minimal pin requirements, this OLED display is optimized for rapid prototyping and efficient system integration. The SSD1315 IC ensures compatibility with various microcontroller platforms such as Arduino, STM32, ESP32, and Raspberry Pi.

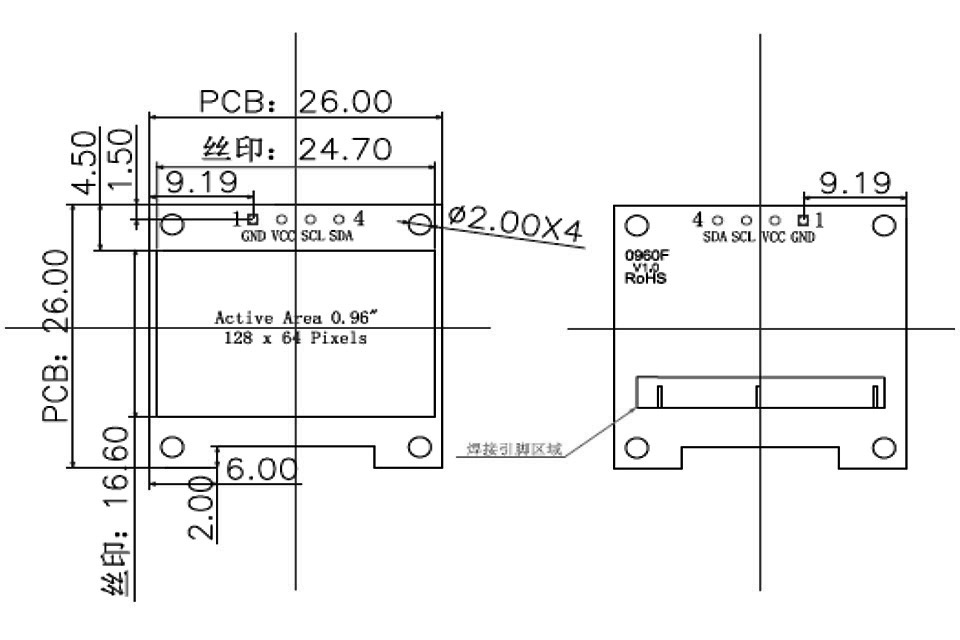

Drawing:

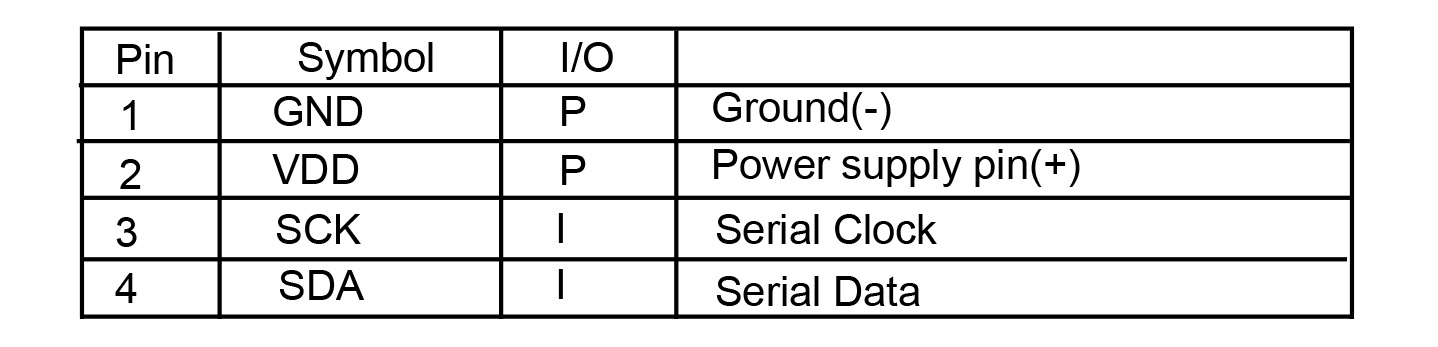

Pin Definition:

Conclusion

The HT096AWH30PG01I4V10 OLED display module combines a high-resolution passive matrix panel with a powerful SSD1315 driver and a space-efficient IIC interface. Its rugged design, precise display output, and simple interfacing make it a go-to choice for developers seeking robust performance in a minimal form factor. Whether in prototyping labs or deployed environments, this module meets the expectations of modern embedded systems with style and reliability.
