Description:

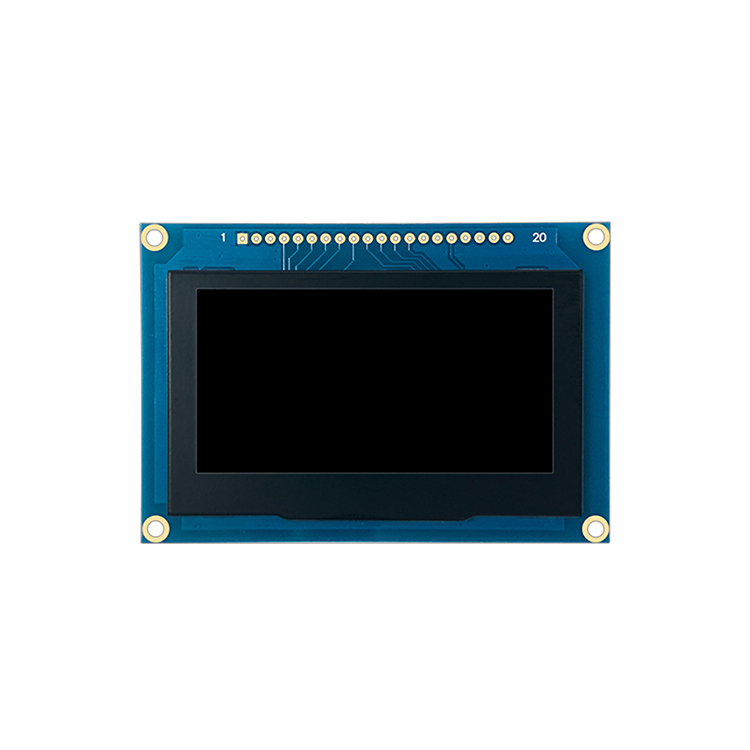

The 2.7-inch OLED display module described here is a passive matrix graphic display featuring a resolution of 128×64 dots. It integrates the SSD1325 driver IC and supports both 8-bit 68XX/80XX parallel and SPI communication interfaces. With a compact mechanical structure, wide viewing angle, and monochrome emission options (yellow, white, or green), the module is designed for stable operation across an extended temperature range, making it suitable for industrial and embedded applications.

Structural and Electrical Characteristics

This module adopts a passive matrix OLED (PMOLED) architecture, which balances simplicity of driving circuitry with reliable optical output. The SSD1325 controller integrates display RAM, segment/common drivers, and command decoding, enabling efficient system integration.

The display operates with a 1/64 duty cycle, matching its 128×64 pixel matrix. Each pixel is defined with a pitch of 0.48 mm, ensuring consistent luminance distribution and legibility across the active area. The module’s mechanical outline (85.0 × 58.0 × 6.3 mm) reflects a design optimized for panel mounting while maintaining sufficient robustness for handling and assembly.

Interface Flexibility and System Integration

Parallel and Serial Communication Modes

The module supports dual interface options, allowing designers to select between:

· 8-bit 68XX/80XX parallel interface, suitable for high-speed data transfer and compatibility with legacy microcontroller architectures.

· SPI interface, preferred in compact systems where pin count and routing simplicity are critical.

This flexibility enables seamless adaptation across a wide range of embedded platforms, from industrial controllers to portable instrumentation.

Controller Capabilities

The SSD1325 driver IC plays a central role in ensuring stable display performance. It incorporates internal grayscale control, display RAM mapping, and programmable driving schemes. These features simplify firmware development while maintaining precise control over pixel illumination.

Optical Performance and Viewing Characteristics

The OLED technology employed in this module provides self-emissive pixels, eliminating the need for backlighting. As a result, the display achieves:

· High contrast ratios with deep black levels

· Uniform brightness across the viewing area

· Wide viewing angles without color inversion

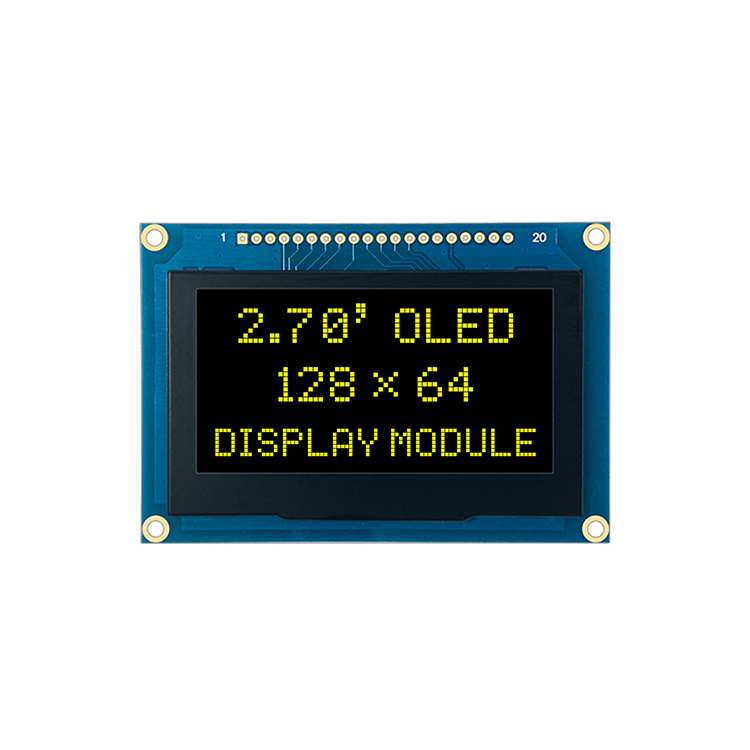

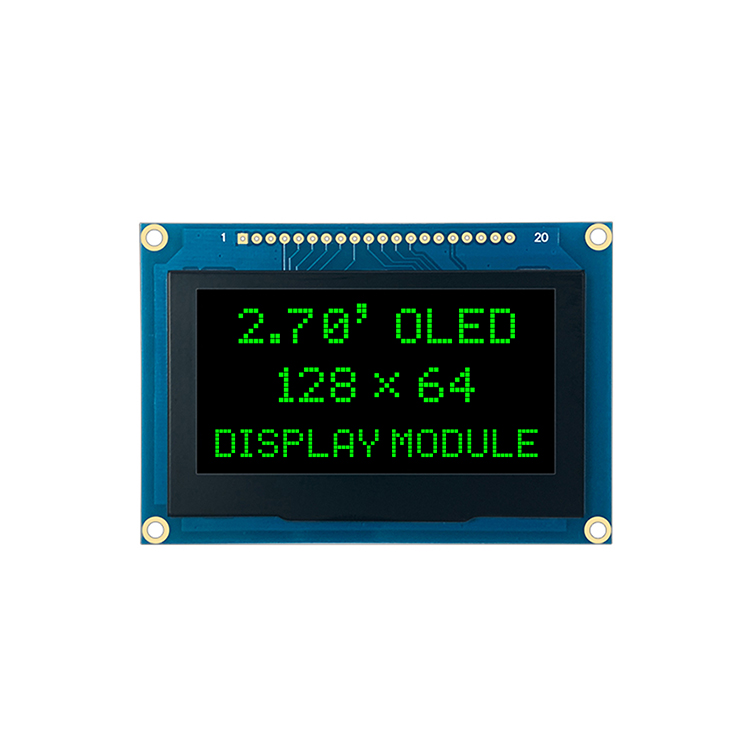

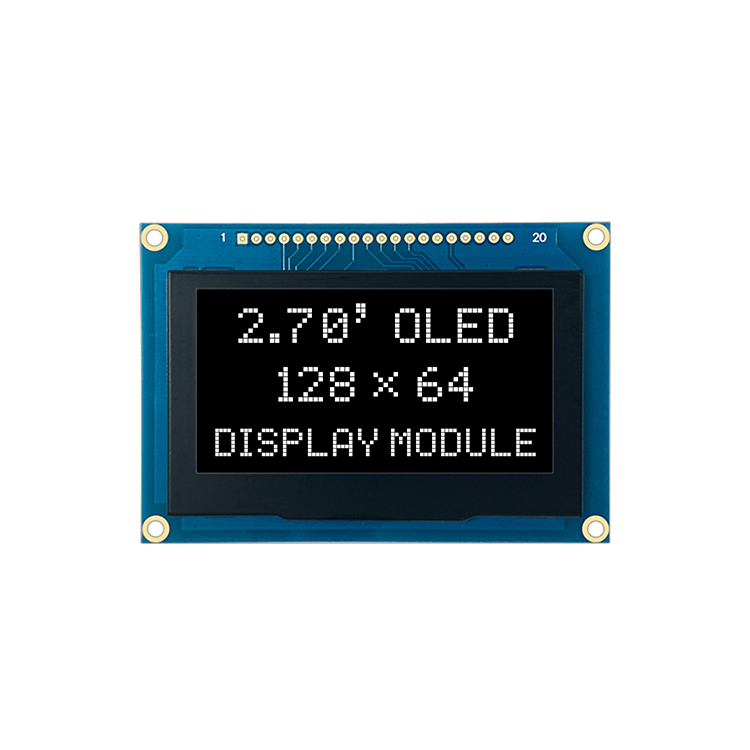

The availability of multiple monochrome emission colors allows adaptation to different application environments, such as low-light instrumentation or high-visibility control panels.

Mechanical Design and Environmental Reliability

The module is engineered for durability under demanding conditions. Its operating temperature range of -40°C to 80°C ensures reliable performance in both cold-start and high-temperature environments. The extended storage range further supports logistics and long-term deployment.

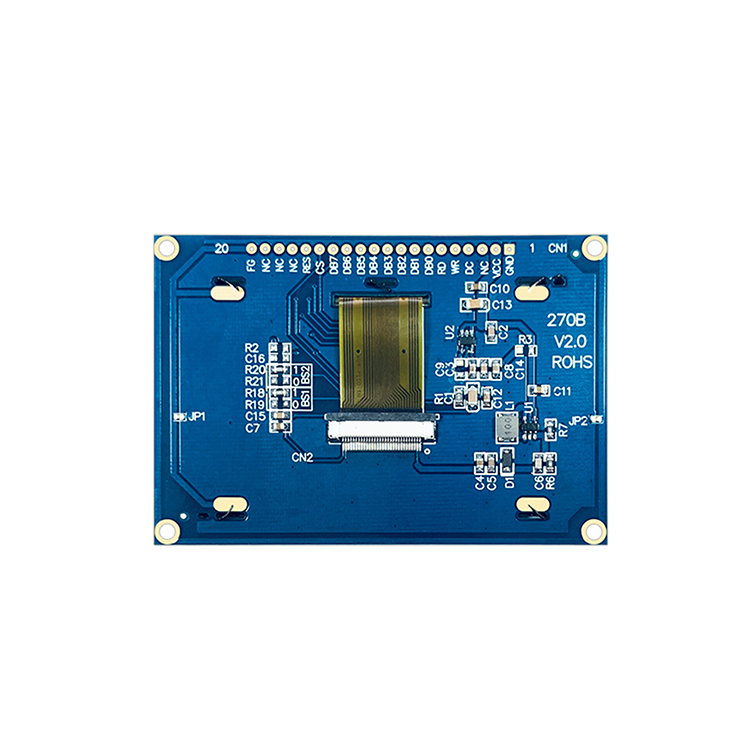

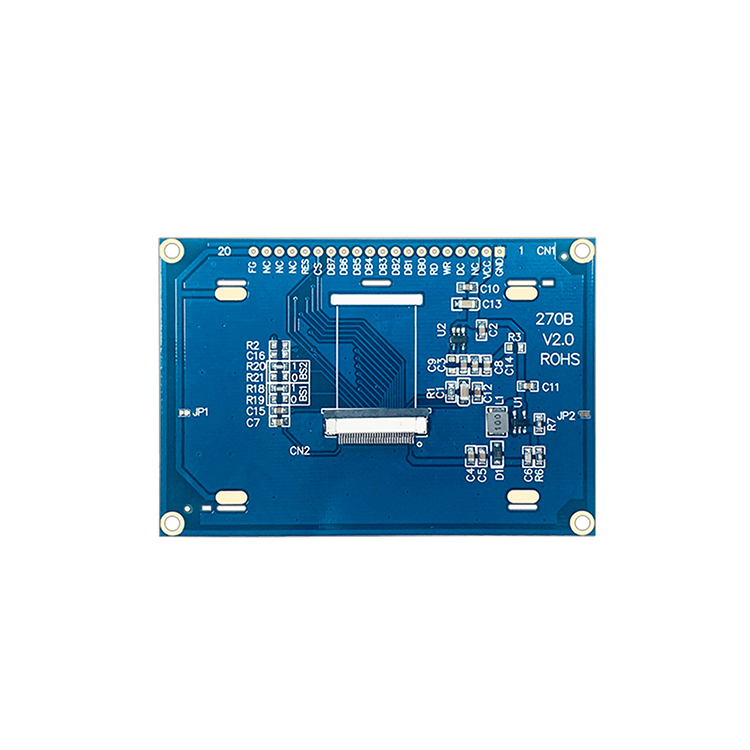

With a 20-pin interface and moderate thickness, the design balances compactness with mechanical stability, making it suitable for integration into handheld devices, industrial panels, and embedded control systems.

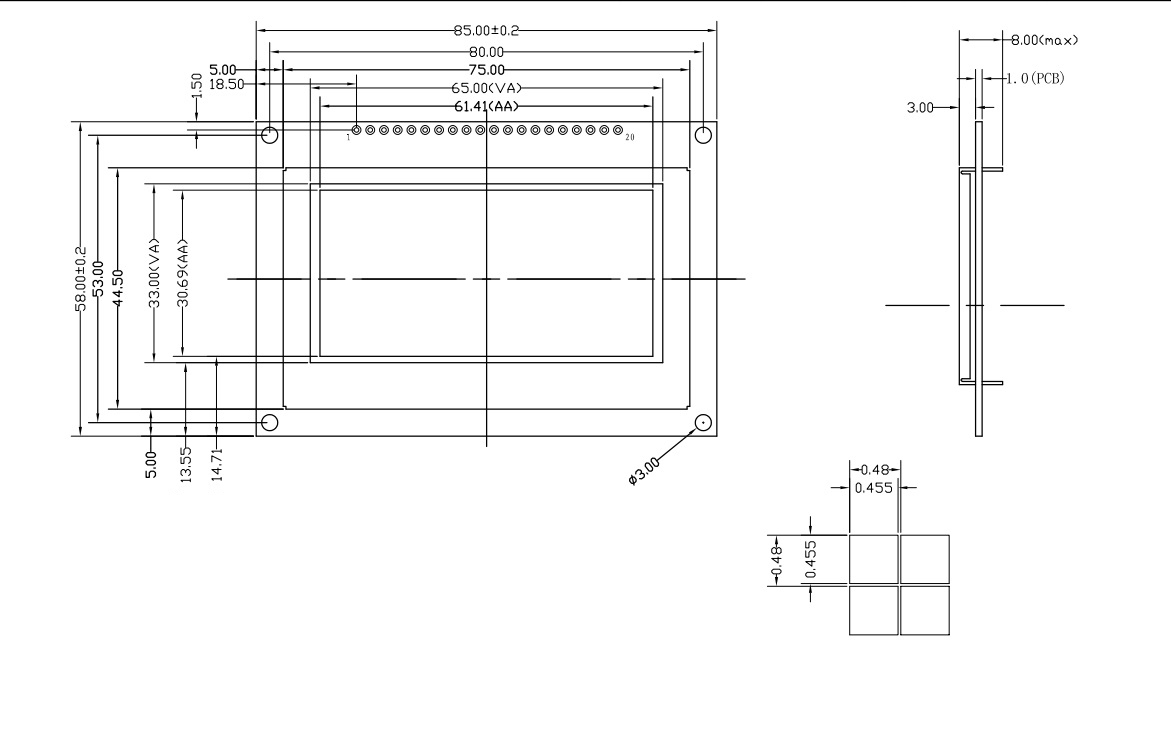

Mechanical Specifications

Drawing

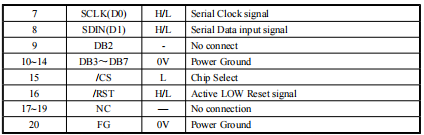

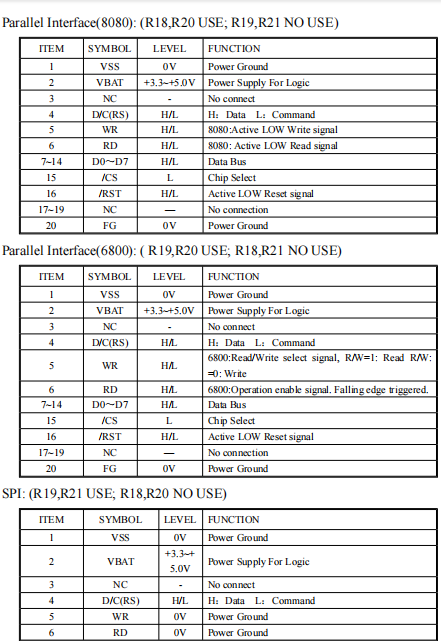

Pin Definition

Application Considerations

Given its combination of resolution, interface versatility, and environmental resilience, this 2.7-inch OLED module is well suited for:
