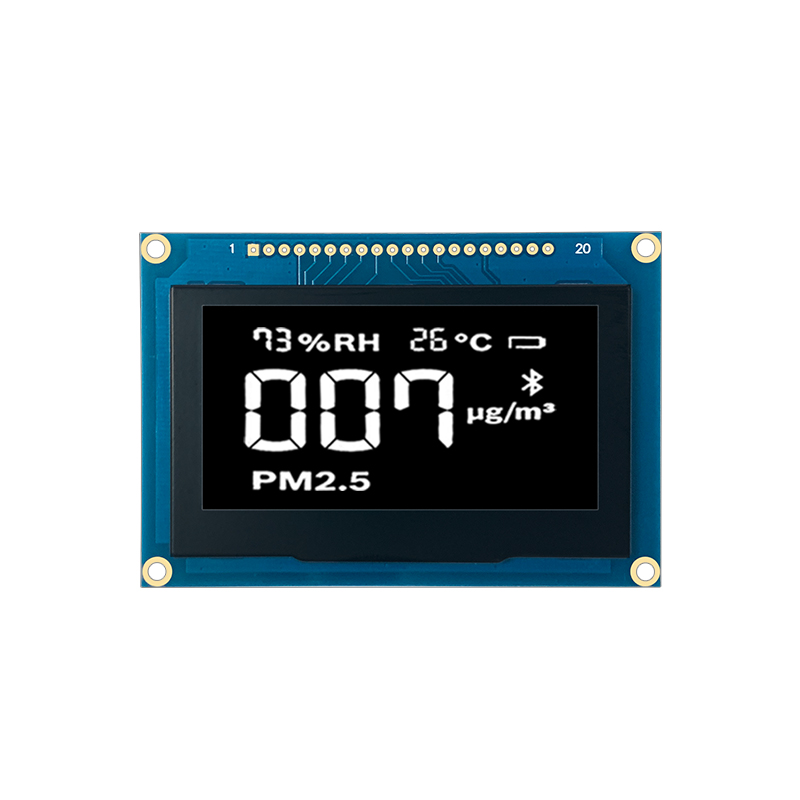

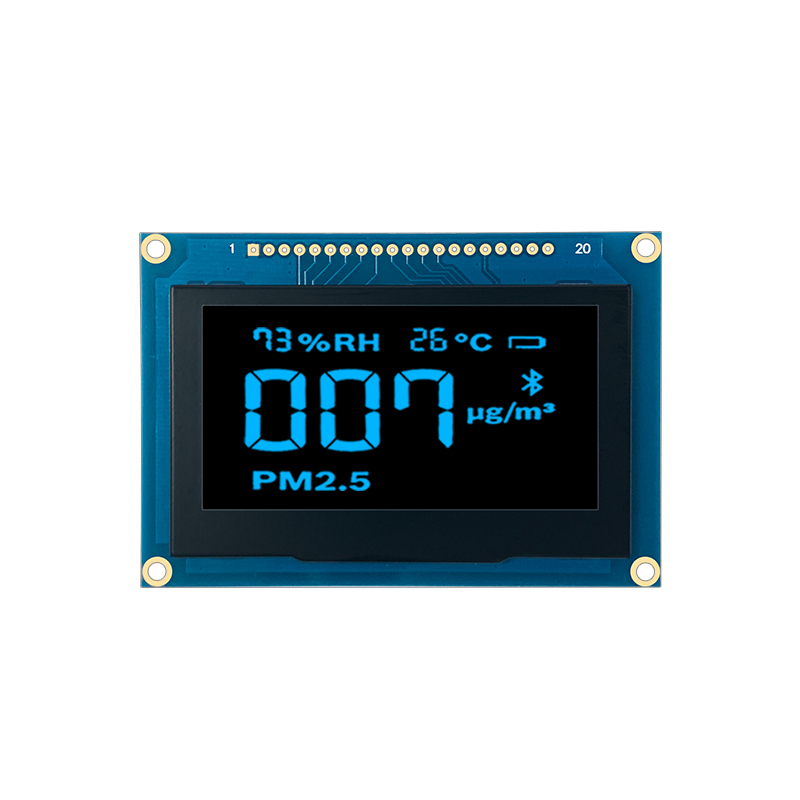

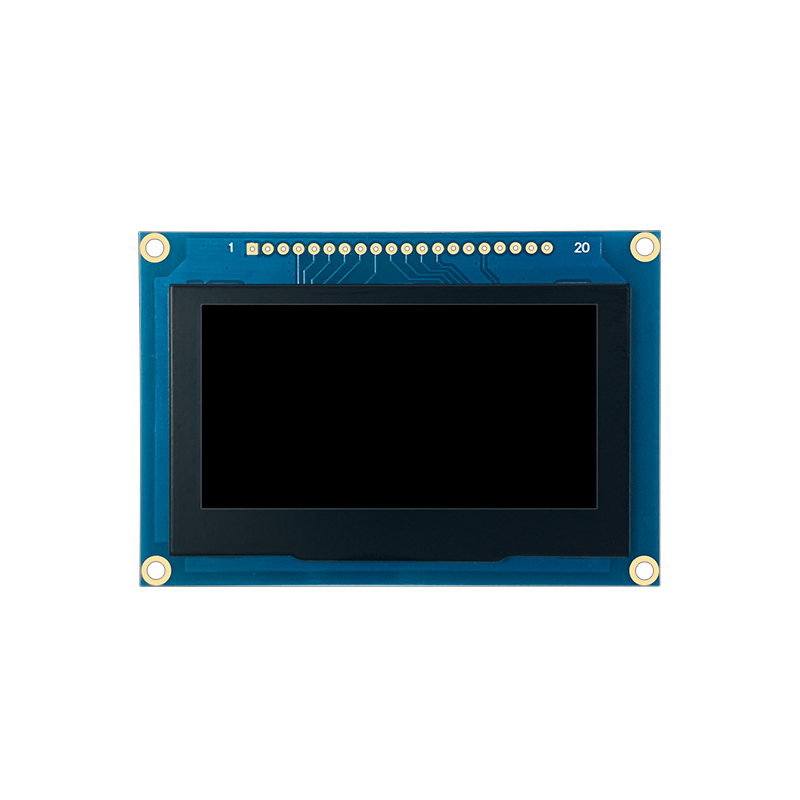

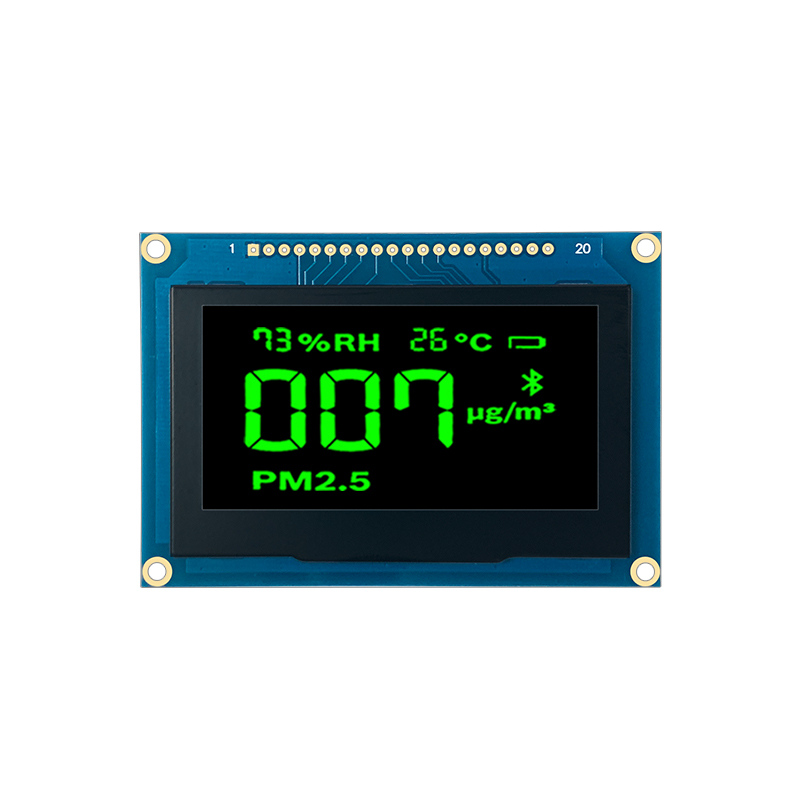

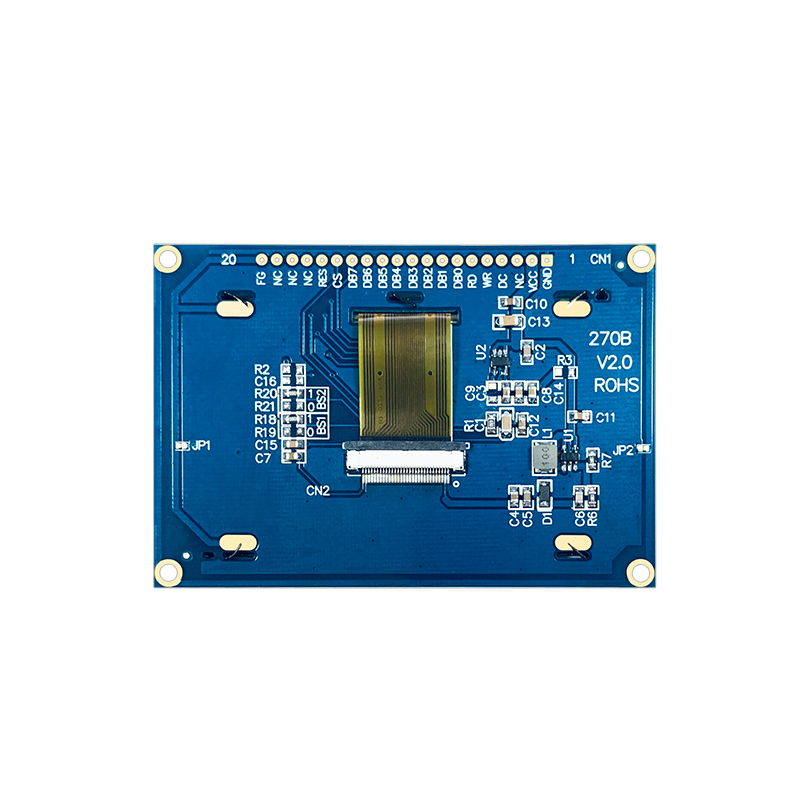

2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip

2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip

2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip

2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip

2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip

2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip

2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip

Price: $21.59-$32.59
Size:2.7
Resolution: 128*64
Interface: I2C SPI
Product description: Hicenda Technology Co., Ltd can supply 2.7 inch oled display module white or blue or yellow color with 20 pin SPI/I2C interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 2.7 inches
Dot Matrix Size: 128*64
LCD Color: White/Blue/Yellow/Green
Hardware Interface: I2C/SPI interface
Driver IC: SSD1325
Operating Temperature: -30 - 80
Working Power Supply: 3.3V
PIN : 20 Pin
Viewing Direction: Full viewing angle

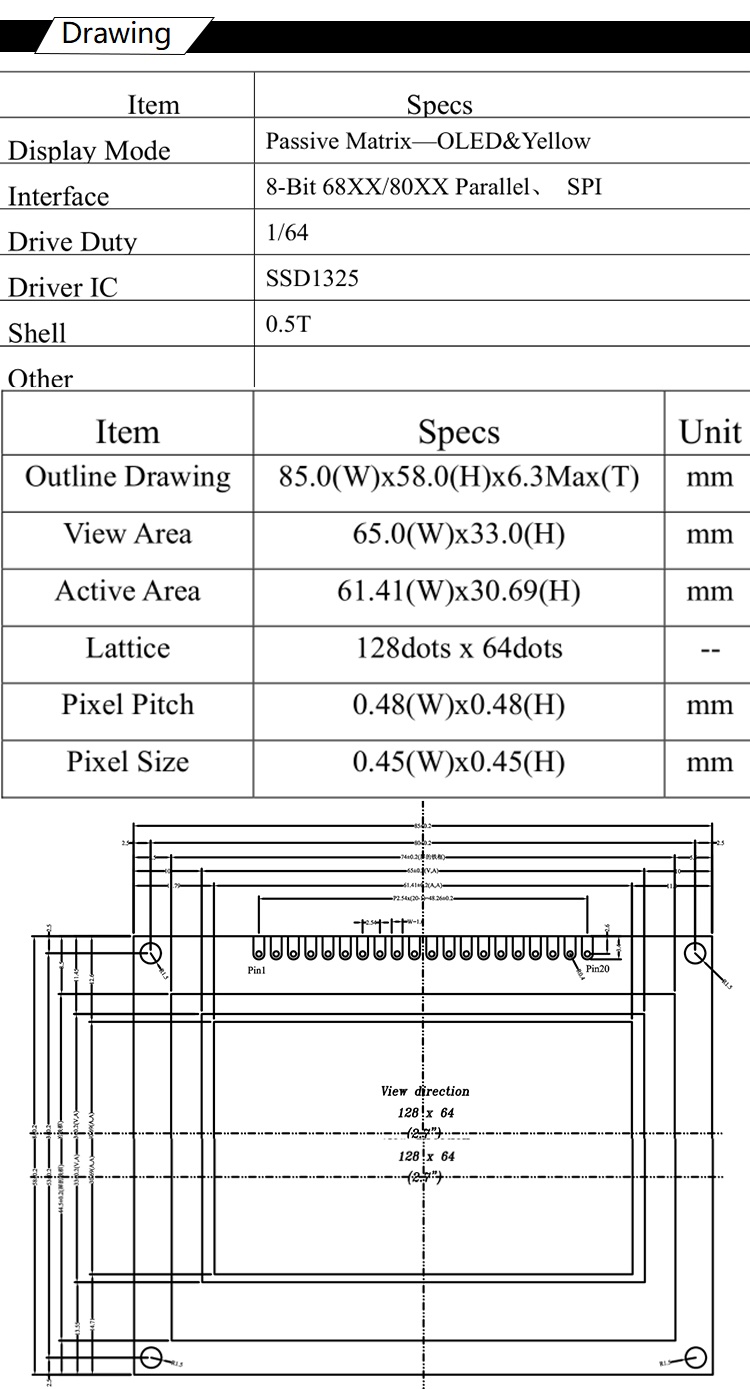

2. Mechanical Specifications

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HG-0270-12864M01
Diagonal Screen size:	2.7 inch
Interface:	Parallel, 20-wire SPI, I2C
Drive Duty:	1/32 Duty
Number of Pixels:	128 x 64
Panel Size:	85.0(W)x58.0(H)x6.3Max(T) mm
Driver IC:	SSD1325
Active Area:	65.0×33. 0mm
Pixel Pitch:	0.48(W)x0.48(H)
Pixel Size:	0.35(W)x0.35(H)
Weight:	TBD
Operating Temperature:	-40~85°

PREVIOUS：1.54 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1309 Driver Chip NEXT：2.08 inch 256*64 OLED Display Module I2C SPI 7 pin interface SH1122 Driver Chip
