2.4"

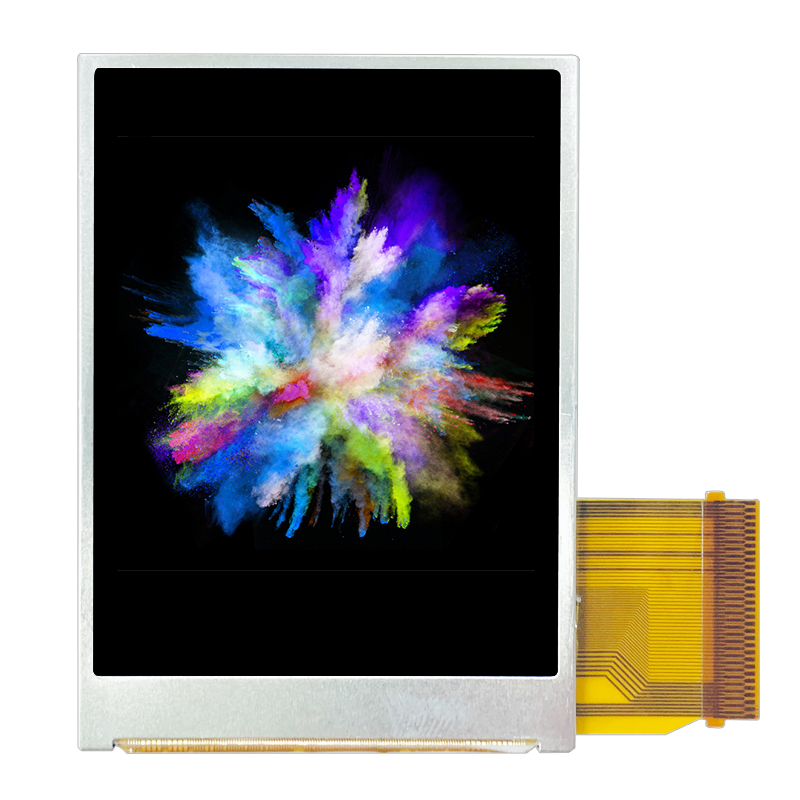

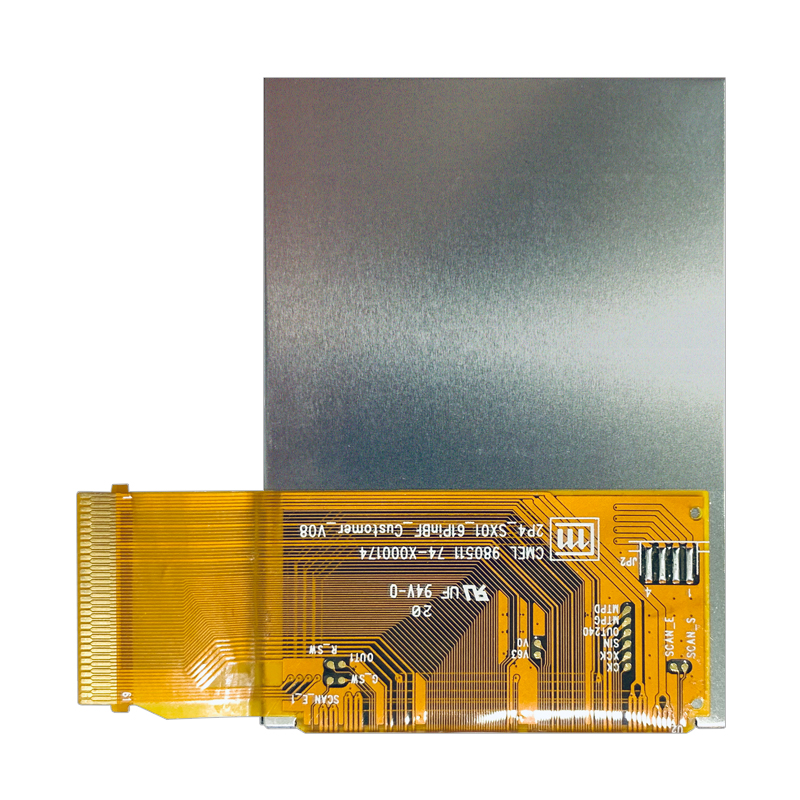

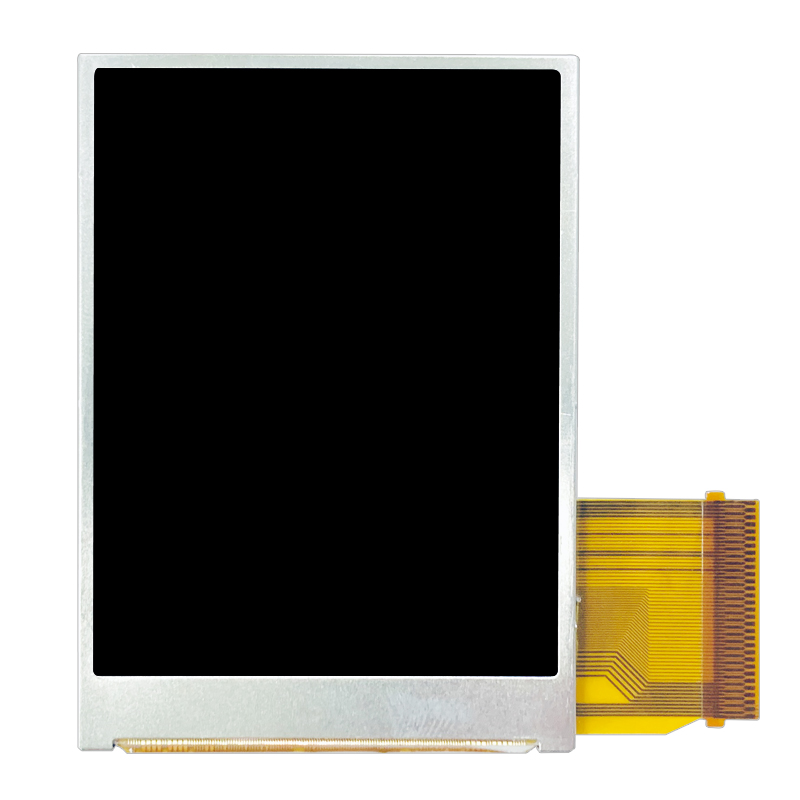

2.4 inch oled amoled display 240*320 dots MCU/RGB/Serial port interface S6E63D6 Driver I2C amoled screen

2.4 inch oled amoled display 240*320 dots MCU/RGB/Serial port interface S6E63D6 Driver I2C amoled screen

2.4 inch oled amoled display 240*320 dots MCU/RGB/Serial port interface S6E63D6 Driver I2C amoled screen

2.4 inch oled amoled display 240*320 dots MCU/RGB/Serial port interface S6E63D6 Driver I2C amoled screen

Diagonal Size:2.4 inch
Driving Mode:Active Matrix
Driver IC:S6E63D6
Interface:MCU/RGB/Serial
Product description: Hicenda Technology Co., Ltd can supply 2.4 inch oled amoled multicolour 240*320 Driver Chip S6E63D6 61pin,pulg 61pin amoled display with good price from Shenzhen Guangdong's supplier,Amoled display s
INQUIRY

Mechanical Specifications

Display Type:	amoled display
Display Mode:	Initiative Matrix
Model Number:	HG--141
Diagonal Screen size:	1.41 inch
Interface:	MCU/RGB/Serial
Storage Temperature	-40℃~+85℃
Number of Pixels:	320xRGBx240
Panel Size:	4258.61.65mm
Driver IC:	S6E63D6
Active Area:	36.72*48.96mm
Pixel Pitch:	0.17 x 0.17(mm)
Operating Voltage	1.65V~3.3V
Weight:	1.54 (g)
Operating Temperature:	-20℃~+60℃

PREVIOUS：1.63 inch 20pin Colorful Amoled Screen Module RM69032 Drive I2C Compatible for MIPI Interface 320*320 Dots NEXT：3.81 Inch Colorful oled amoled Display Module 1080*1200 pixels with RM69071 Driver IC for cell phone application with 39pin
