2.4"

2.4 inch AMOLED Display 450x600

2.4 inch AMOLED Display 450x600

2.4 inch AMOLED Display 450x600

2.4 inch AMOLED Display 450x600

2.4 inch AMOLED Display 450x600

2.4 inch AMOLED Display 450x600

2.4 inch AMOLED Display 450x600

Size: 2.4 OLED
Controller IC:RM690B0
Resolution: 450X600
Interface:SPI/MCU/MIPI

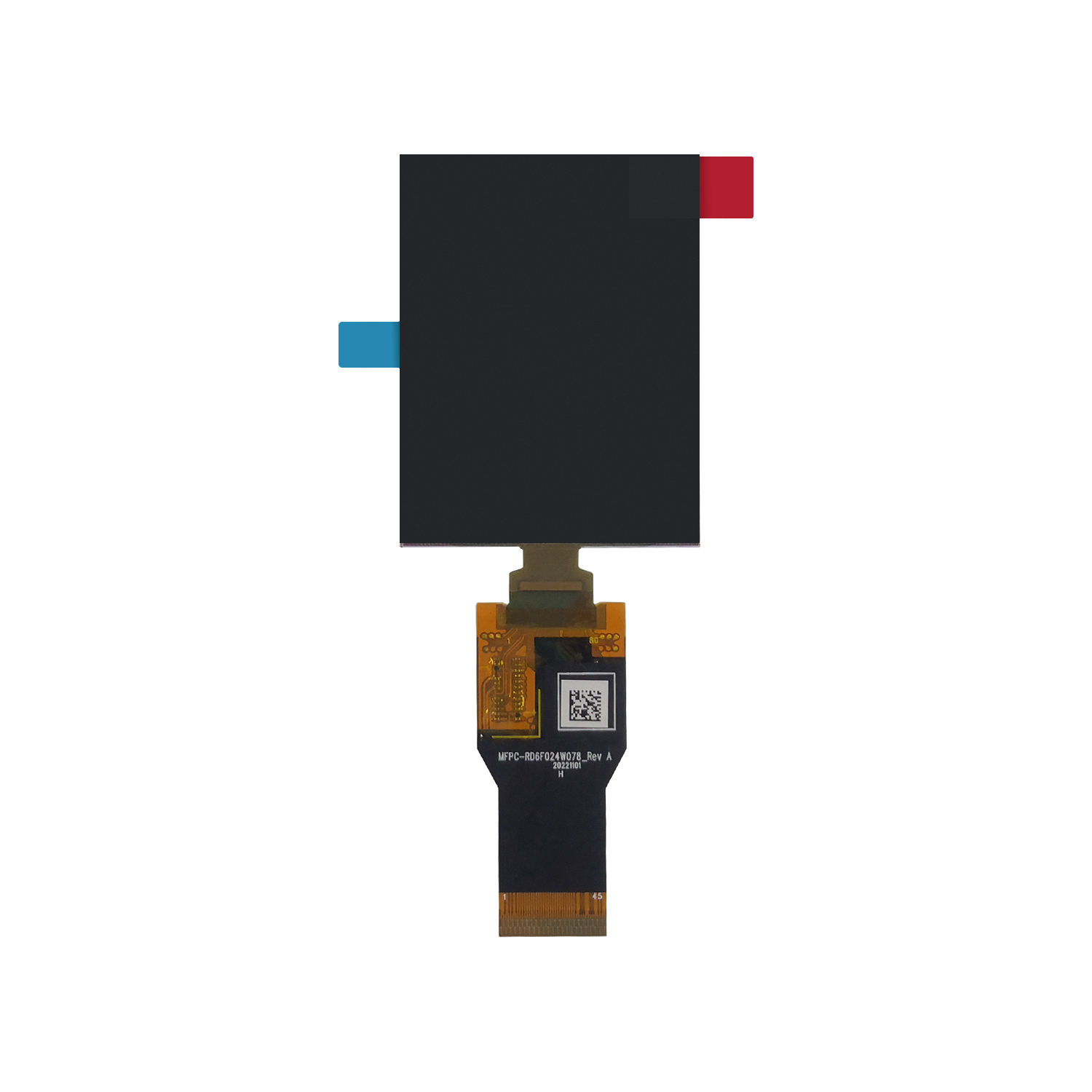

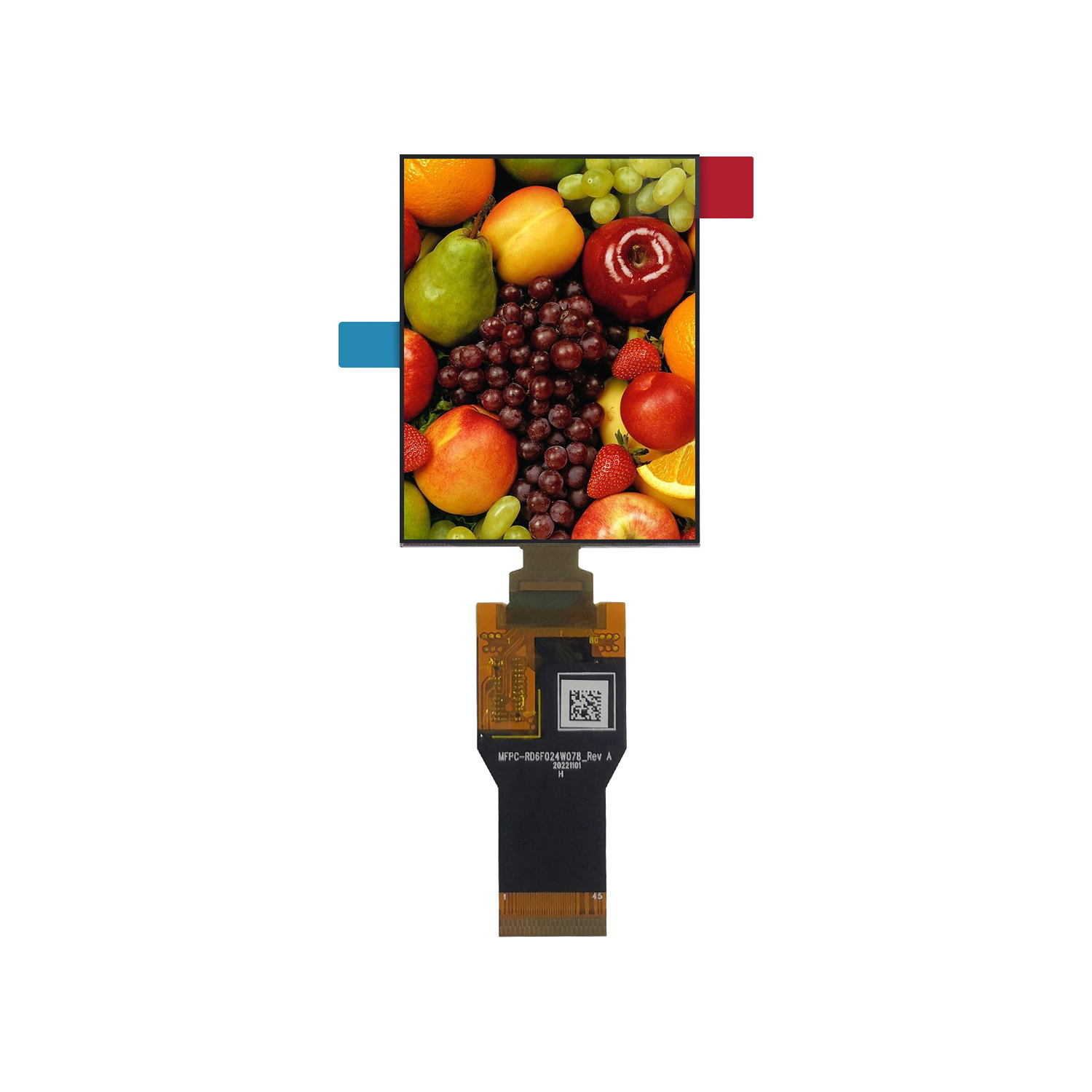

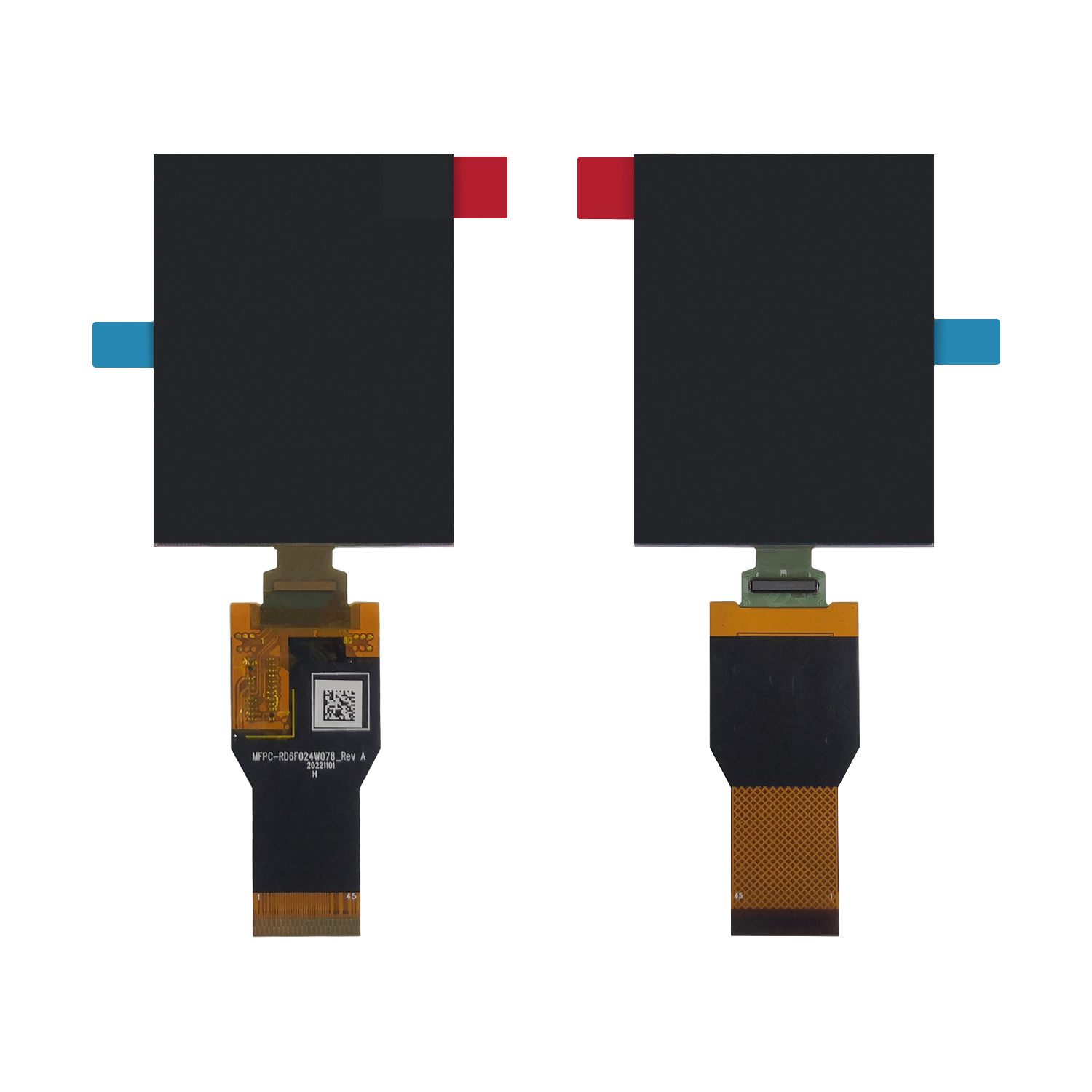

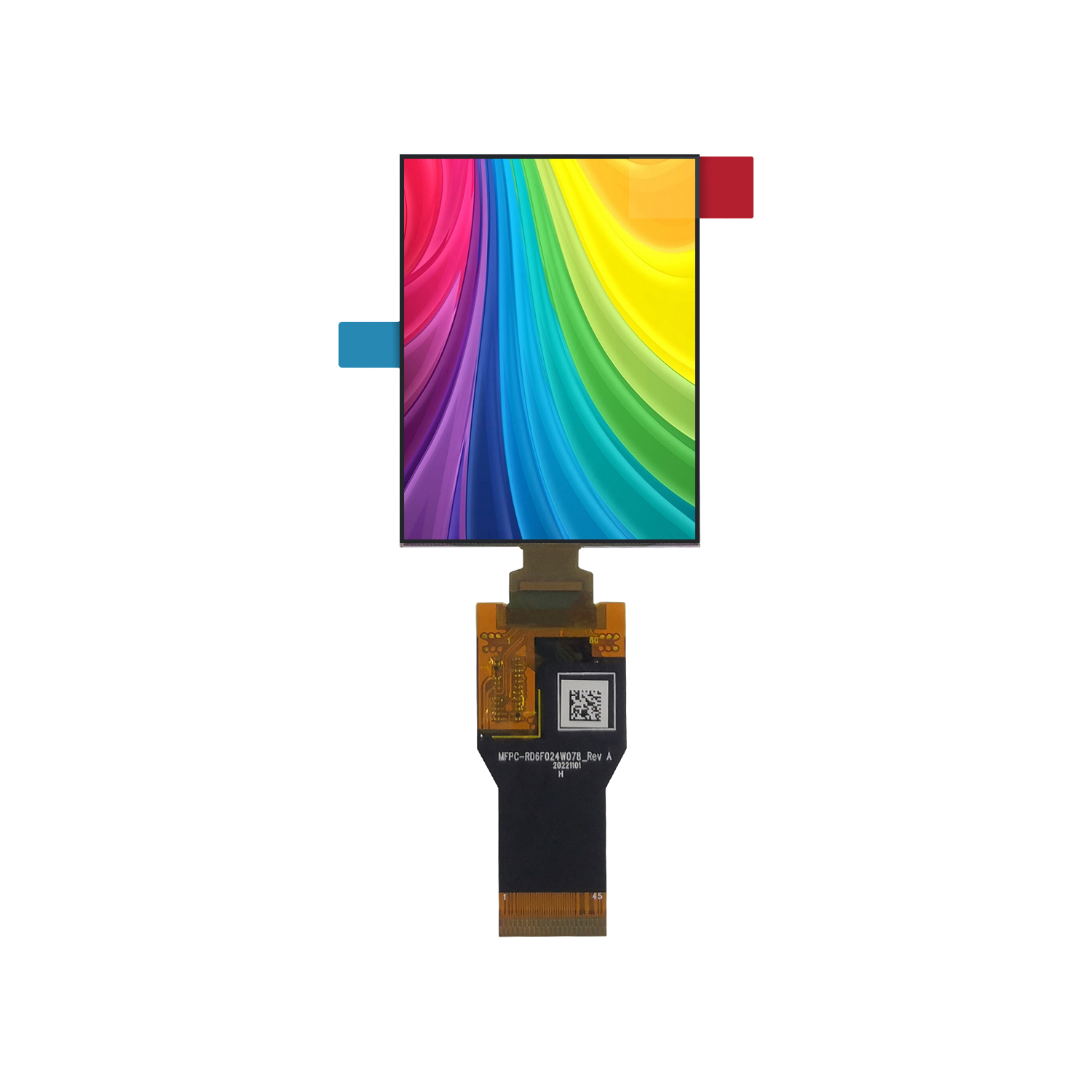

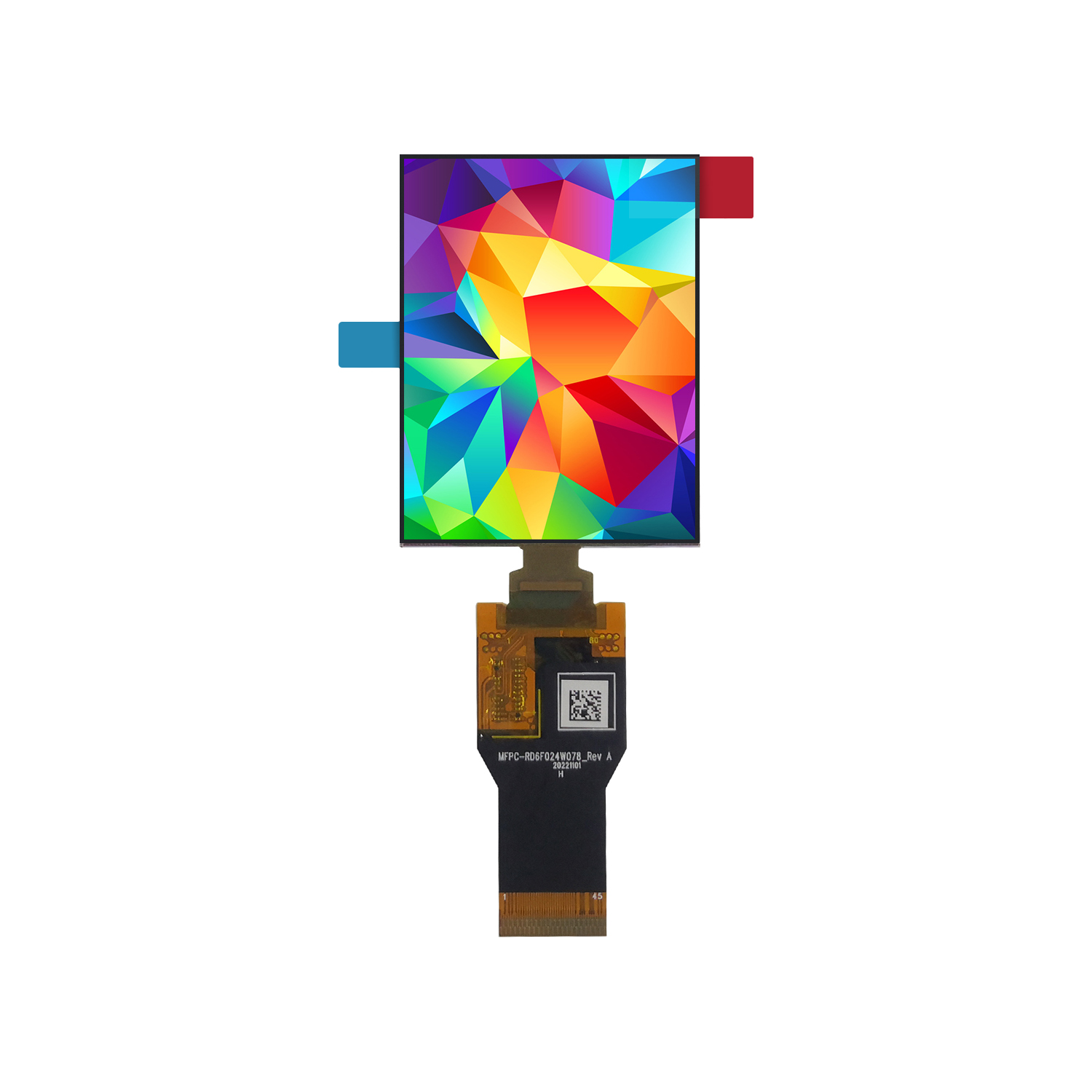

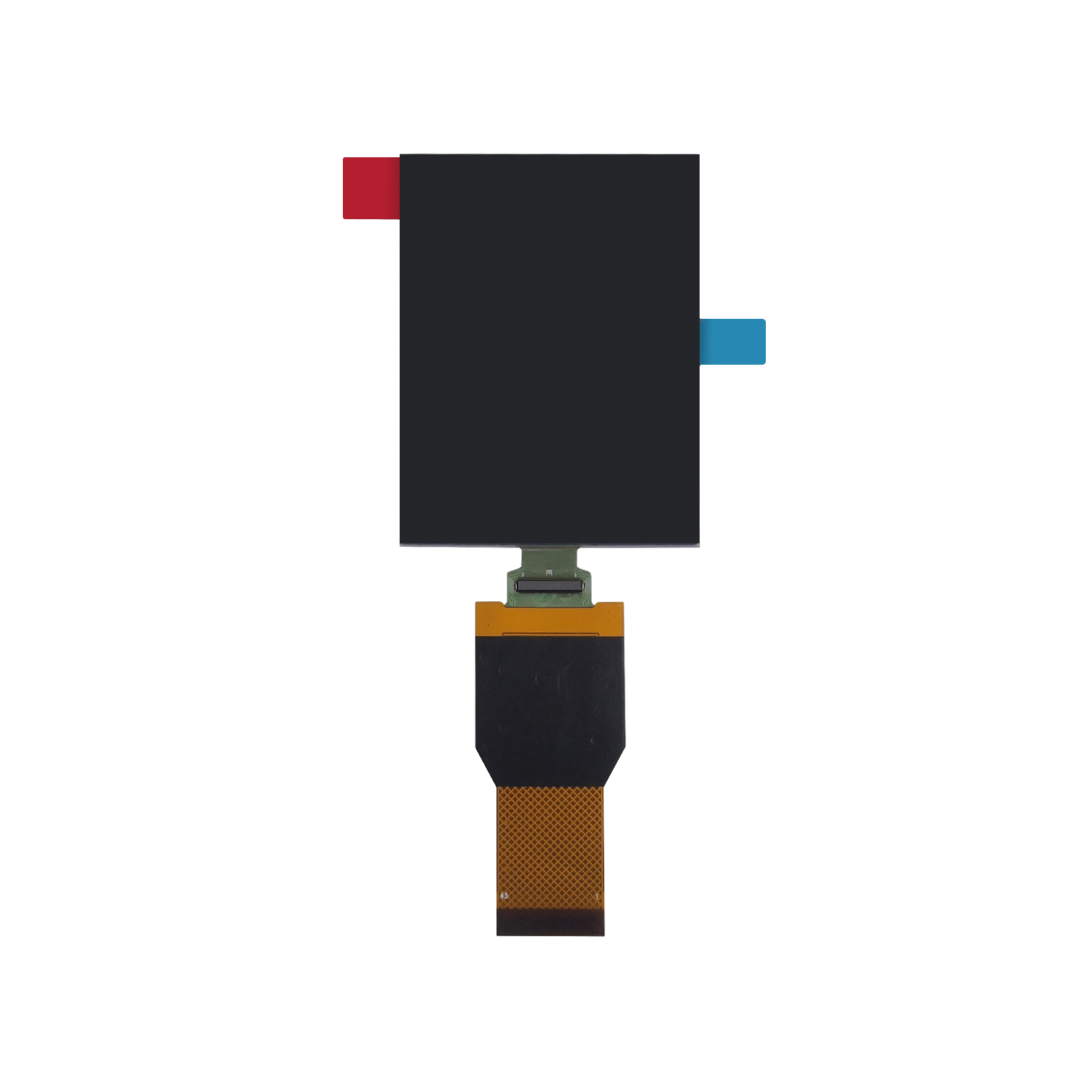

Product description: 2.4 inch AMOLED Display 450x600
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA OLED This module has a 2.4 inch diagonally measured active area with
450RGBx600 resolutions (600 horizontal by 450 vertical pixel arrays). Each
pixel is divided into RED, GREEN, BLUE dots.  This module is display terminals for sports camera and smart home.

GENERAL SPECIFICATION

Display Type:	amoled display
Display Mode:	COLOR AMOLED
Model Number:	024JMV-N50-6DP0
Diagonal Screen size:	2.4 inch
Interface:	SPI/MCU/MIPI
Drive Duty:	1/64 Duty
Number of Pixels:	450X600
Panel Size	38.72*51.56(mm)
Driver IC:	RM690B0
Active Area:	36.72*48.96
Pixel Pitch:	81.6um
Pixel Size:	81.6 x 81.6um
Weight:	1.54 (g)
Operating Temperature:	-40~85°

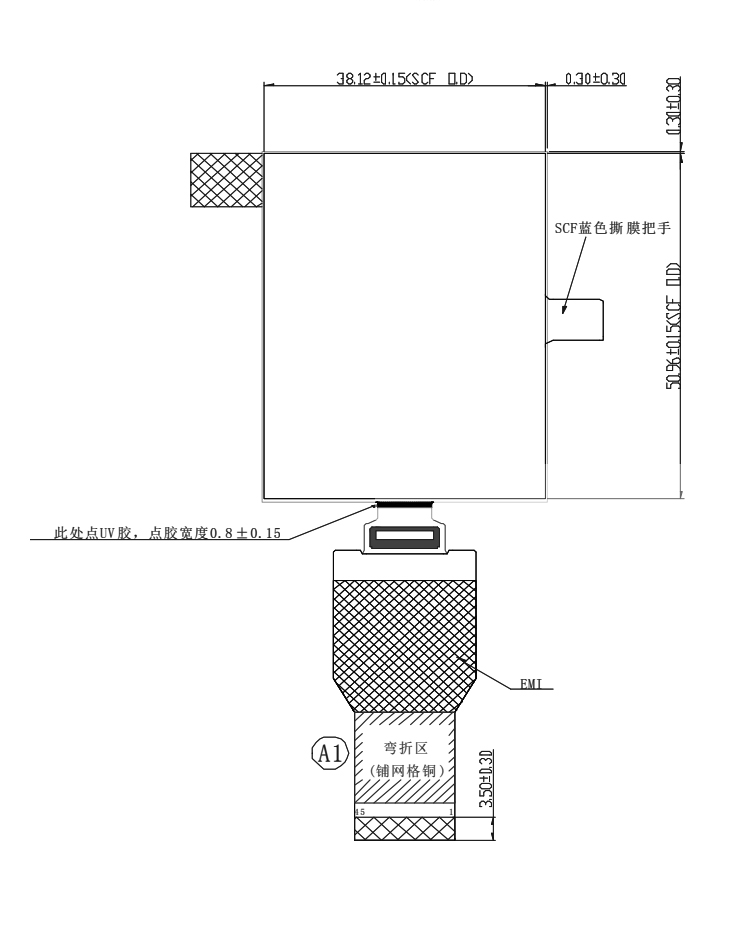

DRAWING

INTERFACE PIN FUNCTION
