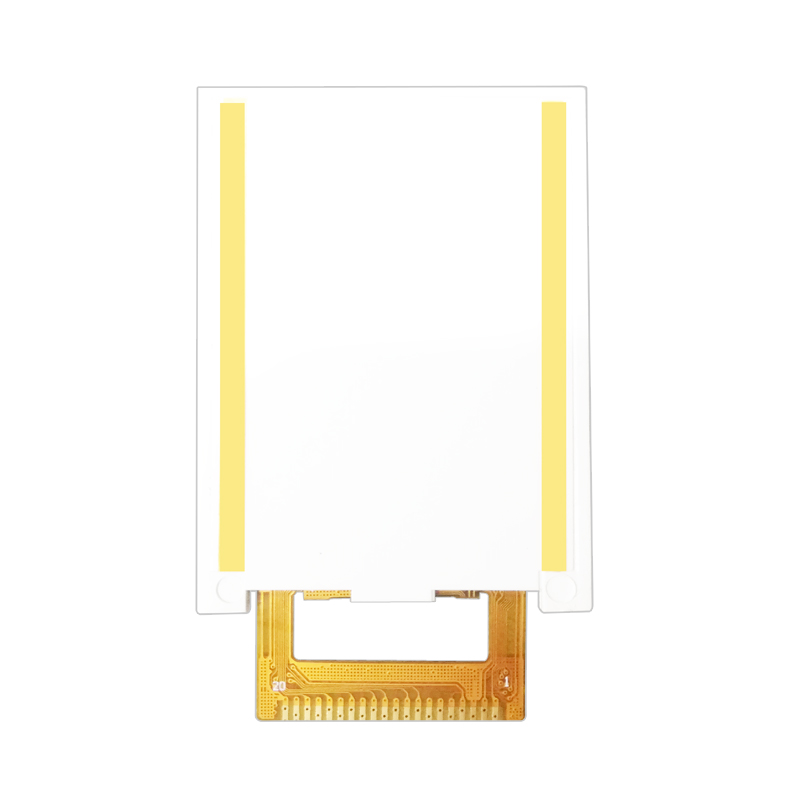

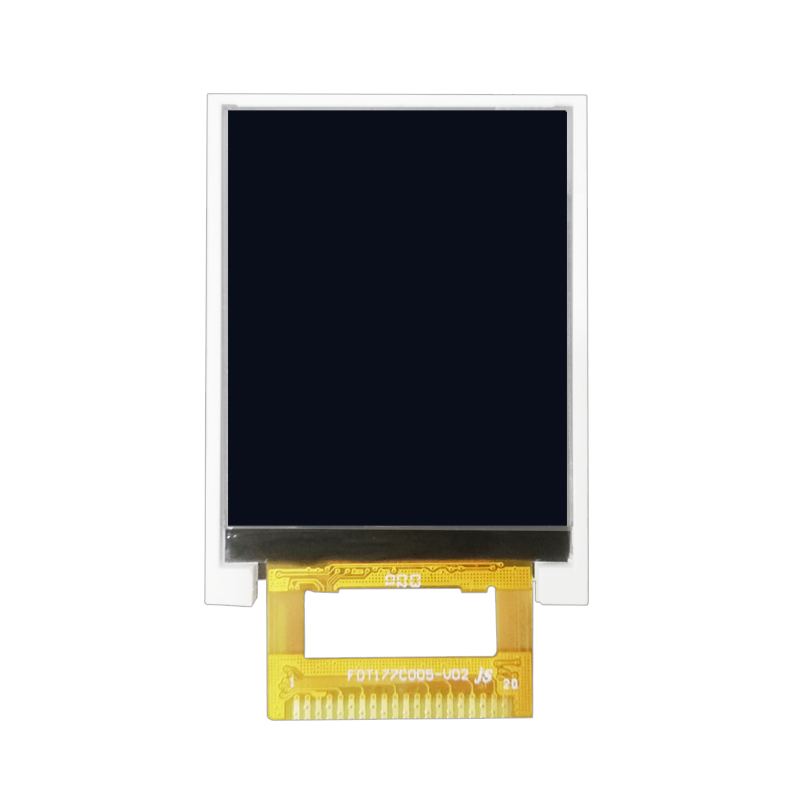

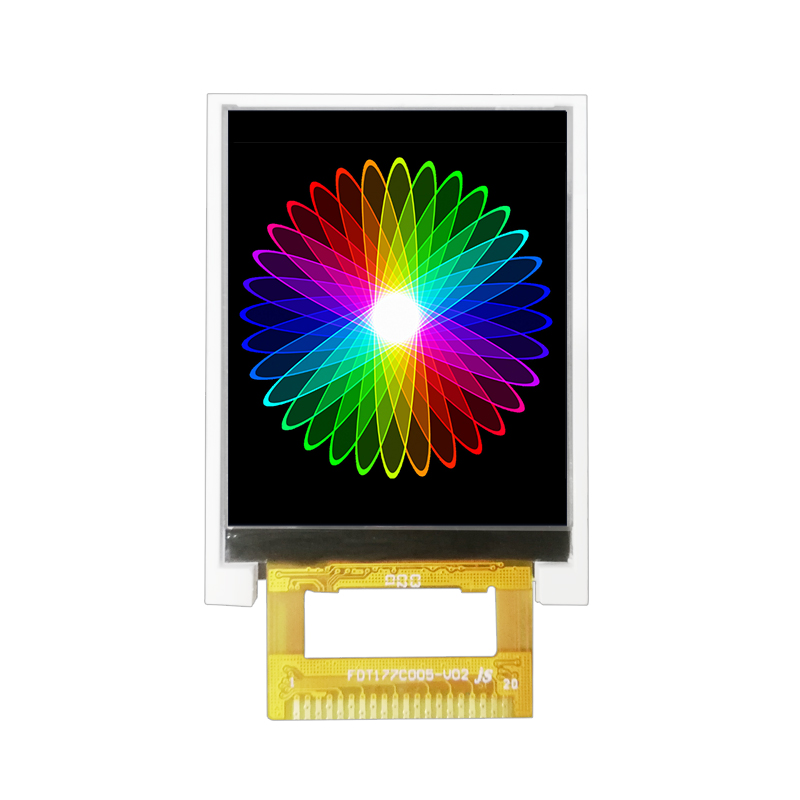

1.77 inch TFT LCD display with 128x160 pixels 20 Pins MCU interface ST7735 driver IC, 2.6v~3.0v

1.77 inch TFT LCD display with 128x160 pixels 20 Pins MCU interface ST7735 driver IC, 2.6v~3.0v

1.77 inch TFT LCD display with 128x160 pixels 20 Pins MCU interface ST7735 driver IC, 2.6v~3.0v

1.77 inch TFT LCD display with 128x160 pixels 20 Pins MCU interface ST7735 driver IC, 2.6v~3.0v

LCD Type: TFT TRANSMISSIVE
Size: 1.77
Resolution: 128*160
Interface: MCU
Product description: Hicenda Technology Co.,ltd can supply high quality 1.77 inch small tft display module for medical or industrial device,1.77 Inch 20pin Hd Tft Lcd multicolour Screen St7735 Drive Ic
INQUIRY

1. Display Specifications

LCD Size: 1.77 inches
Dot Matrix Size: 128*160
LCD Color: 262K Full Color
Hardware Interface: MCU interface
Driver IC: ST7735
Operating Temperature: -20 - 70
Working Power Supply: 2.8V
PIN NO: Plug 20Pin
Display Area: 28.03*35.04mm
Size:34.7*46.7*2.3mm
Viewing Direction: 12 o'clock

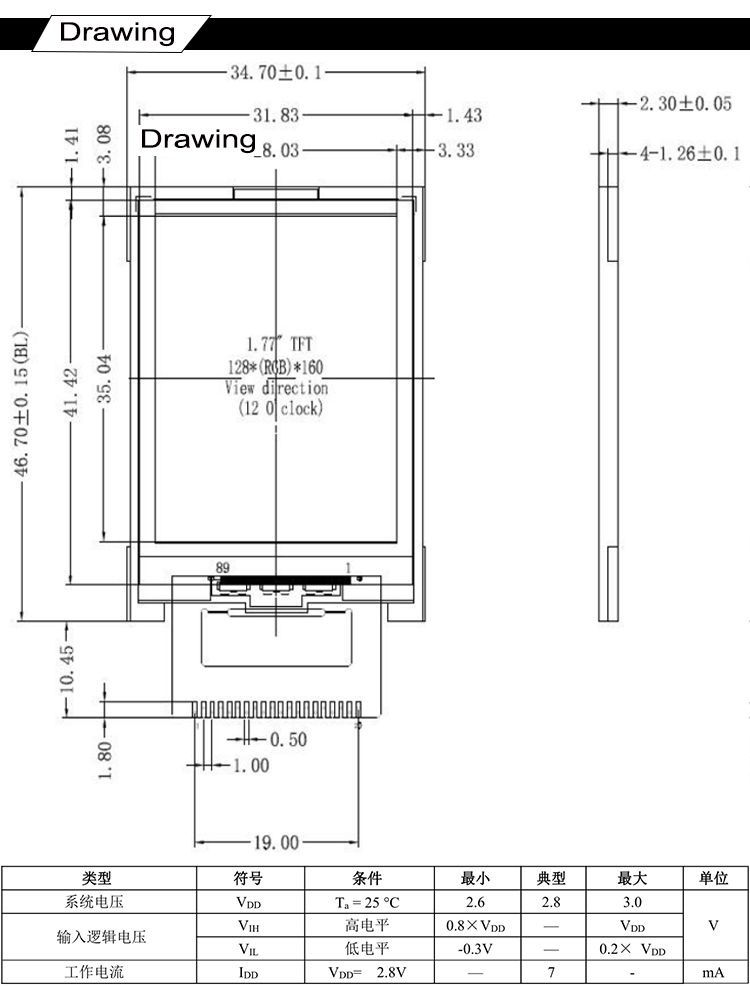

2. Mechanical Specifications

PIN No Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 2.8V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
