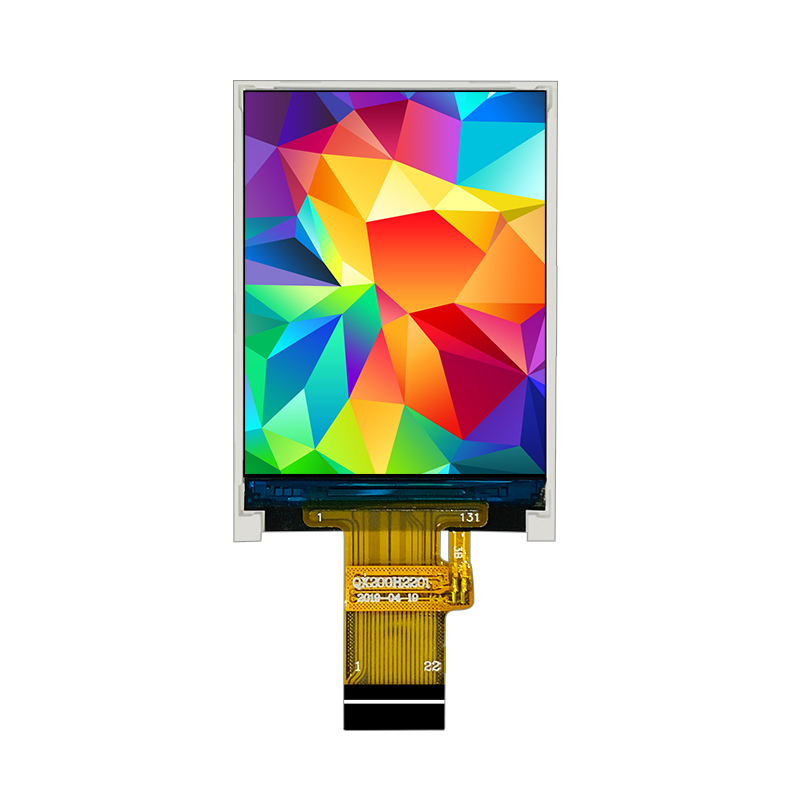

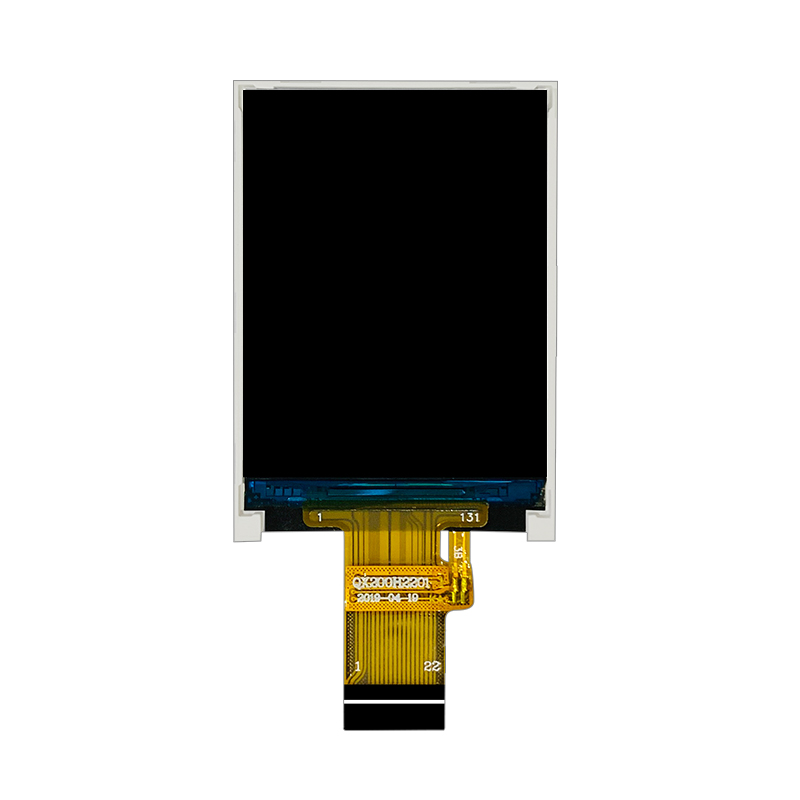

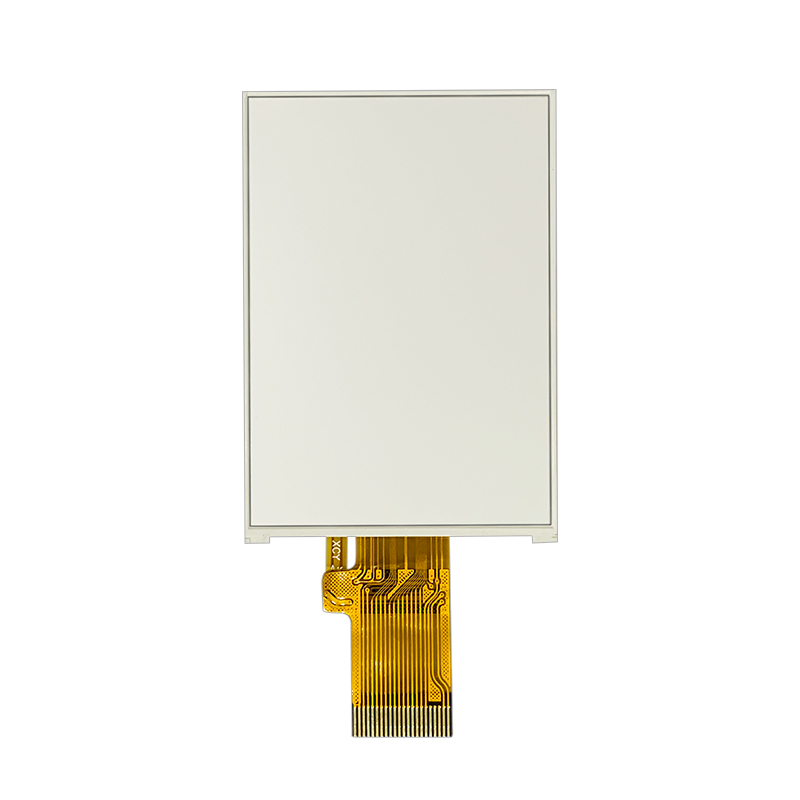

2.0 inch High brightness tft multicolour display 240x320 MCU lcd 2.0 inch tft screen module 22pin

2.0 inch High brightness tft multicolour display 240x320 MCU lcd 2.0 inch tft screen module 22pin

2.0 inch High brightness tft multicolour display 240x320 MCU lcd 2.0 inch tft screen module 22pin

2.0 inch High brightness tft multicolour display 240x320 MCU lcd 2.0 inch tft screen module 22pin

LCD Type: IPS TFT active matrix
Size: 2.0
Resolution: 240*320
Interface: 8080/MCU
Product description: IPS 2.0 Inch TFT LCD Screen Display 320*240 IPS Full Color with 22Pin MCU Interface ST7789v IC Driver for electronic devices
INQUIRY

1. Display Specifications

LCD Size: 2.0 inches
Dot Matrix Size: 240*320
LCD Color: 262K Full Color
Hardware Interface: MCU interface
Driver IC: ST7789V
Operating Temperature: -20 - 70
Working Power Supply: 3.3V

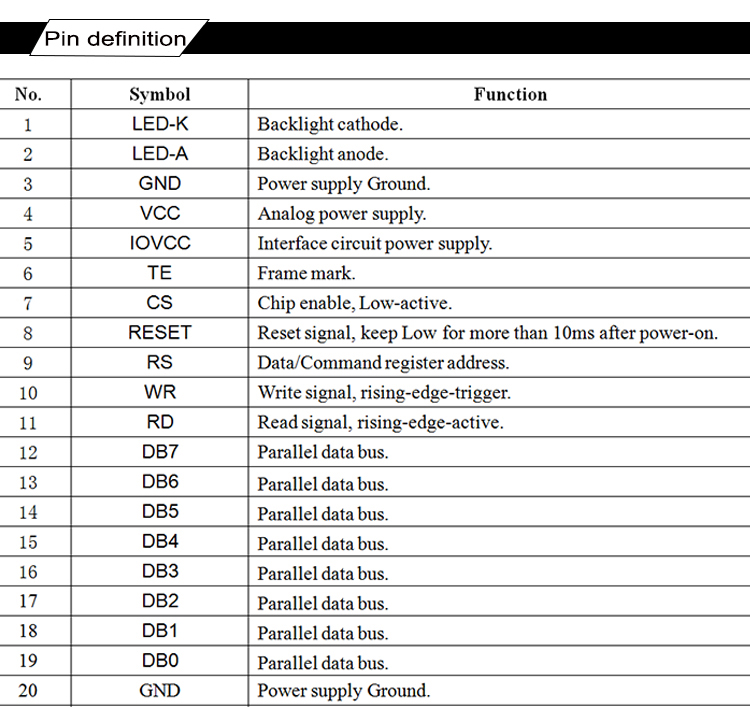

PIN NO: 22Pin
Display Area: 30.24*40.32mm
Size: 36.05(H)*51.8(V)*2.45(D)mm

2. Mechanical Specifications

Product Name	2.0 Inch TFT
Active Area (WxH)	30.24(H) x 40.32(V)
Display Outline Size	36.05(H) x 51.8(V) x 2.45(D)
Resolution	240RGBx320DOTS
Polarizer Mode	RGB Stripe
Backlight	Black
Interface Type	MCU
Technology Type	a-Si TFT active matrix
Controller / Driver	ST7789V
