1.77"

  • 1.77 inch TFT LCD display with 128x160 pixels 14 Pins serial port interface  ST7735 driver IC, 2.6v~3.0v - 副本
  • 1.77 inch TFT LCD display with 128x160 pixels 14 Pins serial port interface  ST7735 driver IC, 2.6v~3.0v - 副本
  • 1.77 inch TFT LCD display with 128x160 pixels 14 Pins serial port interface  ST7735 driver IC, 2.6v~3.0v - 副本
1.77 inch TFT LCD display with 128x160 pixels 14 Pins serial port interface  ST7735 driver IC, 2.6v~3.0v - 副本1.77 inch TFT LCD display with 128x160 pixels 14 Pins serial port interface  ST7735 driver IC, 2.6v~3.0v - 副本1.77 inch TFT LCD display with 128x160 pixels 14 Pins serial port interface  ST7735 driver IC, 2.6v~3.0v - 副本

1.77 inch TFT LCD display with 128x160 pixels 14 Pins serial port interface ST7735 driver IC, 2.6v~3.0v - 副本

  • Panel Type:TN
  • Size: 1.77
  • Resolution: 128*160
  • Driver ic:ST7735
  • Product description: Hicenda Technology Co.,ltd can supply high quality 1.77 inch small tft display module for medical or industrial device,1.77 Inch 20pin Hd Tft Lcd multicolour Screen St7735 Drive Ic
  • INQUIRY


1. Display Specifications

  • LCD Size: 1.77 inches
  • Dot Matrix Size: 128*160
  • LCD Color: 262K Full Color
  • Hardware Interface: MCU interface
  • Driver IC: ST7735
  • Operating Temperature: -20 - 70
  • Working Power Supply: 2.8V
  • PIN NO: Plug 14Pin
  • Display Area: 28.03*35.04mm
  • Size:34.7*46.7*2.3mm
  • Viewing Direction: 12 o'clock

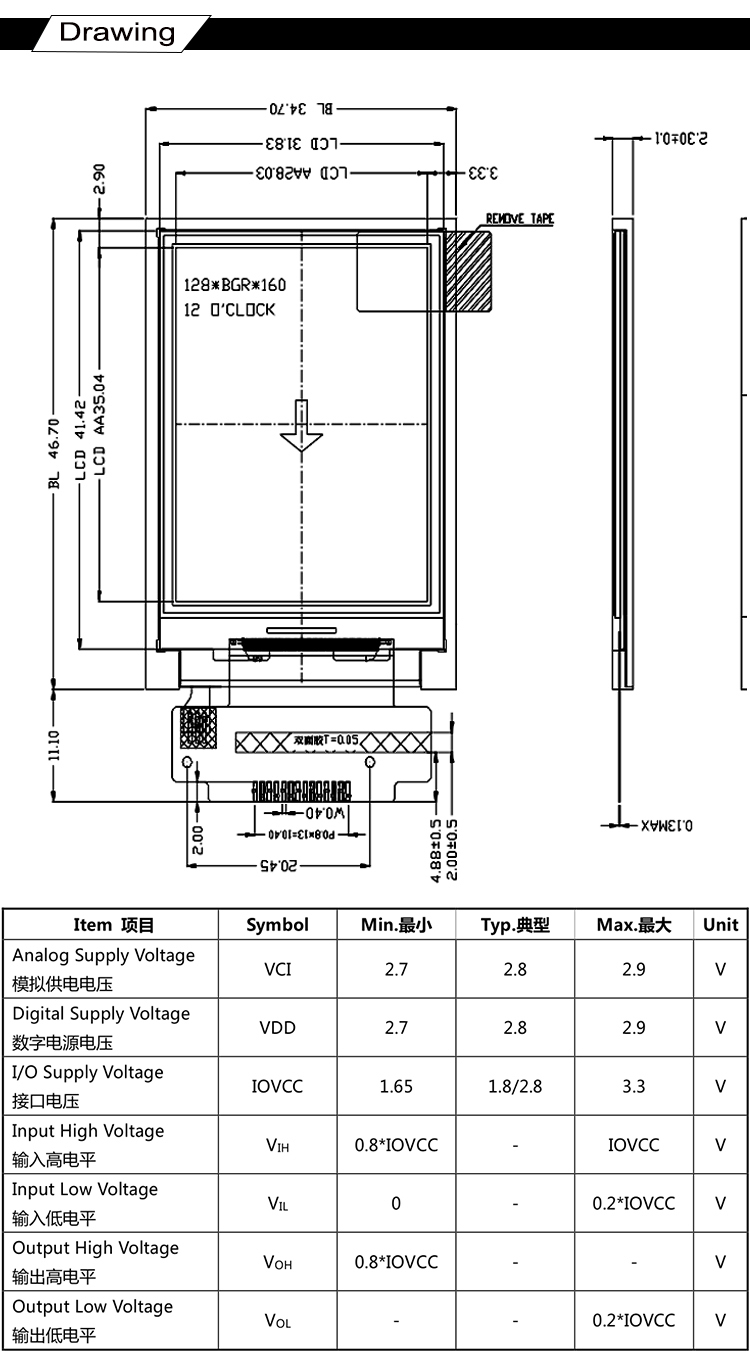

2. Mechanical Specifications

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 2.8V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
