1.22"

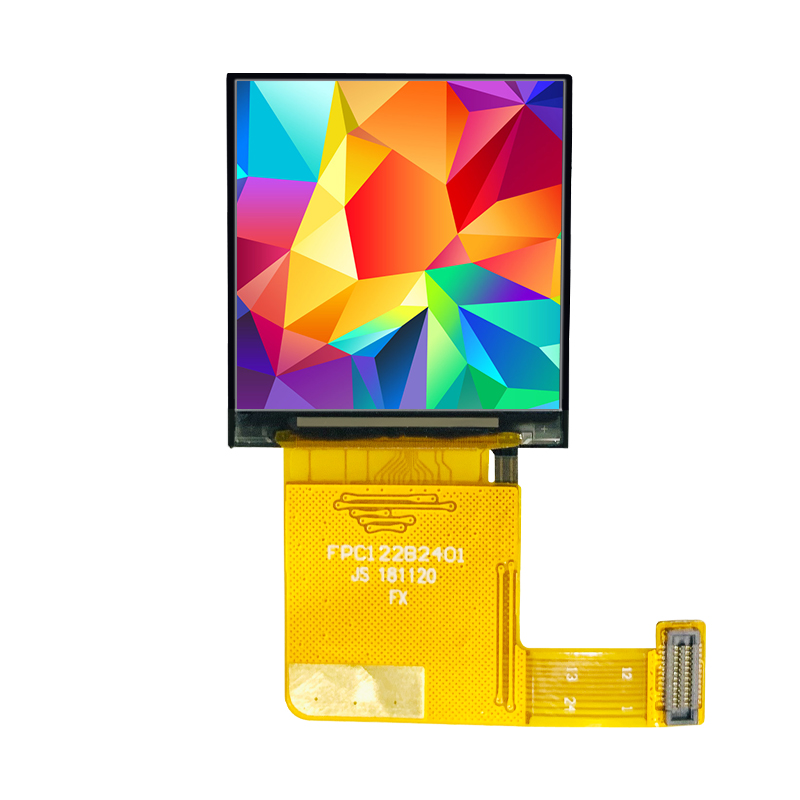

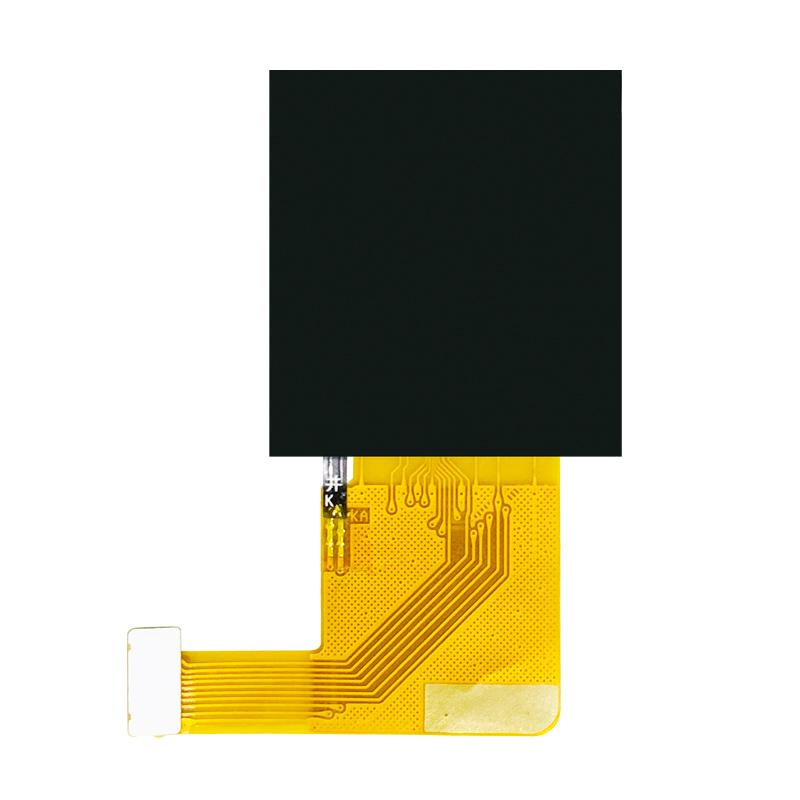

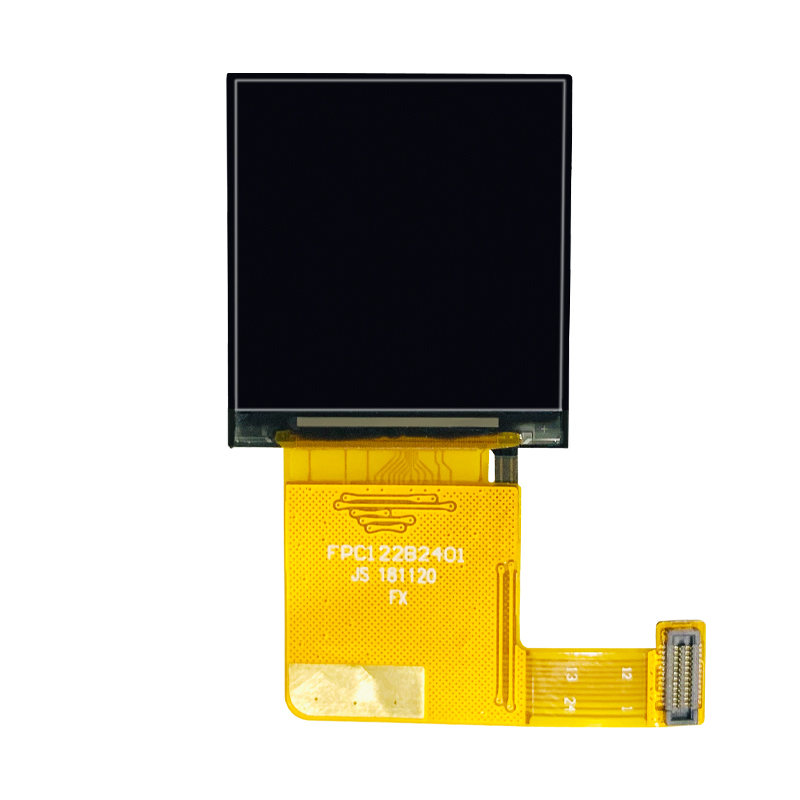

1.22 lcd display inch tft lcd 240*240 pixels ips with spi interface ST7789 IC

1.22 lcd display inch tft lcd 240*240 pixels ips with spi interface ST7789 IC

1.22 lcd display inch tft lcd 240*240 pixels ips with spi interface ST7789 IC

1.22 lcd display inch tft lcd 240*240 pixels ips with spi interface ST7789 IC

Price: $3.89-$5.59
Size: 1.22
Resolution: 240*240
Interface: SPI
Product description: Hicenda Technology Co., Ltd can supply high quality 1.22 inch small tft display module for medical or industrial device
INQUIRY

1. Display Specifications

LCD Size: 1.22 inches
Dot Matrix Size: 240*240
LCD Color: 262K Full Color
Hardware Interface: SPI interface
Driver IC: ST7789
Operating Temperature: -20 - 70
Working Power Supply: 2.8V
PIN NO: Plug 24Pin
Display Area: 21.96*21.96mm
Size: 25.76*28.16*1.4mm
Viewing Direction: Full viewing angle (IPS)

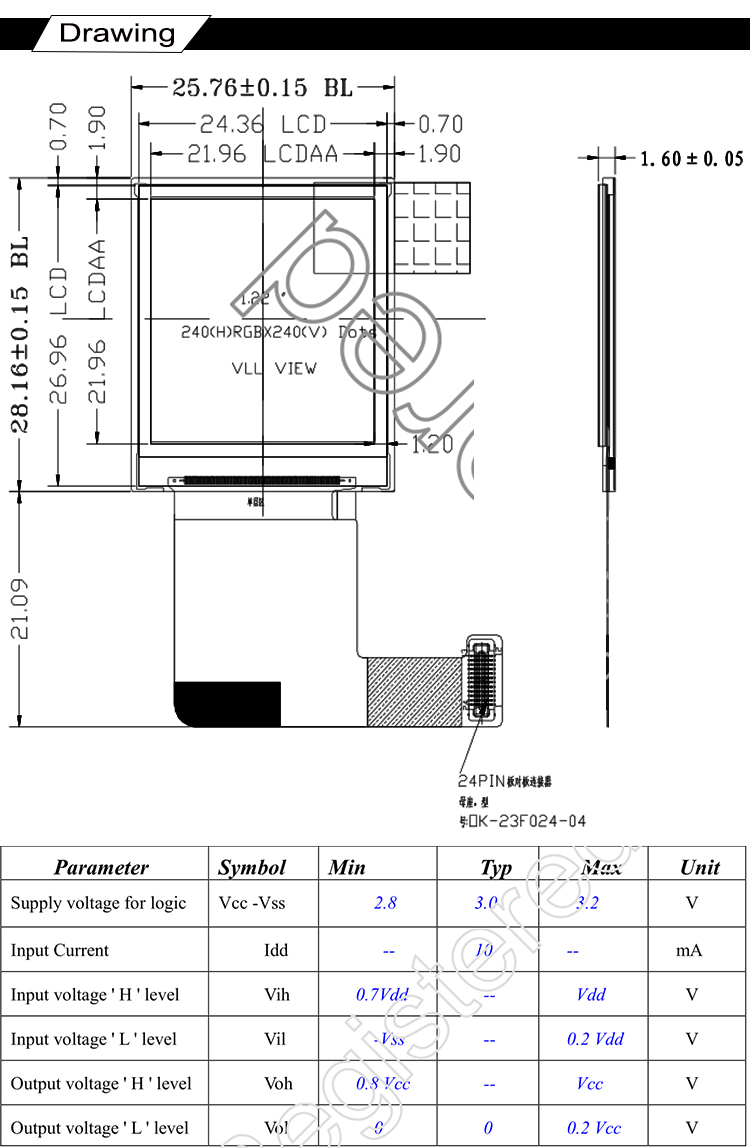

2. Mechanical Specifications

PIN No Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 2.8V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
