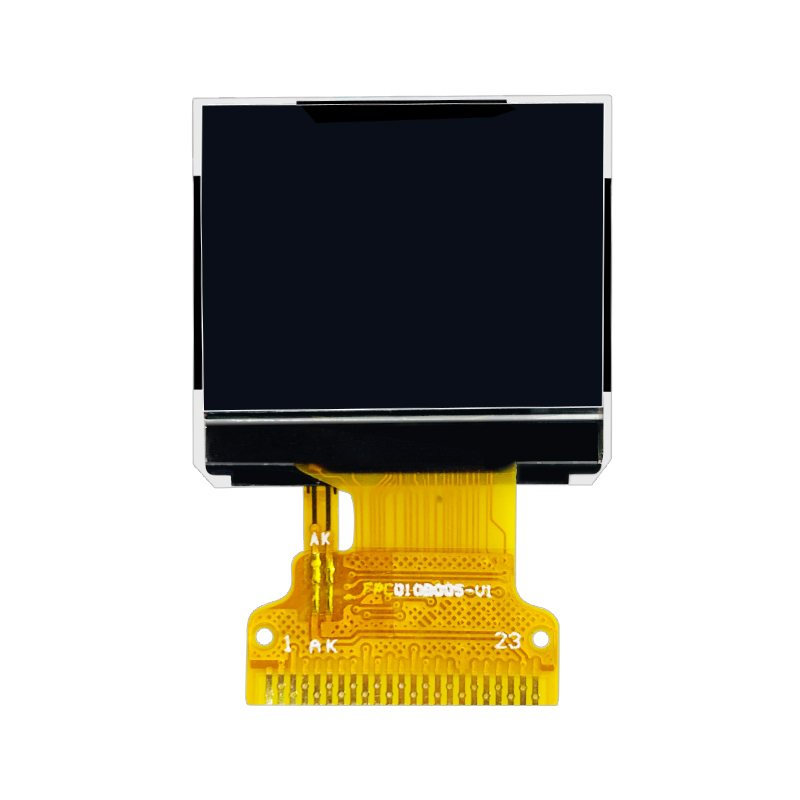

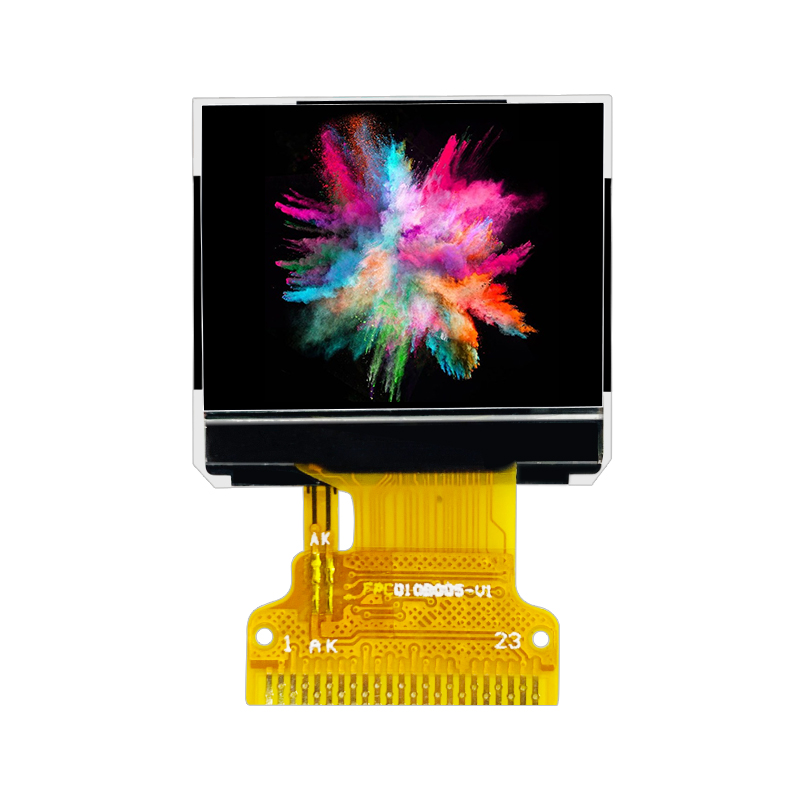

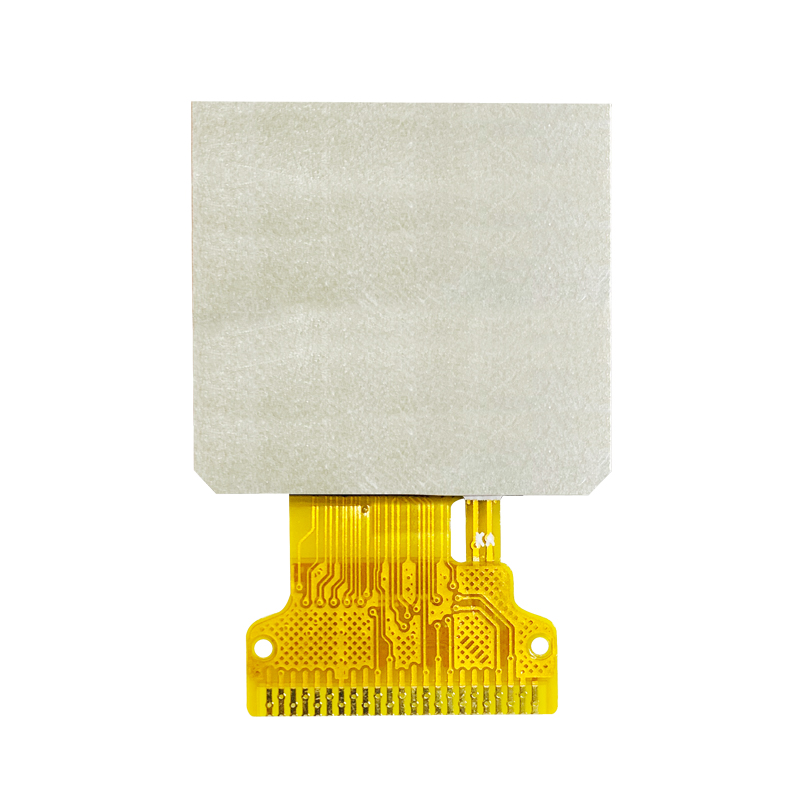

1.0'' small TFT LCD 128*96 display screen 1.0 inch small TFT lcd screen - 副本

1.0'' small TFT LCD 128*96 display screen 1.0 inch small TFT lcd screen - 副本

1.0'' small TFT LCD 128*96 display screen 1.0 inch small TFT lcd screen - 副本

1.0'' small TFT LCD 128*96 display screen 1.0 inch small TFT lcd screen - 副本

Price: $1.89-$2.59
Size: 1.0
Resolution: 128*96
Interface: SPI
Product description: Hicenda Technology Co., Ltd can supply IPS 1.0 Inch TFT LCD Screen Display 128*96 IPS Full Color with welding 23Pin SPI Interface ST7735 IC Driver for electronic devices
INQUIRY

1. Display Specifications

LCD Size: 1.0 inches
Panel Type: TN
LCD Color: 262K Full Color
Hardware Interface: 4 SPI
Driver IC: ST7735S
Operating Temperature: -20 - +70℃
Working Power Supply: 3.3V

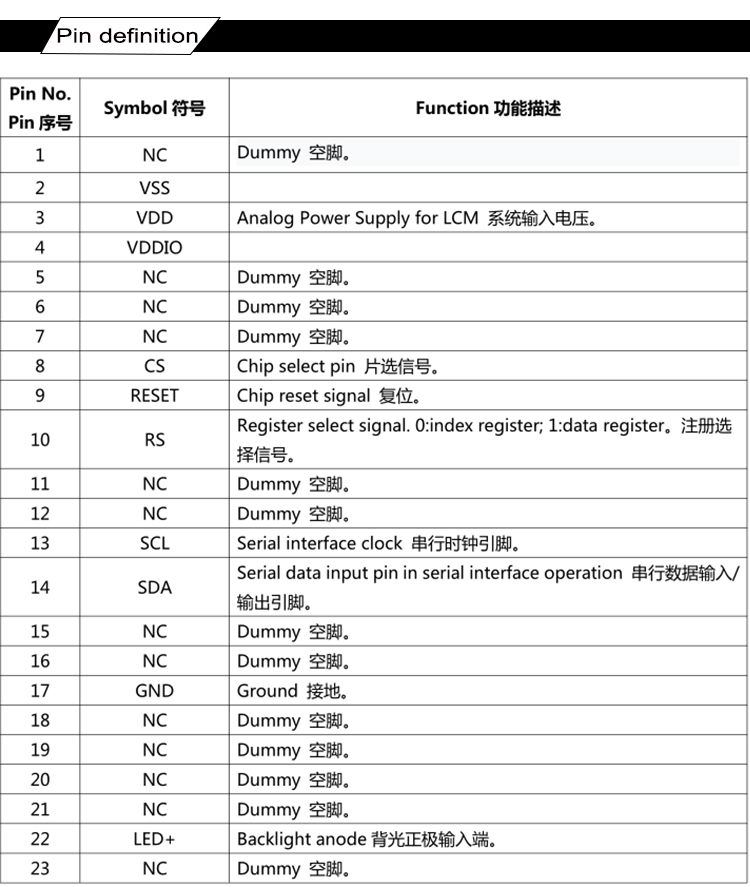

PIN NO: 23Pin
Display Area: 20.35*15.26mm
Size: 23.75*22.06*1.75mm

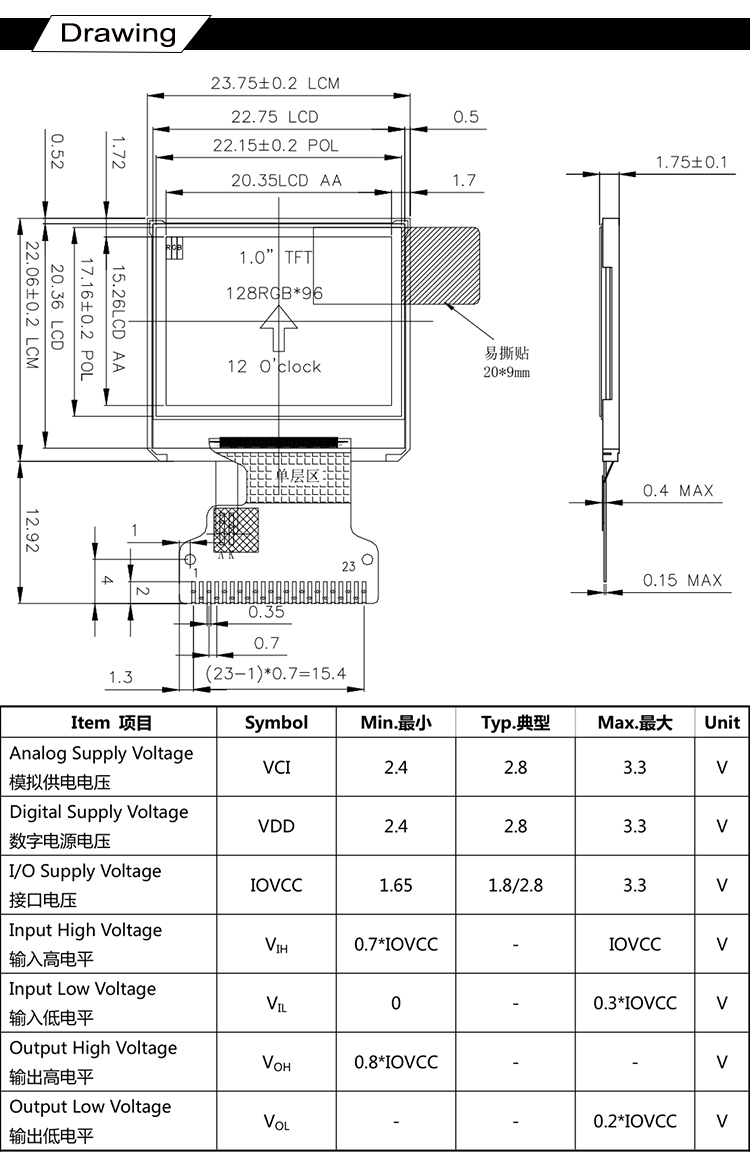

2. Mechanical Specifications

Product Name	1.0 Inch TFT
Active Area (WxH)	20.35(H) x 15.26(V)
Display Outline Size	23.75(H) x 22.06(V) x 1.75(D)
Resolution	128RGBx96DOTS
Polarizer Mode	RGB Stripe
Light Source	1 white LEDs
Luminance	250cd/m2
Technology Type	a-Si TFT active matrix
Controller / Driver	ST7735
