DESCRIPTION

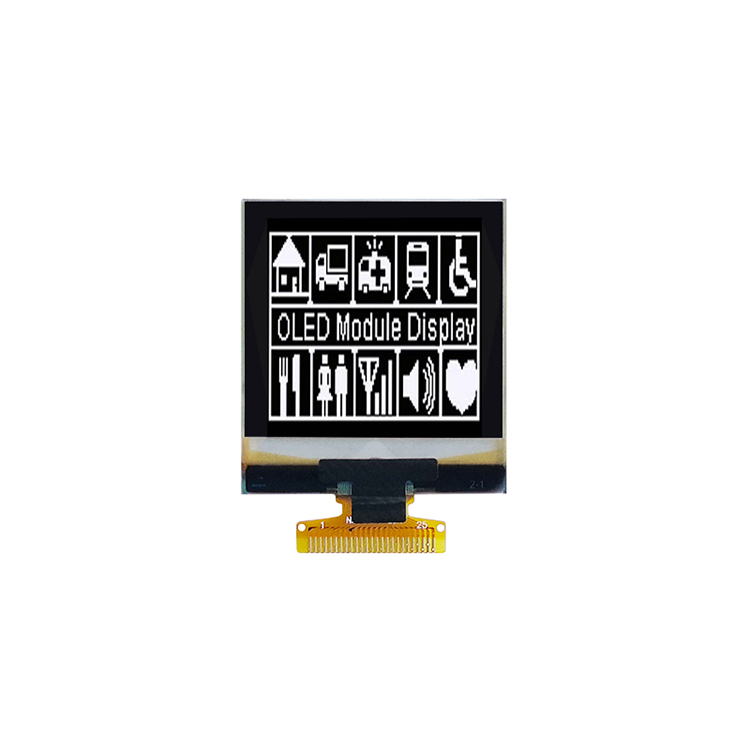

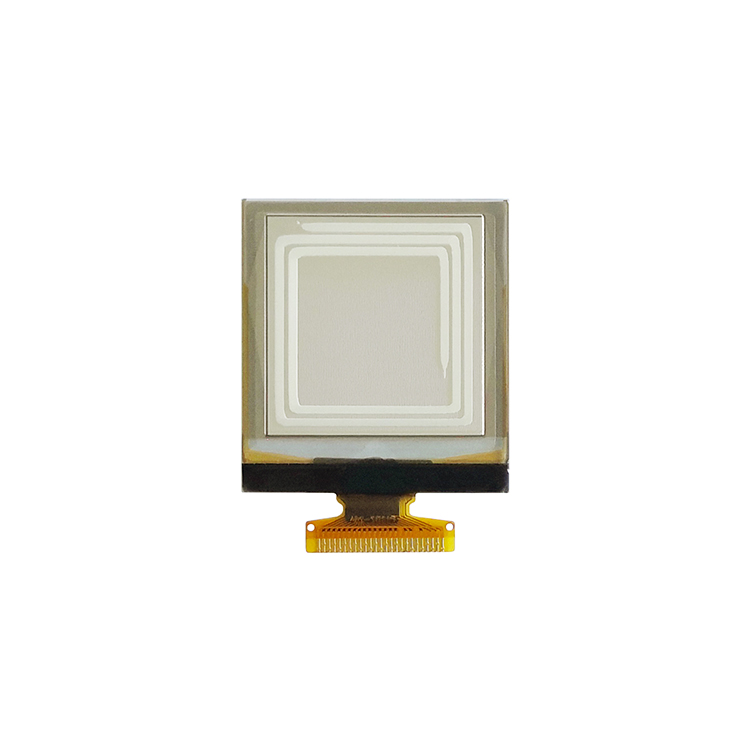

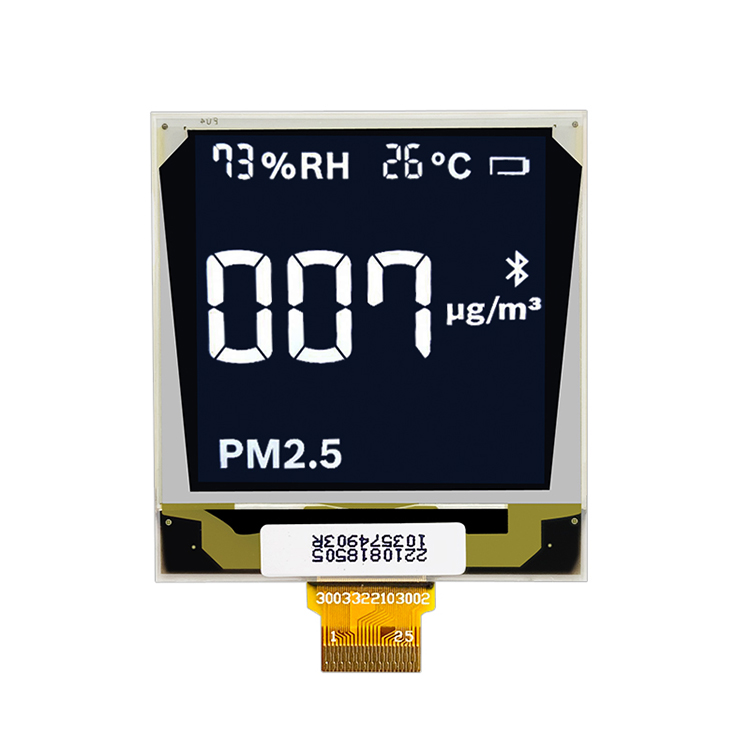

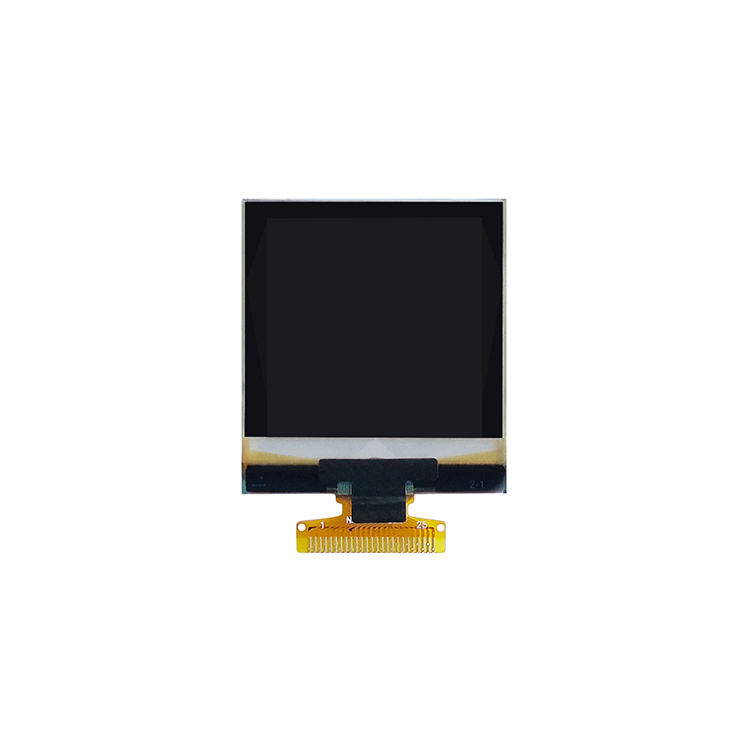

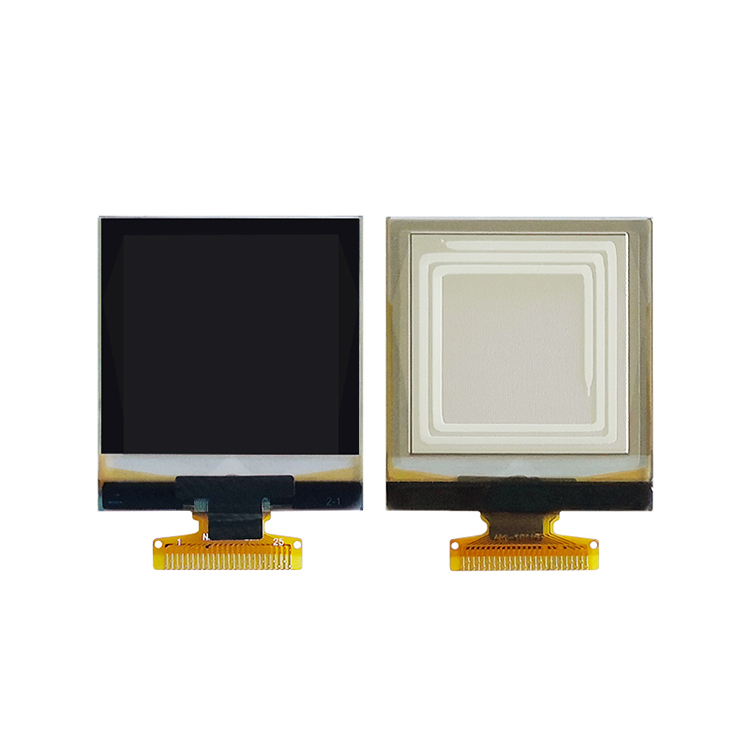

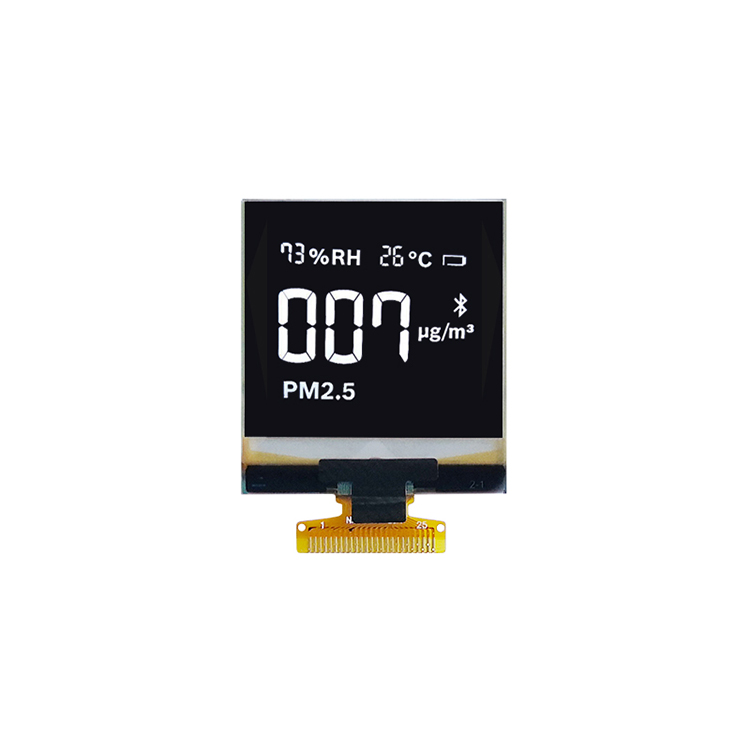

HICENDA OLED 1.5 is a passive matrix micro OLED display module which is made of 128x128 dots. It has the module dimension of 33.8 (W) x36.5(H)mm and Active Area size 26.86× 26.86 mm. This OLED micro display is built in with SH1107 IC, it supports 6800/8080/SPI/I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.5 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
GENERAL SPECIFICATION
| Display Type: | oled display (White) |
| Display Mode: | Passive Matrix |
| Model Number: |
HT-15OLED2 |
| Diagonal Screen size: | 1.5 inch |
| Interface: |
8-bit 6800/8080-series/Serial Peripheral/I2C 25P (Soldering) |
| Drive Duty: |
1/64 Duty |
| Number of Pixels: |
128x128 |
| Panel Size |
33.8 × 36.5× 1.41 (mm) |
| Driver IC: |
SH1107 |
| Active Area: |
22.86× 22.86 (mm) |
| Pixel Pitch: |
0.21 x 0.21(mm) |
| Pixel Size: |
0.19 x 0.19 (mm) |
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-40~85° |

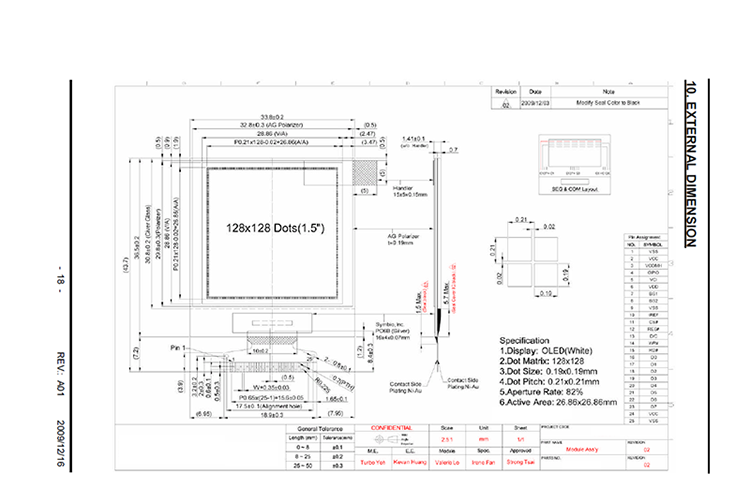

DRAWING
