1.12" OLED Display 128x128

  • Size:1.12 while OLED
  • Controller IC: SH1107
  • Resolution: 128x128
  • Interface:6080/8080/Parallel, 4-wire SPI/I2C

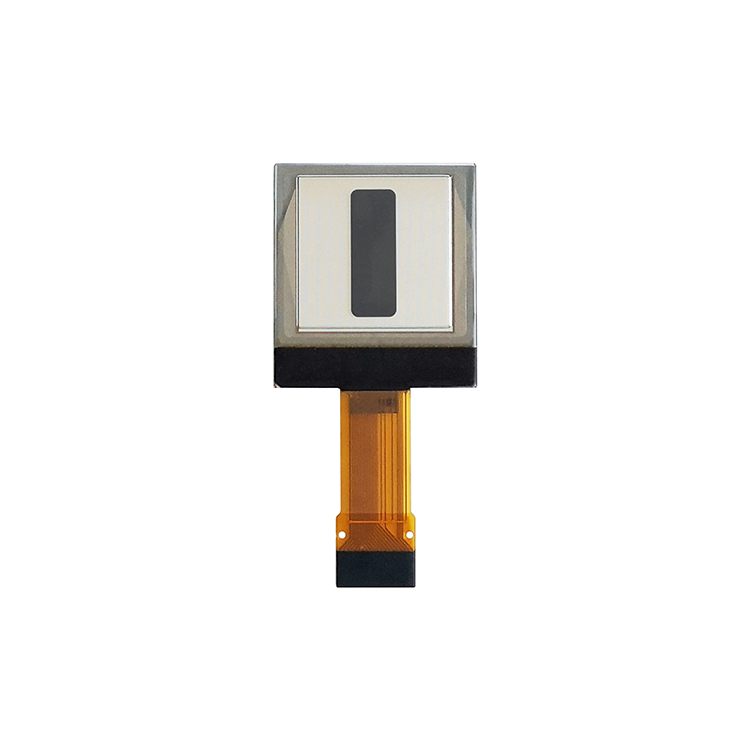

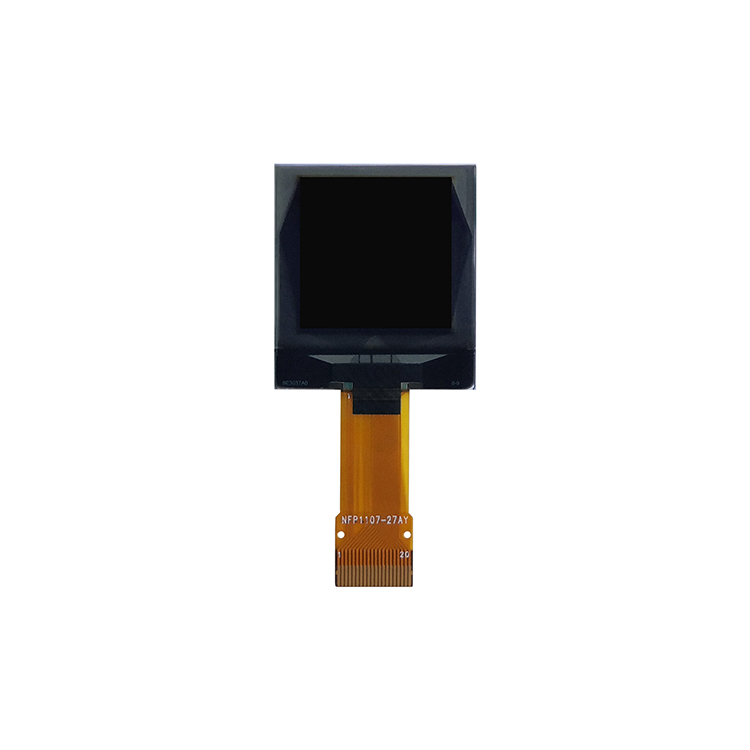

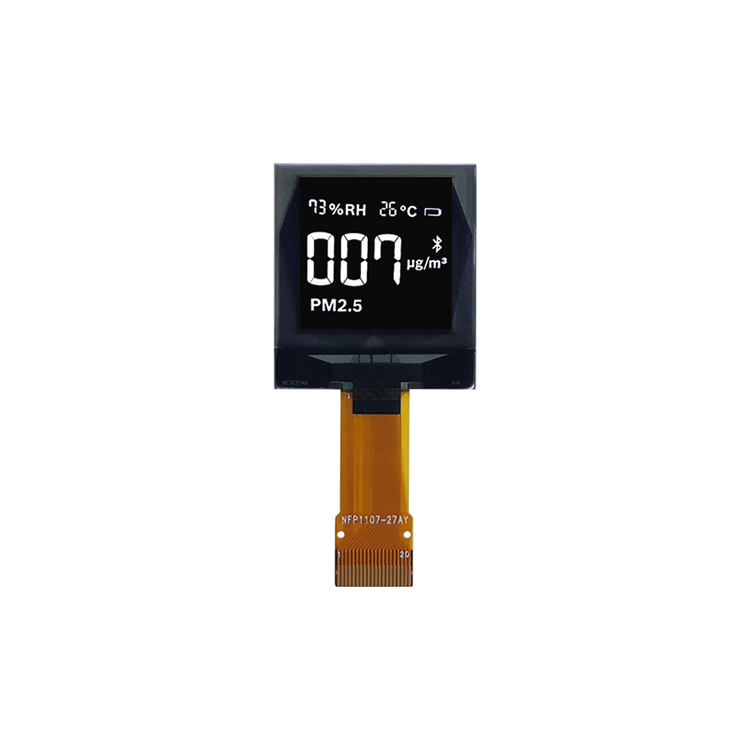

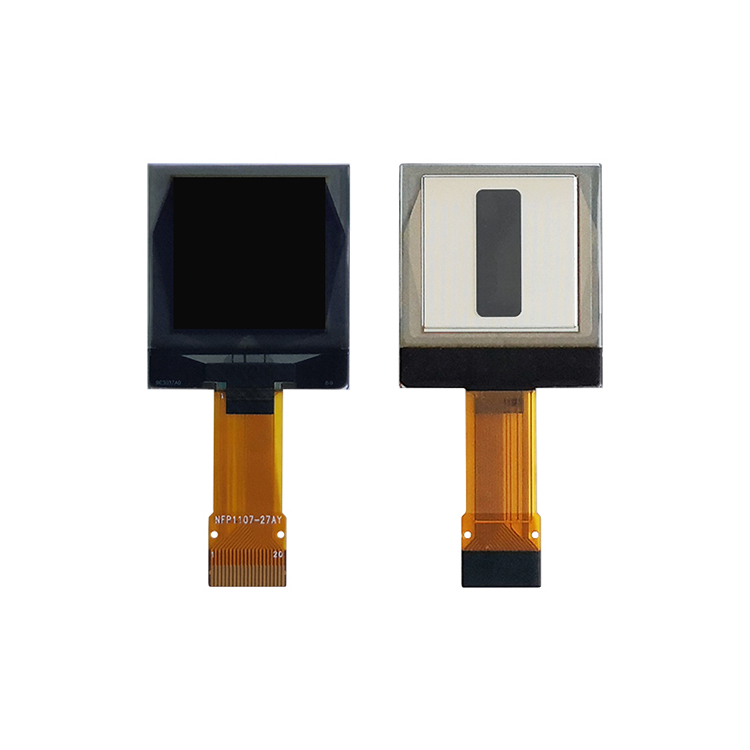

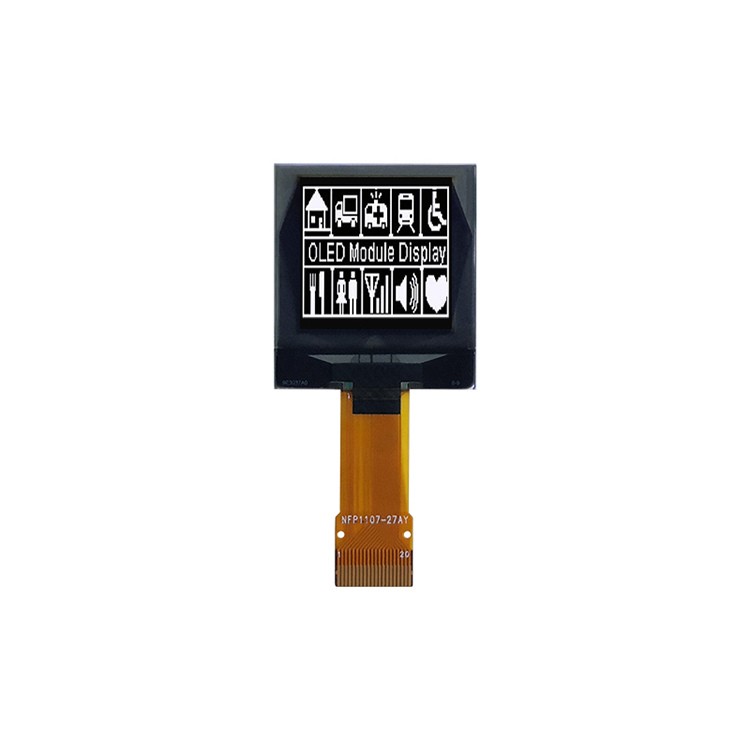

  • Product description: 1.12" OLED Display 128x128
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.12 is a  passive matrix micro OLED display module which is made of 128x128 dots. It has the module dimension of 25.9x56.6× 1.25 mm and Active Area size 20.076 ×20.076 mm. This OLED micro display is built in with SH1107 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.12 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type: oled display   (white)
Display Mode: Passive Matrix
Model Number:

HG--128128TDDCG02

Diagonal Screen size: 1.12 inch
Interface:

6080/8080/Parallel, 4-wire SPI/I2C 20P (Connector)

Drive Duty:

1/64 Duty

Number of Pixels:

128x128

Panel Size

25.9x56.6× 1.25 (mm)

Driver IC:

SH1107

Active Area:

20.076 ×20.076 (mm)

Pixel Pitch:

0.069x0.207(mm)

Pixel Size:

0.049 x 0.187 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°

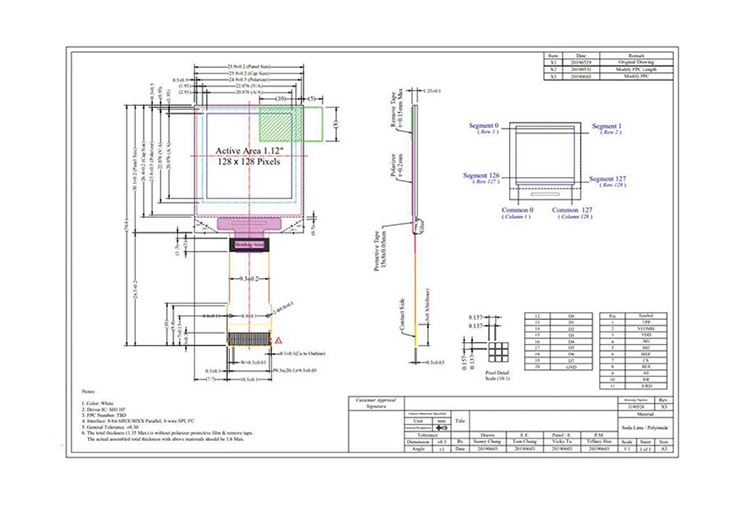

DRAWING




INTERFACE PIN FUNCTION
