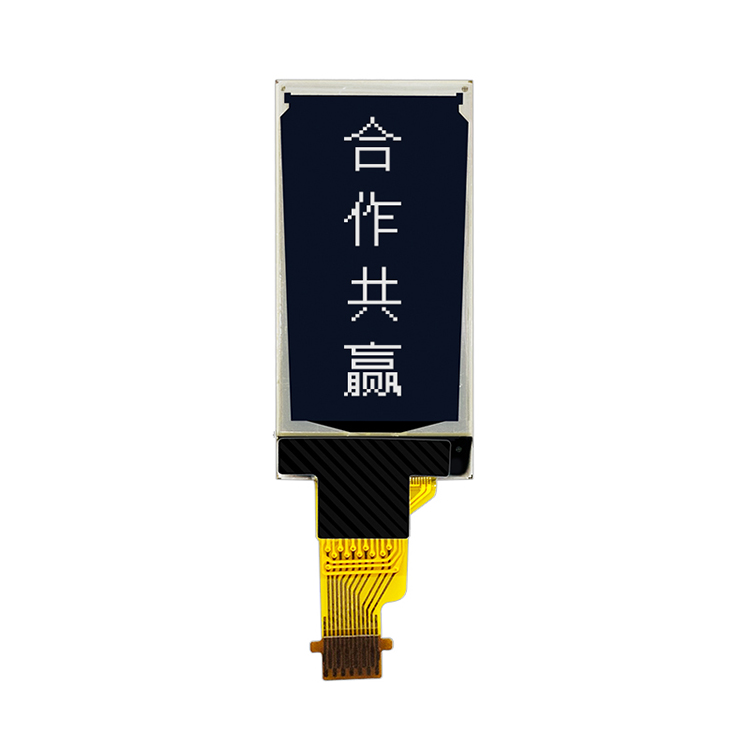

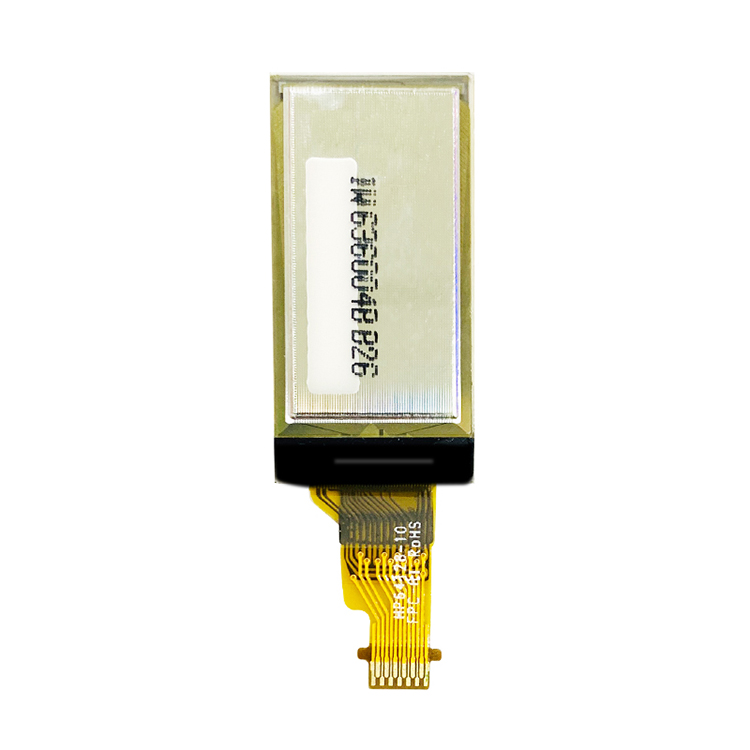

0.96" OLED Graphic Display,64x128

  • Size: 0.96 OLED
  • Controller IC:SH1107
  • Resolution: 64*128
  • Interface:I2C/SPI 13P
  • Product description: 0.96" OLED Graphic Display,64x128
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 0.96 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 26.70 × 19.26 × 1.4 mm and Active Area size 21.744 × 10.864 mm. This OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.96 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION




Display Type:                                                                      oled display (White )
Display Mode: Passive Matrix
Model Number:

HG--096-2864KSWEG010

Diagonal Screen size: 0.96 inch
Interface:

 I2C/SPI  13P

Drive Duty:

1/64 Duty

Number of Pixels:

128x64

Panel Size:

14 × 41.89 × 1.227 (mm)

Driver IC:

SH1107

Active Area:

10.86 × 21.74 (mm)

Pixel Pitch:

0.17 x 0.17(mm)

Pixel Size:

0.154 x 0.154 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°

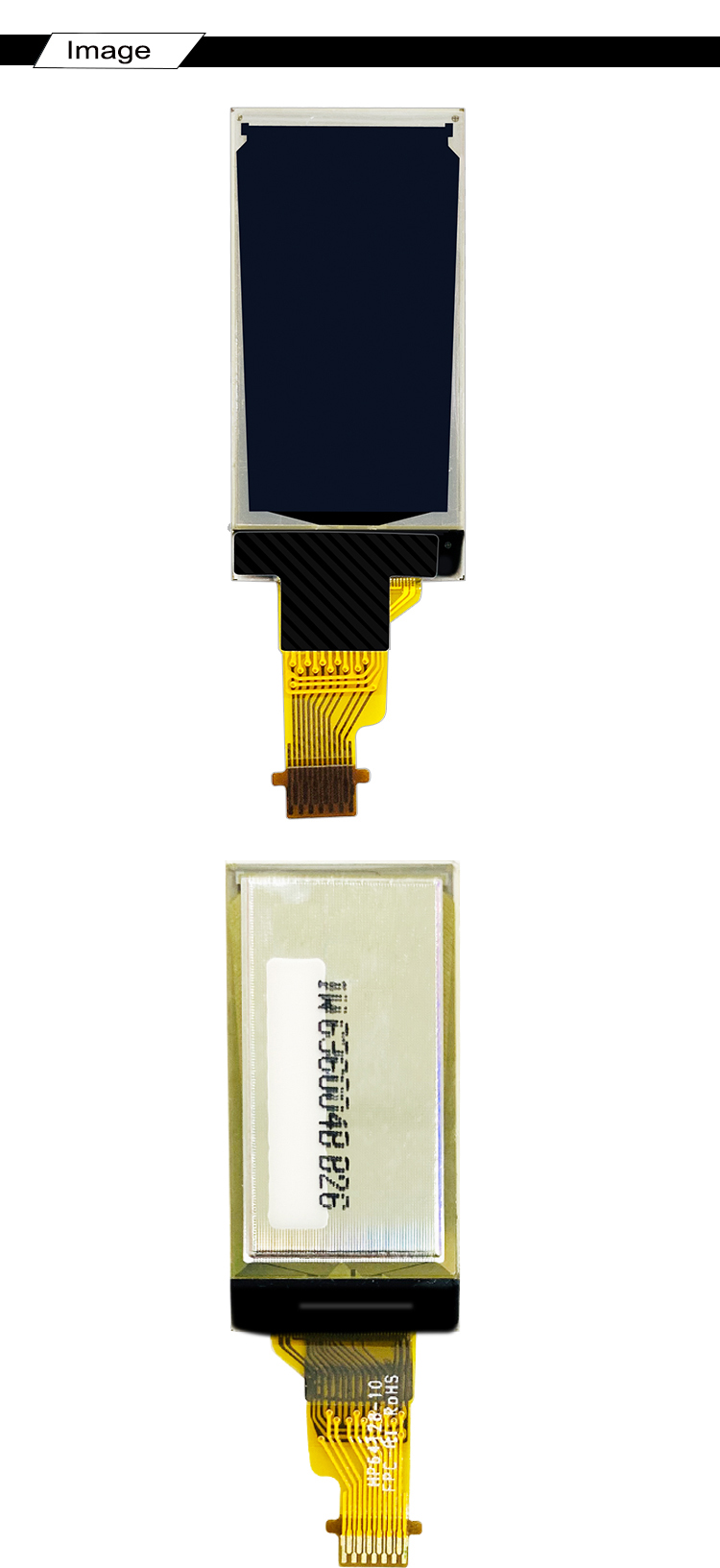

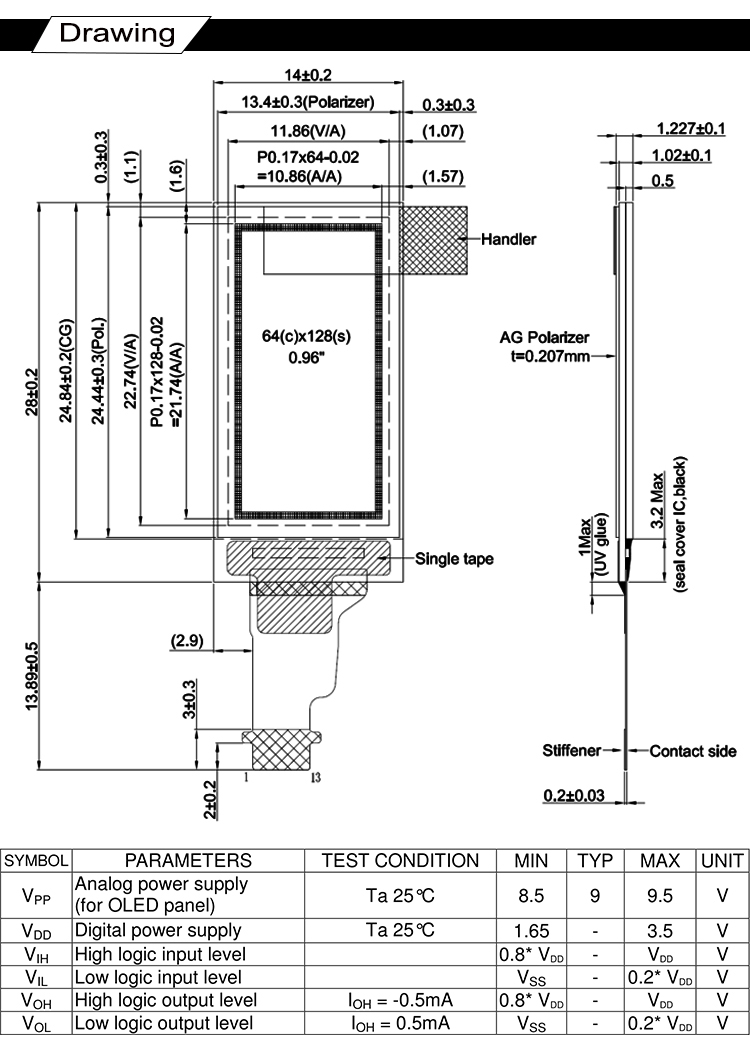

DRAWING

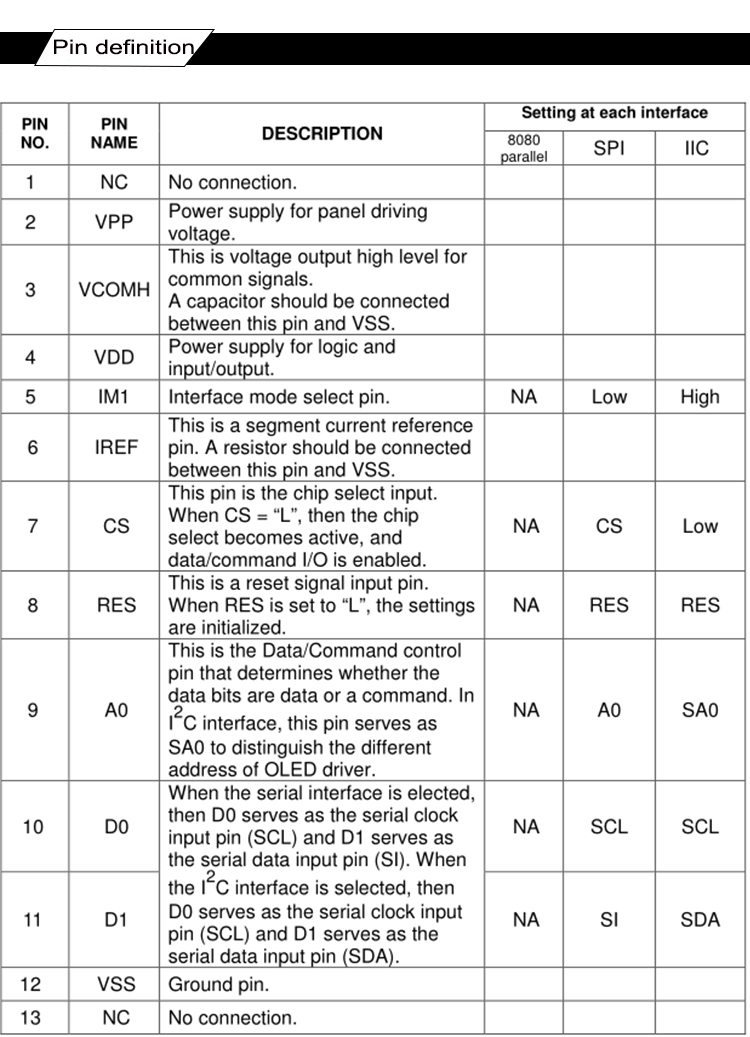

INTERFACE PIN FUNCTION
