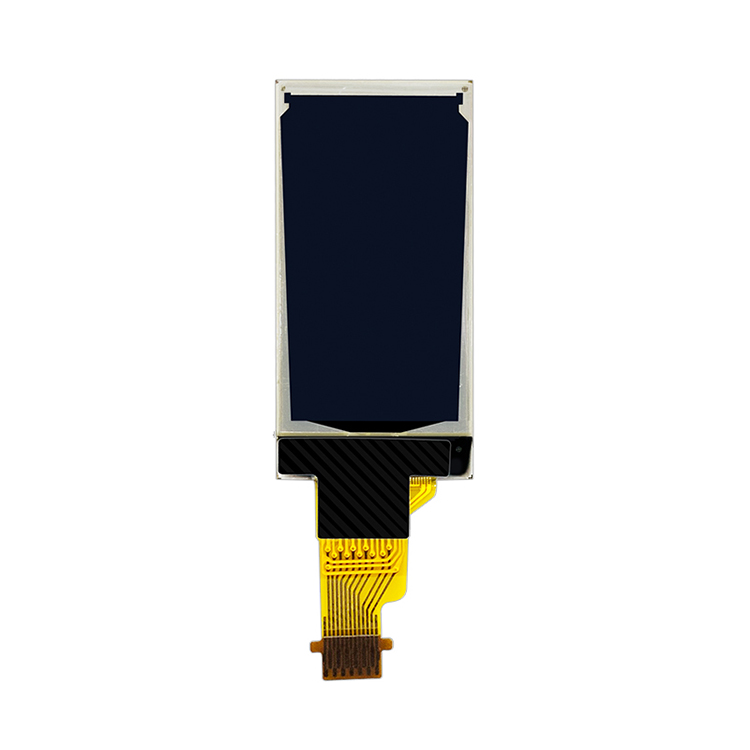

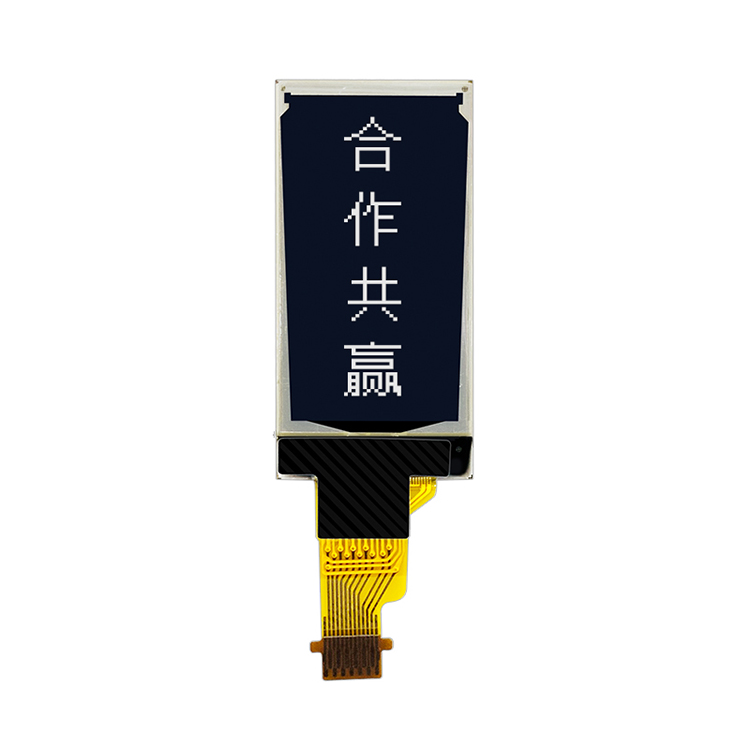

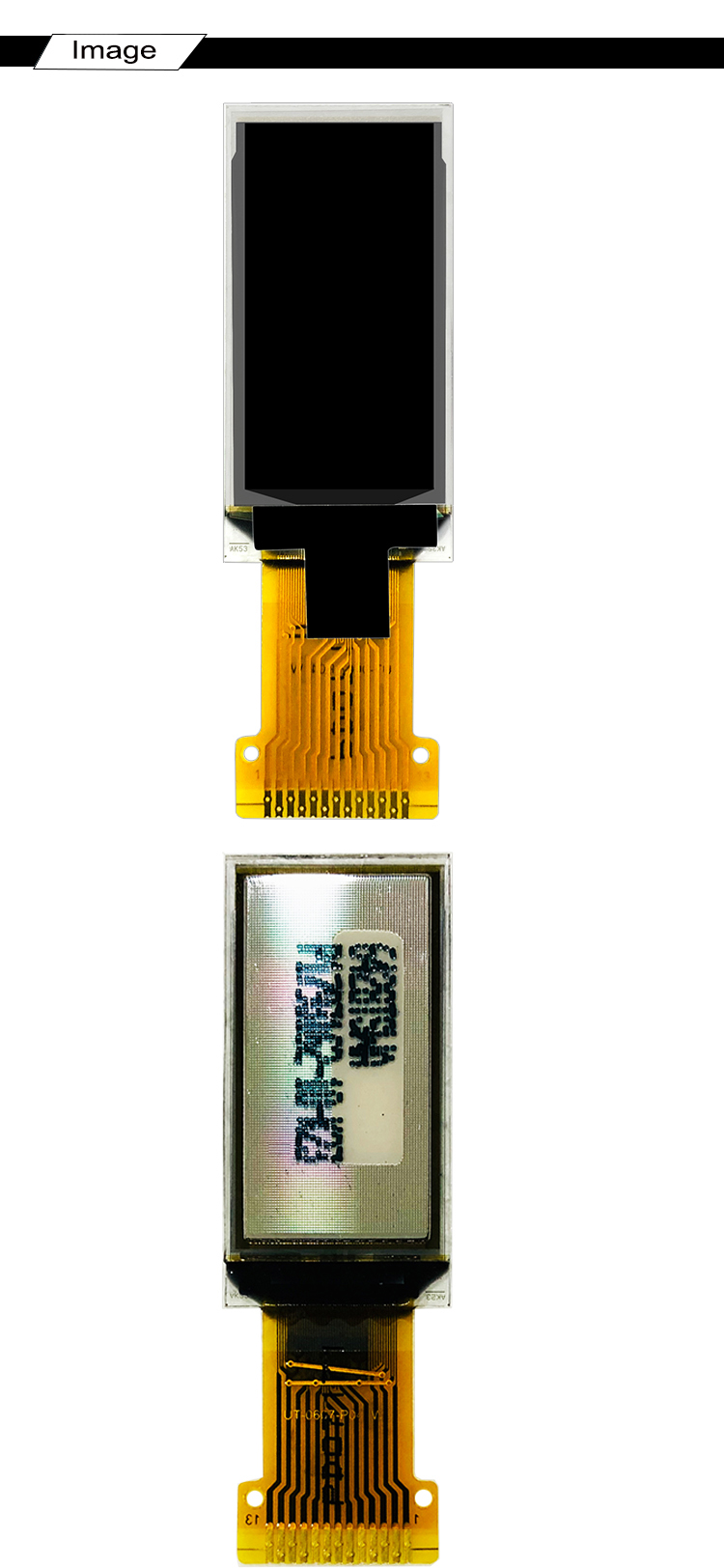

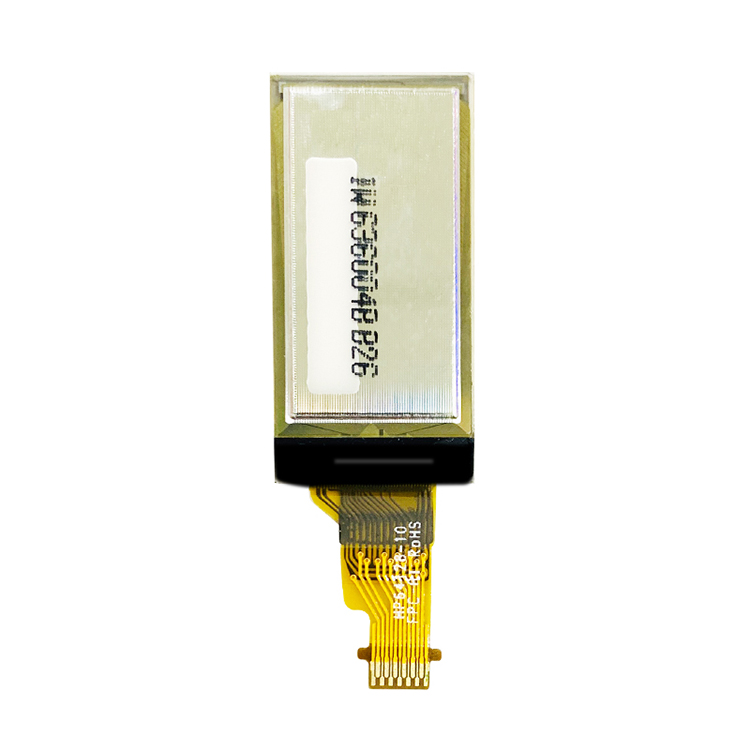

0.96" OLED Graphic Display,128x64 SH1107

  • Size: 0.96 OLED
  • Controller IC:SH1107
  • Resolution: 64*128
  • Interface:I2C/SPI 13P
  • Product description: 0.96" OLED Graphic Display,128x64 SH1107
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 0.96 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 14 × 43.8 × 1.2 mm and Active Area size 21.744 × 10.864 mm. This OLED micro display is built in with SH1107 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.96 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION




Display Type:                                                              oled display (White )
Display Mode: Passive Matrix
Model Number:

HG--096-2864KSWEG011

Diagonal Screen size: 0.96 inch
Interface:

I2C/SPI  13P (soldering)

Drive Duty:

1/64 Duty

Number of Pixels:

128x64

Panel Size:

14 × 43.8 × 1.2 (mm)

Driver IC:

SH1107

Active Area:

10.86 × 21.74 (mm)

Pixel Pitch:

0.17 x 0.17(mm)

Pixel Size:

0.154 x 0.154 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°



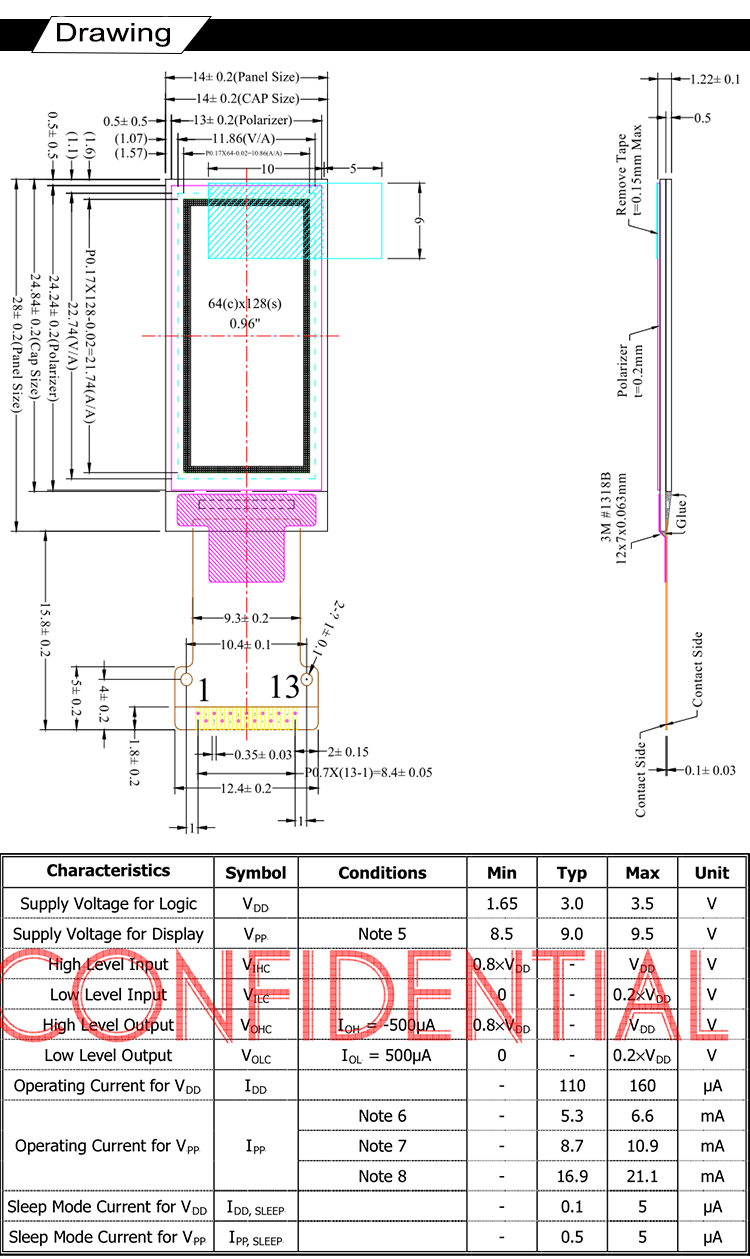

DRAWING




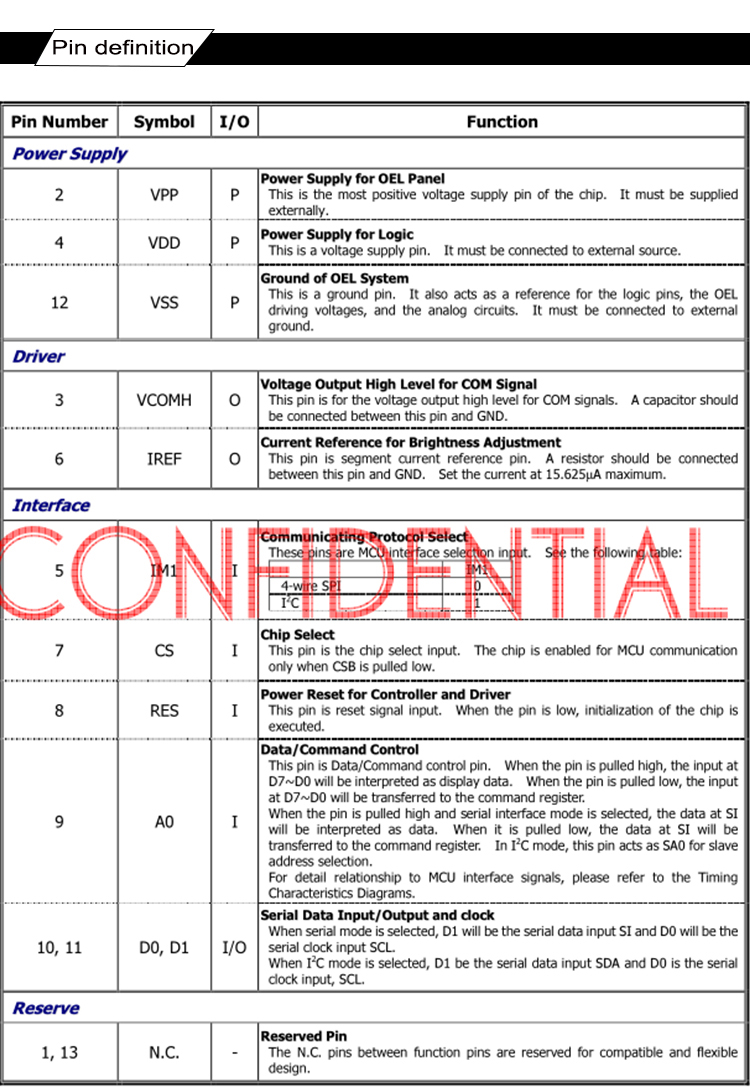

INTERFACE PIN FUNCTION
