DESCRIPTION

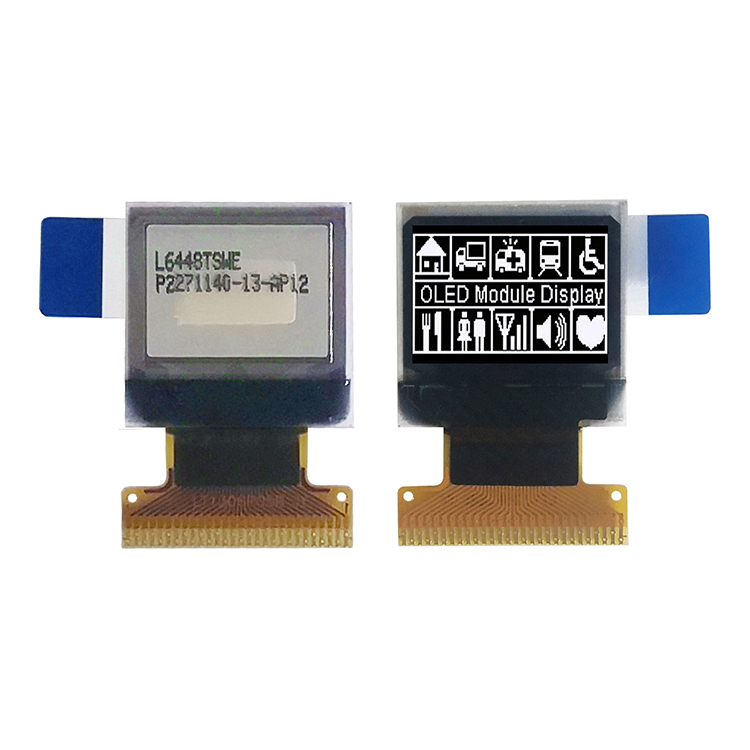

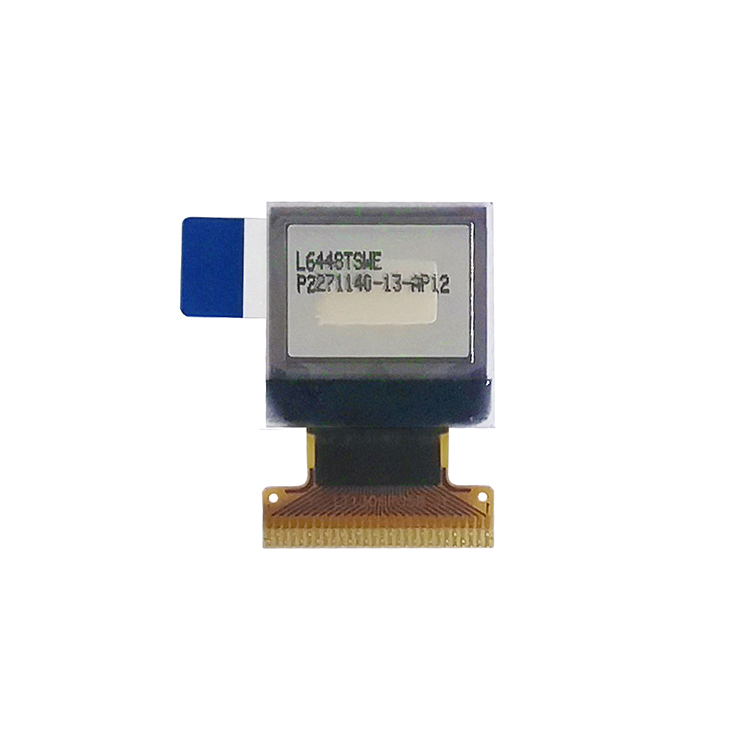

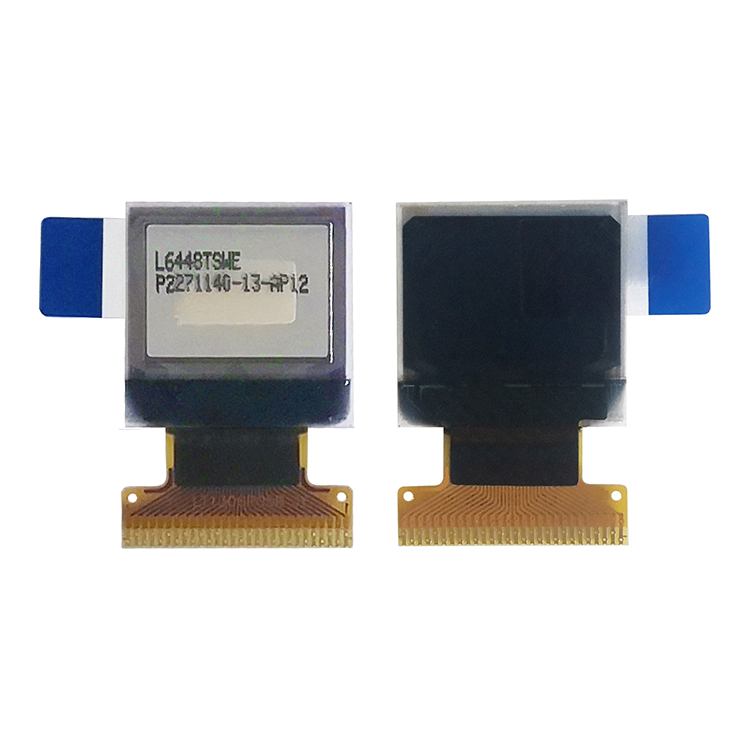

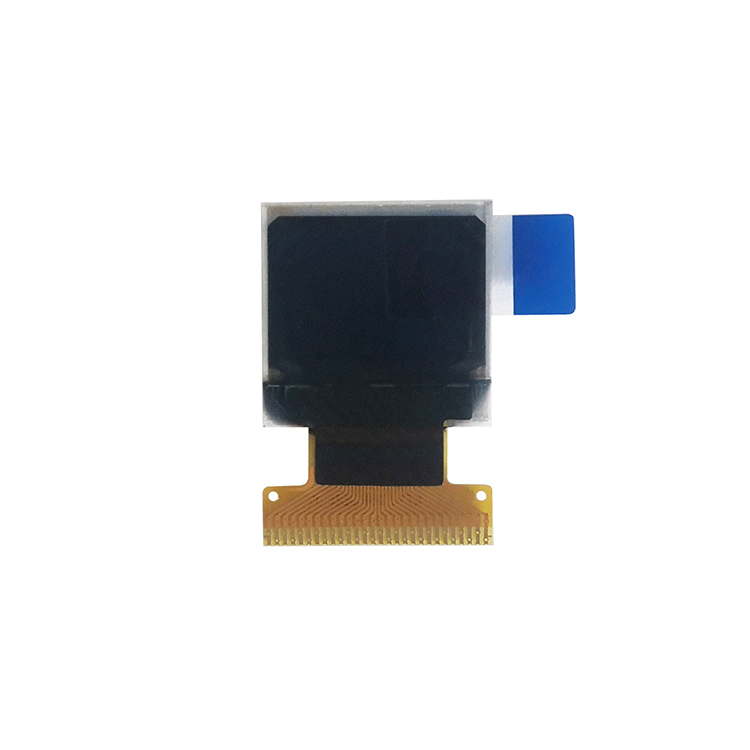

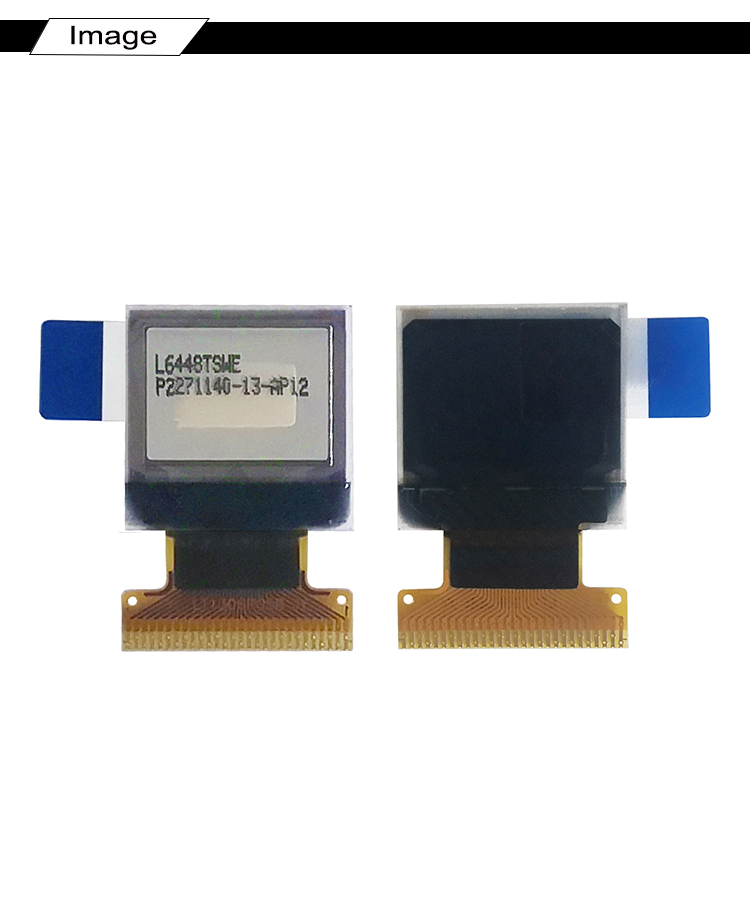

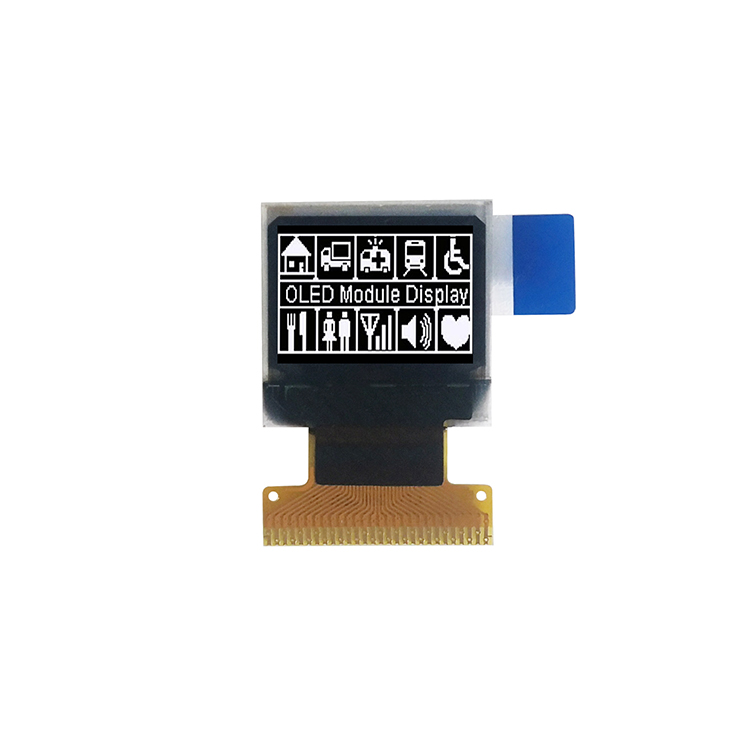

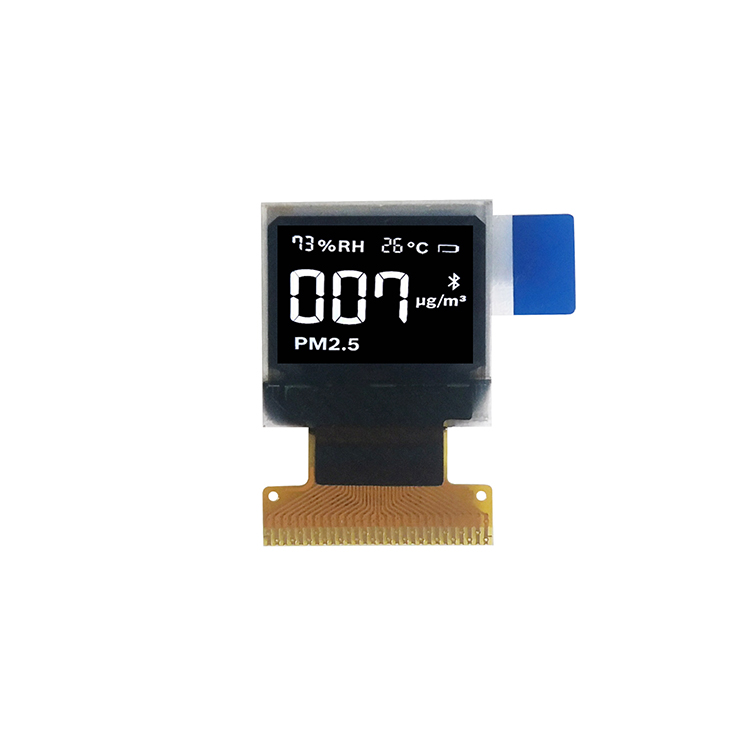

HICENDA OLED 0.66 is a passive matrix micro OLED display module which is made of 128x32 dots. It has the module dimension of 18.46 X18.1 X1.4 mm and Active Area size 13.42X10.06 mm. This OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V-5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.66 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.
GENERAL SPECIFICATION
Diagonal Screen Size
0.91 inch
Color
Mono(White)
Model number
HG-6448KSWEG03
Resolutions
64X48
Outline dimension
18.46 X18.1 X1.4 mm
Active area
13.42X10.06mm
Pixel pitch
0.21 X0.21 mm
Pixel size
0.19 X0.19 mm
Driver IC
SSD1306
Voltage
3-5V
Interface
8-bit 68XX/80XX Parallel, 4-wire SPI, I2 C
Operating temperature
-40~70℃
Storge Temperature
-40~80℃
Assemble
Soldering
Pins
28P

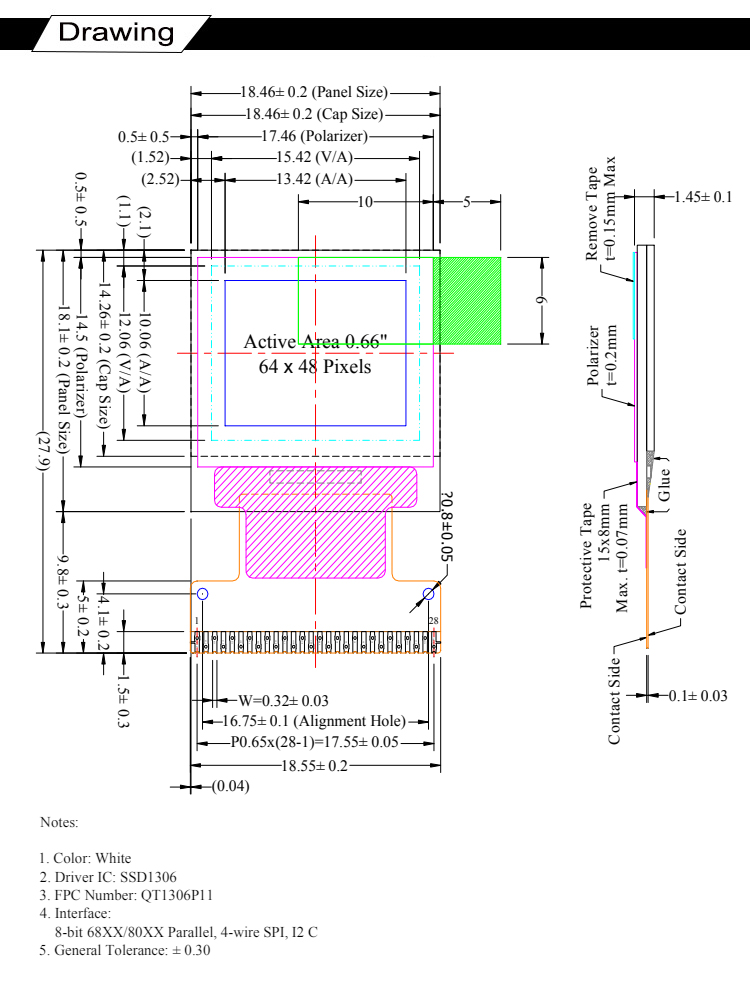

DRAWING

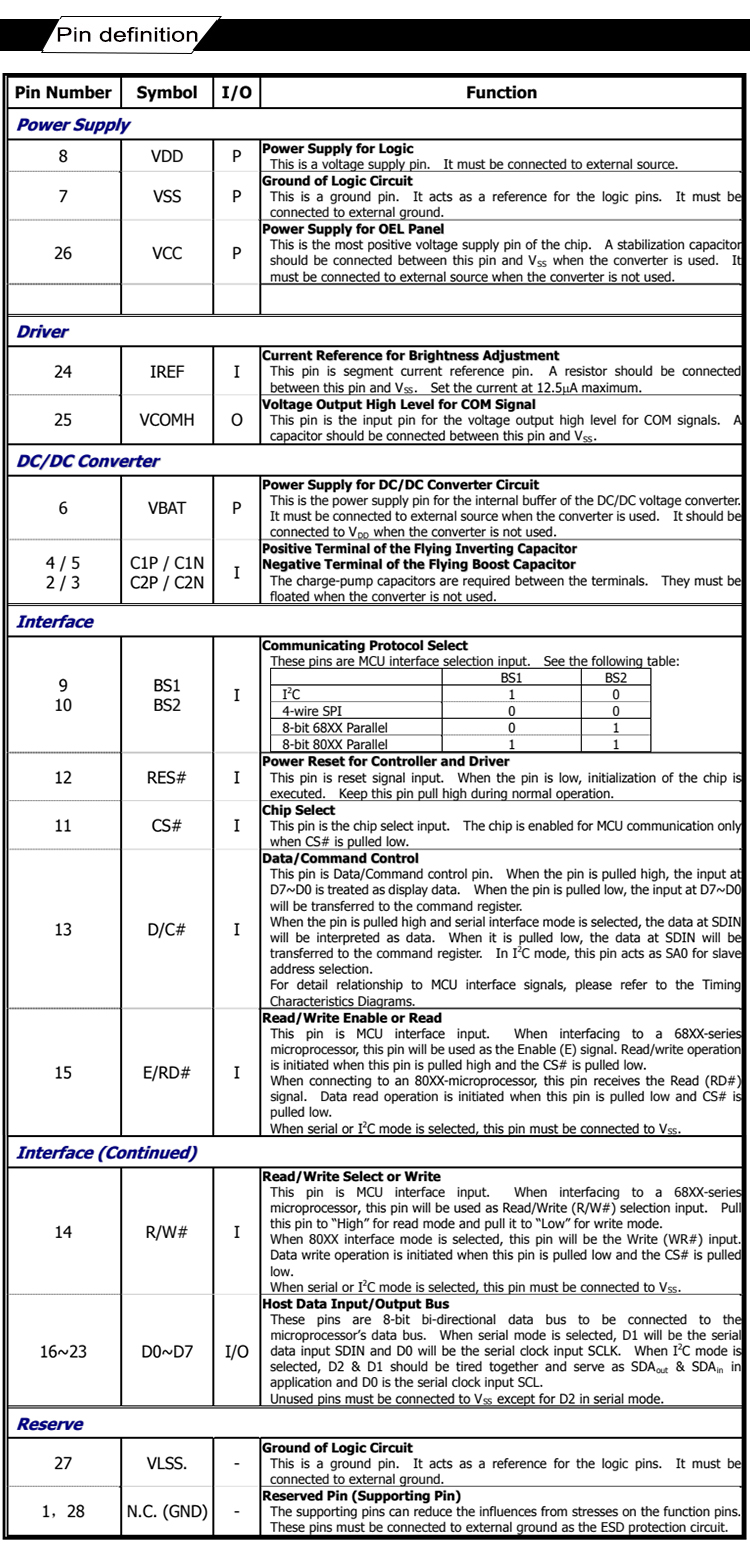

INTERFACE PIN FUNCTION
