DESCRIPTION

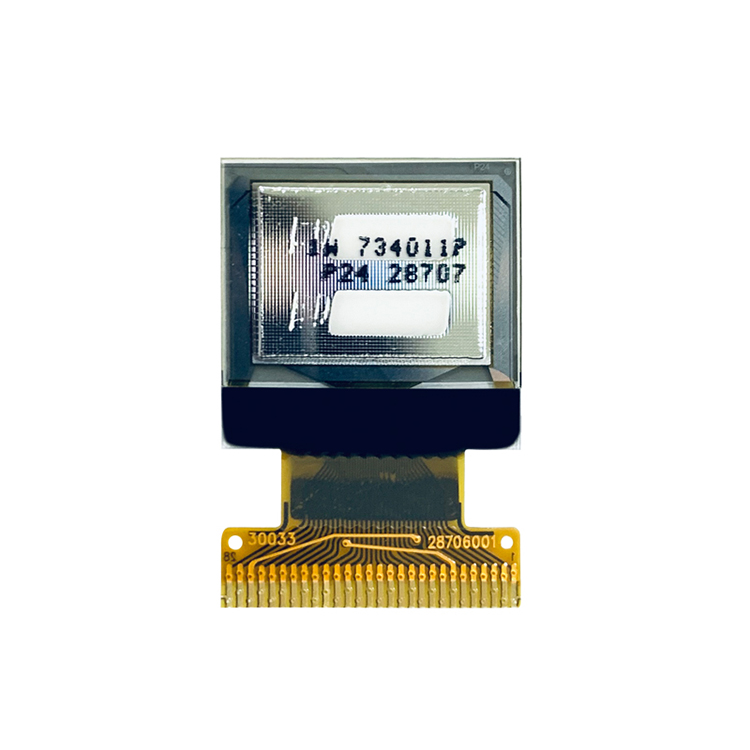

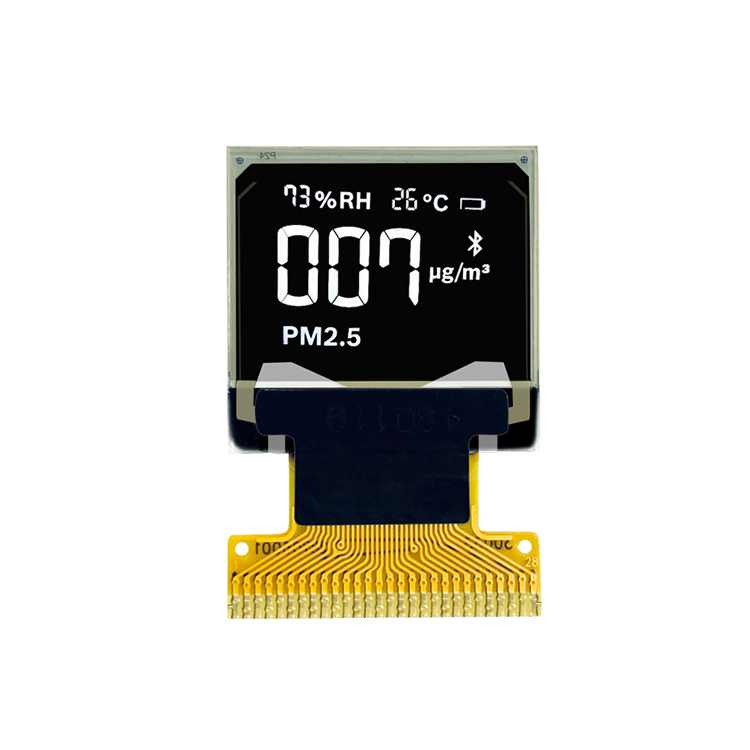

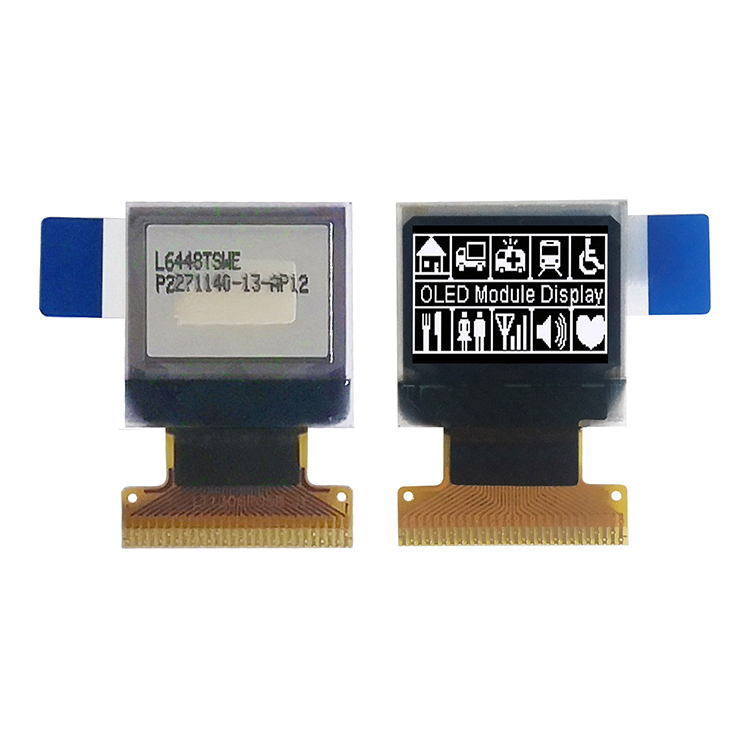

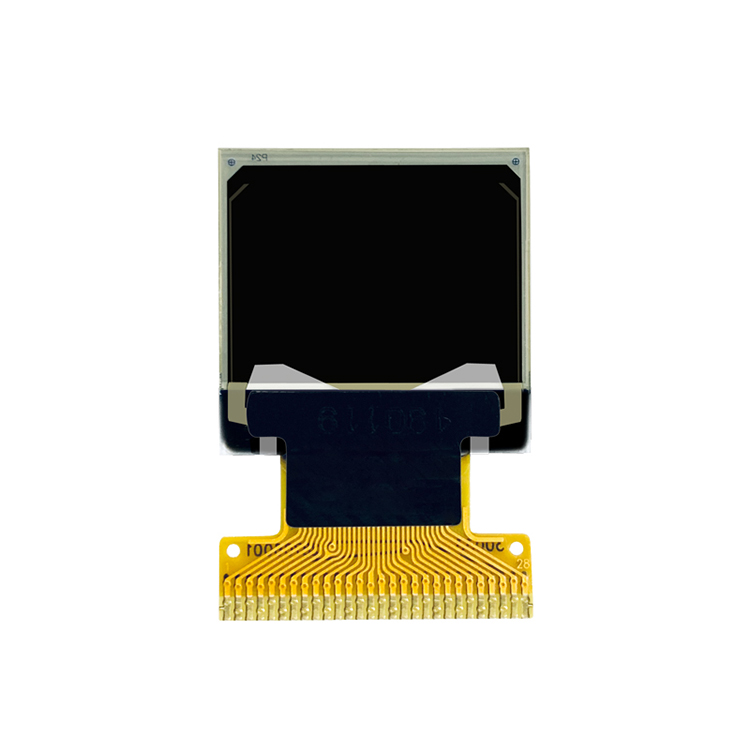

HICENDA OLED 0.66 is a passive matrix micro OLED display module which is made of 64*48 dots. It has the module dimension of 18.46 x 18.10x 1.40 mm and Active Area size 13.42*10.06 mm. This OLED micro display is built in with SSD1306IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.66 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.
GENERAL SPECIFICATION
HG-066-6448KSWEG03
Parallel, 4-wire SPI,I2C
1/48 Duty
64x48
18.46 x 18.10x 1.40(mm)
SSD1306
13.42*10.06(mm)
0.19*0.19 (mm)
0.21*0.21(mm)
Weight:
2.6 (g)
Operating Temperature:
Display Type:
oled display
Display Mode:
Passive Matrix
Model Number:
Diagonal Screen size:
0.66 inch
Interface:
Drive Duty:
Number of Pixels:
Panel Size:
Driver IC:
Active Area:
Pixel Pitch:
Pixel Size:
-40~85°

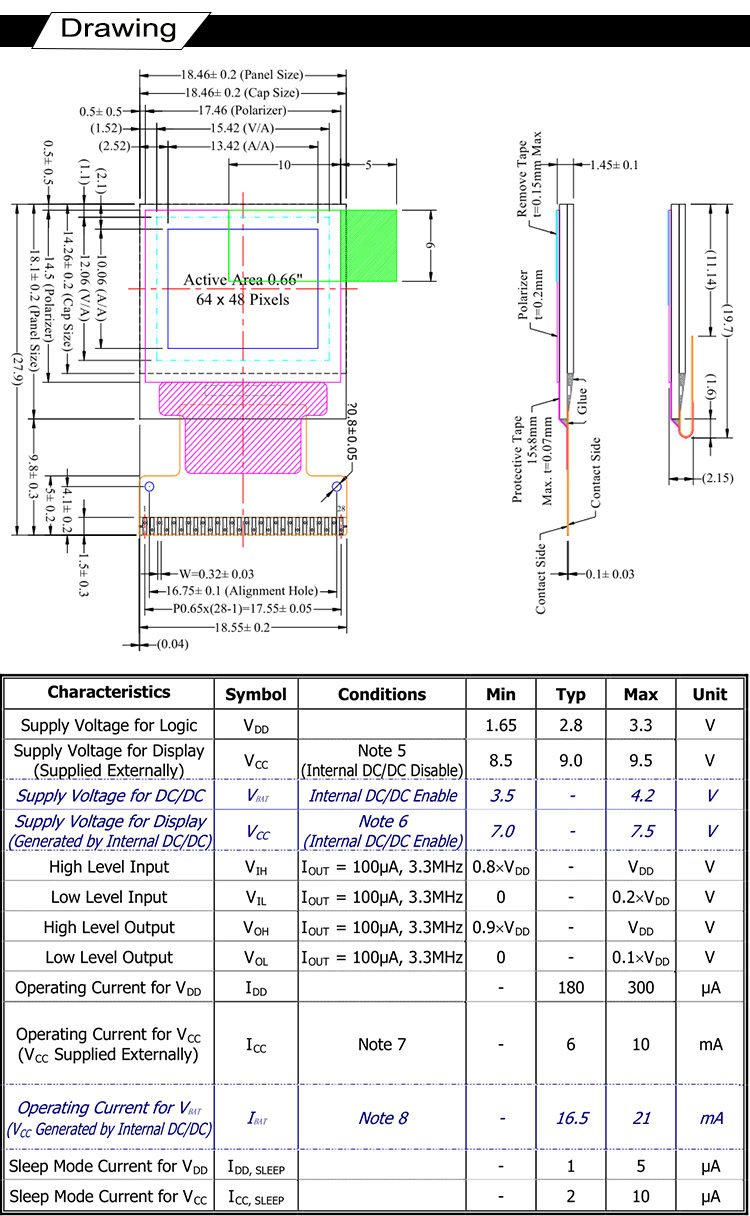

DRAWING

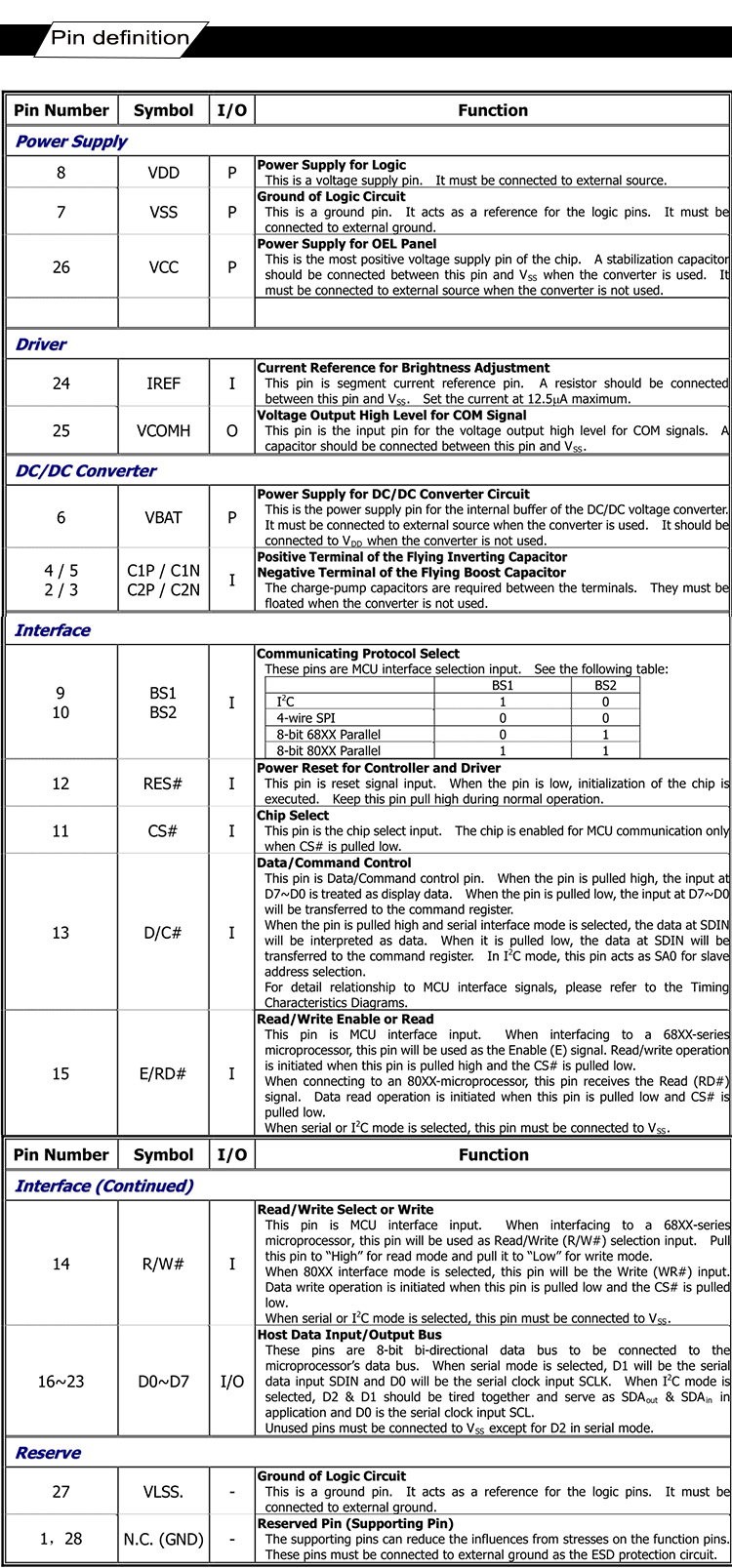

INTERFACE PIN FUNCTION
