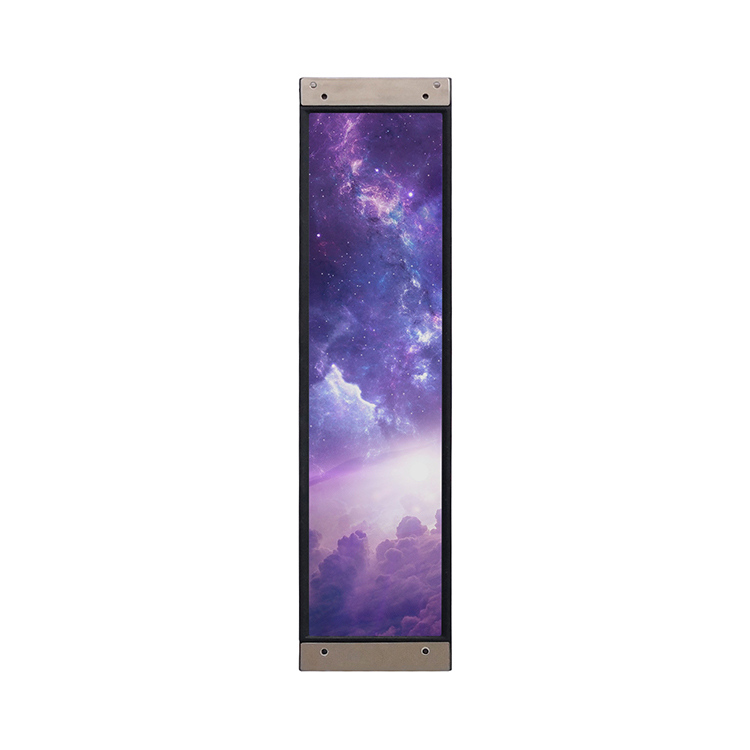

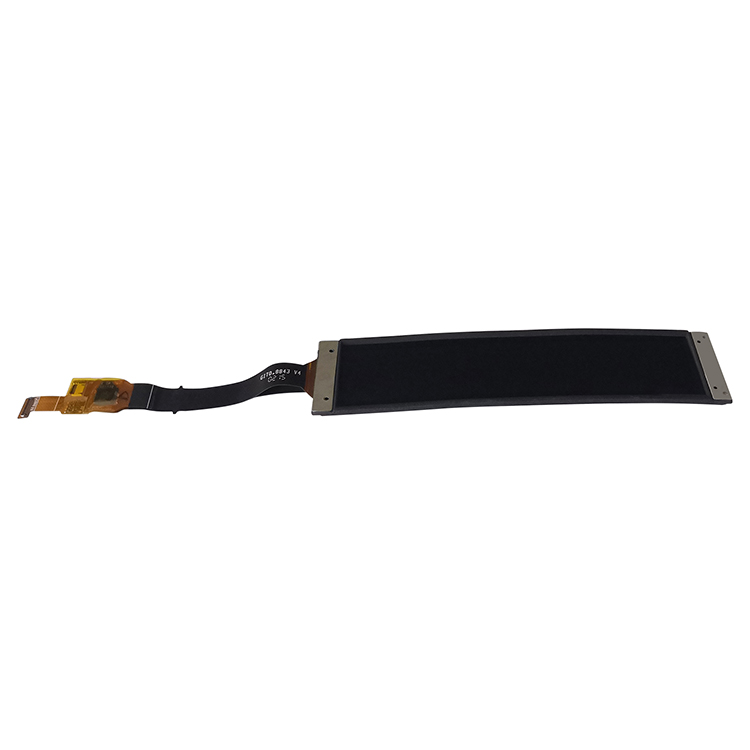

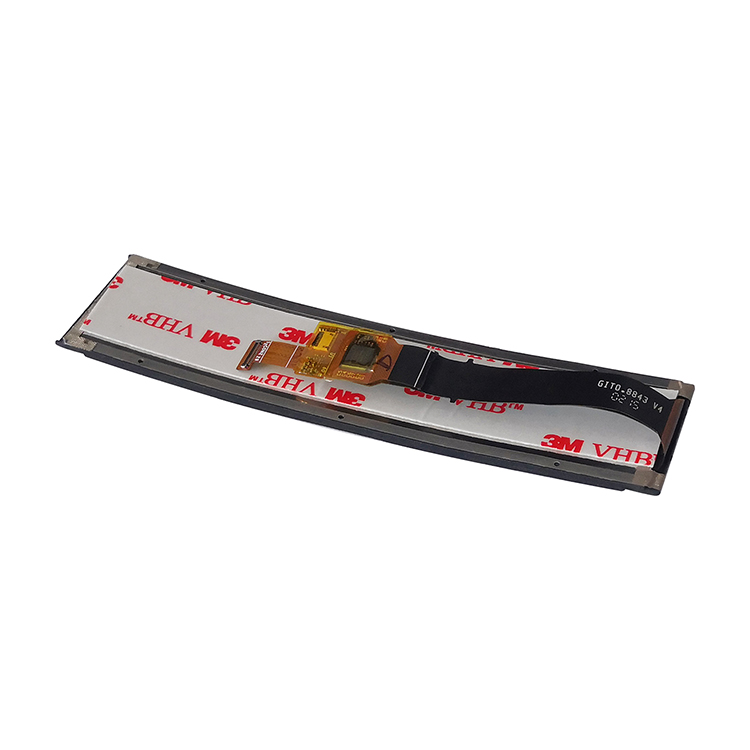

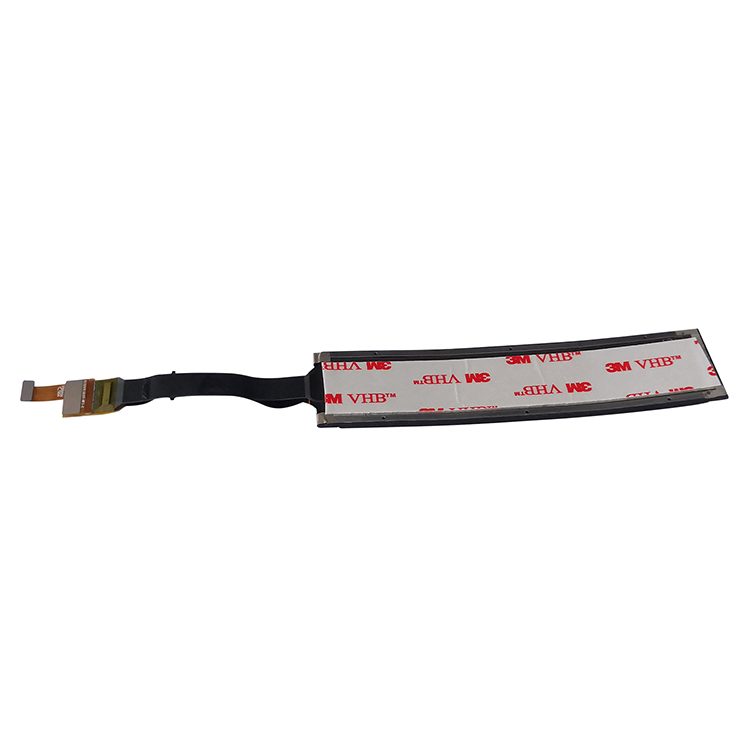

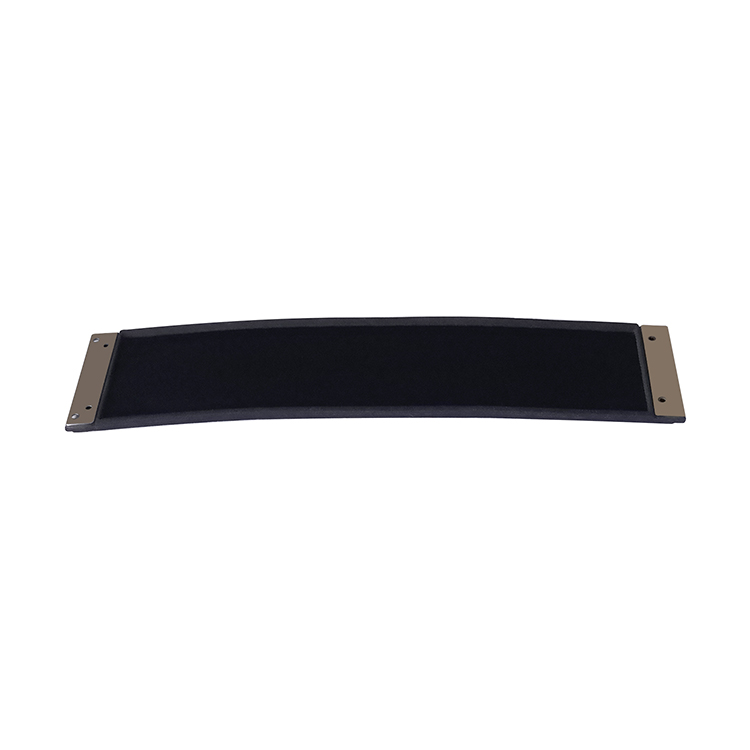

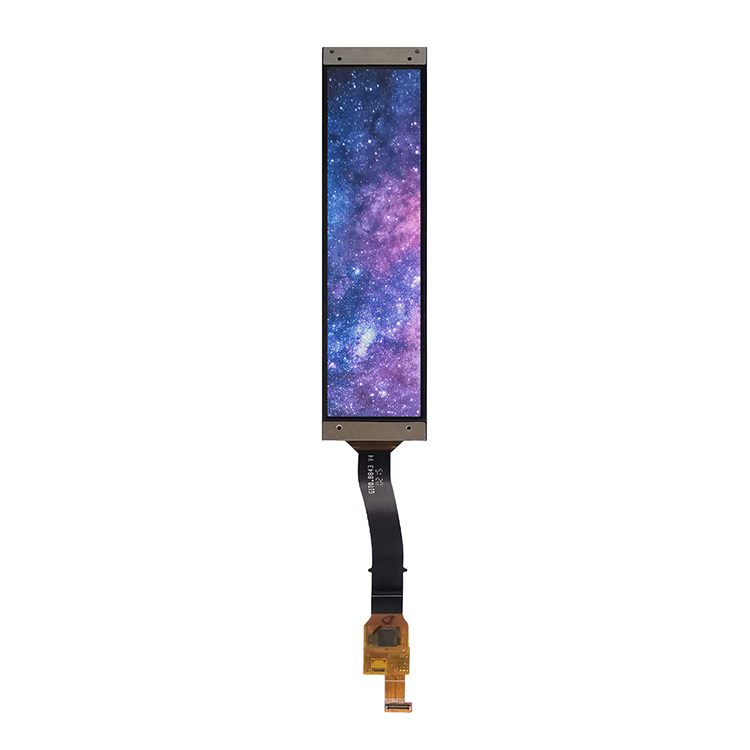

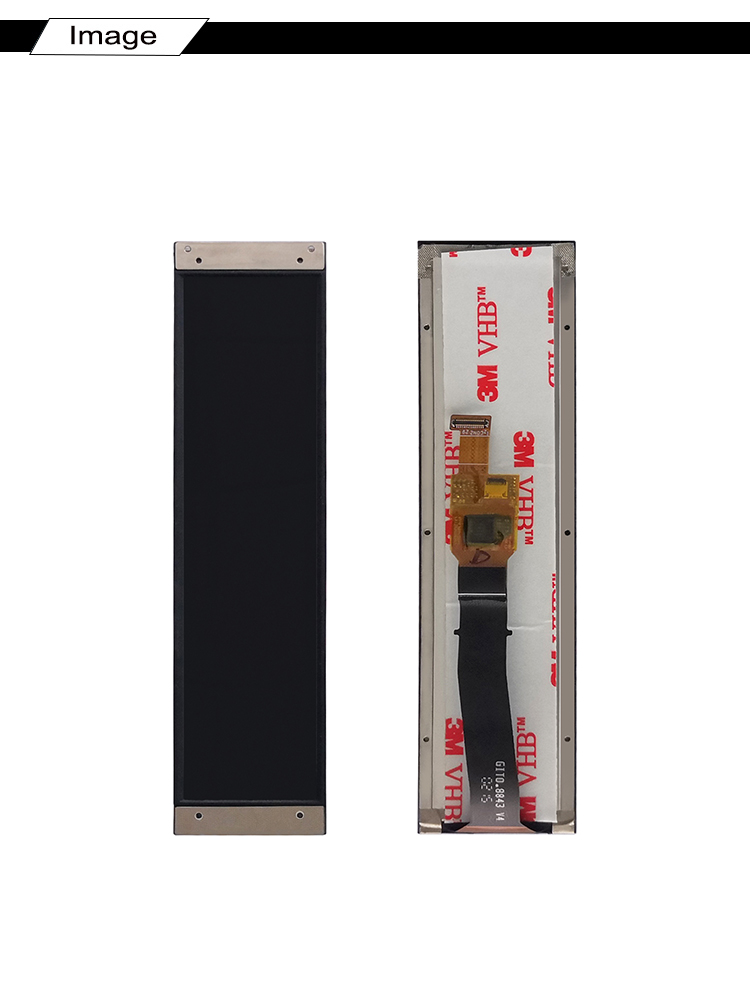

Flexible OLED 4.01 inch 192(W) x 960(H) AMOLED bendable display panel

  • Size:4.01
  • Resolution:192(W) x 960(H)
  • Interface:MIPI 1 LANE
  • Driver IC:RM69330
  • Product description: Flexible OLED 4.01 inch 192(W) x 960(H) AMOLED bendable display panel
  • INQUIRY

Flexible OLED 4.01 inch 192(W) x 960(H) AMOLED bendable display panel


DESCRIPTION

The H1323TC101FF-002 is a Color Active Matrix Organic Light Emitting Diode Display (OLED). The matrix employsLow Temperature Poly Si Transistor as the active element. It is a top emission display type. It has a 4.01 inch diagonally measured active display area with 192(W) x 960(H) resolution (192 horizontal by 960 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels.. Gray scale or the brightness of the sub- pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. The H1323TC101FF-002 has been designed to apply the interface method that enables high speed,low EMI, eDP interface with PSR. The H1323TC101FF-002 is intended to support applications where thin thickness,high contrast ratio, high color gamut. The H1323TC101FF-002 characteristics provide an excellent foldable display forPortable or Monitor mode such as tablet or notebook PC.





SPECIFICATIONS

General Specification


Display Type:
AMOLED display
Display Mode: AMOLED display
Model Number:
H1323TC101FF-002
Diagonal Screen size: 4.01 inch
Interface:
MIPI 1 LANE
backlight:

no
Number of Pixels:

192(W) x 960(H)

Panel Size:

104.1(W) x 104.1 (H)(mm)
Driver IC:

RM69330

Active Area:

162.5(W) X121.54(H)(mm)
Pixel Pitch:

104.1(W) x 104.1 (H) (mm)
Surface Treatment:

Hard Coating

With TP/Without TP:

With TP


Touch IC(Type):


GT9886

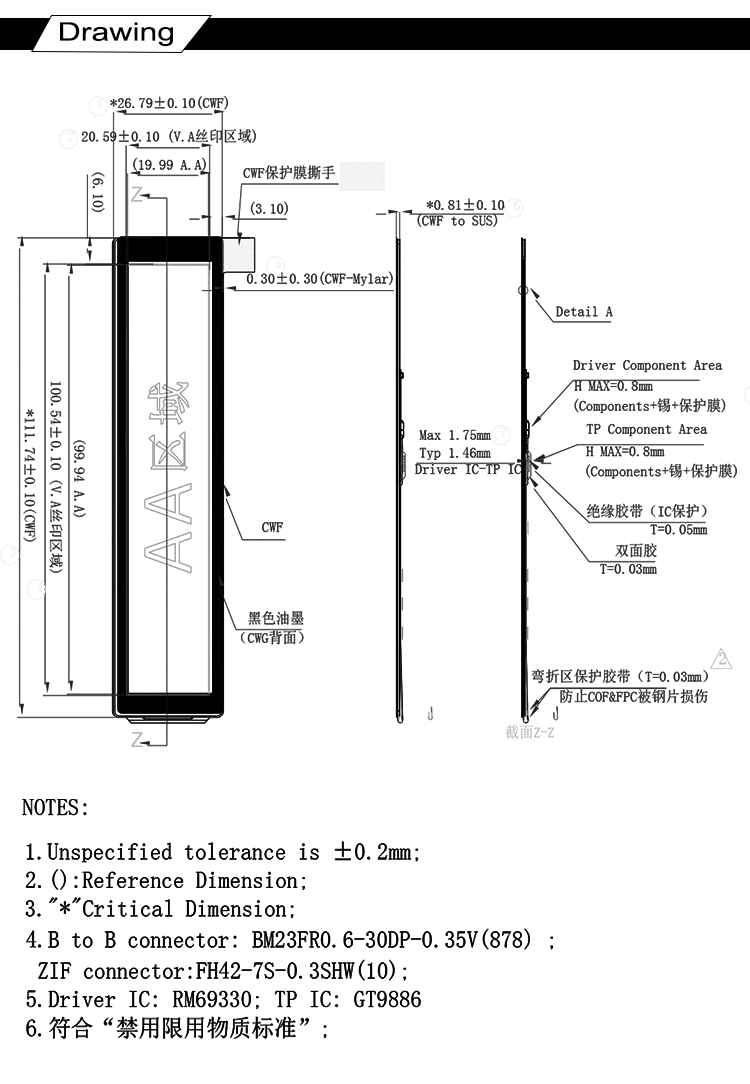

Drawing

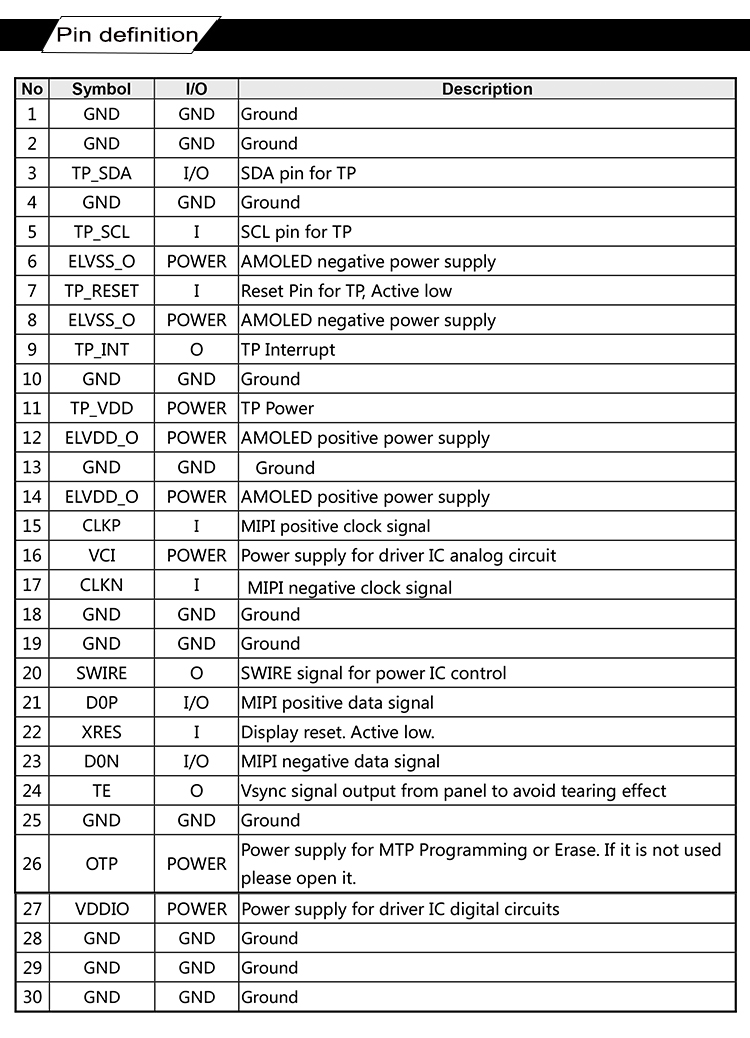

PIN Definition:
