0.85"

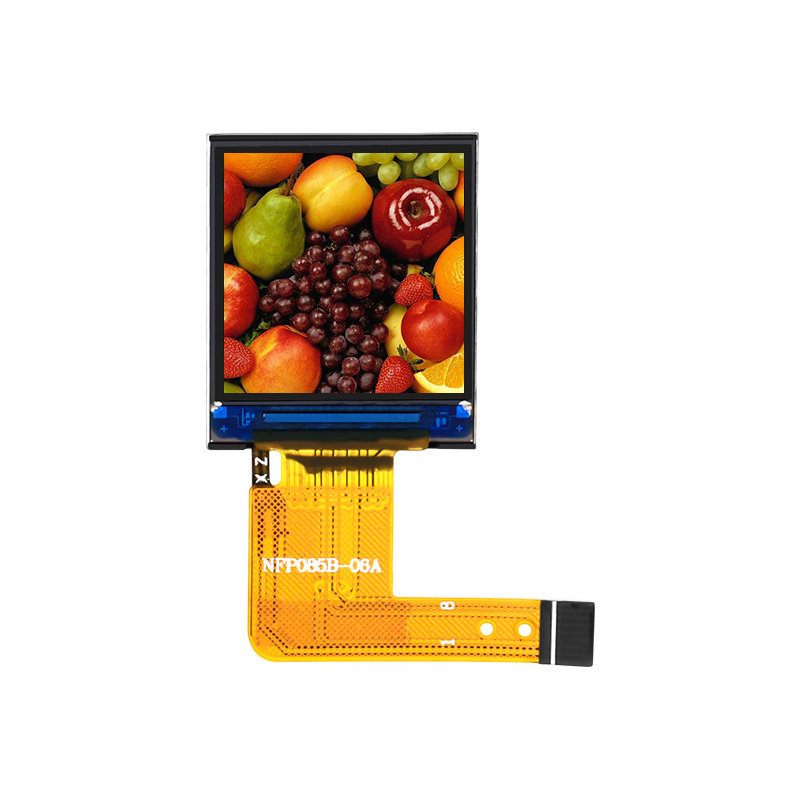

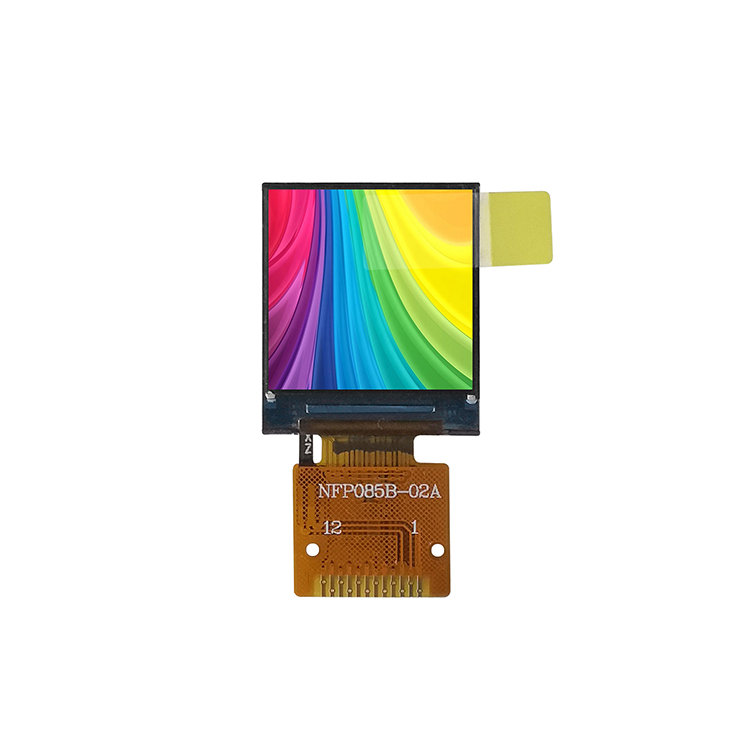

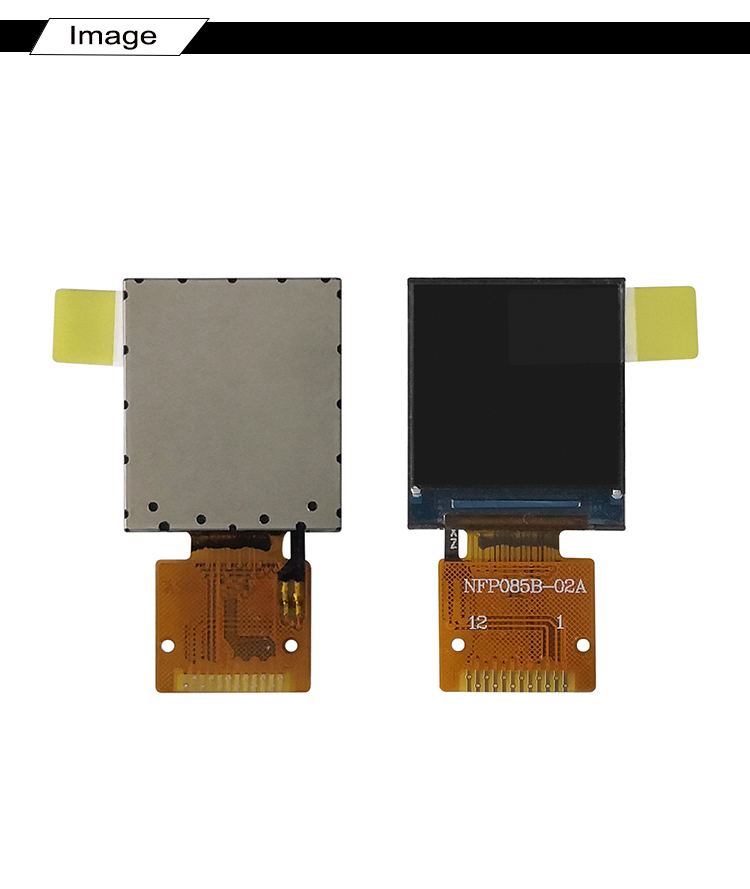

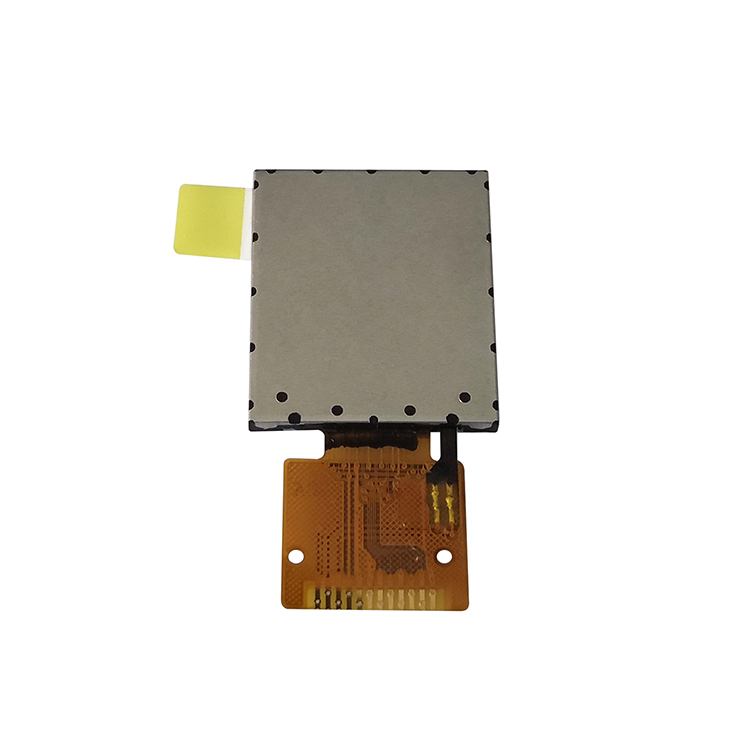

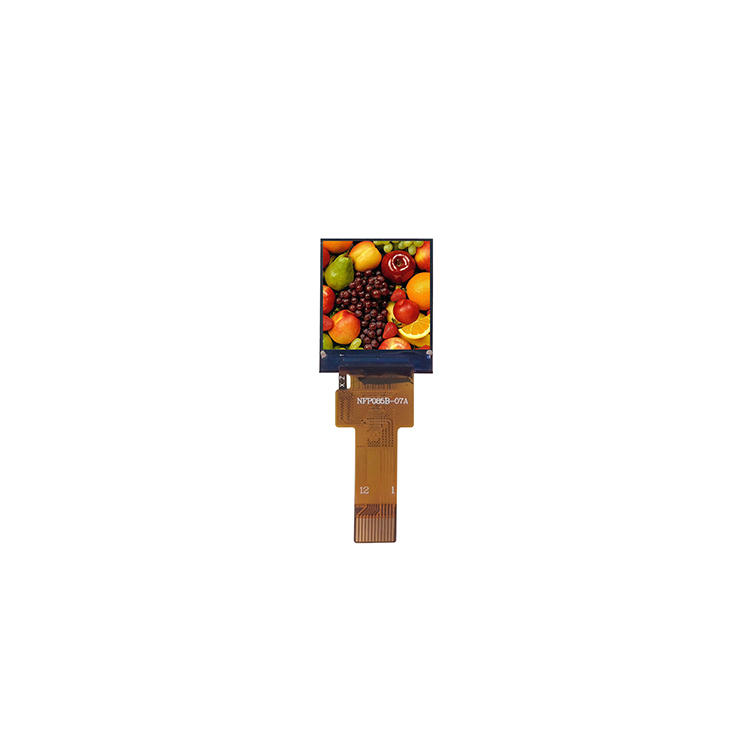

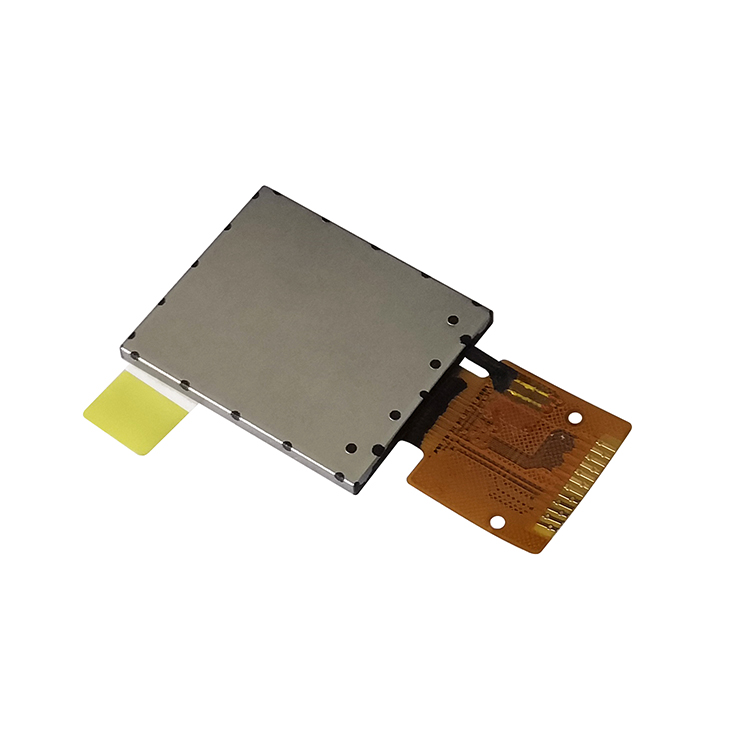

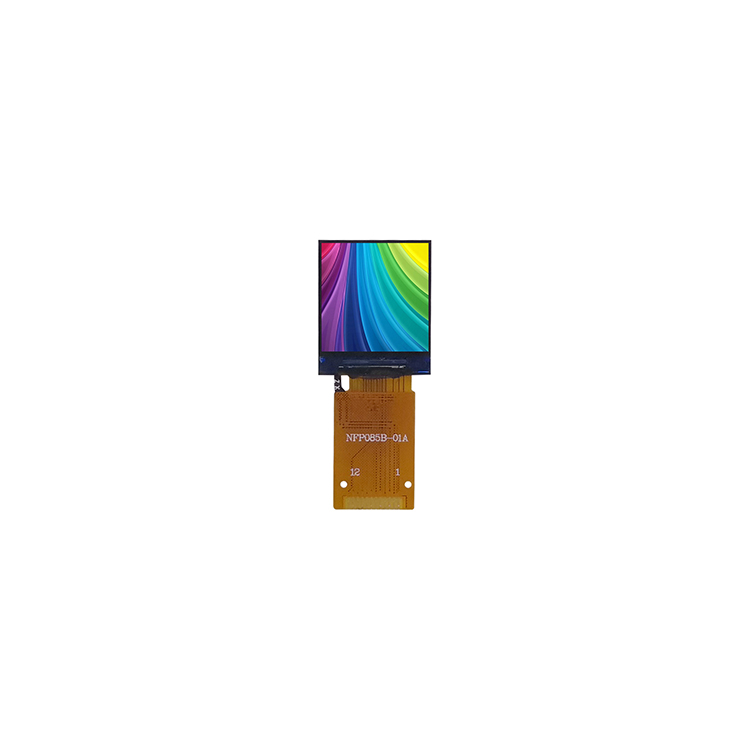

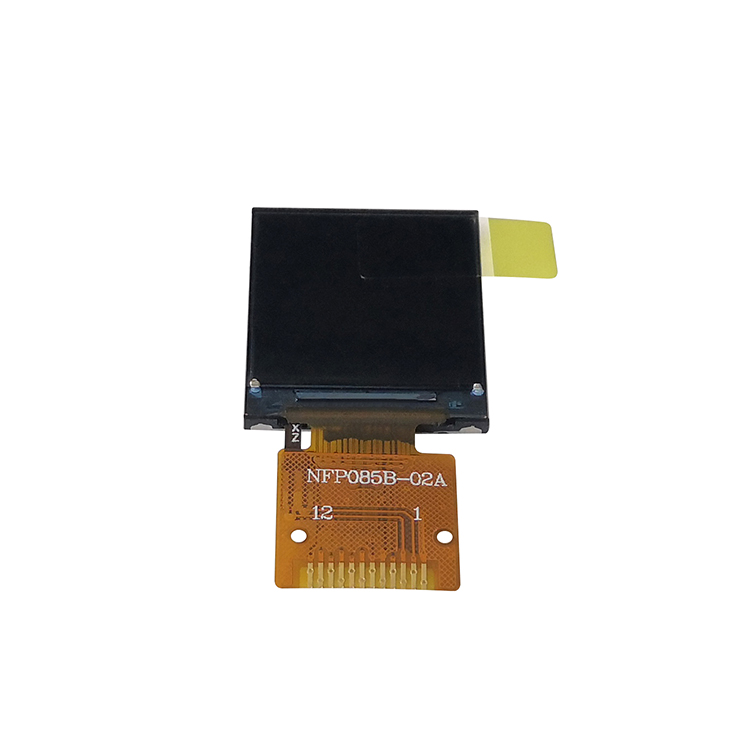

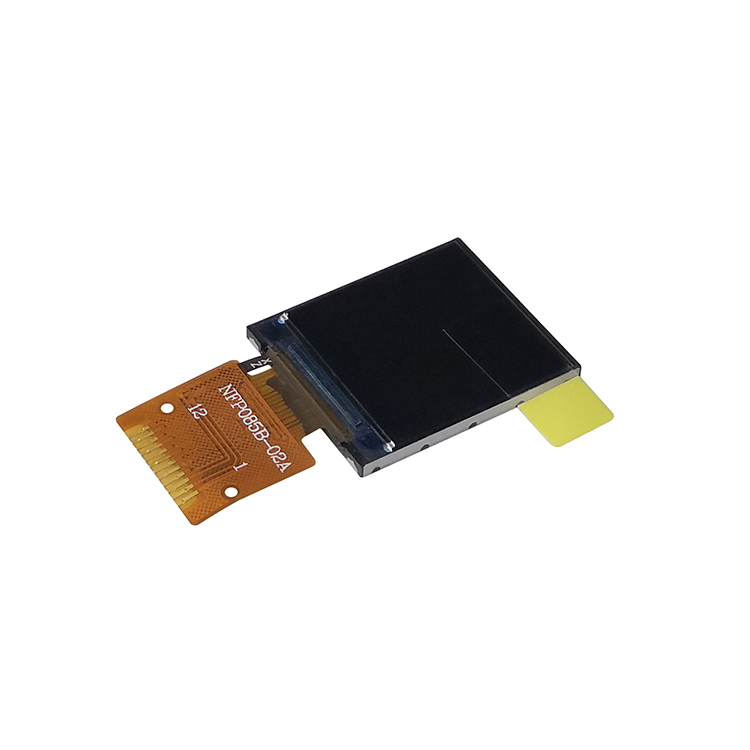

0.85 inch TFT LCD Display screen 128x128

0.85 inch TFT LCD Display screen 128x128

0.85 inch TFT LCD Display screen 128x128

0.85 inch TFT LCD Display screen 128x128

0.85 inch TFT LCD Display screen 128x128

0.85 inch TFT LCD Display screen 128x128

0.85 inch TFT LCD Display screen 128x128

Size: 0.85
Controller IC:GC9107
Resolution: 128x128
Interface: SPI4 LINE
Product description: 0.85 inch TFT LCD Display screen 128x128
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT 0.85 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin

Film Transistor). It is composed of a color TFT - LCD panel, driver IC, FPC and a back light unit. The module display area contains 128*128 pixels. This product accords with ROHS environmental criterion.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	color active matrix
Model Number:	HT---N085-1212TBWIG42-H12
Diagonal Screen size:	0.85 inch
Interface:	SPI4 LINE
Luminance(cd/m2):	260 (TYP)
Number of Pixels:	128X128
Panel Size:	17.58(H) x 20.82(V) x1.5(D) mm
Driver IC:	GC9107
Active Area:	15.2064(H) x 15.2064 (V) mm
Pixel Pitch:	39.6 (H) x 118.8(V) um
Viewing Direction:	All View
Weight:	TBD
Operating Temperature:	-20~70°

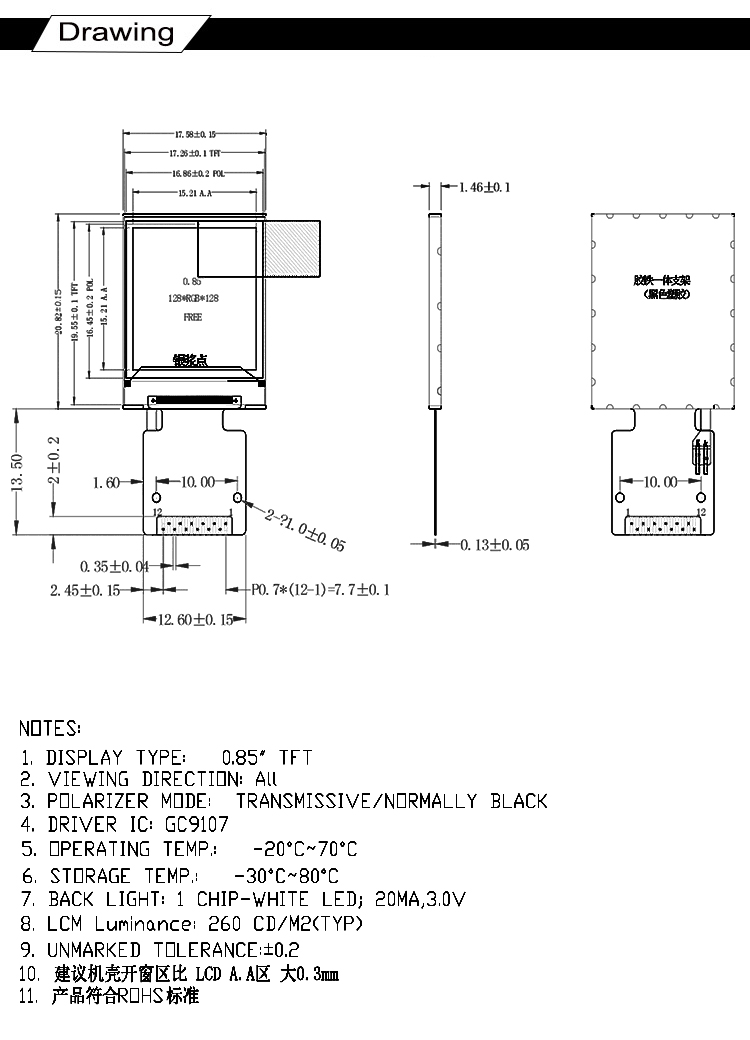

DRAWING

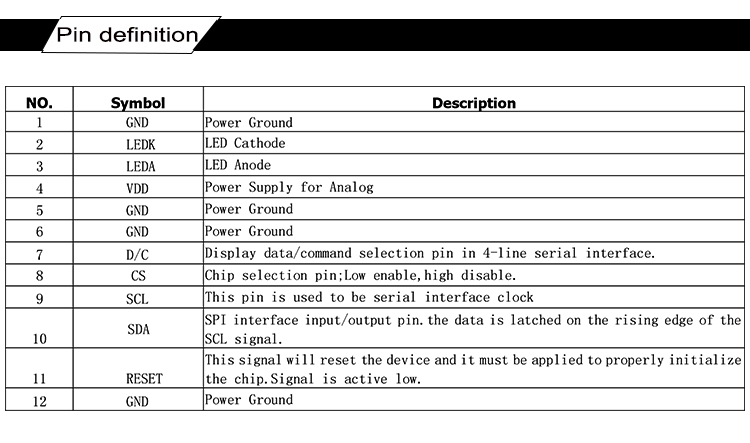

INTERFACE PIN FUNCTION
