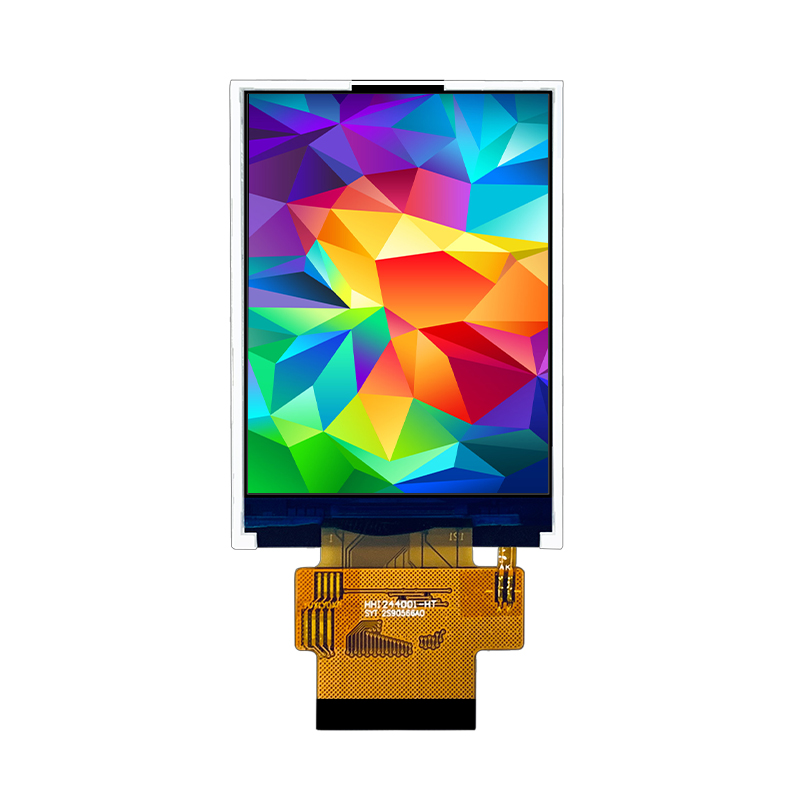

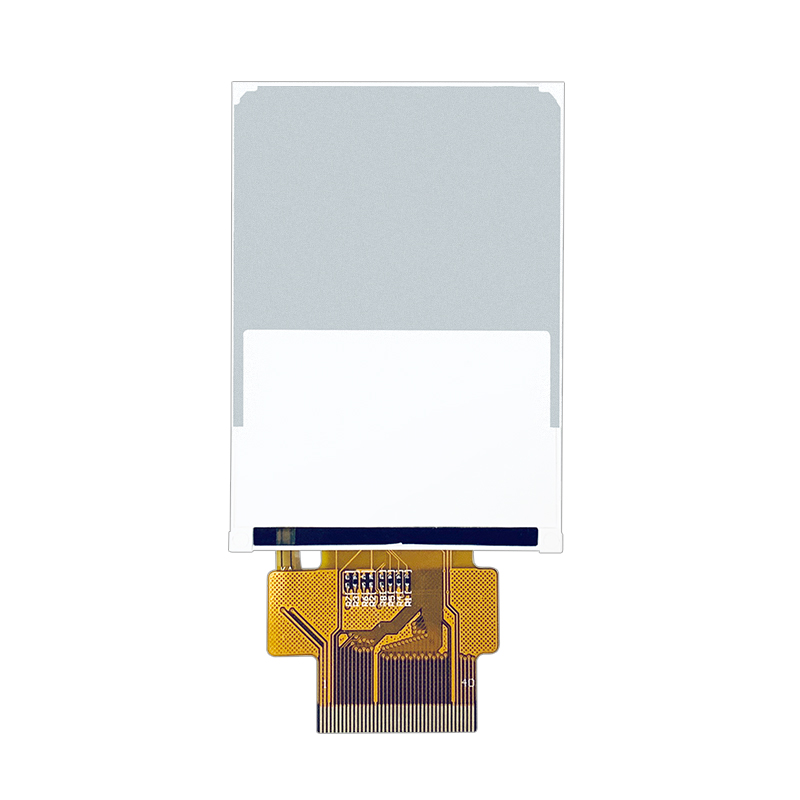

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale

Display mode:240(RGB) × 320 dot matrix, TFT-LCD module
Size: 2.4
Resolution: 240*320
Interface: SPI/MCU/RGB
Product description: Hicenda Technology Co.,ltd can supply high quality 2.4 inch small tft display for medical or industrial device.320*240 4tft Mini Driving recorder display 40pin
INQUIRY

1. Display Specifications

LCD Size: 2.4 inches
Dot Matrix Size: 320*240
LCD Color: 262K Full Color
Hardware Interface: SPI/MCU/RGB interface
Driver IC: ST7789V
Operating Temperature: -20 - 70
Working Power Supply: 3.3V
PIN NO: Welding 40Pin

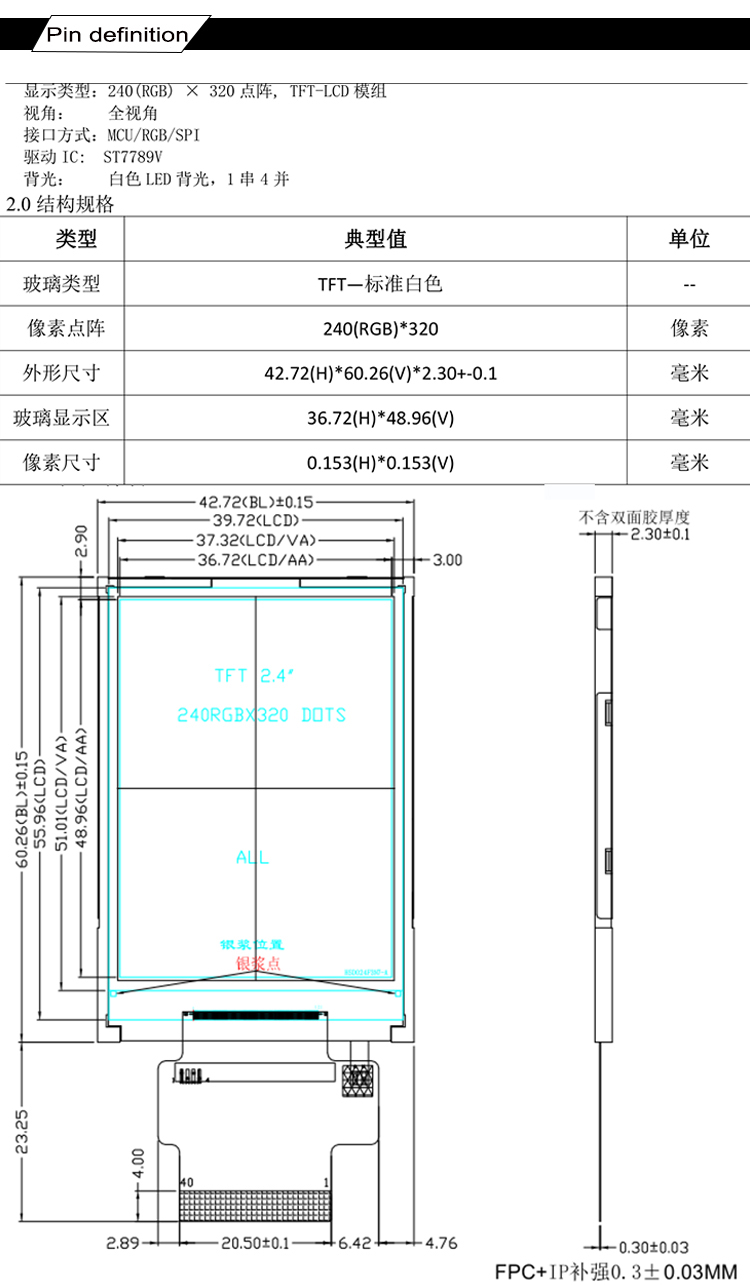

Display Area: 36.72*48.96mm
Size: 42.72*60.26*2.3mm
Viewing Direction: ALL VIEW

PIN No Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
