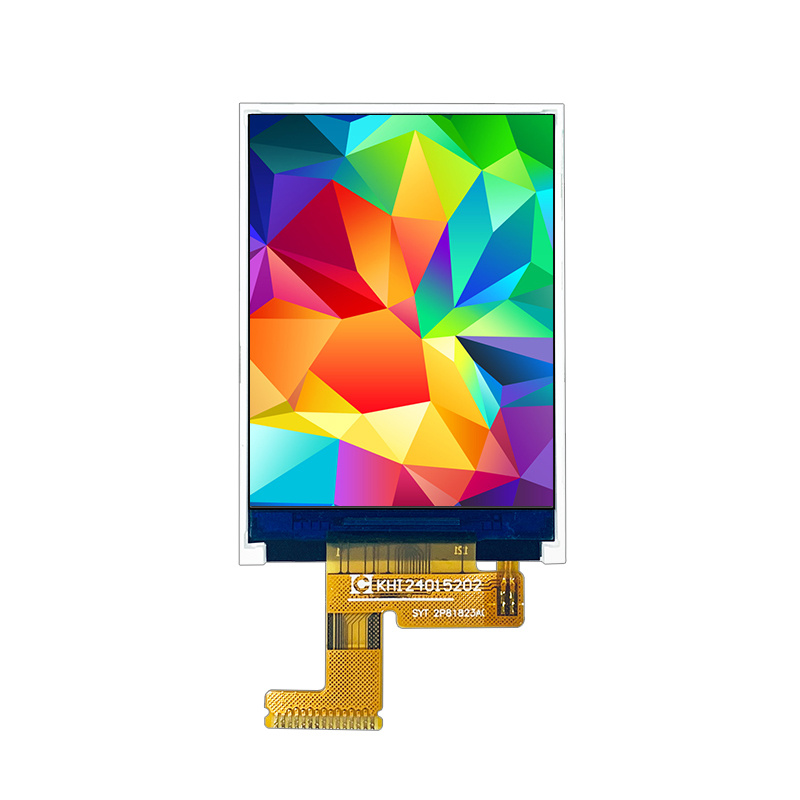

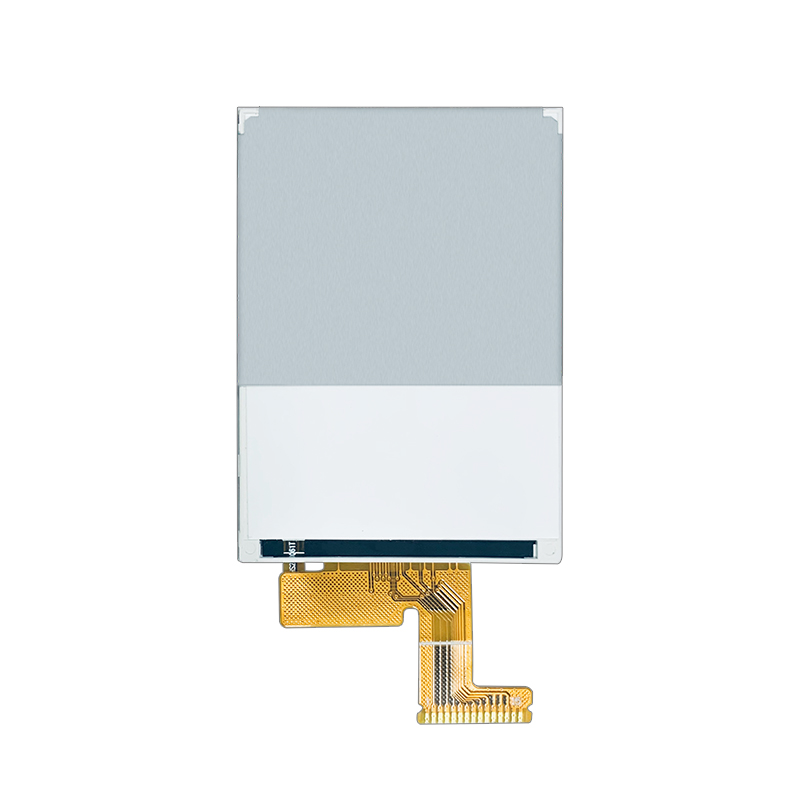

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale - 副本

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale - 副本

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale - 副本

2.4 inch 320*240 dots tft lcd display lcd screen of small smart Monitor China's wholesale - 副本

Glass type：TFT—Standard white
Size: 2.4
Resolution: 240*320
Interface: SPI
Product description: Hicenda Technology Co.,ltd can supply high quality 2.4 inch small tft display for medical or industrial device.320*240 4tft Mini Driving recorder display soldering 15pin
INQUIRY

1. Display Specifications

LCD Size: 2.4 inches
Dot Matrix Size: 320*240
LCD Color: 262K Full Color
Hardware Interface: SPI interface
Driver IC: ST7789V
Operating Temperature: -20 - 70
Working Power Supply: 3.3V
PIN NO: Welding 15Pin
Display Area: 36.72*48.96mm
Size: 42.72*60.26*2.3mm
Viewing Direction: ALL VIEW

PIN No Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
