3.0"

  • 3.0 inch tft lcd display 240*960 Dots
  • 3.0 inch tft lcd display 240*960 Dots
  • 3.0 inch tft lcd display 240*960 Dots
3.0 inch tft lcd display 240*960 Dots3.0 inch tft lcd display 240*960 Dots3.0 inch tft lcd display 240*960 Dots

3.0 inch tft lcd display 240*960 Dots

  • Display Mode:Active matrix TFT, Transmissive type
  • Size: 3.0
  • Resolution: 240*960 Dots
  • Interface:8-bit RGB serial port
  • Product description: Hicenda Technology Co.,ltd can supply high quality 3.0 inch small tft display for medical or industrial device.960*240 dot matrix 3.0 inch 8-bit RGB serial port tft lcd display for watch
  • INQUIRY


1. Display Specifications

  • LCD Size: 3.0 inches
  • Dot Matrix Size: 960*240
  • Backlight Type: White LED×2
  • Hardware Interface: 8-bit RGB serial port
  • Driver IC: ILI8961
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  40 Pin

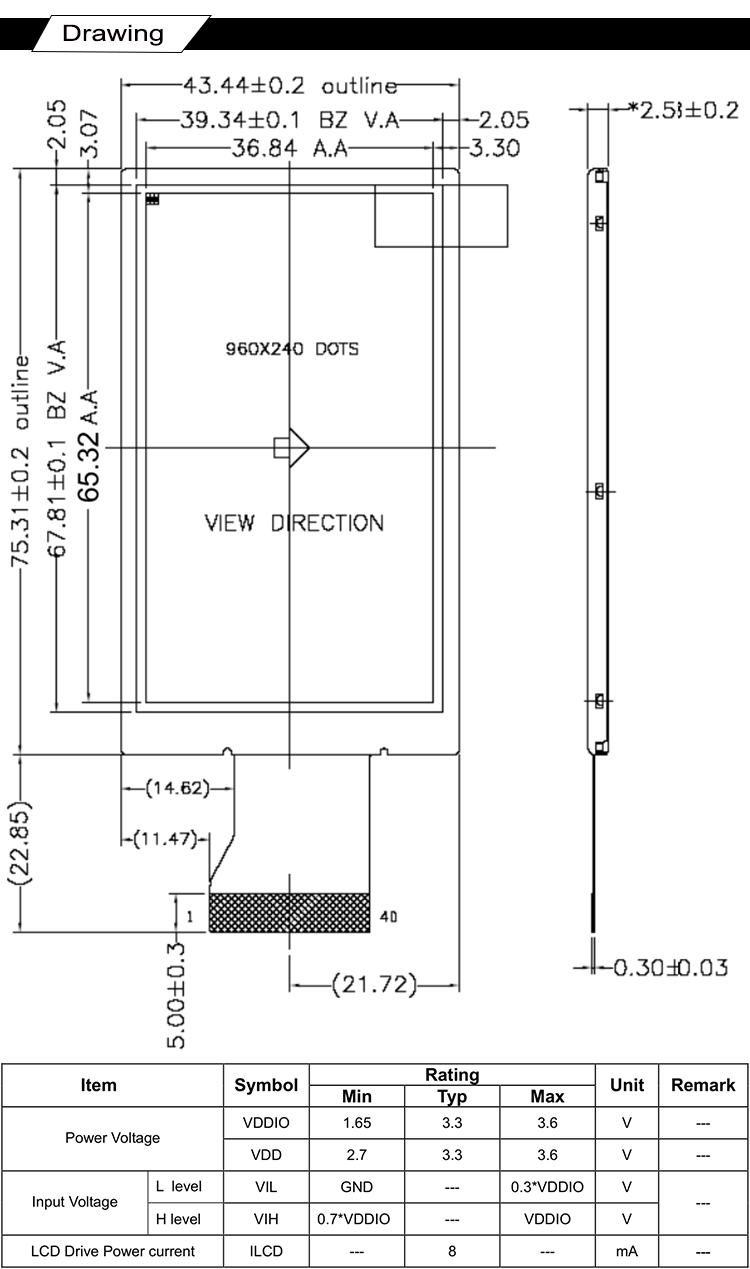

  • Display Area: 65.52*36.84mm
  • Size: 75.31*43.44*2.58mm
  • Viewing Direction: 6 O'CLOCK

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
