DESCRIPTION

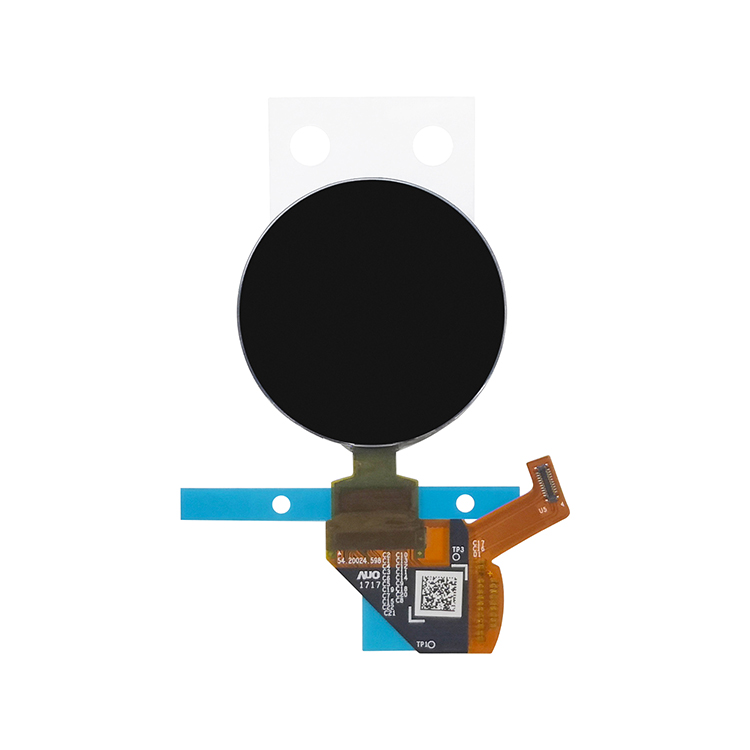

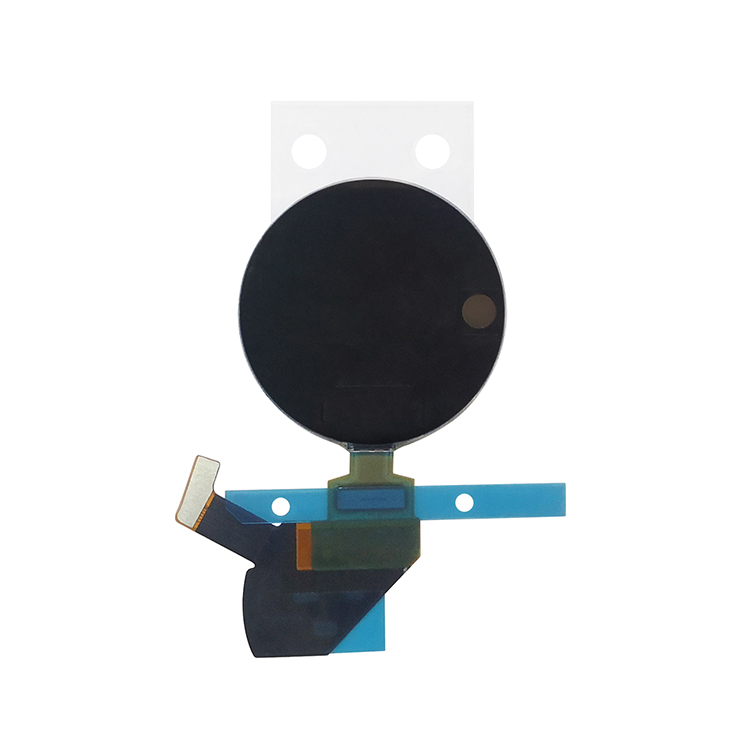

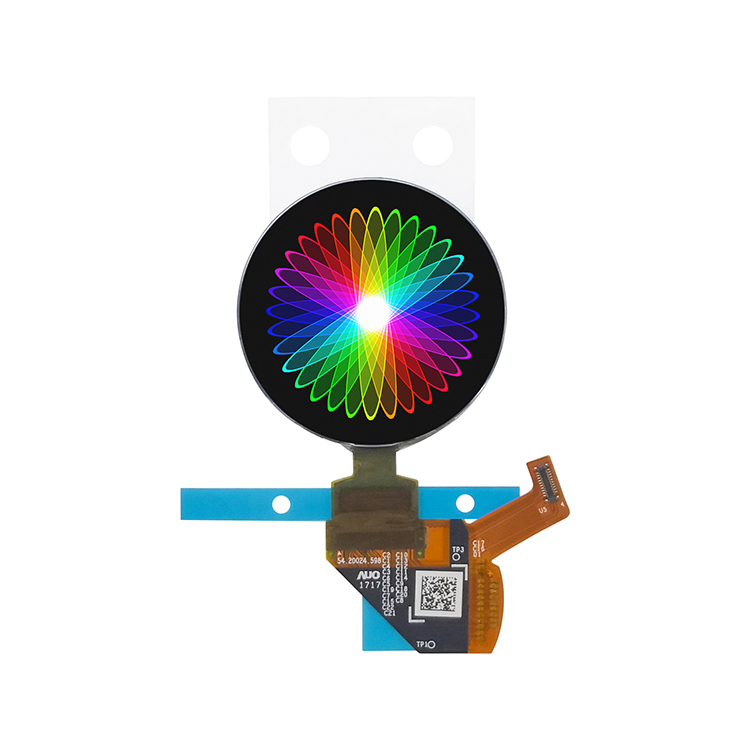

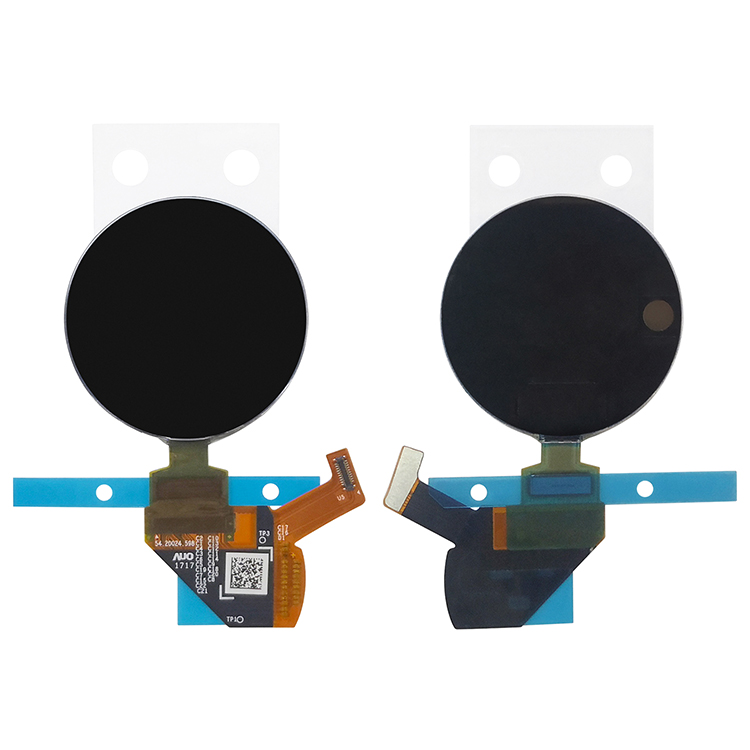

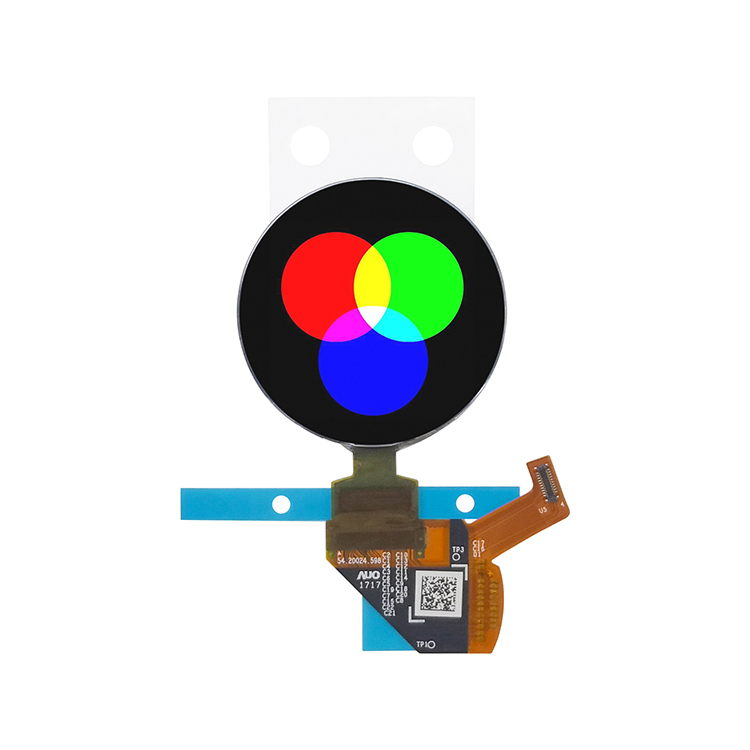

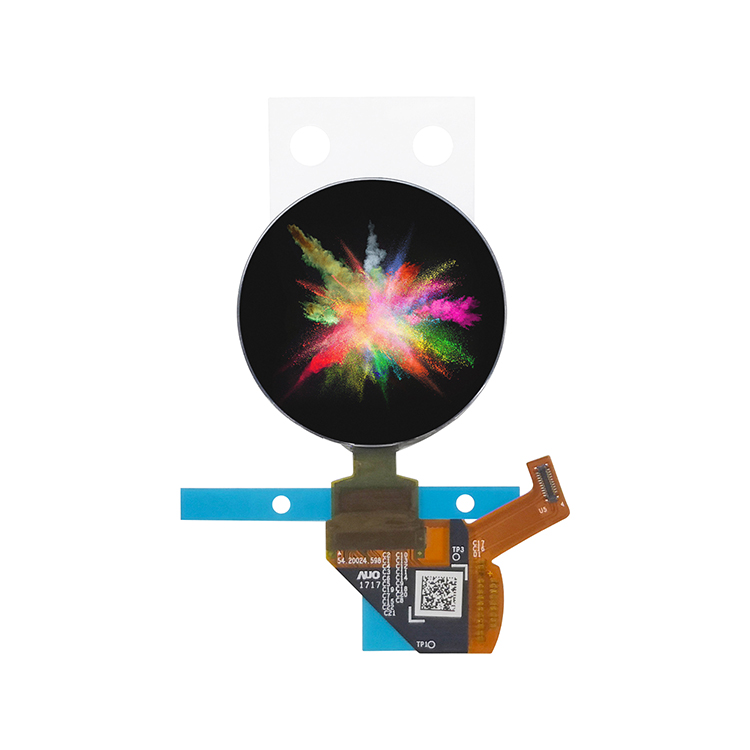

HICENDA OLED 1.2 is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin Film Transistors) as active switching devices. This module has a 1.39inch diagonally measured active area with 390X390 resolutions (390 horizontal by 390 vertical pixel arrays). Each pixel is div
ided into RED,GREEN, BLUE dots and this module can display 16.7M colors.
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | COLOR AMOLED |
| Model Number: |
H120BLN02.0
|
| Diagonal Screen size: | 1.39 inch |
| Interface: |
MIPI |
| Drive Duty: |
1/64 Duty |
| Number of Pixels: |
390X390 |
| Panel Size |
33.22 (H) × 33.75 (V) × 0.656(T)(mm)
|
| Driver IC: |
W022
|
| Active Area: |
30.42 (H)×30.42(V)
|
| Pixel Pitch: |
78(mm)
|
| Pixel Size: |
78*78 (mm)
|
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-40~85° |
DRAWING
INTERFACE PIN FUNCTION
