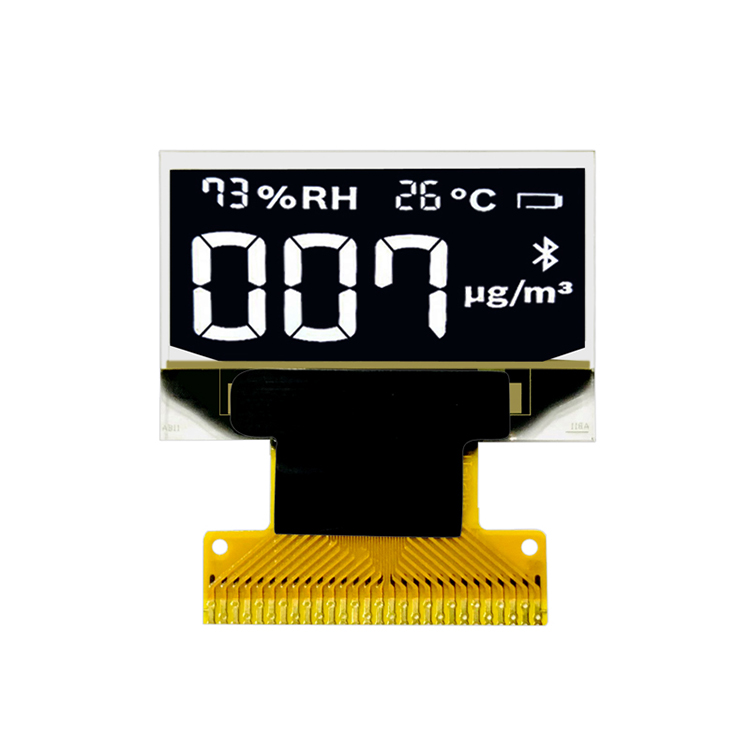

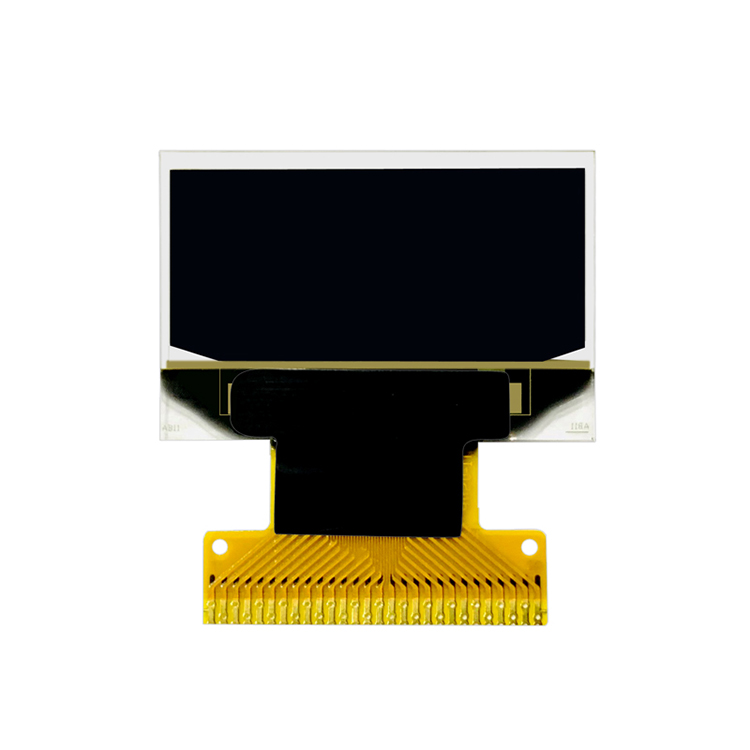

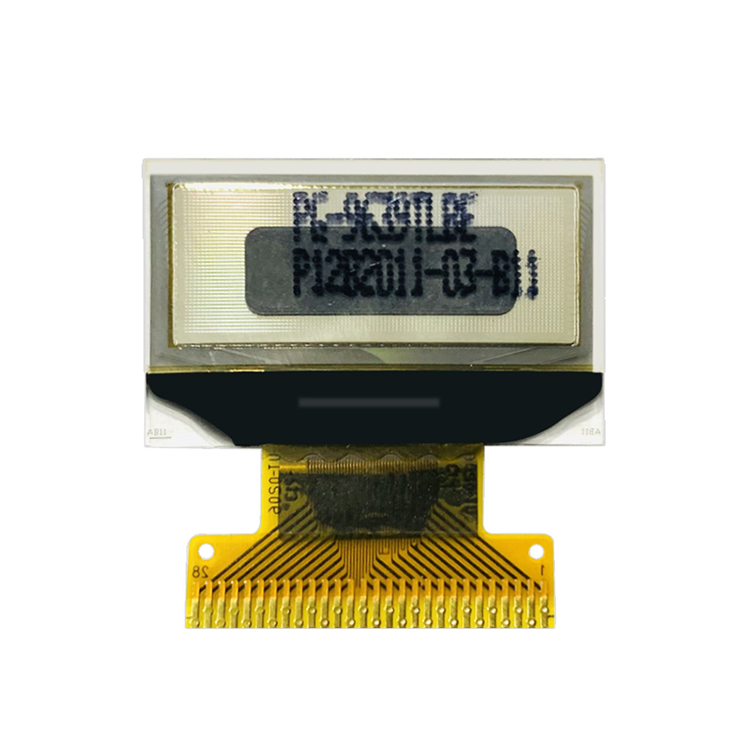

0.83" 96x39 OLED Micro Display

  • Size: 0.83 OLED
  • Controller IC: SSD1306
  • Resolution: 96x39
  • Interface:SPI /I2C 28p
  • Product description: Micro OLED Display,0.83" 96x39 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



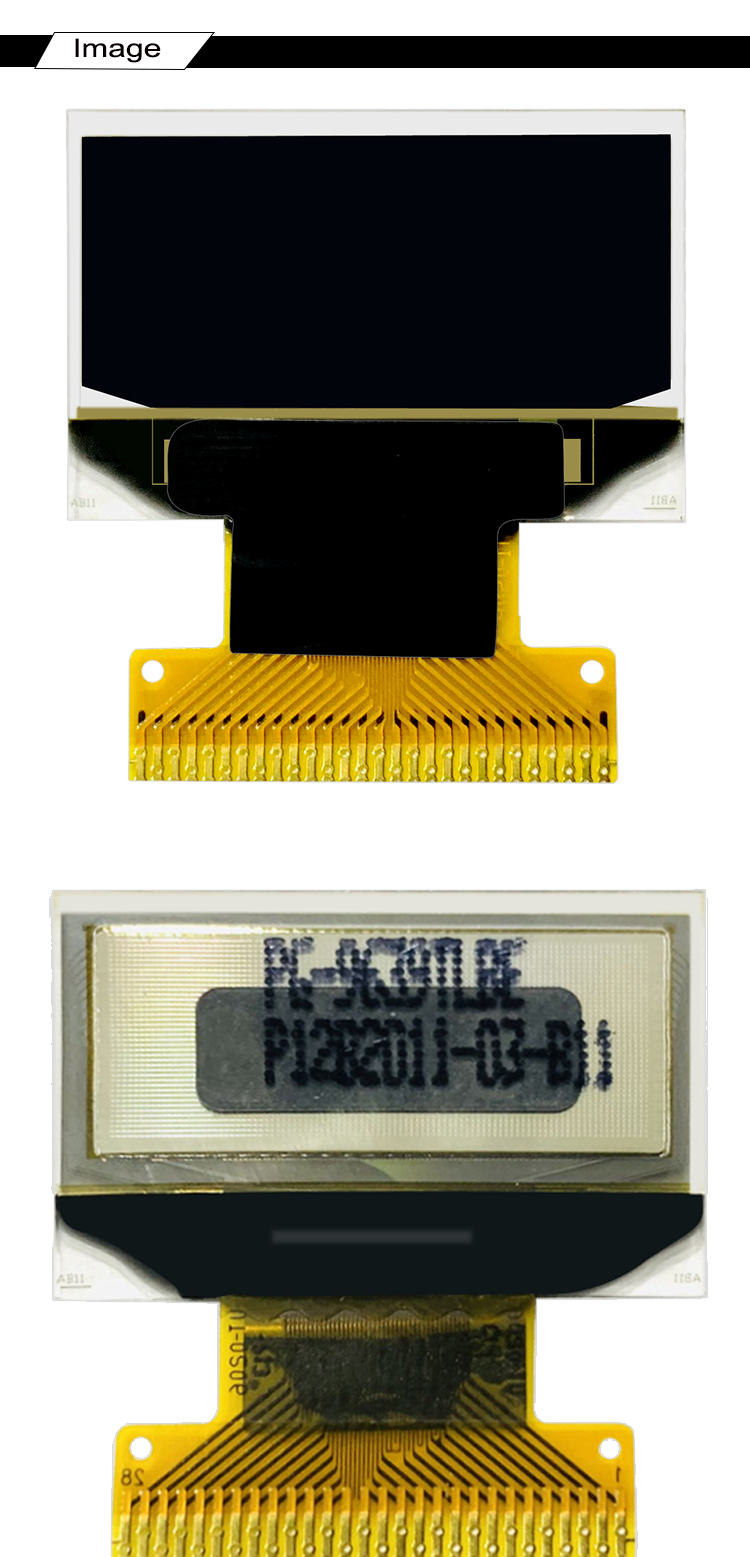

DESCRIPTION

HICENDA OLED 0.83 is a  passive matrix micro OLED display module which is made of 96x39 dots. It has the module dimension of 23.8(W) x16.2 (H) x 1.3(T) mm and Active Area size 19.372 × 7.858 (H) mm. This OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V-5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.83 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION

Diagonal Screen Size
0.83 inch
Color
Mono(White/Blue)
Model number
HT--071OLED1
Resolutions
96x39
Outline dimension
23.8x16.2x1.3mm
Active area
19.372x7.858mm
Pixel pitch
0.202x0.202mm
Pixel size
0.182x0.182mm
Driver IC
SSD1306
Voltage
3-5V
Interface
8-bit Parallel,3-/4-wire SPI,I2C
Operating temperature
-40~70℃
Storge Temperature
-40~80℃
Assemble
Soldering
Pins
28P



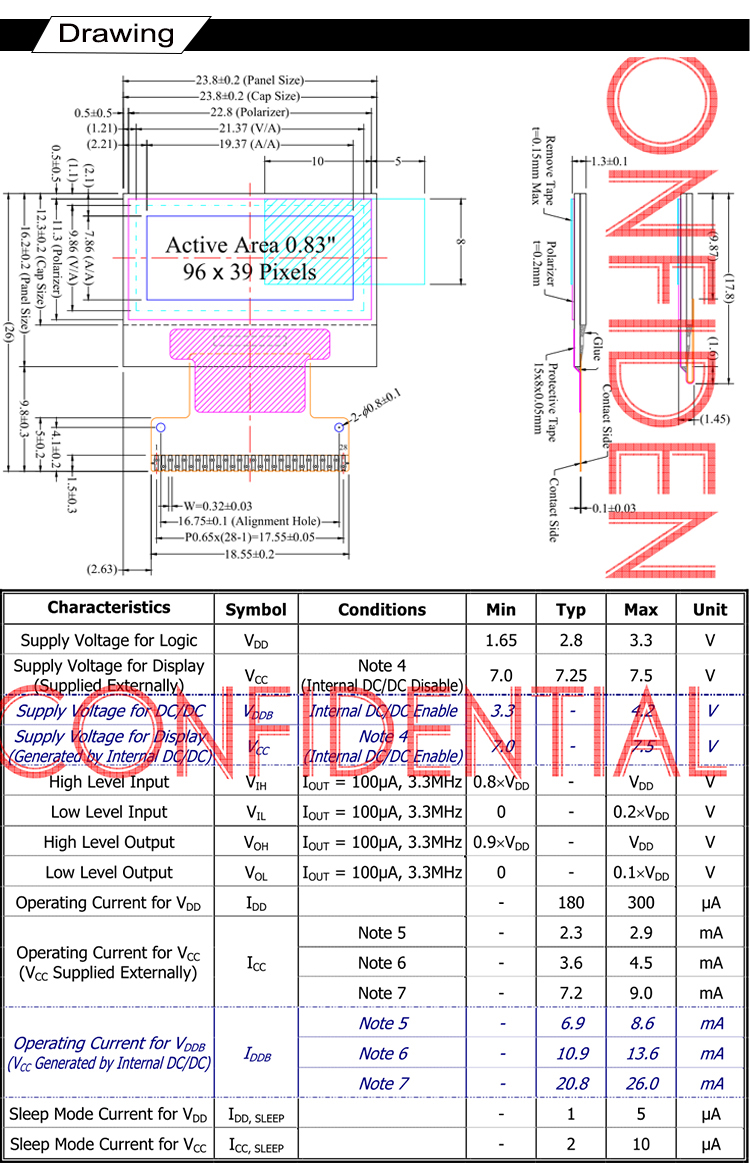

DRAWING



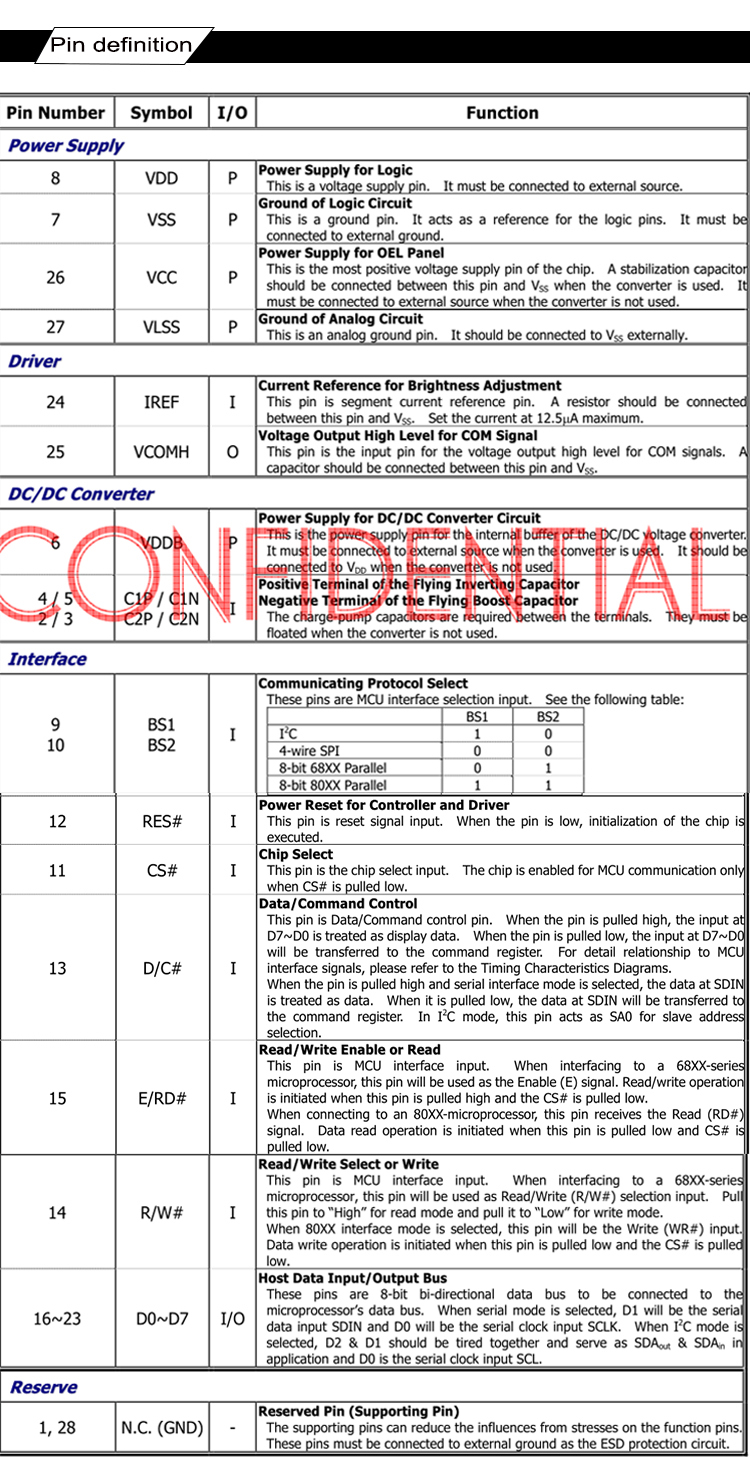

INTERFACE PIN FUNCTION
